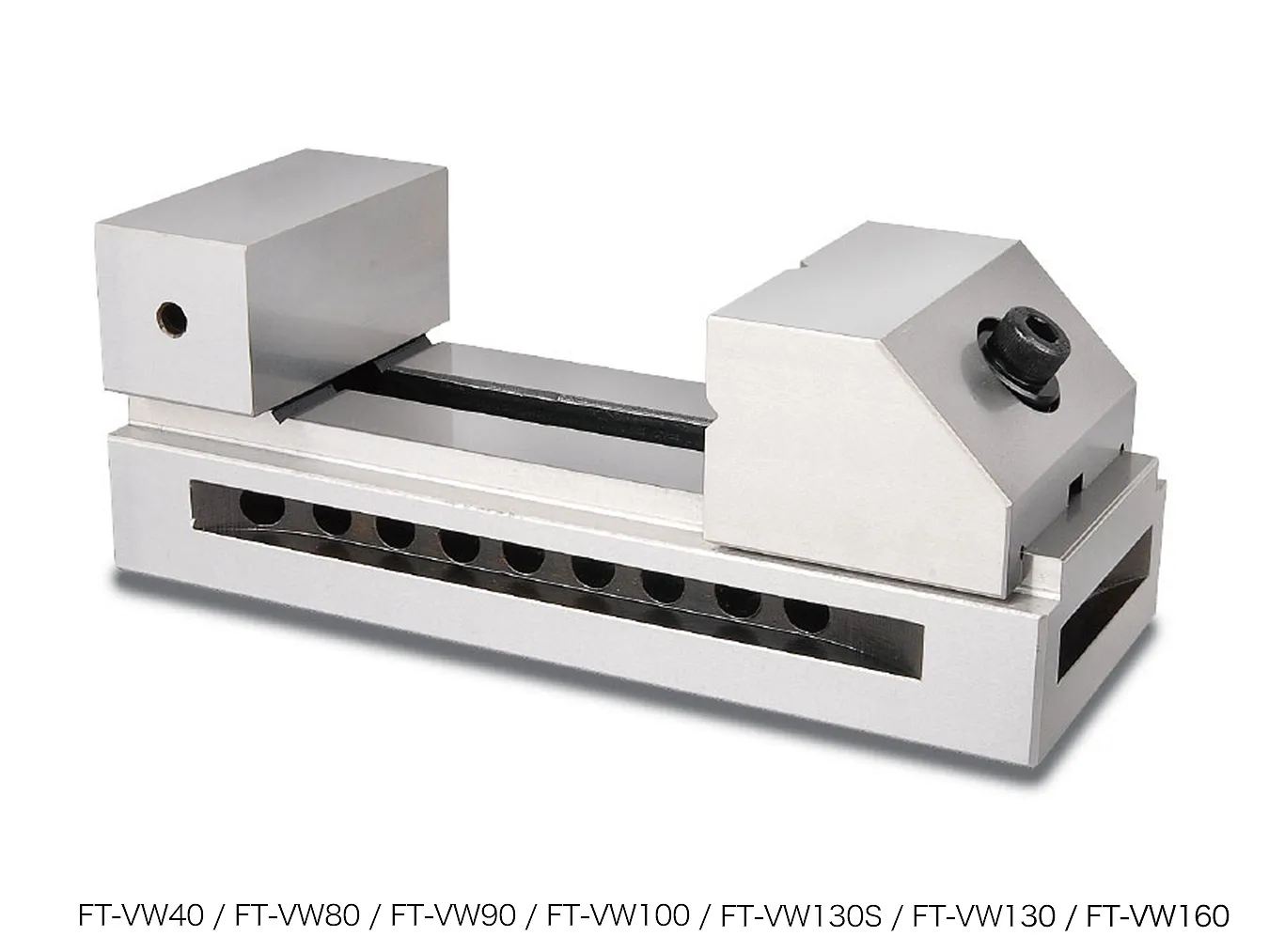

Precision Vise
Product NO: FT-VW
Price range: ¥26,000 through ¥296,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Features：The SK Precision Vice is a high-accuracy vice crafted from genuine, SK carbon tool steel.
Material：SK2
Hardness：ＨＲＣ55°～60°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.005 mm / 100mm
Inspection Certificate: Included
Storage Case: Included
Product Specifications (Variations)

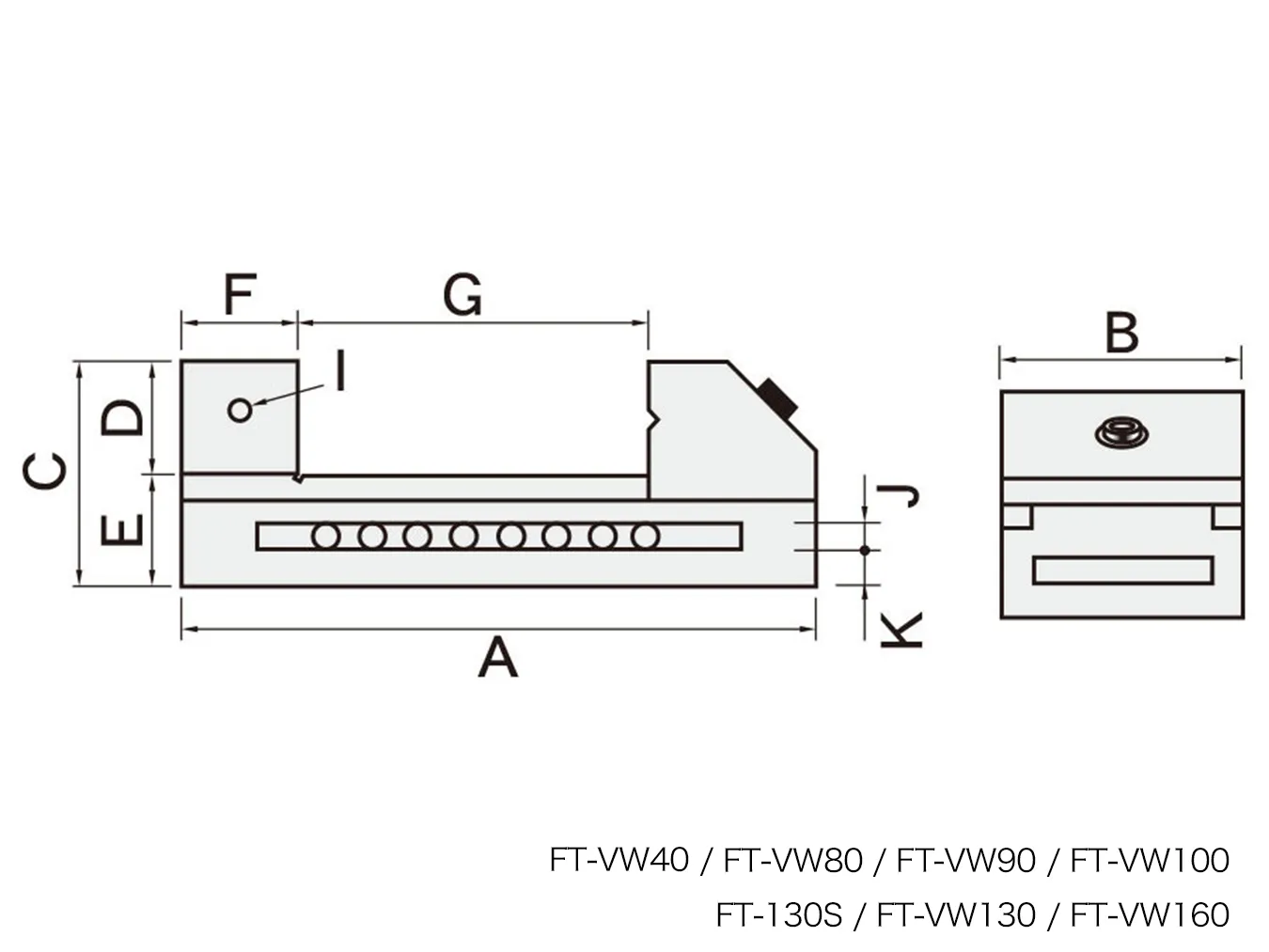

unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | I | J | K | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|

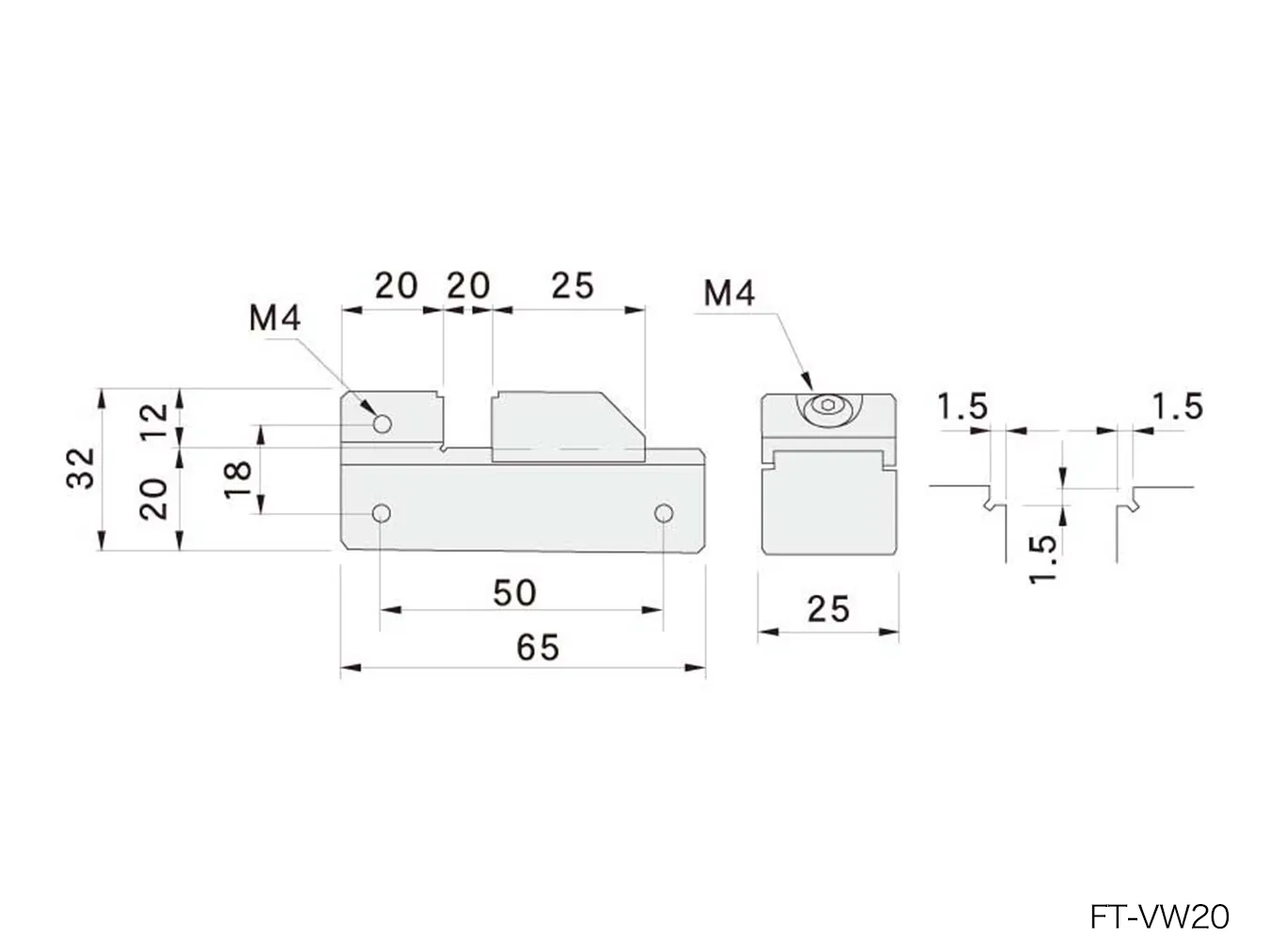

| FT-VW20 | 65 | 25 | 32 | 12 | 20 | 20 | 0-20 | M4 | --- | --- | 0.3kg |
| FT-VW40 | 105 | 36 | 48 | 20 | 28 | 25 | 0-40 | M6 | 7 | 9 | 0.9kg |
| FT-VW80 | 150 | 50 | 53 | 25 | 28 | 30 | 0-80 | M6 | 8 | 8 | 1.6kg |
| FT-VW90 | 175 | 63 | 63 | 32 | 31 | 35 | 0-90 | M6 | 10 | 11 | 2.9kg |
| FT-VW100 | 190 | 73 | 70 | 35 | 35 | 35 | 0-100 | M6 | 10 | 12 | 4.3kg |
| FT-VW130S | 235 | 88 | 80 | 40 | 40 | 40 | 0-130 | M8 | 12 | 14 | 6.8kg |
| FT-VW130 | 245 | 100 | 90 | 45 | 45 | 45 | 0-130 | M8 | 12 | 16 | 10kg |
| FT-VW160 | 285 | 125 | 100 | 50 | 50 | 45 | 0-160 | M8 | 14 | 18 | 15kg |

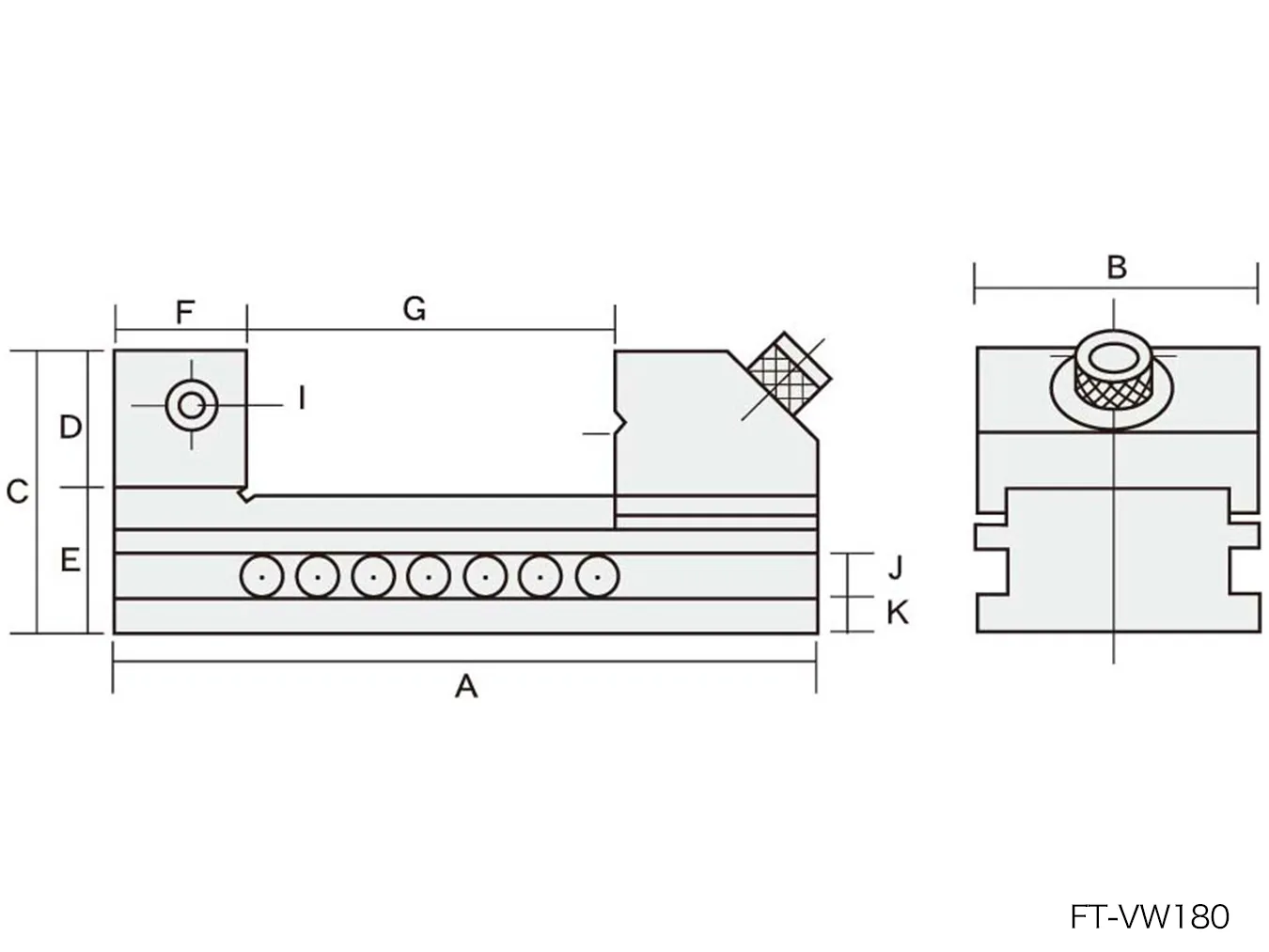

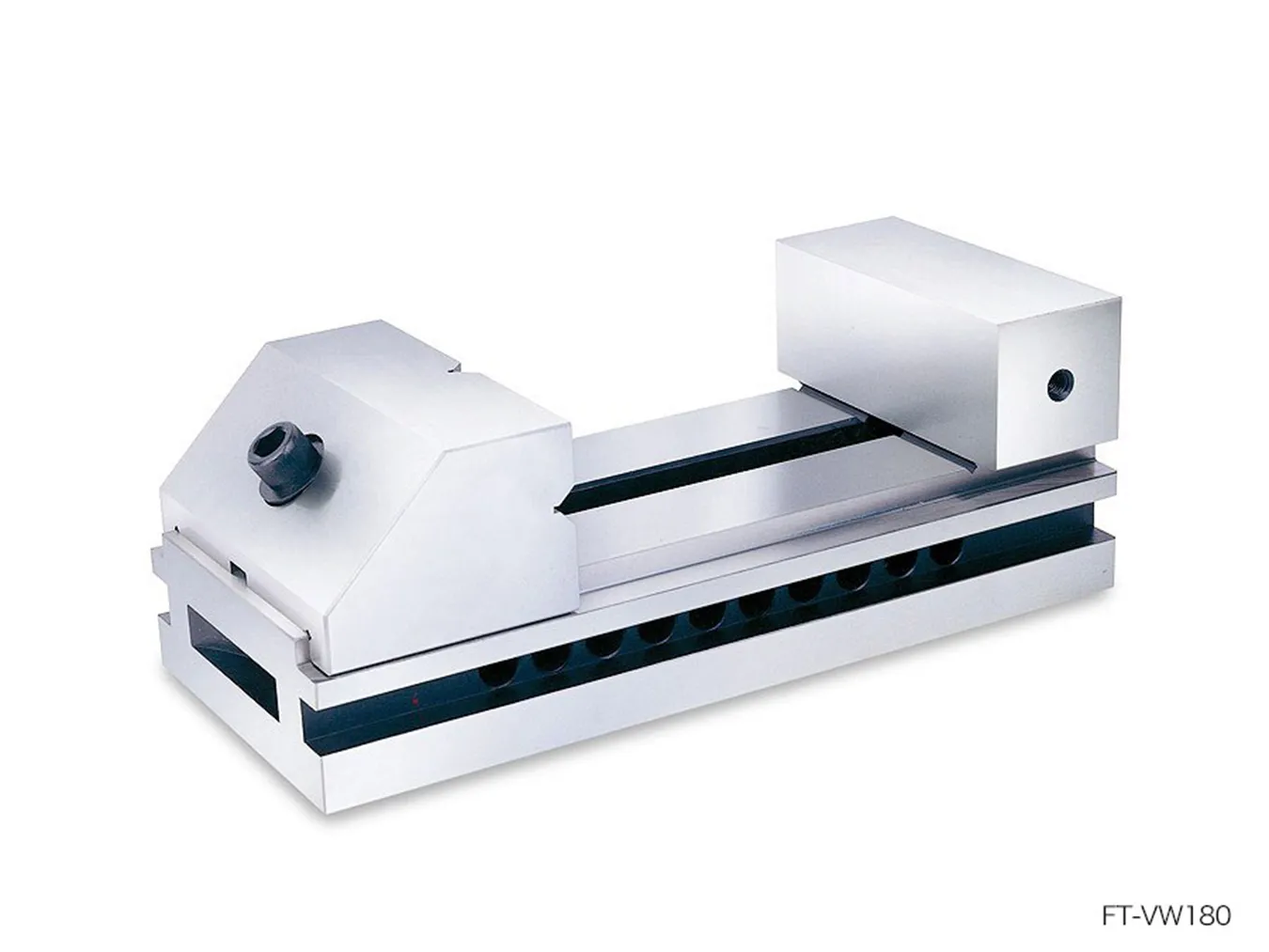

| FT-VW180 | 330 | 150 | 100 | 50 | 50 | 50 | 0-180 | M8 | 14 | 18 | 20kg |
| FT-VW205 | 360 | 200 | 110 | 55 | 55 | 55 | 0-205 | M10 | 14 | 20.5 | 33kg |
