Precision Hydraulic Vise
Product NO: FT-PGV
Price range: ¥318,000 through ¥478,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Features：Adopting hydraulic structure with stronger clamping force.
Material：Tool Steel
Hardness：HRC52°～58°
Parallelism:within 0.005mm/100mm
Squareness:within 0.008mm/100mm
Max clamping force：1,500kgf
Inspection Certificate: Included
Includes two dedicated clamps.
Storage Case: Included

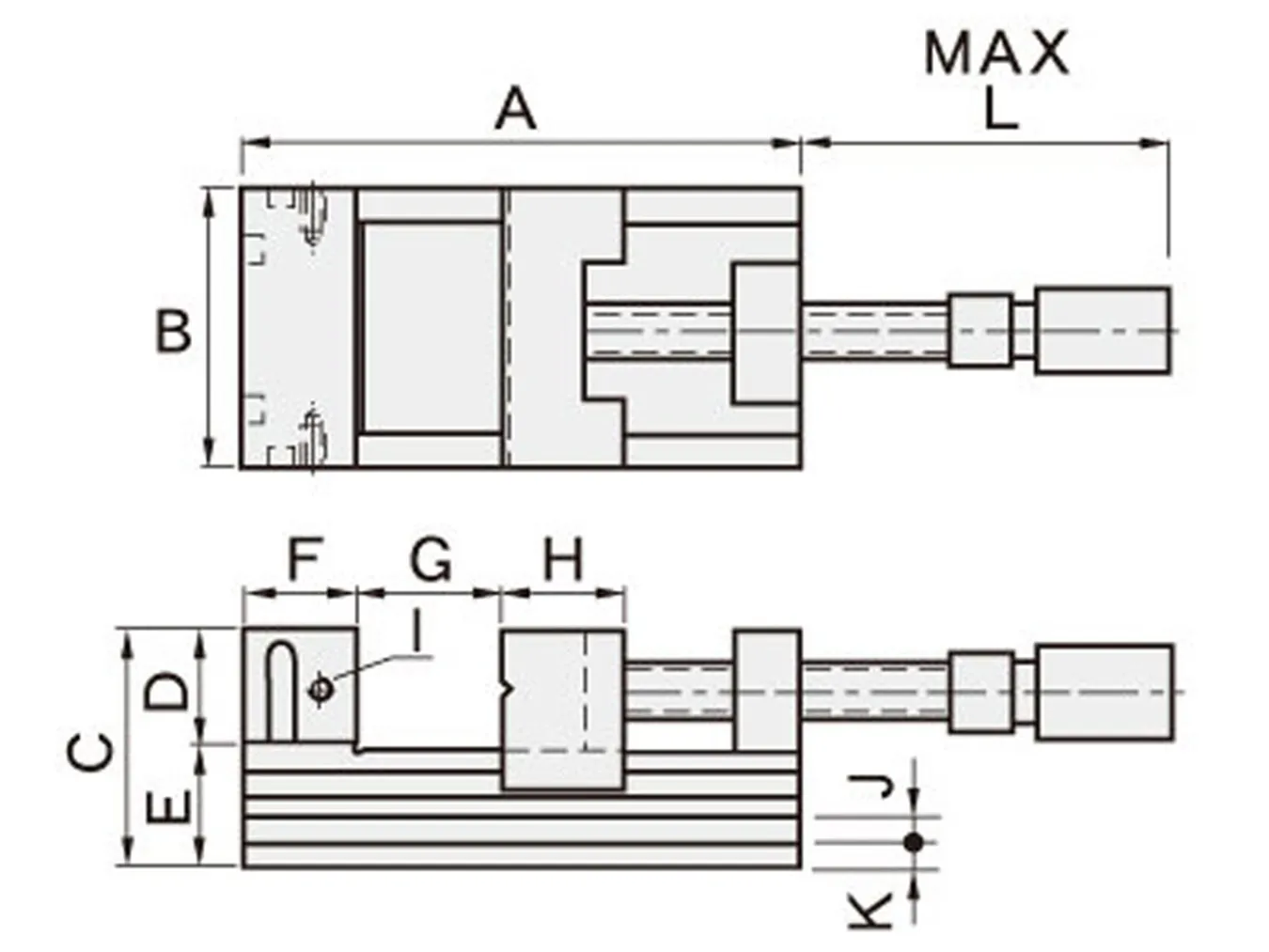

Product Specifications (Variations)
unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | H | I | J(W×D) | K | L | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-PGV100 | 220 | 100 | 80 | 40 | 40 | 40 | 0-110 | 50 | M10 | 9×7 | 9.5 | 235 | 11.1kg |
| FT-PGV125 | 300 | 125 | 90 | 40 | 50 | 60 | 0-165 | 70 | M10 | 11×7 | 12.5 | 290 | 20.6kg |
| FT-PGV150 | 340 | 150 | 95 | 45 | 50 | 60 | 0-210 | 70 | M10 | 12×11 | 14 | 340 | 23.5kg |
