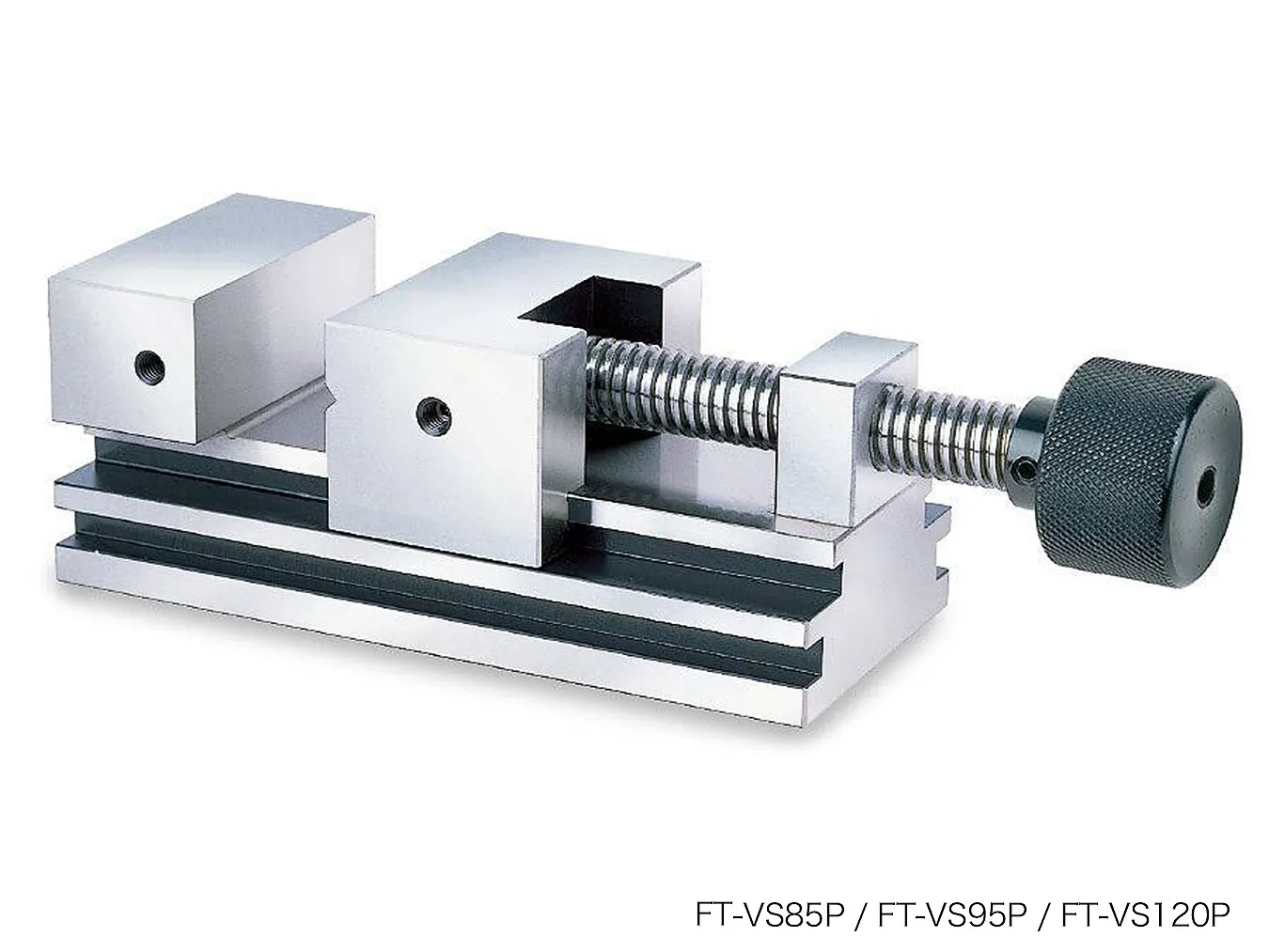

Precision Vise
Product NO: FT-VS-P
Price range: ¥98,000 through ¥239,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Features：The SK Precision Vice is a high-accuracy vice crafted from genuine, SK carbon tool steel.
Material：SK2
Hardness：HRC56°～58°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.004 mm / 100mm
Inspection Certificate: Included
Storage Case: Included
Product Specifications (Variations)

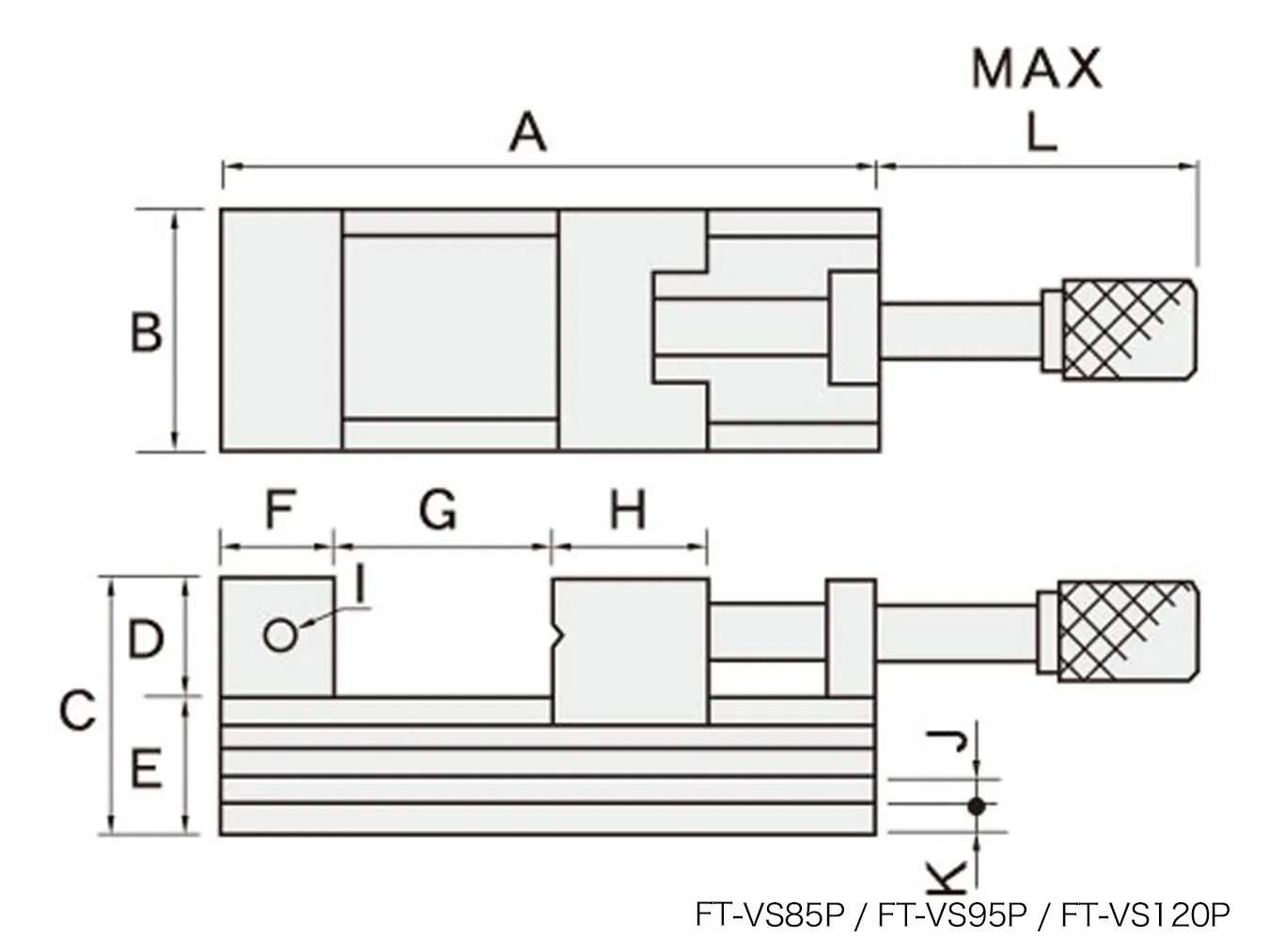

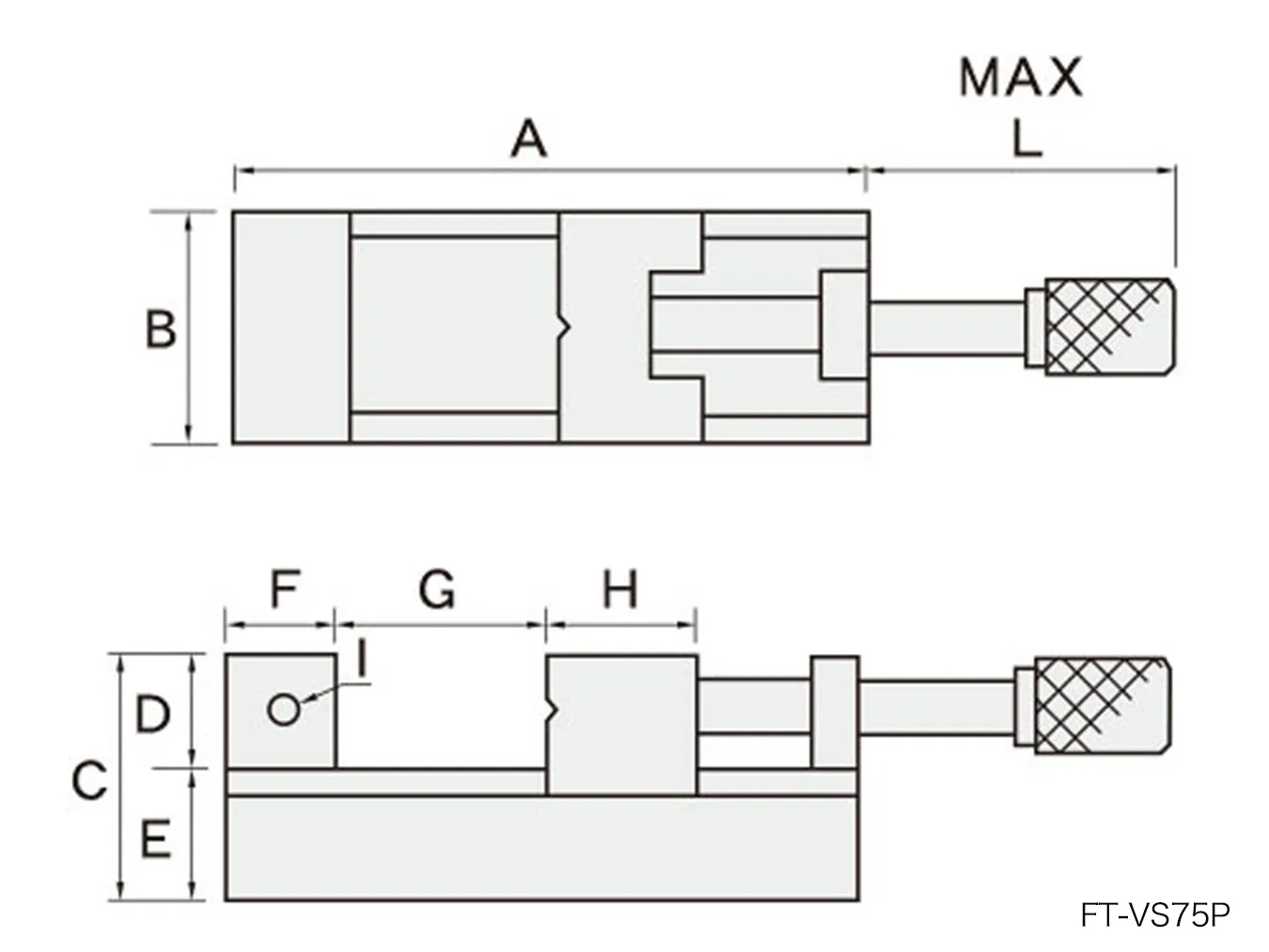

unit：mm| Product NO | A | B(Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | H | I | J | K | L | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-VS75P | 140 | 48 | 55 | 25 | 30 | 25 | 0-75 | 40 | M6 | - | - | 117 | 2.3kg |
| FT-VS85P | 160 | 63 | 69 | 30 | 39 | 30 | 0-85 | 45 | M6 | 8 | 9 | 129 | 3.8kg |
| FT-VS95P | 180 | 73 | 78 | 35 | 43 | 35 | 0-95 | 50 | M6 | 8 | 10 | 132 | 6.0kg |
| FT-VS120P | 230 | 98 | 92 | 45 | 47 | 45 | 0-120 | 50 | M8 | 10 | 11 | 172 | 11.3kg |
