2-Jaw Steel Body Chucks
Product NO: FT-TNT
Price range: ¥208,000 through ¥256,000
Specification
●Serrated-jaw type compatible with soft jaws designed for power chucks.
●Both hard jaws and soft jaws can be adjusted forward and backward to expand the gripping range.
●The chuck body is made of high-rigidity steel to withstand high-speed machining operations.
●Can be mounted from either the front or rear side.
●Standard accessory: Soft jaws.
Product Specifications (Variations)
unit：mm| Product NO | A | B | C | D | E | F | G | H | J | K | L | M | R | Max.Speed（min-1） | Max.Gripping Diameter O.D. | Max.Gripping Diameter I.D. | weight（kg） | Compatible soft jaws |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-TNT07 | 193 | 78 | 155 | 172 | 58 | 5 | 3-M10×1.5P | 73 | 31 | 38 | 11 | 20 | 12 | 3200 | Ø8～Ø235 | Ø66～Ø235 | 14.4 | FT-SJ06 |
| FT-TNT09 | 233 | 85 | 190 | 210 | 70 | 5.5 | 3-M12×1.75P | 95 | 35 | 40 | 12 | 25 | 14 | 2800 | Ø11～Ø280 | Ø85～Ø280 | 22.3 | FT-SJ08 |

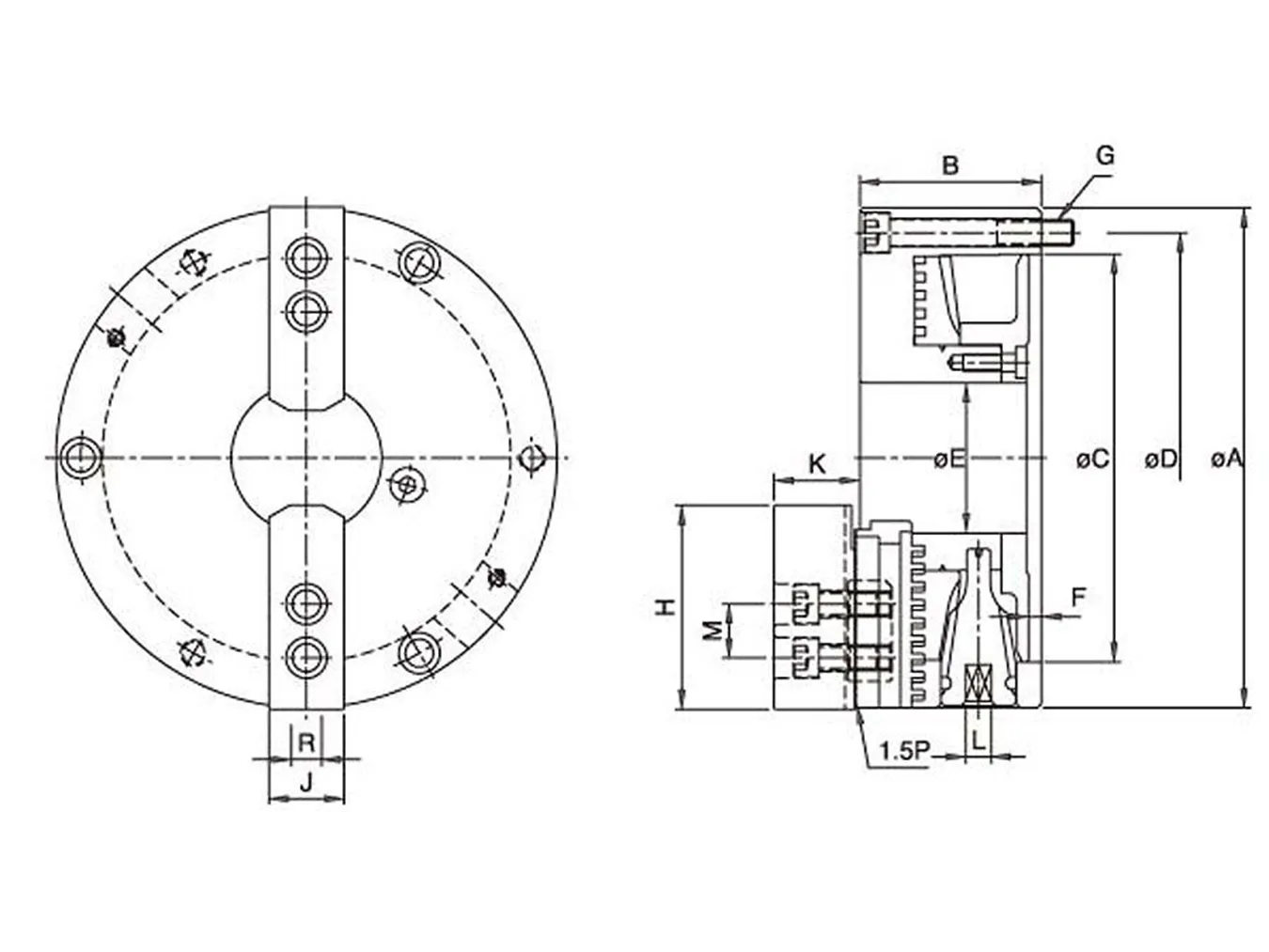

Drawing
You can download drawings for various products below.
Related products
-

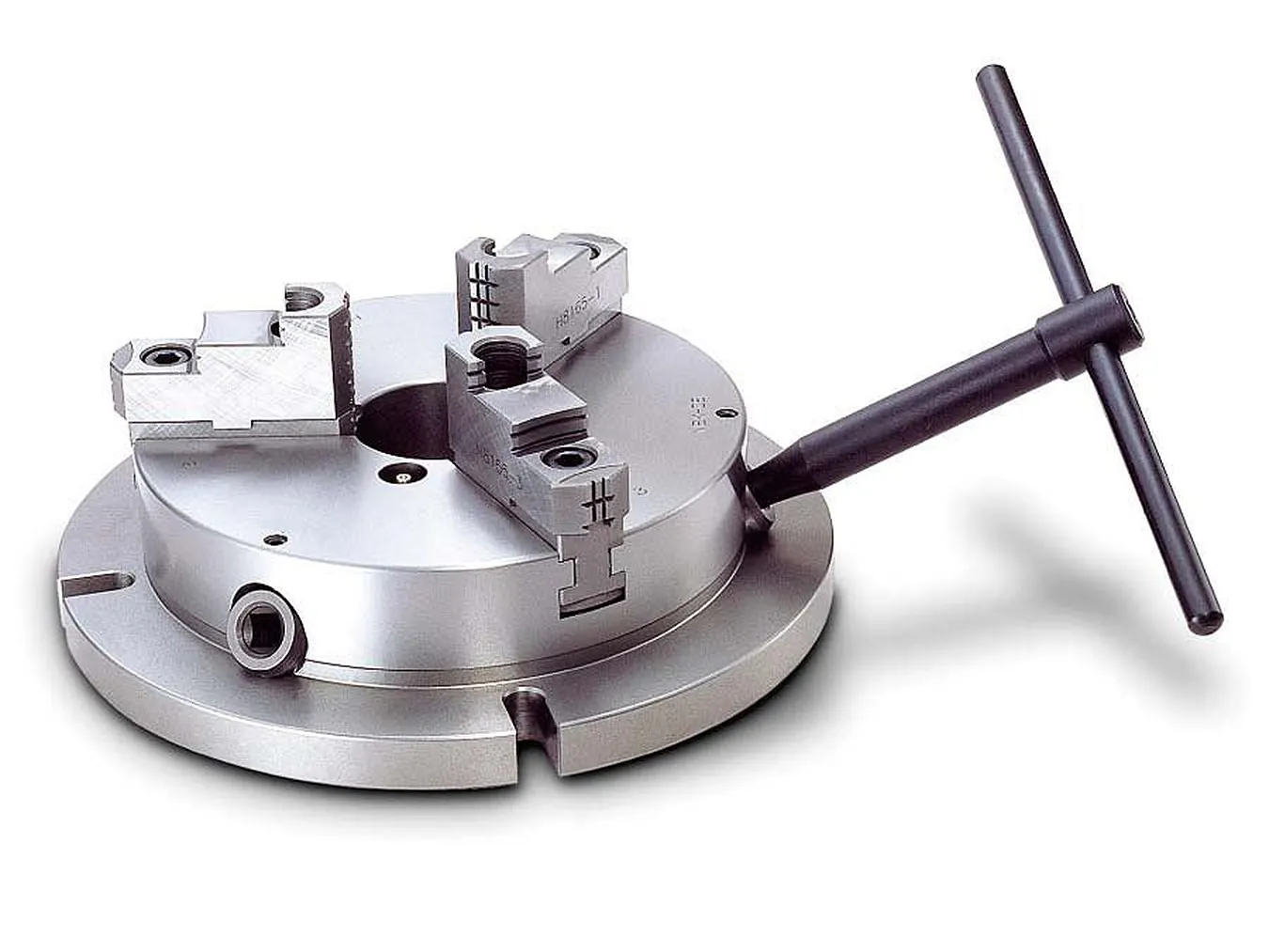

Powerful Type Super Thin Chucks
