4-Jaw Powerful Type Adjustment Steel Body Chucks
Product NO: FT-FKT
Price range: ¥228,000 through ¥500,000
Specification
●When extremely high accuracy is required, or when the chuck’s gripping accuracy has deteriorated, runout can be easily corrected using the adjustment bolts.
●Runout adjustment range: up to 0.01 mm.
●The chuck body is made of high-rigidity steel to withstand high-speed machining operations.
●Standard accessories: Hard jaws
●Soft jaws are available separately and are not included as standard.Please purchase a set of four soft jaws.
Product Specifications (Variations)
unit：mm| Product NO | A | B | C | D | E | F | G | H | J | K | L | M | Max.Speed（min-1） | Max.Gripping Diameter O.D. | Max.Gripping Diameter I.D. | weight（kg） | Compatible soft jaws |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-FKT07 | 193 | 85 | 155 | 172 | 58 | 12 | 3-M10×1.5P | 82 | 28 | 43 | 11 | 3-M12×1.75P | 3500 | Ø8～Ø180 | Ø62～Ø170 | 14.1 | FT-SO07JAWS-4 |
| FT-FKT09 | 233 | 92 | 190 | 210 | 70 | 12.5 | 3-M12×1.75P | 93 | 32 | 51 | 12 | 3-M12×1.75P | 2900 | Ø11～Ø220 | Ø70～Ø210 | 22 | FT-SO09JAWS-4 |
| FT-FKT10 | 275 | 98 | 230 | 250 | 89 | 12.5 | 3-M12×1.75P | 102 | 35 | 54 | 12 | 3-M12×1.75P | 2500 | Ø12～Ø260 | Ø80～Ø250 | 33.5 | FT-SO09JAWS-4 |
| FT-FKT12 | 310 | 111 | 260 | 285 | 105 | 14 | 3-M12×1.75P | 118 | 40 | 58 | 14 | 3-M12×1.75P | 2200 | Ø15～Ø300 | Ø90～Ø290 | 46.1 | FT-SO12JAWS-4 |

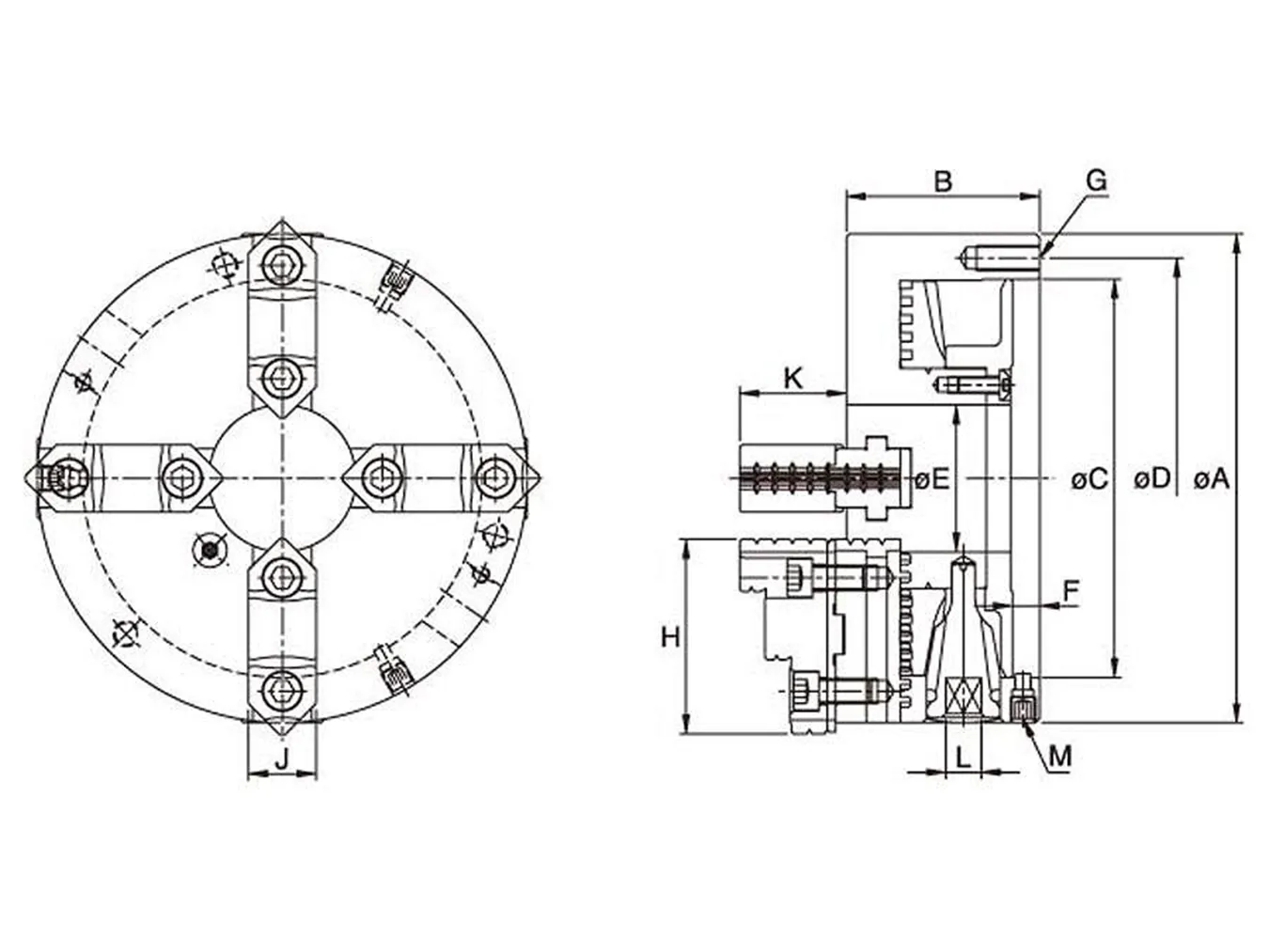

Drawing
You can download drawings for various products below.
