3-Jaw Powerful Type Scroll Chucks

Product NO: FT-SK

Quote upon request

The suffix “F” indicates a front-mount type.

Product name
Product NO
Chuck outer diameter
Price
Stock
Quantity
3-Jaw Powerful Type Scroll Chucks
FT-SK04
112mm
¥80,000

0 in stock, back ordered

3-Jaw Powerful Type Scroll Chucks
FT-SK05
132mm
¥88,000

2 in stock (can be backordered)

3-Jaw Powerful Type Scroll Chucks
FT-SK06
167mm
¥96,000

0 in stock, back ordered

3-Jaw Powerful Type Scroll Chucks
FT-SK07
193mm
¥112,000

2 in stock (can be backordered)

3-Jaw Powerful Type Scroll Chucks
FT-SK08
203mm
¥136,000

This is a back-order item

3-Jaw Powerful Type Scroll Chucks
FT-SK09
233mm
¥144,000

1 in stock (can be backordered)

3-Jaw Powerful Type Scroll Chucks
FT-SK10
273mm
¥200,000

2 in stock (can be backordered)

3-Jaw Powerful Type Scroll Chucks
FT-SK12
310mm
¥274,000

1 in stock (can be backordered)

3-Jaw Powerful Type Scroll Chucks
FT-SK16
405mm
¥652,000

This is a back-order item

3-Jaw Powerful Type Scroll Chucks
FT-SK04F
112mm
¥80,000

0 in stock, back ordered

3-Jaw Powerful Type Scroll Chucks
FT-SK05F
132mm
¥88,000

1 in stock (can be backordered)

3-Jaw Powerful Type Scroll Chucks
FT-SK06F
167mm
¥96,000

2 in stock (can be backordered)

3-Jaw Powerful Type Scroll Chucks
FT-SK07F
193mm
¥112,000

2 in stock (can be backordered)

3-Jaw Powerful Type Scroll Chucks
FT-SK08F
203mm
¥136,000

This is a back-order item

3-Jaw Powerful Type Scroll Chucks
FT-SK09F
233mm
¥144,000

This is a back-order item

3-Jaw Powerful Type Scroll Chucks
FT-SK10F
273mm
¥200,000

This is a back-order item

3-Jaw Powerful Type Scroll Chucks
FT-SK12F
310mm
¥274,000

0 in stock, back ordered

3-Jaw Powerful Type Scroll Chucks
FT-SK14F
355mm
Quote upon request

This is a back-order item

3-Jaw Powerful Type Scroll Chucks
FT-SK16F
405mm
¥652,000

This is a back-order item

3-Jaw Powerful Type Scroll Chucks
FT-SK20F
500mm
Quote upon request

This is a back-order item

3-Jaw Powerful Type Scroll Chucks
FT-SK25F
630mm
Quote upon request

This is a back-order item

3-Jaw Powerful Type Scroll Chucks
FT-SKB25F
630mm
Quote upon request

This is a back-order item

Specification

●Standard accessories: Hard jaws (combination type for both internal and external gripping).

●Soft jaws are available separately and are not included as standard.

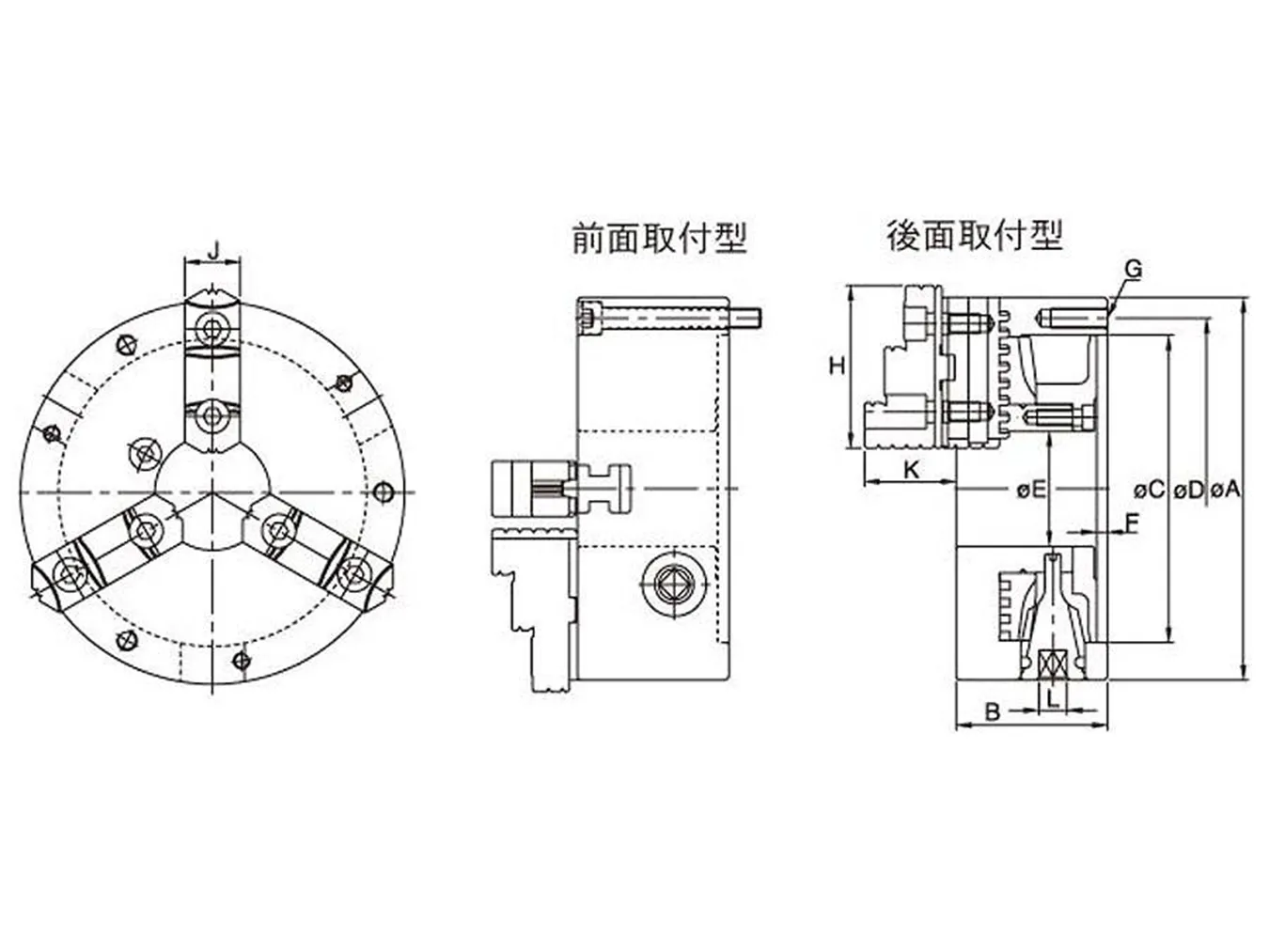

Product Specifications (Variations)

unit：mm
Product NOABCDEFGHJKLMax.Speed（min-1）Max.Gripping Diameter O.D.Max.Gripping Diameter I.D.weight（kg）Compatible soft jaws
FT-SK04112588095244.53-M8×1.25P471931.582500Ø3～Ø100Ø35～Ø933.45FT-SO04JAWS
FT-SK0513260100115324.53-M8×1.25P57243682500Ø3～Ø123Ø43～Ø1225FT-SO05JAWS
FT-SK06167661301474553-M10×1.5P682639102000Ø8～Ø160Ø55～Ø1508.6FT-SO06JAWS
FT-SK07193761551725853-M10×1.5P822843112000Ø8～Ø180Ø62～Ø17012.8FT-SO07JAWS
FT-SK08203761601765853-M10×1.5P822843112000Ø8～Ø180Ø62～Ø17014.1FT-SO07JAWS
FT-SK0923384190210705.53-M12×1.75P933250122000Ø11～Ø220Ø70～Ø21020.4FT-SO09JAWS
FT-SK1027386230250895.53-M12×1.75P1023554.5121800Ø12～Ø260Ø80～Ø25026.7FT-SO09JAWS
FT-SK123109626028510573-M12×1.75P1184056141800Ø15～Ø300Ø90～Ø29039.3FT-SO12JAWS
FT-SK1640512234537516086-M14×2P1505075151500Ø30～Ø400Ø110～Ø38082.3FT-SO16JAWS
FT-SK04F112588095244.53-M8×1.25P471931.582500Ø3～Ø100Ø35～Ø933.45FT-SO04JAWS
FT-SK05F13260100115324.53-M8×1.25P57243682500Ø3～Ø123Ø43～Ø1225FT-SO05JAWS
FT-SK06F167661301474553-M10×1.5P682639102000Ø8～Ø160Ø55～Ø1508.6FT-SO06JAWS
FT-SK07F193761551725853-M10×1.5P822843112000Ø8～Ø180Ø62～Ø17012.8FT-SO07JAWS
FT-SK08F203761601765853-M10×1.5P822843112000Ø8～Ø180Ø62～Ø17014.1FT-SO07JAWS
FT-SK09F23384190210705.53-M12×1.75P933250122000Ø11～Ø220Ø70～Ø21020.4FT-SO09JAWS
FT-SK10F27386230250895.53-M12×1.75P1023554.5121800Ø12～Ø260Ø80～Ø25026.7FT-SO09JAWS
FT-SK12F3109626028510573-M12×1.75P1184056141800Ø15～Ø300Ø90～Ø29039.3FT-SO12JAWS
FT-SK14F35511230032812776-M12×1.75P1394570.5151500Ø25～Ø350Ø110～Ø32060.7FT-SO16JAWS
FT-SK16F40512234537516086-M14×2P1505075151500Ø30～Ø400Ø110～Ø38082.3FT-SO16JAWS
FT-SK20F5001404204582055.56-M16×2P1405584191000Ø25～Ø480Ø125～Ø460145.5FT-SO20JAWS
FT-SK25F6301405455862756.56-M16×2P140709219850Ø80～Ø630Ø198～Ø601221.3FT-SO20JAWS
FT-SKB25F6301405455863206.56-M16×2P140709219850Ø160～Ø630Ø274～Ø646208.5FT-SO20JAWS

Drawing

You can download drawings for various products below.

Product NOPDF2DCAD3DCAD
FT-SK04DownloadDownloadDownload
FT-SK05DownloadDownloadDownload
FT-SK06DownloadDownloadDownload
FT-SK07DownloadDownloadDownload
FT-SK08DownloadDownloadDownload
FT-SK09DownloadDownloadDownload
FT-SK10DownloadDownloadDownload
FT-SK12DownloadDownloadDownload
FT-SK16DownloadDownloadDownload
FT-SK04FDownloadDownloadDownload
FT-SK05FDownloadDownloadDownload
FT-SK06FDownloadDownloadDownload
FT-SK07FDownloadDownloadDownload
FT-SK08FDownloadDownloadDownload
FT-SK09FDownloadDownloadDownload
FT-SK10FDownloadDownloadDownload
FT-SK12FDownloadDownloadDownload
FT-SK14FDownloadDownloadDownload
FT-SK16FDownloadDownloadDownload
FT-SK20FDownloadDownloadDownload
FT-SK25FDownloadDownloadDownload
FT-SKB25FDownloadDownloadDownload
