2-Jaw Powerful Type Adjustment Steel Body Chucks
Product NO: FT-TKT
Price range: ¥190,000 through ¥240,000
Specification
●When extremely high accuracy is required, or when the chuck’s gripping accuracy has deteriorated, runout can be easily corrected using the adjustment bolts.
●Runout adjustment range: up to 0.01 mm.
●The chuck body is made of high-rigidity steel to withstand high-speed machining operations.
●Standard accessory: Soft jaws.
Product Specifications (Variations)

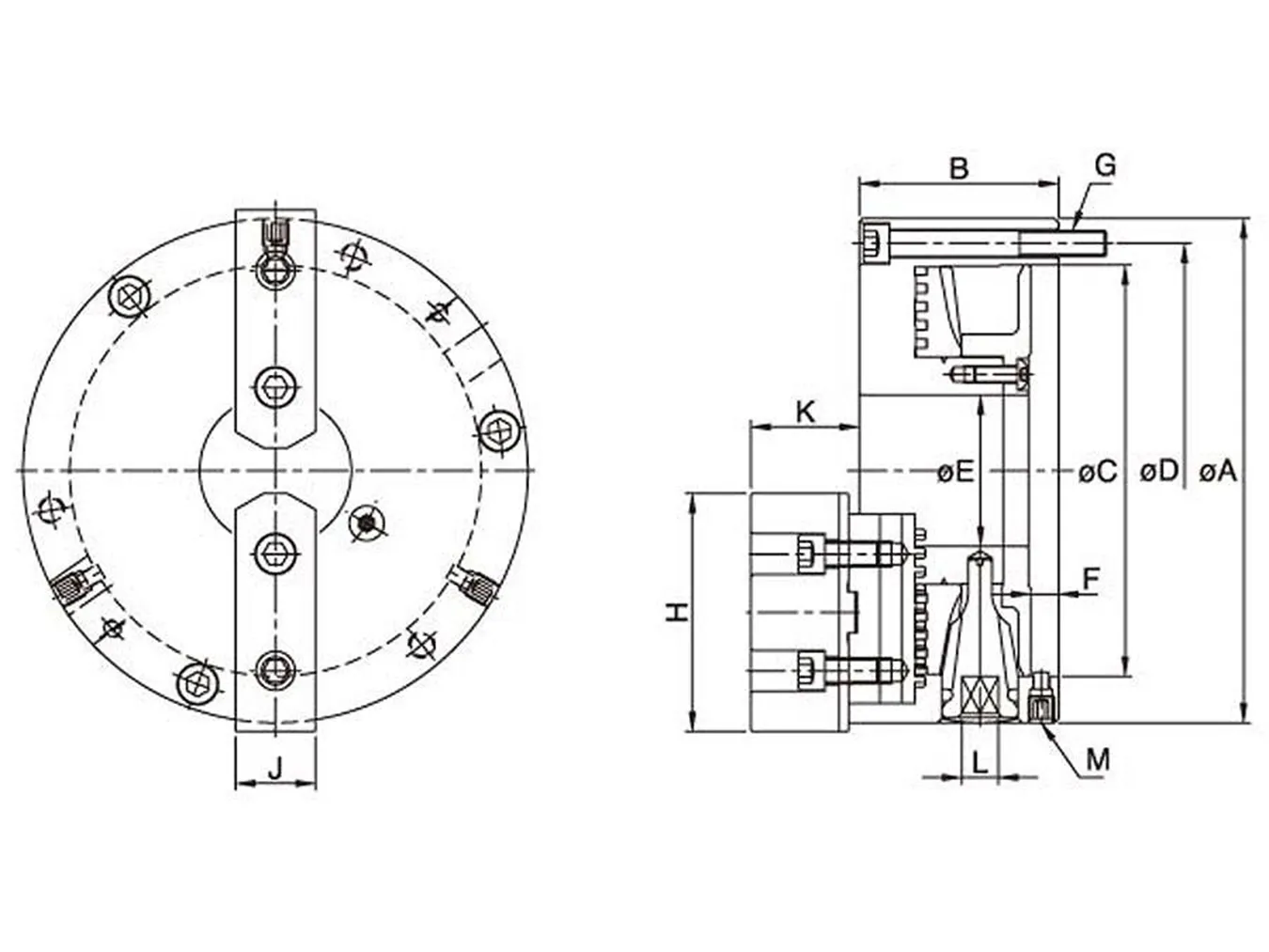

unit：mm| Product NO | A | B | C | D | E | F | G | H | J | K | L | M | Max.Speed（min-1） | Max.Gripping Diameter O.D. | Max.Gripping Diameter I.D. | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-TKT07 | 193 | 85 | 155 | 172 | 58 | 12 | 3-M10×1.5P | 95 | 31 | 49.5 | 11 | 3-M12×1.75P | 3500 | Ø10～Ø180 | Ø70～Ø170 | 14.6 |
| FT-TKT09 | 233 | 92 | 190 | 210 | 70 | 12.5 | 3-M12×1.75P | 110 | 37 | 50 | 12 | 3-M12×1.75P | 2900 | Ø12～Ø220 | Ø80～Ø210 | 22.4 |
Drawing
You can download drawings for various products below.
