4-Jaw Adjustment Steel Body Scroll Chucks
Product NO: FT-FCT
Price range: ¥208,000 through ¥438,000
Specification
●When extremely high accuracy is required, or when the chuck’s gripping accuracy has deteriorated, runout can be easily corrected using the adjustment bolts.
●Runout adjustment range: up to 0.01 mm.
●The chuck body is made of high-rigidity steel to withstand high-speed machining operations.
●Standard accessories: Hard jaws (internal and external)
Product Specifications (Variations)

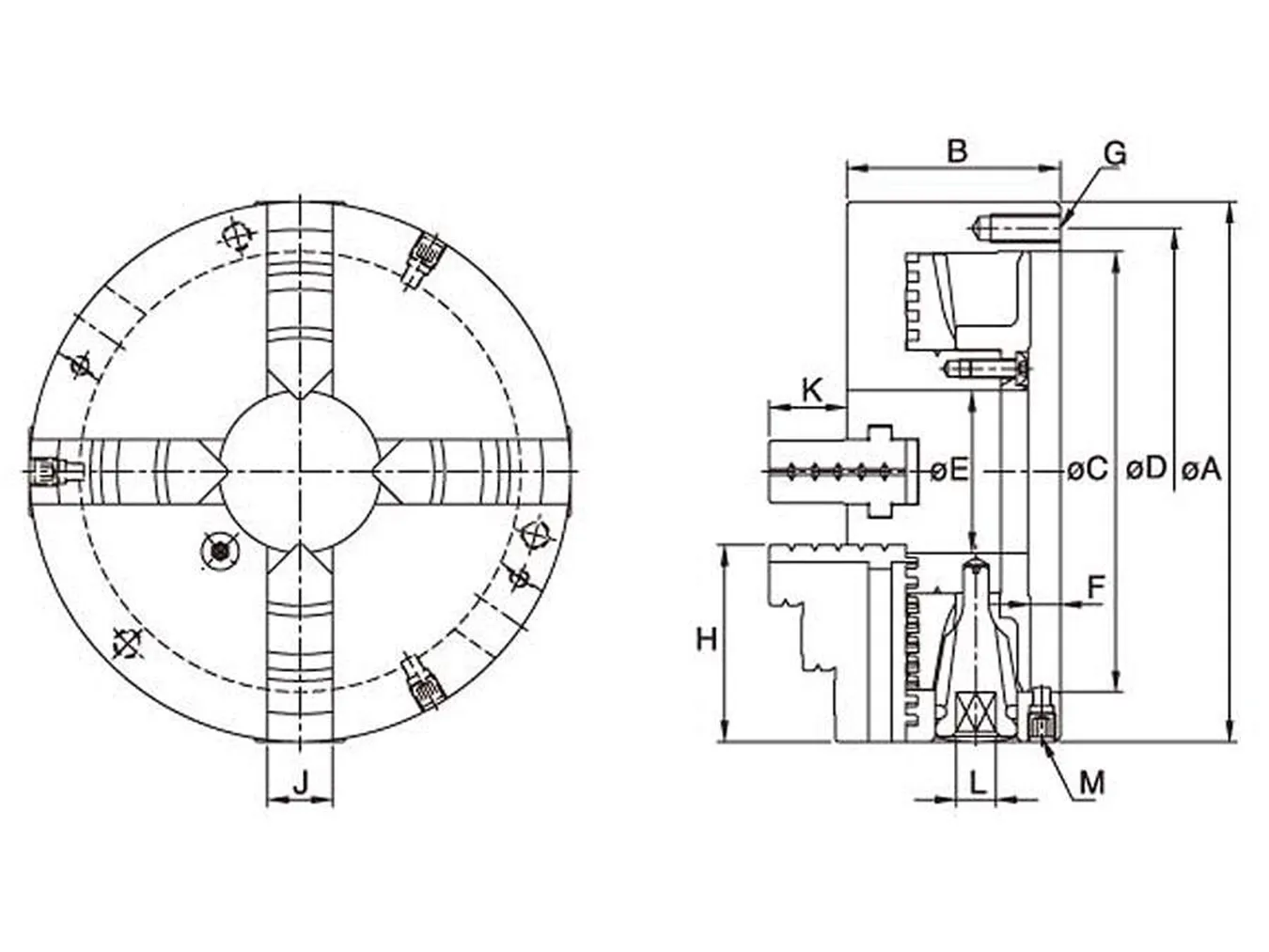

unit：mm| Product NO | A | B | C | D | E | F | G | H | J | K | L | M | Max.Speed（min-1） | Max.Gripping Diameter O.D. | Max.Gripping Diameter I.D. | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-FCT07 | 193 | 85 | 155 | 172 | 58 | 12 | 3-M10×1.5P | 75 | 24 | 28.5 | 11 | 3-M12×1.75P | 3500 | Ø4～Ø180 | Ø56～Ø170 | 13.2 |
| FT-FCT09 | 233 | 92 | 190 | 210 | 70 | 12.5 | 3-M12×1.75P | 85 | 28 | 33 | 12 | 3-M12×1.75P | 2900 | Ø5～Ø220 | Ø62～Ø210 | 20.7 |
| FT-FCT10 | 275 | 98 | 230 | 250 | 89 | 12.5 | 3-M12×1.75P | 98 | 30 | 38 | 12 | 3-M12×1.75P | 2500 | Ø6～Ø260 | Ø70～Ø250 | 29.8 |
| FT-FCT12 | 310 | 111 | 260 | 285 | 105 | 14 | 3-M12×1.75P | 110 | 32 | 45 | 14 | 3-M12×1.75P | 2200 | Ø10～Ø300 | Ø86～Ø290 | 44.4 |
Drawing
