3-Jaw Scroll Chucks

Product NO: FT-SC

Quote upon request

The suffix “F” indicates a front-mount type.

Product name
Product NO
Chuck outer diameter
Price
Stock
Quantity
3-Jaw Scroll Chucks
FT-SC03
85mm
¥69,000

4 in stock (can be backordered)

3-Jaw Scroll Chucks
FT-SC04
112mm
¥71,000

0 in stock, back ordered

3-Jaw Scroll Chucks
FT-SC05
132mm
¥74,000

0 in stock, back ordered

3-Jaw Scroll Chucks
FT-SC06
167mm
¥80,000

0 in stock, back ordered

3-Jaw Scroll Chucks
FT-SC07
193mm
¥96,000

1 in stock (can be backordered)

3-Jaw Scroll Chucks
FT-SC08
203mm
¥104,000

1 in stock (can be backordered)

3-Jaw Scroll Chucks
FT-SC09
233mm
¥121,000

1 in stock (can be backordered)

3-Jaw Scroll Chucks
FT-SC10
273mm
¥173,000

This is a back-order item

3-Jaw Scroll Chucks
FT-SC12
310mm
¥253,000

0 in stock, back ordered

3-Jaw Scroll Chucks
FT-SC16
405mm
¥553,000

This is a back-order item

3-Jaw Scroll Chucks
FT-SC03F
85mm
¥69,000

2 in stock (can be backordered)

3-Jaw Scroll Chucks
FT-SC04F
112mm
¥71,000

1 in stock (can be backordered)

3-Jaw Scroll Chucks
FT-SC05F
132mm
¥74,000

0 in stock, back ordered

3-Jaw Scroll Chucks
FT-SC06F
167mm
¥80,000

1 in stock (can be backordered)

3-Jaw Scroll Chucks
FT-SC07F
193mm
¥96,000

1 in stock (can be backordered)

3-Jaw Scroll Chucks
FT-SC08F
203mm
¥104,000

1 in stock (can be backordered)

3-Jaw Scroll Chucks
FT-SC09F
233mm
¥121,000

0 in stock, back ordered

3-Jaw Scroll Chucks
FT-SC10F
273mm
¥173,000

1 in stock (can be backordered)

3-Jaw Scroll Chucks
FT-SC12F
310mm
¥253,000

This is a back-order item

3-Jaw Scroll Chucks
FT-SC14F
355mm
Quote upon request

This is a back-order item

3-Jaw Scroll Chucks
FT-SC16F
405mm
¥553,000

This is a back-order item

Specification

●Standard accessories: One set of hard jaws for both internal and external gripping.

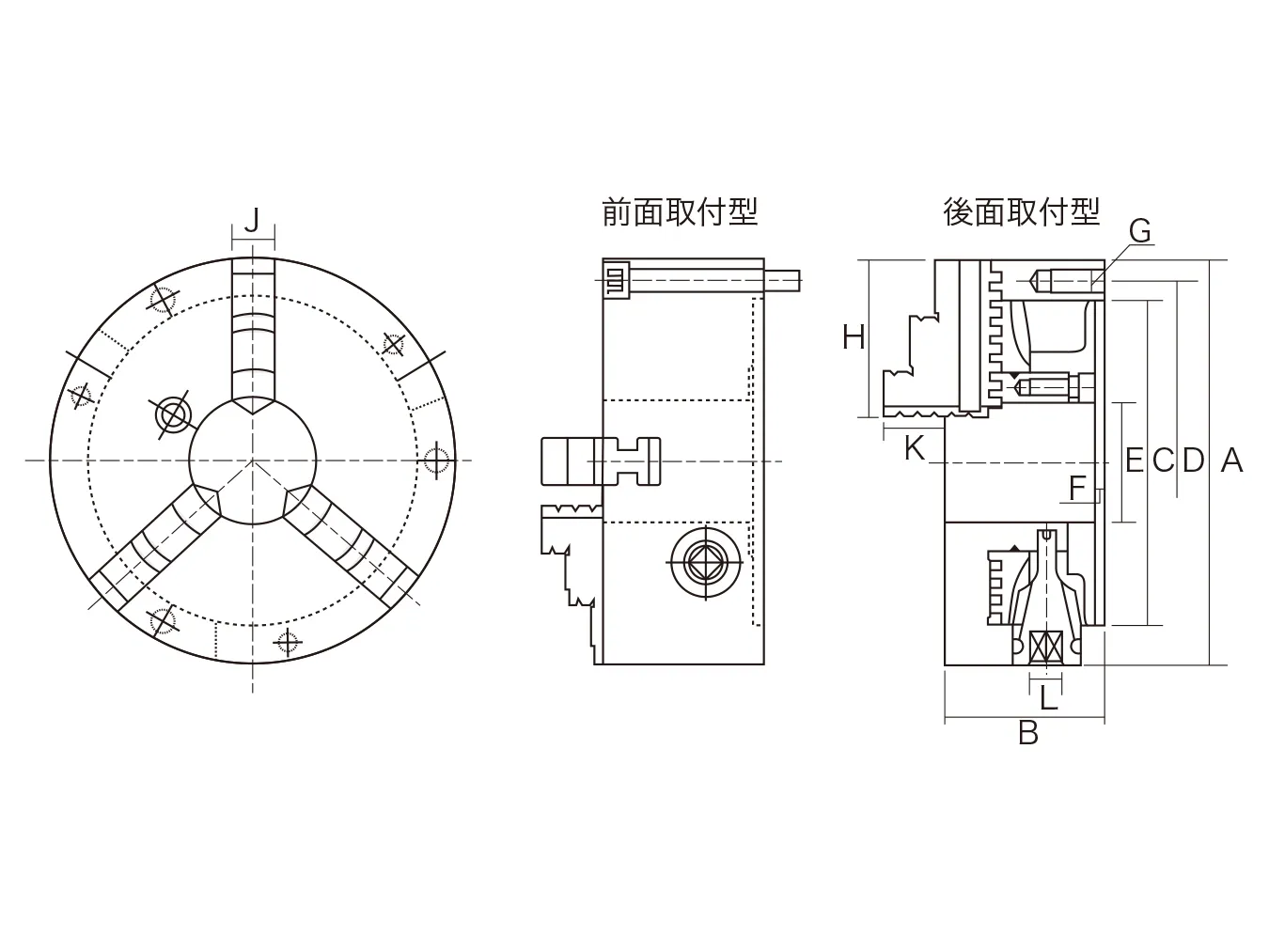

Product Specifications (Variations)

unit：mm
Product NOABCDEFGHJKLMax.Speed（min-1）Max.Gripping Diameter O.D.Max.Gripping Diameter I.D.weight（kg）
FT-SC0385456073163.53-M6×1P35111572500Ø2～Ø70Ø24～Ø641.5
FT-SC04112588095244.53-M8×1.25P42141782500Ø3～Ø90Ø32～Ø843.3
FT-SC0513260100115324.53-M8×1.25P50162082500Ø3～Ø110Ø35～Ø1004.6
FT-SC06167661301474553-M10×1.5P651923102000Ø4～Ø160Ø48～Ø1507.9
FT-SC07193761551725853-M10×1.5P752228112000Ø4～Ø180Ø56～Ø17012
FT-SC08203761601765853-M10×1.5P752228112000Ø4～Ø180Ø56～Ø17013.3
FT-SC0923384190210705.53-M12×1.75P852434.5122000Ø5～Ø220Ø62～Ø21019.3
FT-SC1027386230250895.53-M12×1.75P982839121800Ø6～Ø260Ø70～Ø25026.2
FT-SC123109626028510573-M12×1.75P1103045141800Ø10～Ø300Ø86～Ø29037.6
FT-SC1640512234537516086-M14×2P1464056151500Ø14～Ø400Ø100～Ø38080.7
FT-SC03F85456073163.53-M6×1P35111572500Ø2～Ø70Ø24～Ø641.5
FT-SC04F112588095244.53-M8×1.25P42141782500Ø3～Ø90Ø32～Ø843.3
FT-SC05F13260100115324.53-M8×1.25P50162082500Ø3～Ø110Ø35～Ø1004.6
FT-SC06F167661301474553-M10×1.5P651923102000Ø4～Ø160Ø48～Ø1507.9
FT-SC07F193761551725853-M10×1.5P752228112000Ø4～Ø180Ø56～Ø17012
FT-SC08F203761601765853-M10×1.5P752228112000Ø4～Ø180Ø56～Ø17013.3
FT-SC09F23384190210705.53-M12×1.75P852434.5122000Ø5～Ø220Ø62～Ø21019.3
FT-SC10F27386230250795.53-M12×1.75P982839121800Ø6～Ø260Ø70～Ø25026.2
FT-SC12F3109626028510573-M12×1.75P1103045141800Ø10～Ø300Ø86～Ø29037.6
FT-SC14F35511230032812776-M12×1.75P1323550151500Ø12～Ø350Ø96～Ø32057.2
FT-SC16F40512234537516086-M14×2P1464056151500Ø14～Ø400Ø100～Ø38080.7

Product Features

Drawing

You can download drawings for various products below.

Product NOPDF2DCAD3DCAD
FT-SC03DownloadDownloadDownload
FT-SC04DownloadDownloadDownload
FT-SC05DownloadDownloadDownload
FT-SC06DownloadDownloadDownload
FT-SC07DownloadDownloadDownload
FT-SC08DownloadDownloadDownload
FT-SC09DownloadDownloadDownload
FT-SC10DownloadDownloadDownload
FT-SC12DownloadDownloadDownload
FT-SC16DownloadDownloadDownload
FT-SC03FDownloadDownloadDownload
FT-SC04FDownloadDownloadDownload
FT-SC05FDownloadWe do not have it available.Download
FT-SC06FDownloadDownloadDownload
FT-SC07FDownloadDownloadDownload
FT-SC08FDownloadDownloadDownload
FT-SC09FDownloadDownloadDownload
FT-SC10FDownloadDownloadDownload
FT-SC12FDownloadDownloadDownload
FT-SC14FDownloadDownloadDownload
FT-SC16FDownloadDownloadDownload
