Super Thin Square Chucks
Product NO: FT-MC
Price range: ¥204,000 through ¥446,000
Specification
●Accuracy in the W, X, Y, and Z directions of the square 4-jaw milling chuck: within 0.05 mm.
●Soft jaws are available separately and are not included as standard.です。
●Repeatability of hard jaws: within 0.02 mm.
●Soft jaws are available separately and are not included as standard.
Product Specifications (Variations)
unit：mm| Product NO | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | Max.Gripping Diameter O.D. | Max.Gripping Diameter I.D. | weight（kg） | Compatible soft jaws |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-MC06 | 215 | 57 | 18 | 130 | 40 | 5.5 | 4-M10×1.5P | 68 | 26 | 39 | 14 | 144 | 165 | 144 | 165 | 66 | 18 | Ø4～Ø128 | Ø55～Ø128 | 11.4 | FT-SO06JAWS-4 |
| FT-MC08 | 250 | 65 | 20 | 160 | 55 | 6 | 4-M12×1.75P | 82 | 28 | 43 | 17 | 174 | 200 | 174 | 200 | 83 | 18 | Ø5～Ø162 | Ø62～Ø162 | 18.6 | FT-SO07JAWS-4 |
| FT-MC10 | 310 | 72 | 22 | 200 | 70 | 6 | 4-M14×2P | 93 | 32 | 50 | 21 | 218 | 250 | 218 | 250 | 104 | 18 | Ø6～Ø200 | Ø72～Ø200 | 31.6 | FT-SO09JAWS-4 |
| FT-MC12 | 380 | 85 | 25 | 260 | 100 | 7 | 4-M16×2P | 118 | 40 | 56 | 23 | 274 | 310 | 274 | 310 | 135 | 22 | Ø10～Ø265 | Ø90～Ø265 | 56.6 | FT-SO12JAWS-4 |

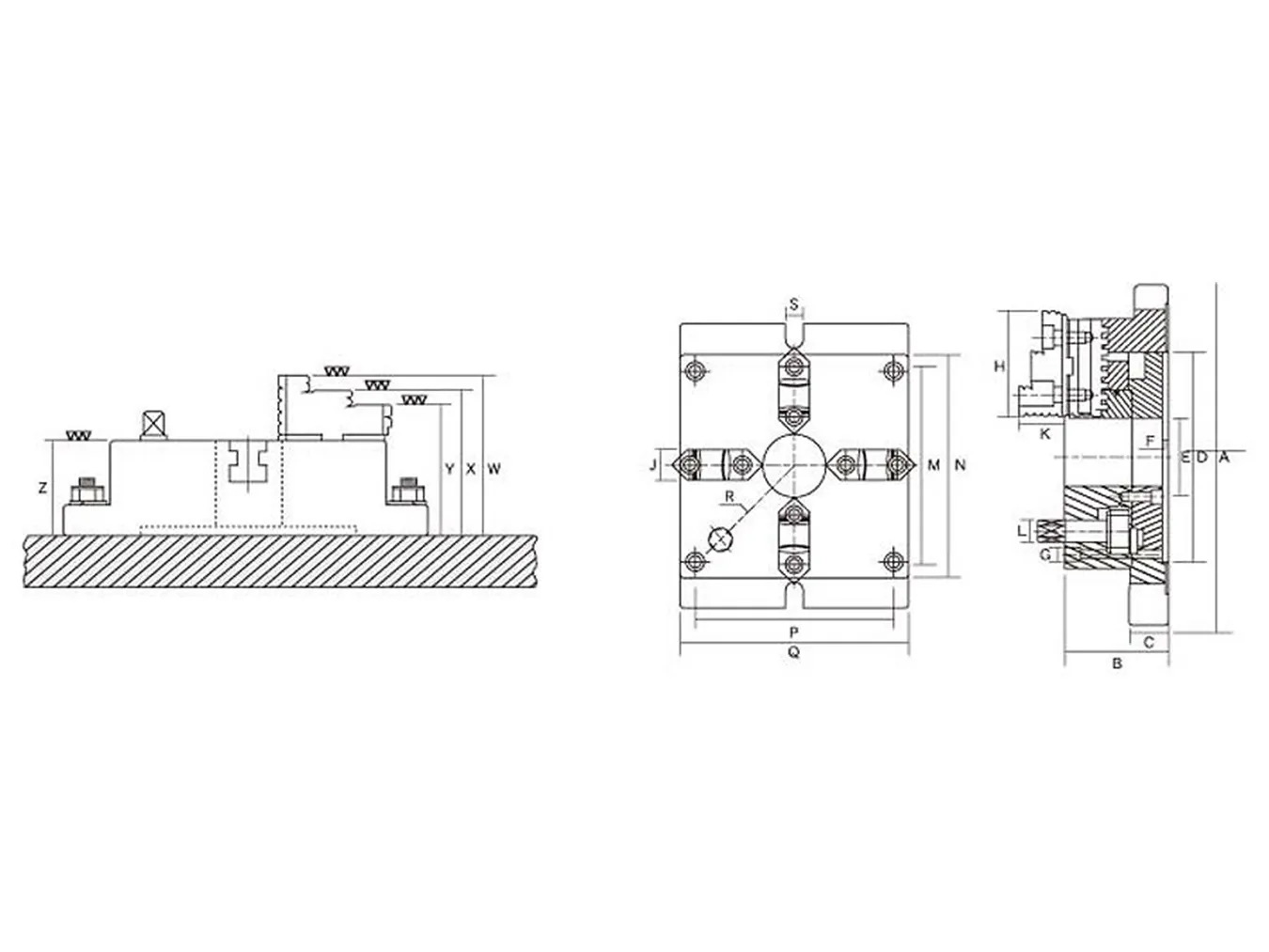

Drawing
You can download drawings for various products below.
