4-Jaw Powerful Type Scroll Chucks

Product NO: FT-PSK

Quote upon request

The suffix “F” indicates a front-mount type.

Product name
Product NO
Chuck outer diameter
Price
Stock
Quantity
4-Jaw Powerful Type Scroll Chucks
FT-PSK07
193mm
¥170,000

0 in stock, back ordered

4-Jaw Powerful Type Scroll Chucks
FT-PSK09
233mm
¥228,000

0 in stock, back ordered

4-Jaw Powerful Type Scroll Chucks
FT-PSK12
310mm
¥390,000

1 in stock (can be backordered)

4-Jaw Powerful Type Scroll Chucks
FT-PSK07F
193mm
¥170,000

This is a back-order item

4-Jaw Powerful Type Scroll Chucks
FT-PSK09F
233mm
¥228,000

This is a back-order item

4-Jaw Powerful Type Scroll Chucks
FT-PSK12F
310mm
¥390,000

This is a back-order item

4-Jaw Powerful Type Scroll Chucks
FT-PSK16F
405mm
Quote upon request

This is a back-order item

4-Jaw Powerful Type Scroll Chucks
FT-PSK20F
500mm
Quote upon request

This is a back-order item

4-Jaw Powerful Type Scroll Chucks
FT-PSKB25F
630mm
Quote upon request

This is a back-order item

Specification

●Standard accessories: Hard jaws

●Soft jaws are available separately and are not included as standard.Please purchase the set of four.

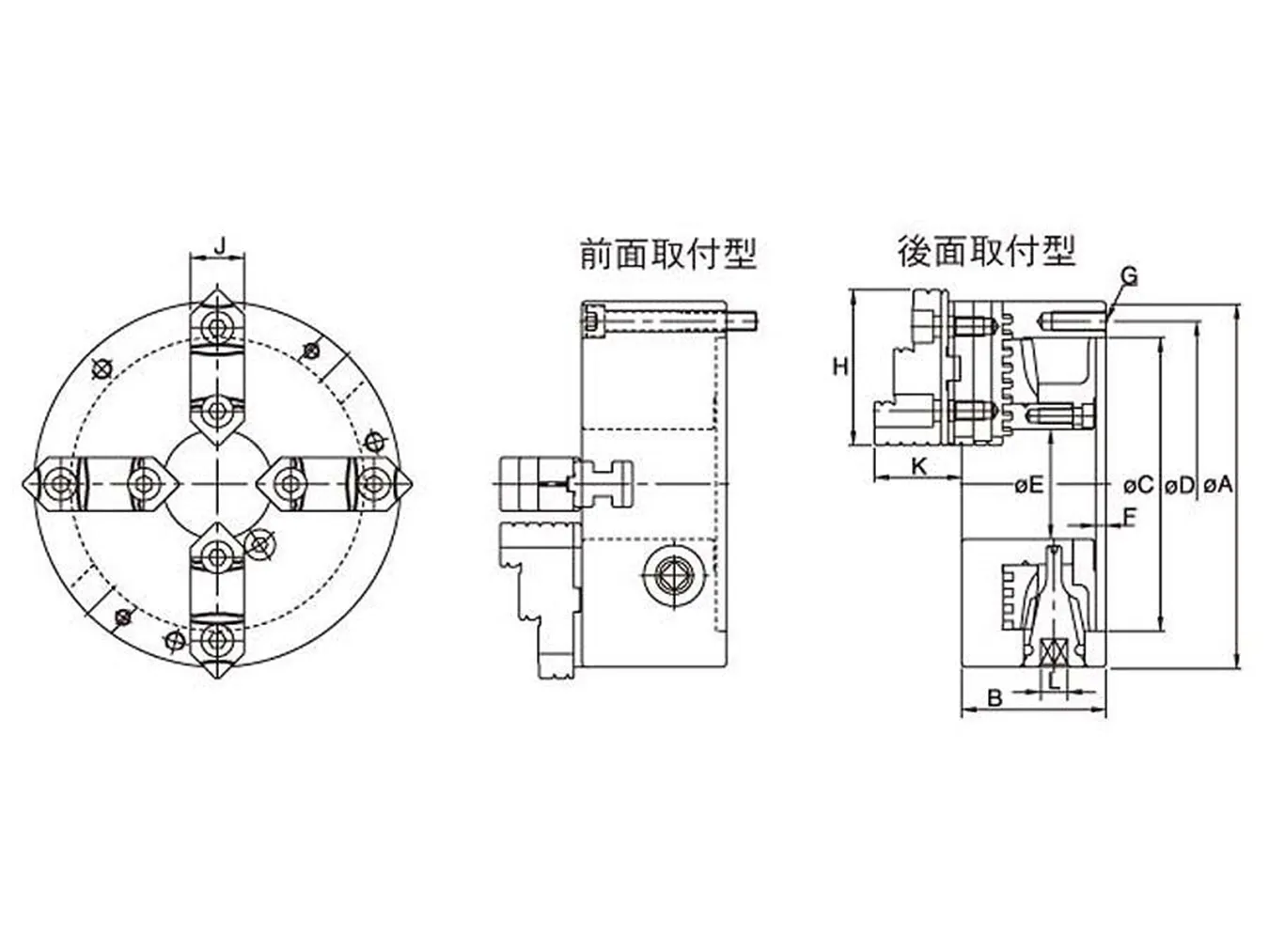

Product Specifications (Variations)

unit：mm
Product NOABCDEFGHJKLMax.Speed（min-1）Max.Gripping Diameter O.D.Max.Gripping Diameter I.D.weight（kg）Compatible soft jaws
FT-PSK07193761551725853-M10×1.5P822843112000Ø8～Ø180Ø62～Ø17012.7FT-SO07JAWS
FT-PSK0923384190210705.53-M12×1.75P933250122000Ø11～Ø220Ø70～Ø21020.8FT-SO09JAWS
FT-PSK123109626028510573-M12×1.75P1184056141800Ø15～Ø300Ø90～Ø29043FT-SO12JAWS
FT-PSK07F193761551725853-M10×1.5P822843112000Ø8～Ø180Ø62～Ø17012.7FT-SO07JAWS
FT-PSK09F23384190210705.53-M12×1.75P933250122000Ø11～Ø220Ø70～Ø21020.8FT-SO09JAWS
FT-PSK12F3109626028510573-M12×1.75P1184056141800Ø15～Ø300Ø90～Ø29043FT-SO12JAWS
FT-PSK16F40512234537516086-M14×2P1505075151500Ø30～Ø400Ø110～Ø38086.7FT-SO16JAWS
FT-PSK20F5001404204582055.56-M16×2P1405584191000Ø25～Ø480Ø125～Ø460149FT-SO20JAWS
FT-PSKB25F6301405455863206.56-M16×2P140709219850Ø160～Ø630Ø274～Ø646215FT-SO20JAWS

Drawing

You can download drawings for various products below.

Product NOPDF2DCAD3DCAD
FT-PSK07DownloadDownloadDownload
FT-PSK09DownloadDownloadDownload
FT-PSK12DownloadDownloadDownload
FT-PSK07FDownloadDownloadDownload
FT-PSK09FDownloadDownloadDownload
FT-PSK12FDownloadDownloadDownload
FT-PSK16FDownloadDownloadDownload
FT-PSK20FDownloadDownloadDownload
FT-PSKB25FDownloadDownloadDownload
