3-Jaw Steel Body Chucks
Product NO: FT-NT
Price range: ¥208,000 through ¥380,000
Specification
●Serrated-jaw type compatible with soft jaws designed for power chucks.
●Both hard jaws and soft jaws can be adjusted forward and backward to expand the gripping range.
●The chuck body is made of high-rigidity steel to withstand high-speed machining operations.
●Can be mounted from either the front or rear side.
●Standard accessories: Hard jaws
●Soft jaws are available separately and are not included as standard.
Product Specifications (Variations)
unit：mm| Product NO | A | B | C | D | E | F | G | H | J | K | L | M | R | Max.Speed（min-1） | Max.Gripping Diameter O.D. | Max.Gripping Diameter I.D. | weight（kg） | Compatible soft jaws |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-NT07 | 193 | 78 | 155 | 172 | 58 | 5 | 3-M10×1.5P | 78 | 28 | 46 | 11 | 20 | 12 | 3200 | Ø8～Ø235 | Ø66～Ø235 | 13.1 | FT-SJ06 |
| FT-NT09 | 233 | 85 | 190 | 210 | 70 | 5.5 | 3-M12×1.75P | 92 | 32 | 52 | 12 | 25 | 14 | 2800 | Ø11～Ø280 | Ø85～Ø280 | 21.2 | FT-SJ08 |
| FT-NT10 | 275 | 91 | 230 | 250 | 89 | 5.5 | 3-M12×1.75P | 101.5 | 37 | 56 | 12 | 30 | 16 | 2400 | Ø12～Ø330 | Ø92～Ø330 | 30.5 | FT-SJ10 |
| FT-NT12 | 310 | 104 | 260 | 285 | 105 | 7 | 3-M12×1.75P | 116 | 47 | 67 | 14 | 30 | 21 | 2100 | Ø15～Ø370 | Ø104～Ø370 | 46.1 | FT-SJ12 |

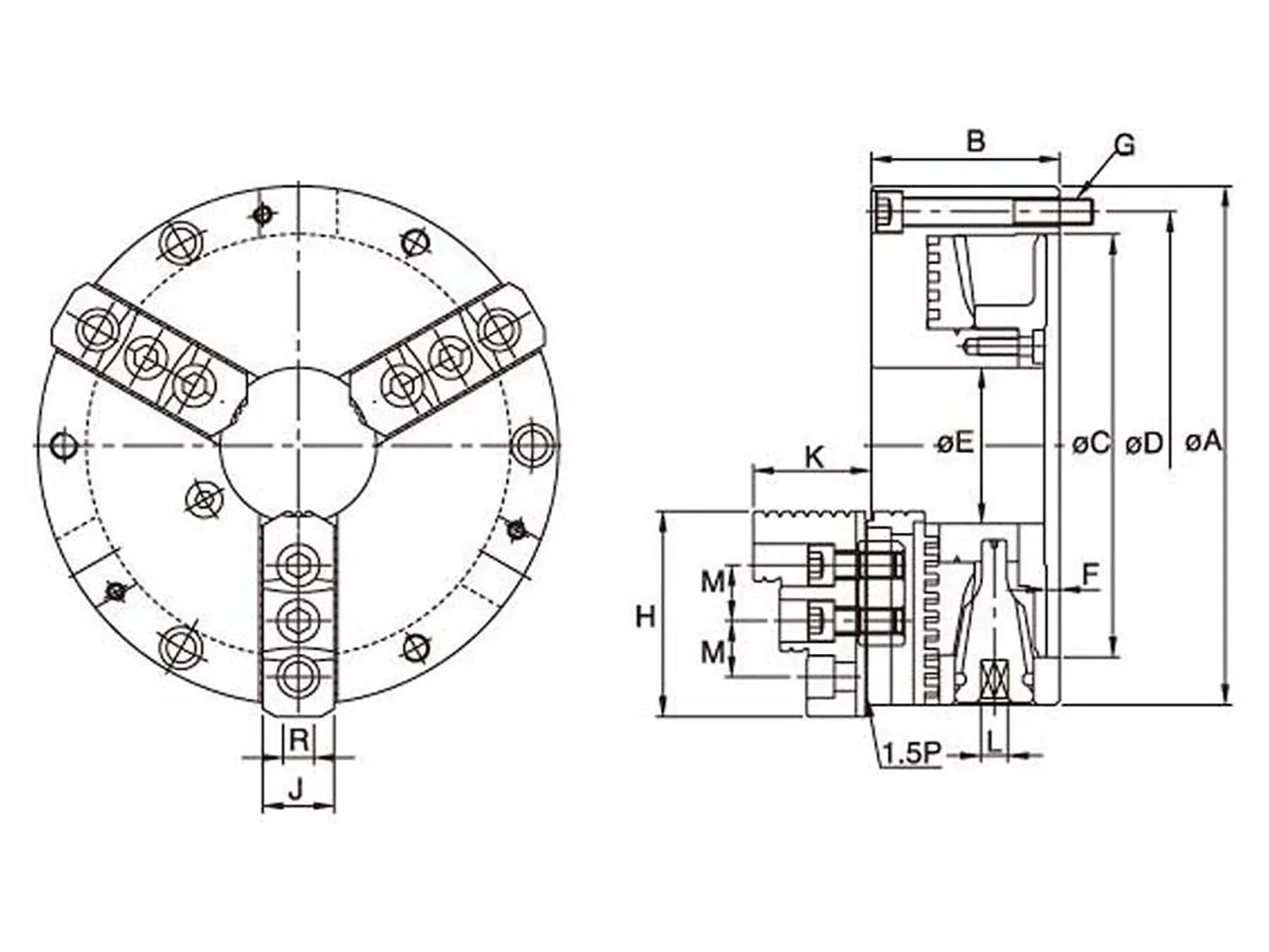

Drawing
You can download drawings for various products below.
Related products
-
Powerful Type Super Thin Chucks
Product NO：FT-NBK -
Super Thin Square Chucks
Product NO：FT-MC -
3-Jaw Powerful Type Scroll Chucks
Product NO：FT-SK
