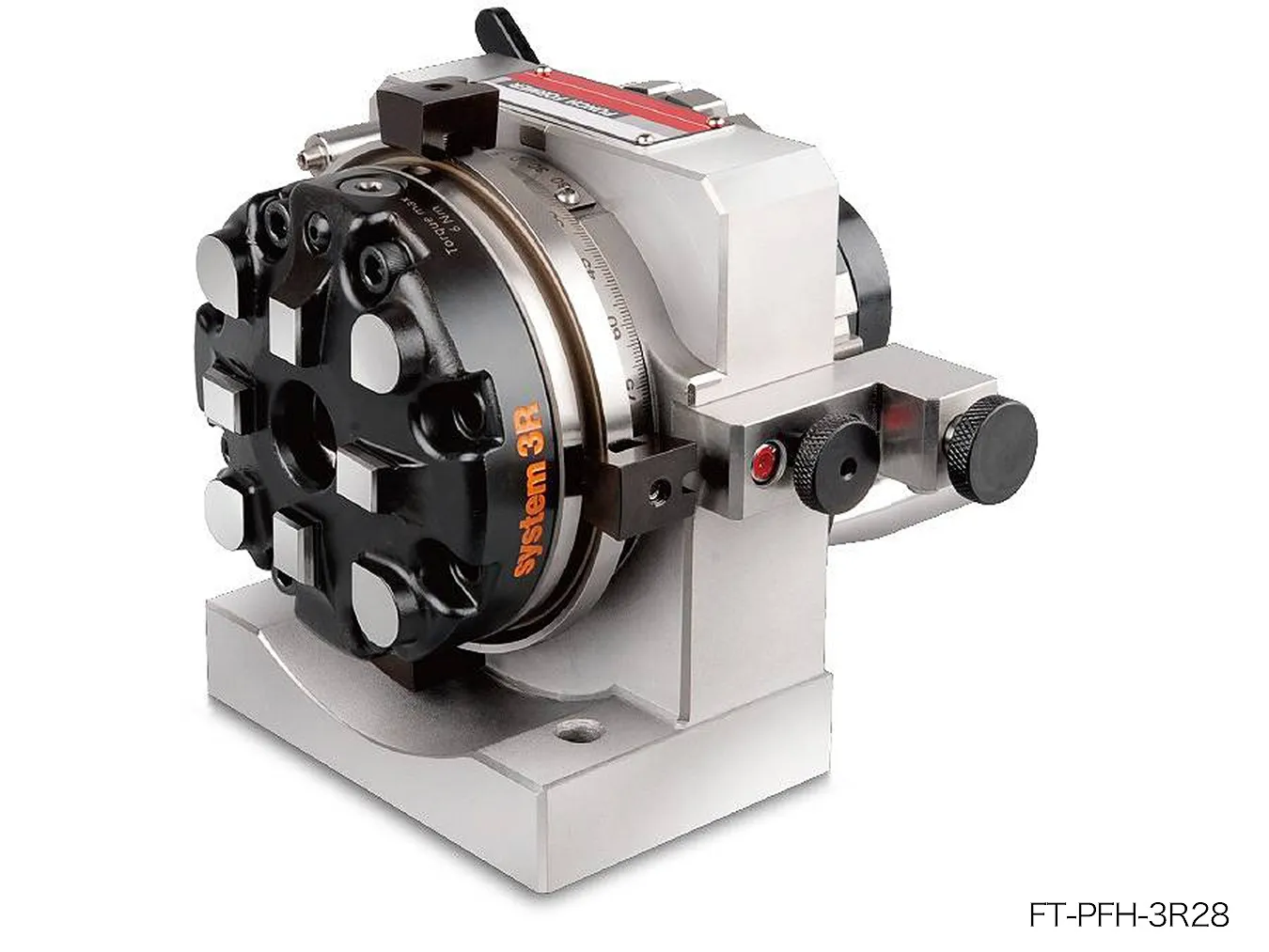

Precision 3R Punch Former
Product NO: FT-PFH-3R
Price range: ¥1,850,000 through ¥1,870,000
Specification
●Constructed from stainless steel, offering a robust, durable body with dustproof and waterproof protection.
●A System 3R manual chuck is installed.
●Equipped with dual bearings to provide exceptional stability and accuracy.
●The indexing function enables precise manufacturing of polygonal punches.

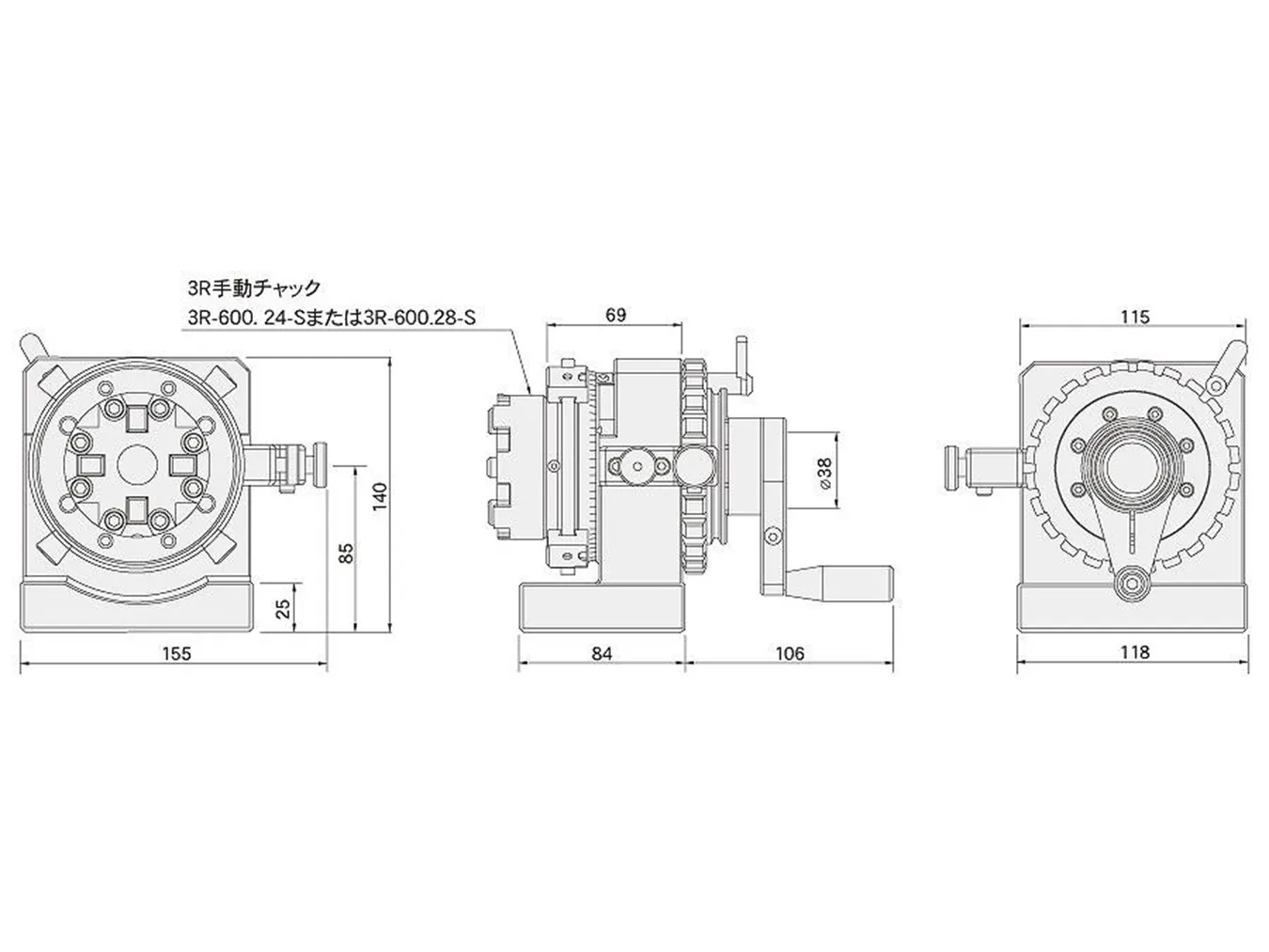

Product Specifications (Variations)
unit：mm| Product NO | Center height | Indexer tooth q'ty & accuracy | Rotational accuracy | Repeat accuracy | Chuck model | weight（kg） |
|---|---|---|---|---|---|---|
| FT-PFH-3R24 | 85±0.5mm | 24、15°±5” | 0.003mm | 0.003mm | 3R24 | 8.4kg |
| FT-PFH-3R28 | 85±0.5mm | 24、15°±5” | 0.003mm | 0.003mm | 3R28 | 8.8kg |
Related products
-

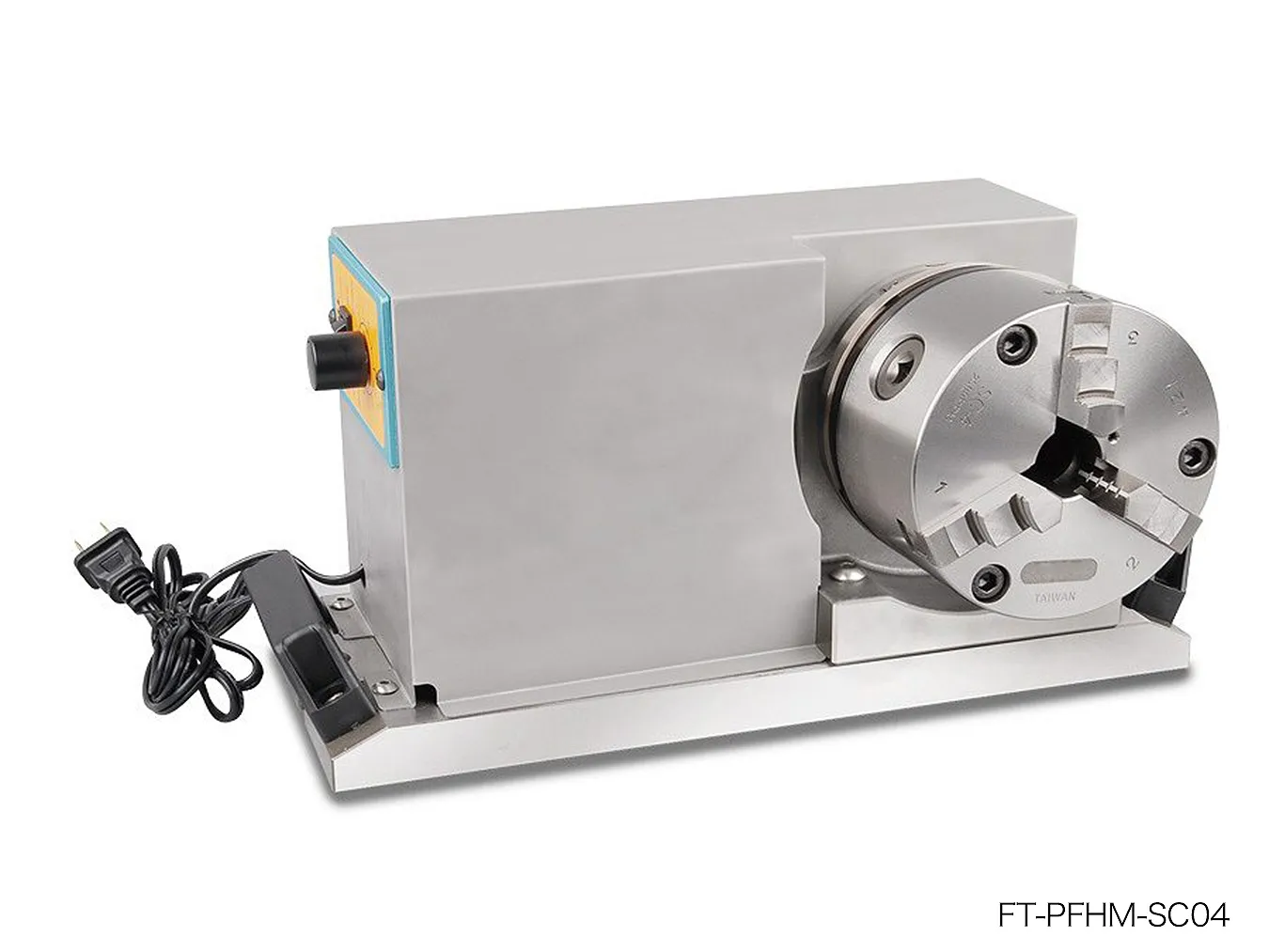

Precision Motor 4" 3-Jaws Punch Former
