Precision ER Collet Punch Former
Product NO: FT-PFH-SER
Price range: ¥1,130,000 through ¥1,140,000
Specification
●Constructed from stainless steel, offering a robust, durable body with dustproof and waterproof protection.
●Features a through-hole center bore, allowing the use of long punches and ejector pins.
●Equipped with dual bearings to provide exceptional stability and accuracy.
●The indexing function enables precise manufacturing of polygonal punches.
●Compatible with commercially available DIN-standard ER collets.

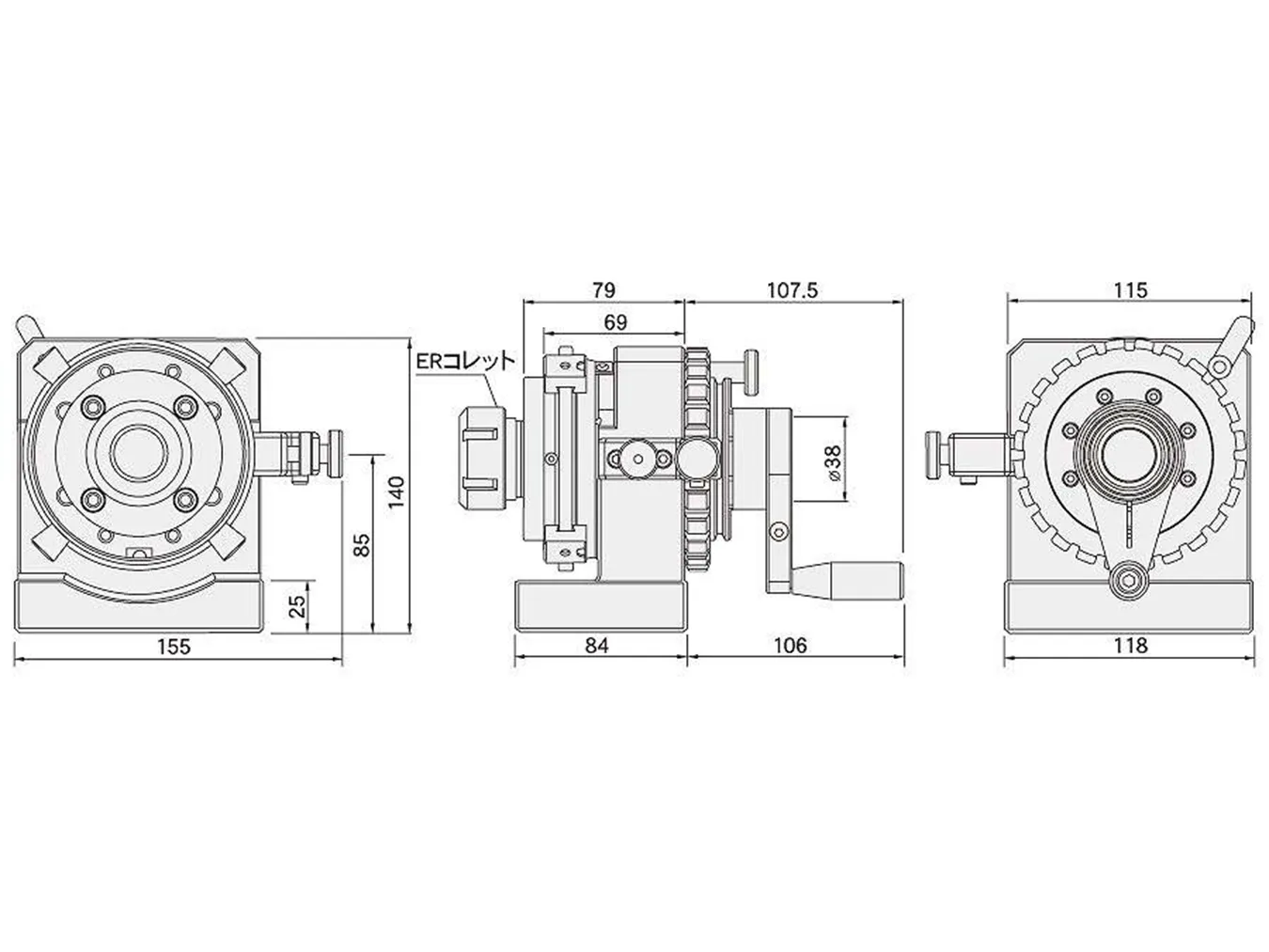

Product Specifications (Variations)
unit：mm| Product NO | Center height | Indexer tooth q'ty & accuracy | Through hole diameters | Rotational accuracy | Clamping Capacity | Standard-supplied collet | weight（kg） |
|---|---|---|---|---|---|---|---|
| FT-PFH-SER20 | 85±0.5mm | 24、15°±5” | Ø36mm | 0.003mm | 2.0～13.0mm | 3、4、6、8、10 | 8.3kg |
| FT-PFH-SER32 | 85±0.5mm | 24、15°±5” | Ø36mm | 0.003mm | 3.0～20.0mm | 4、8、12、16、20 | 8.3kg |
| FT-PFH-SER50 | 85±0.5mm | 24、15°±5” | Ø36mm | 0.003mm | 12.0～34.0mm | 12、18、20、30、34 | 8.4kg |
Related products
-
Precision Punch Former
Product NO：FT-PFH450 -

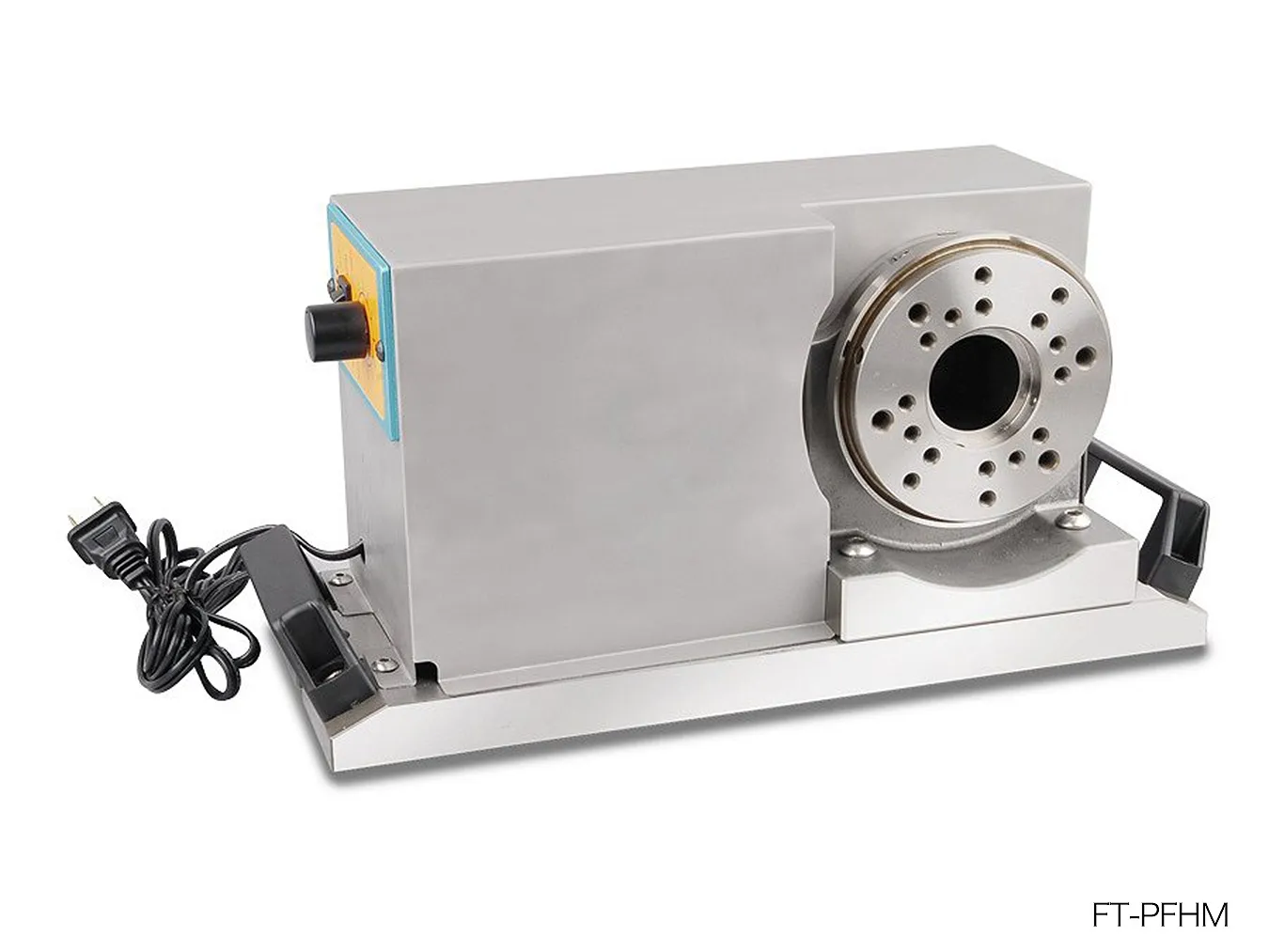

Precision Motor Multi-function Punch Former - Body only
