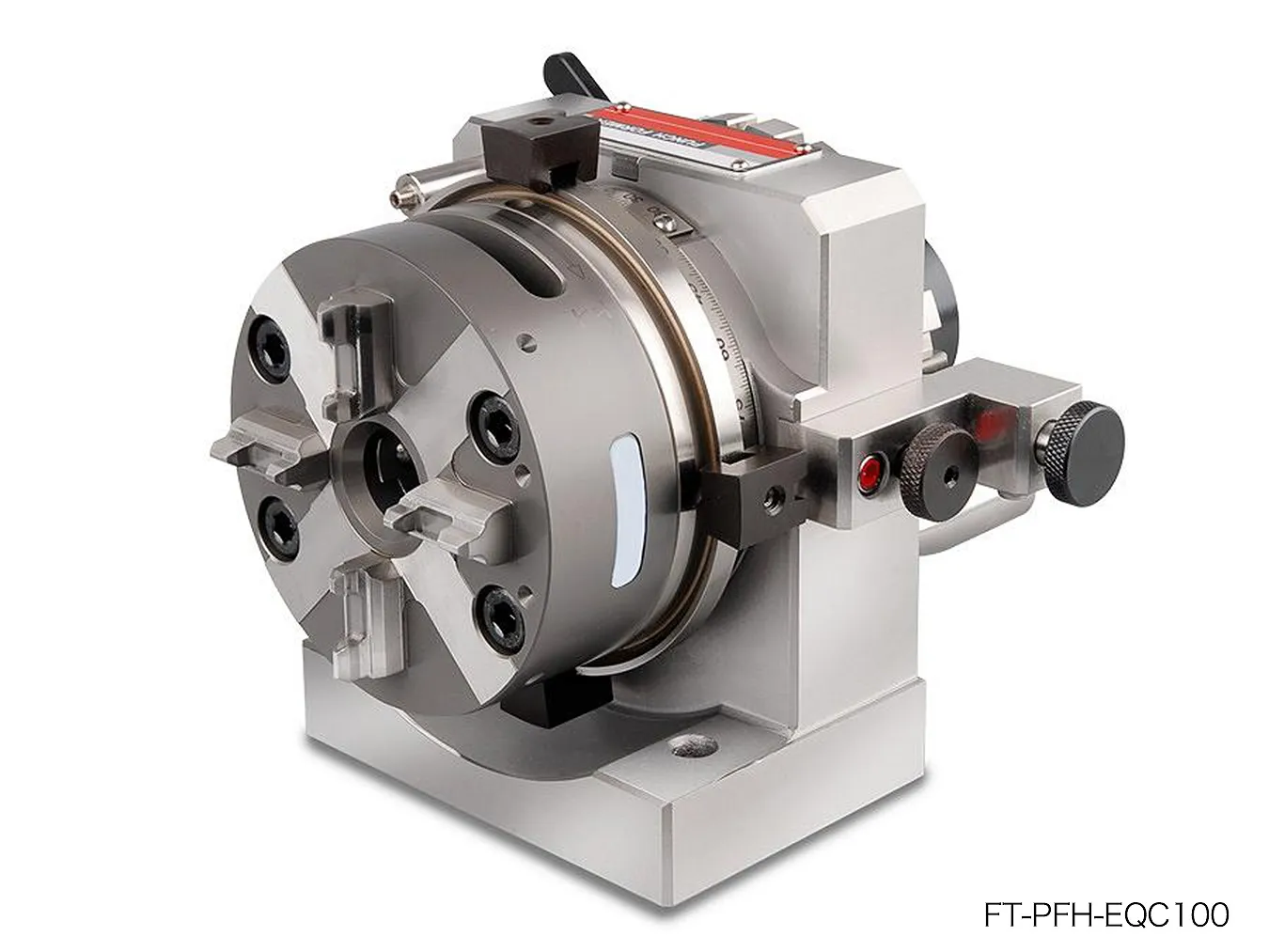

Precision EQC Punch Former
Product NO: FT-PFH-EQC
Price range: ¥1,950,000 through ¥2,330,000
Specification
●Constructed from stainless steel, offering a robust, durable body with dustproof and waterproof protection.
●An Erowa quick chuck is installed.
●Equipped with dual bearings to provide exceptional stability and accuracy.
●The indexing function enables precise manufacturing of polygonal punches.

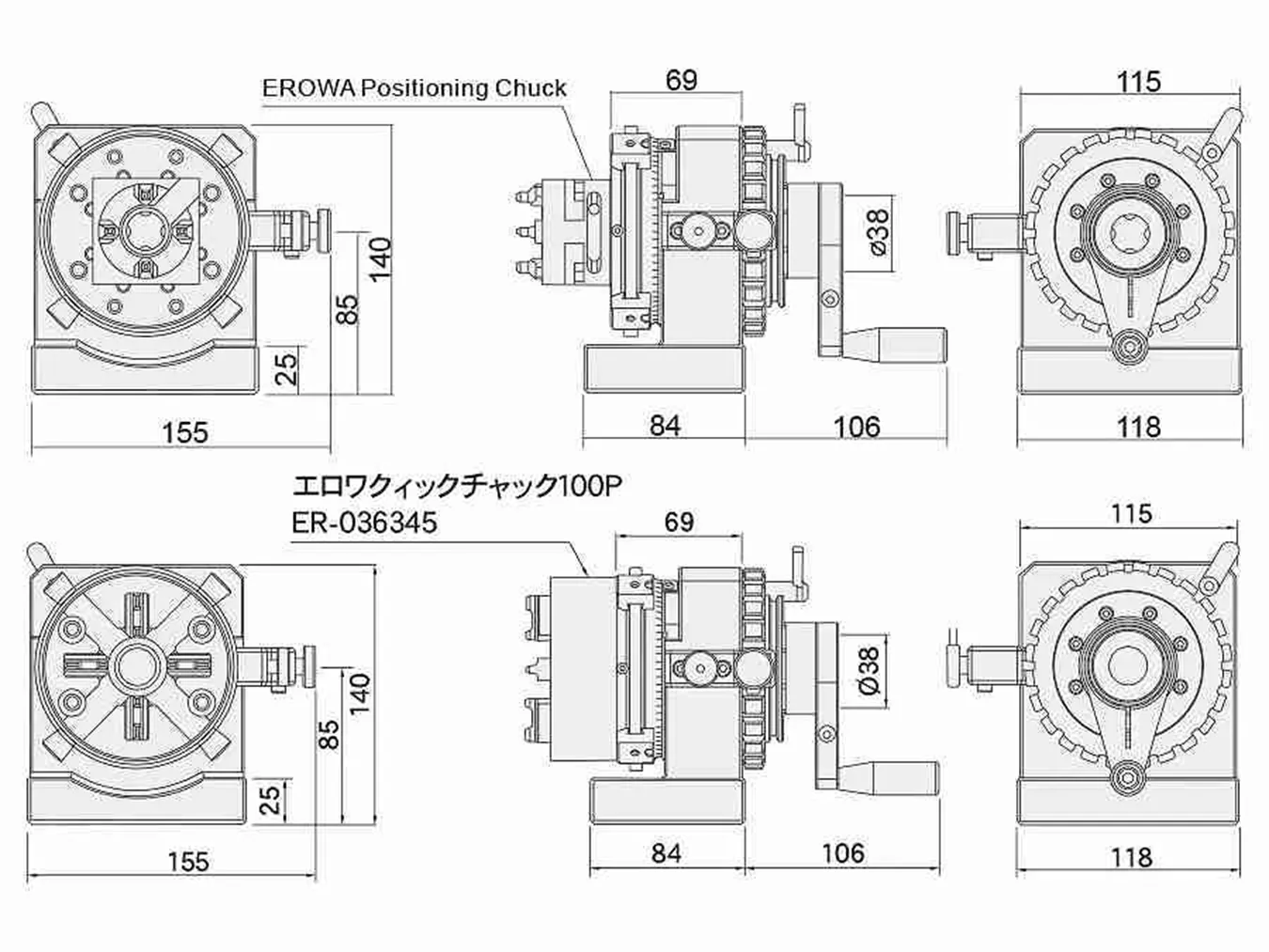

Product Specifications (Variations)
unit：mm| Product NO | Center height | Indexer tooth q'ty & accuracy | Rotational accuracy | Repeat accuracy | Chuck model | weight（kg） |
|---|---|---|---|---|---|---|

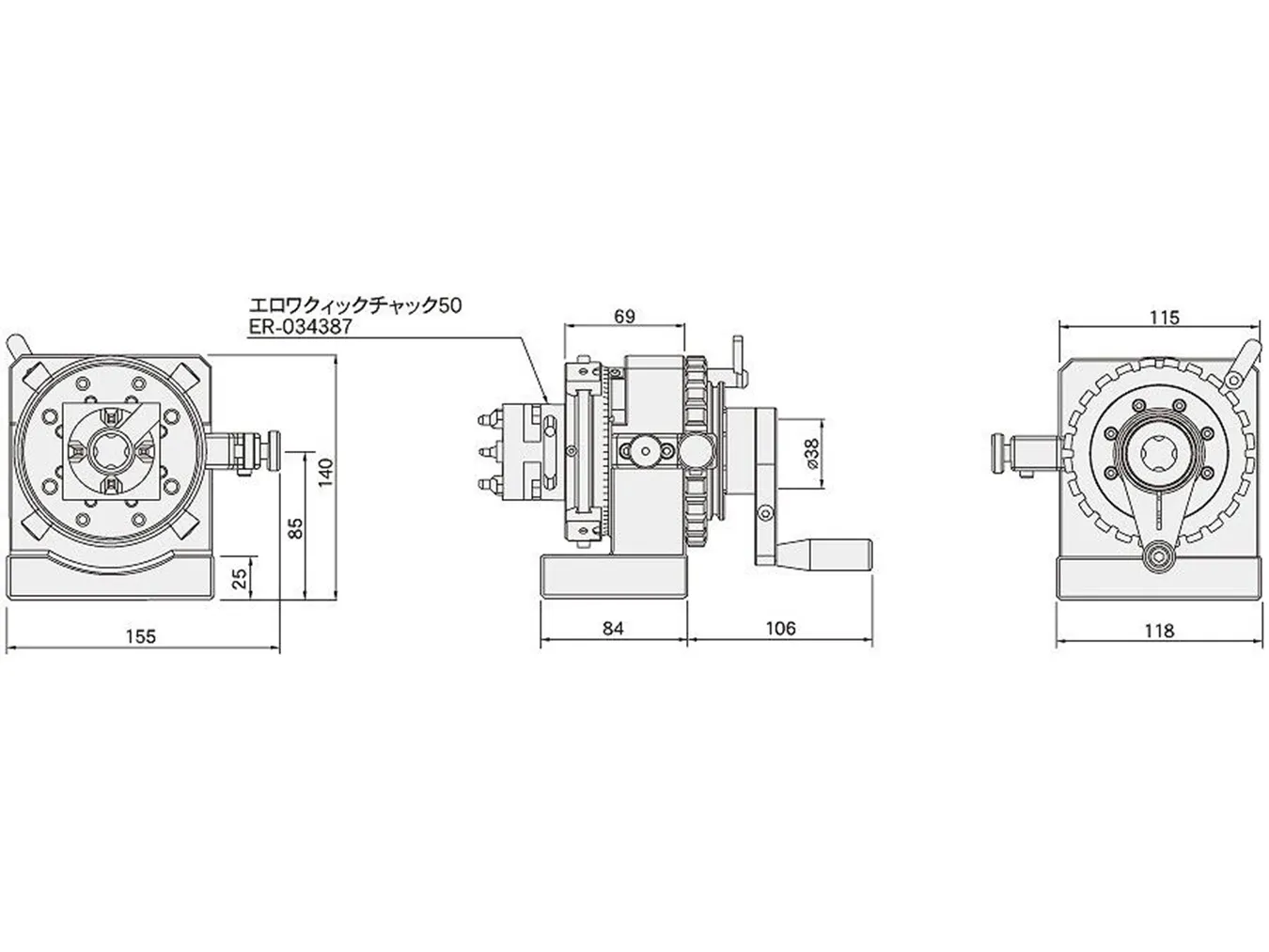

| FT-PFH-EQC50 | 85±0.5mm | 24、15°±5” | 0.003mm | 0.003mm | EQC50 | 8.4kg |

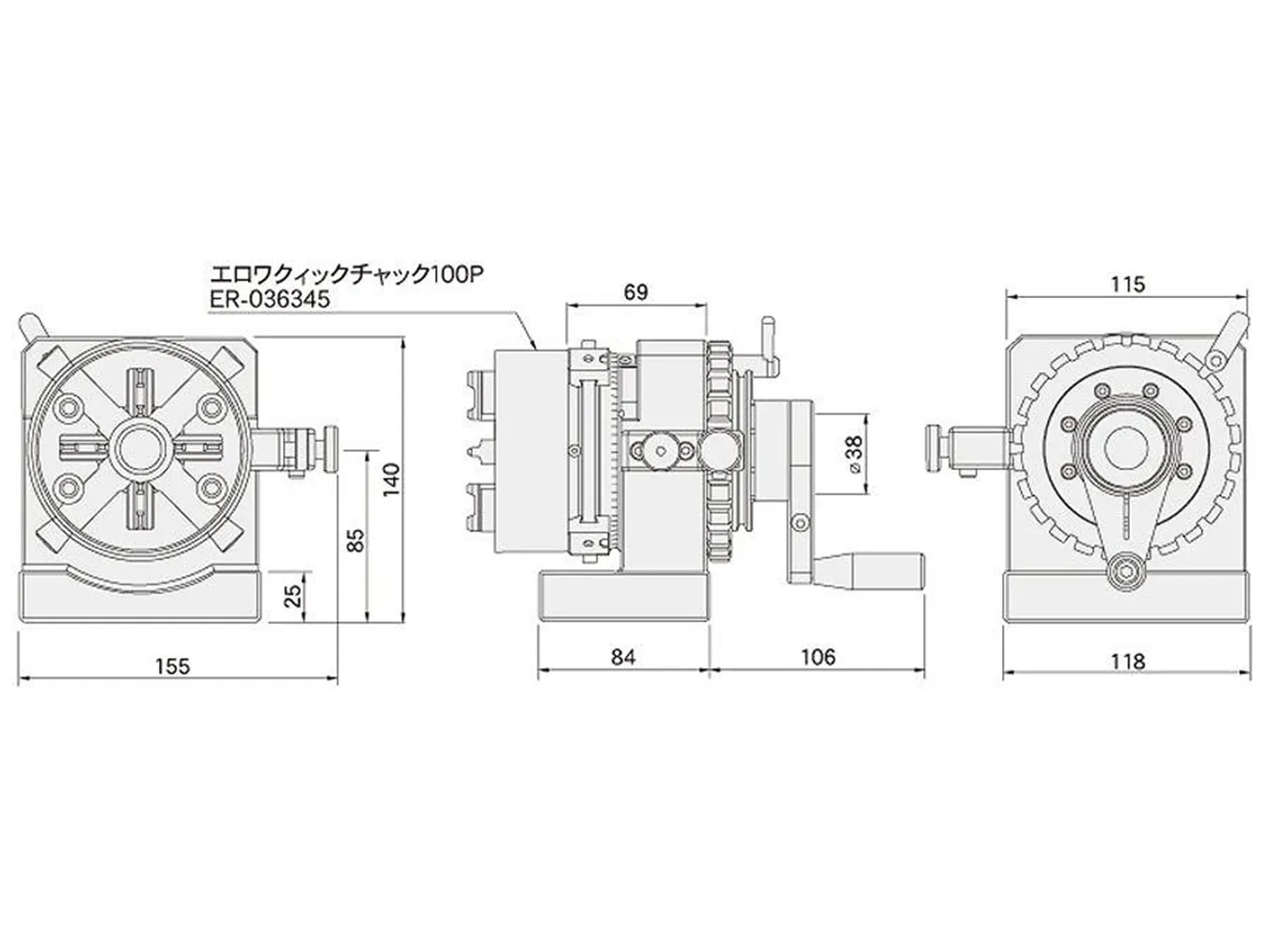

| FT-PFH-EQC100 | 85±0.5mm | 24、15°±5” | 0.003mm | 0.003mm | EQC100 | 9.8kg |
Related products
-
Motorised Precision ER Collet Punch Former
Product NO：FT-PFHM-SER -

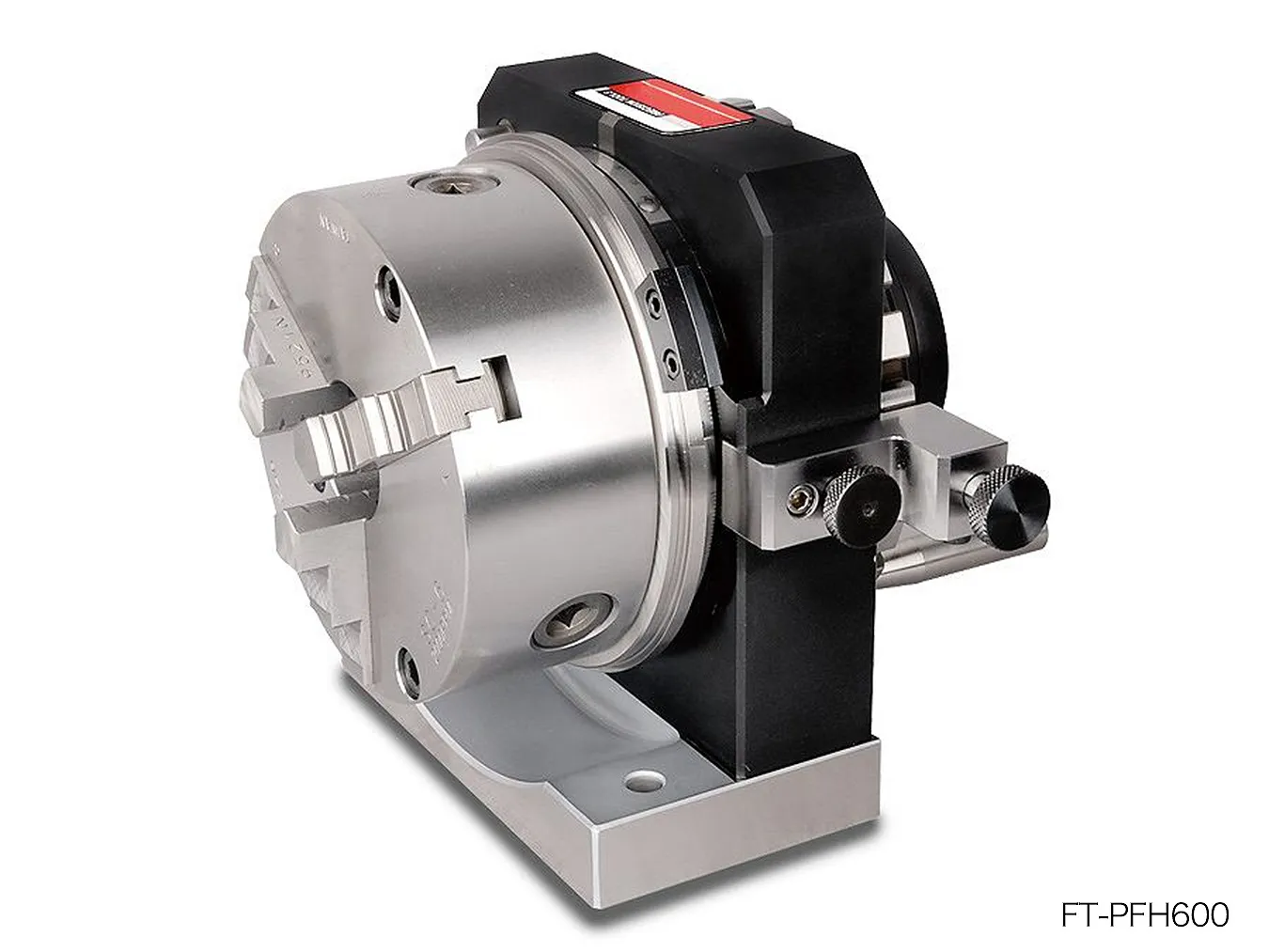

Precision 6" 3-Jaws Punch Former (Big Type)
Product NO：FT-PFH600 -

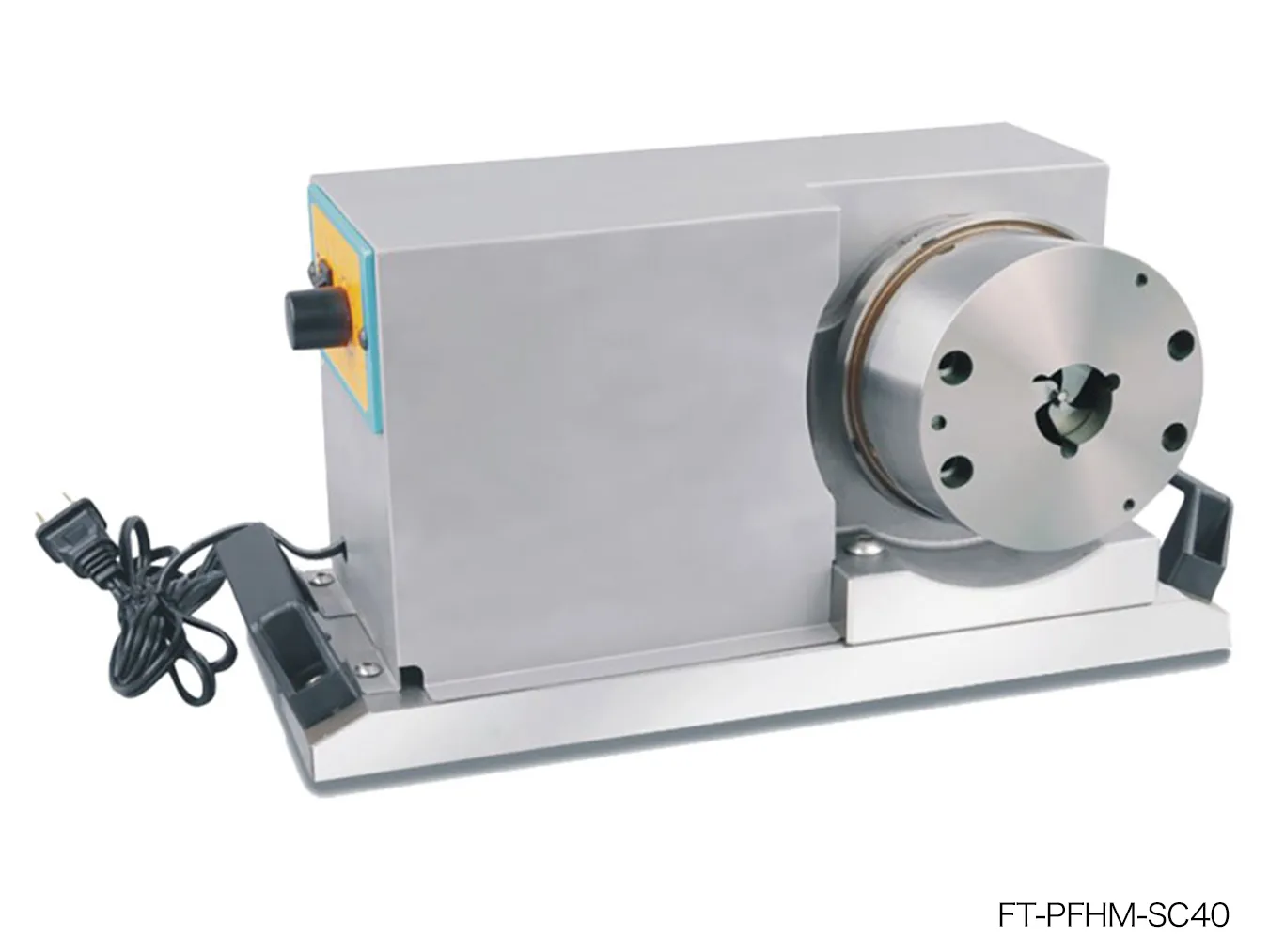

Super Precision Motor 3-Jaws Punch Former
