Motorised Precision ER Collet Punch Former

Product NO: FT-PFHM-SER

Price range: ¥1,450,000 through ¥1,480,000

Product name
Product NO
Clamping Capacity
Price
Stock
Quantity
Motorised Precision ER Collet Punch Former
FT-PFHM-SER20
2.0～13.0mm
¥1,450,000

This is a back-order item

Motorised Precision ER Collet Punch Former
FT-PFHM-SER32
3.0～20.0mm
¥1,450,000

This is a back-order item

Motorised Precision ER Collet Punch Former
FT-PFHM-SER50
12.0～34.0mm
¥1,480,000

This is a back-order item

Specification

●A highly durable punch former constructed from stainless steel and featuring a waterproof design.
●Workpieces are securely held using an ER collet.
●Equipped with precision dual bearings for exceptional stability and accuracy.
●Power supply: Single-phase 100 V
●Motor speed: 50–550 min⁻¹ (rpm)

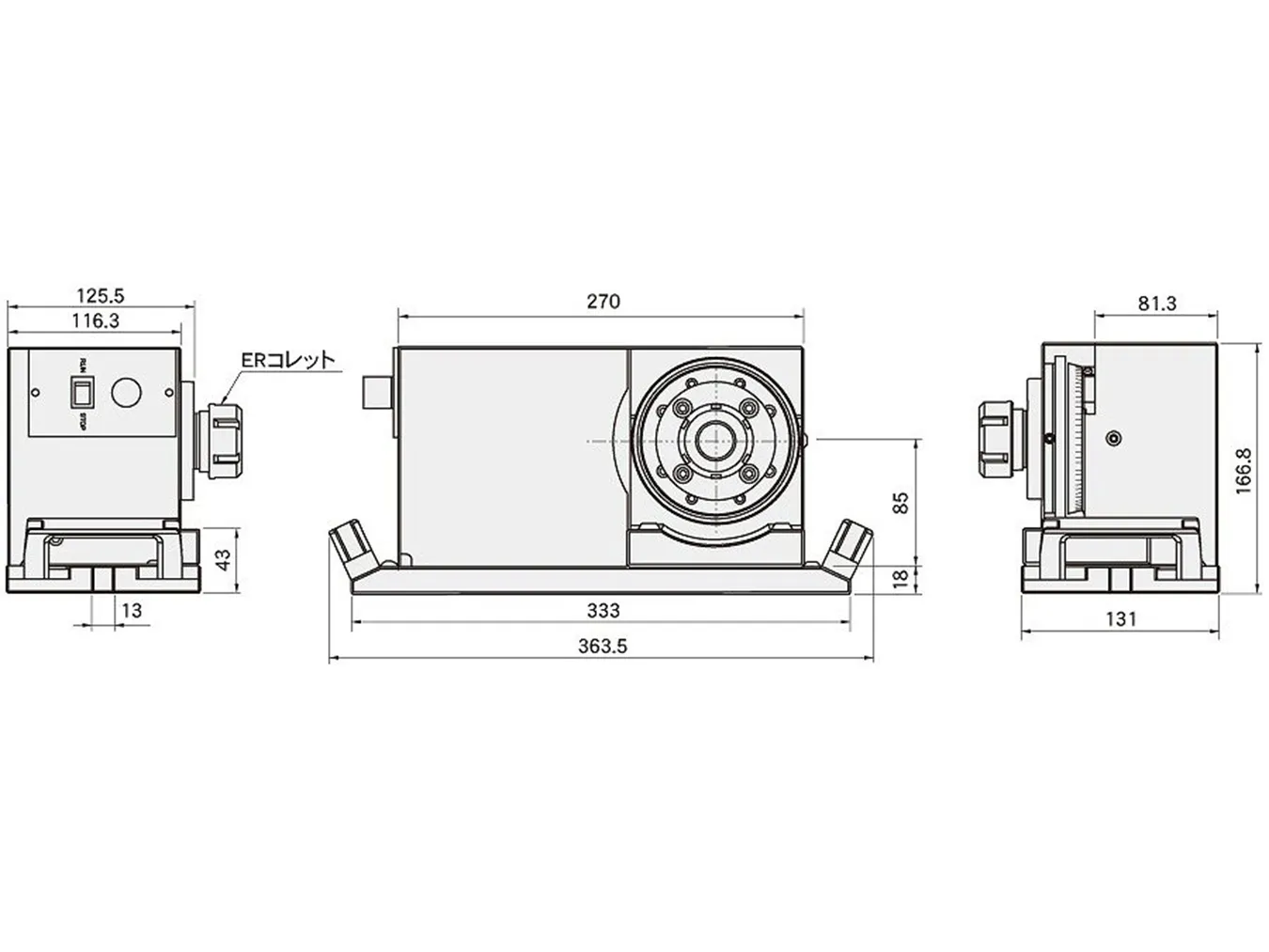

Product Specifications (Variations)

unit：mm
Product NOCenter heightPower supplyRotational accuracyClamping CapacityStandard-supplied colletweight（kg）
FT-PFHM-SER2085±0.5mmAC100V0.003mm2.0～13.0mm3、4、6、8、1024.9kg
FT-PFHM-SER3285±0.5mmAC100V0.003mm3.0～20.0mm4、8、12、16、2024.8kg
FT-PFHM-SER5085±0.5mmAC100V0.003mm12.0～34.0mm12、18、20、30、3425.7kg
