Precision 3-Jaw Punch Former
Product NO: FT-PF550-SC04
Quote upon request
This is a back-order item
Specification
●It offers a strong grip and excellent durability.
●The center hole is a through-hole.
●The FT-PF550-SC04 is a general-purpose model with a wide gripping range.
●Equipped with dual bearings to provide exceptional stability and accuracy.
●The indexing function enables precise manufacturing of polygonal punches.

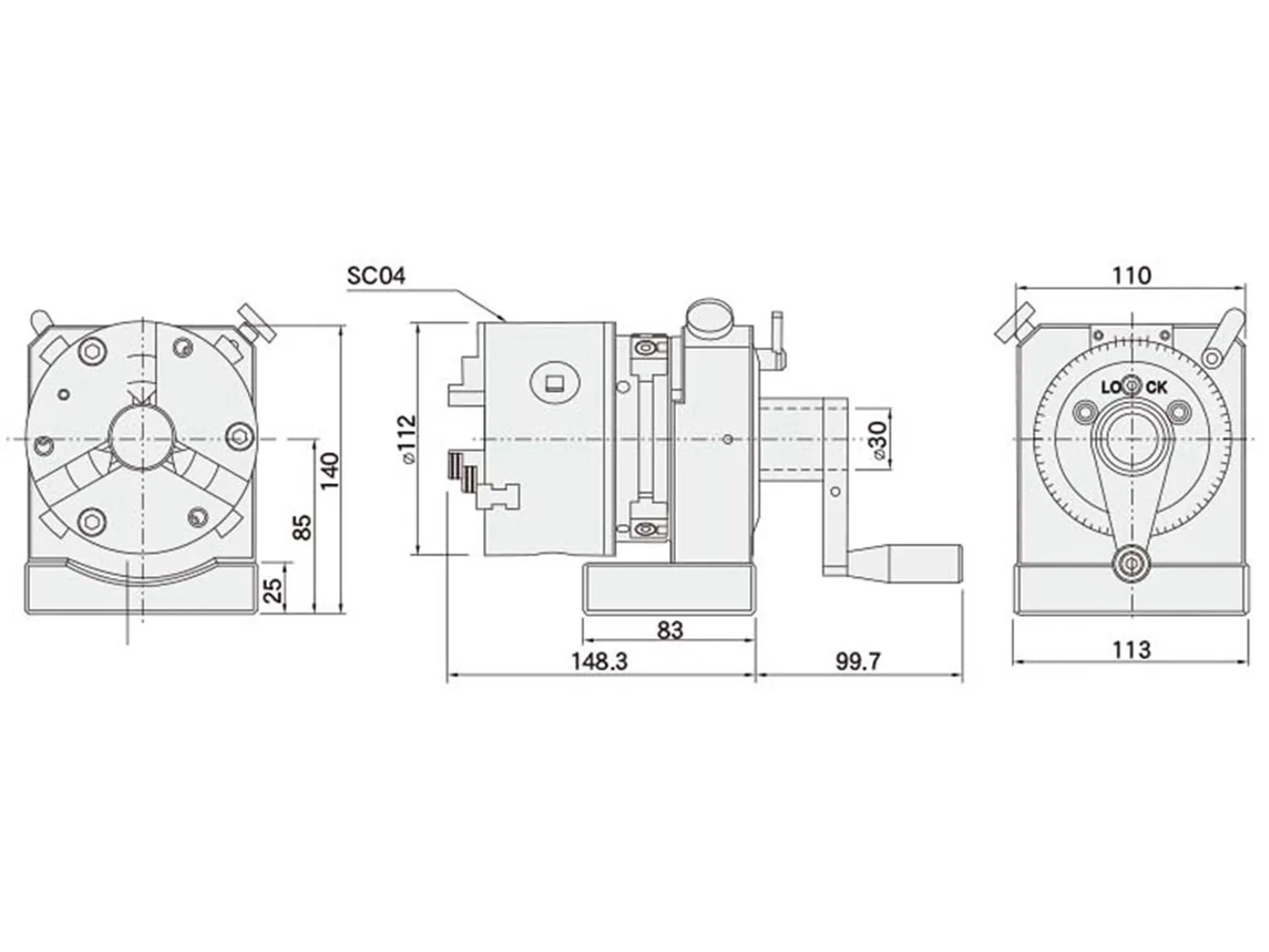

unit：mm
| Product NO | FT-PF550-SC04 |
|---|---|
| Center height | 85±0.5ｍｍ |
| Indexer tooth q'ty & accuracy | 24、15°±10” |
| Through hole diameters | Ø30mm |
| inside diameterGripping range | Ø3-90ｍｍ |
| Outer diameterGripping range | Ø32-84ｍｍ |
| Rotational accuracy | ー |
| Repeat accuracy | 0.015mm |
| weight（kg） | 7.8kg |
