Center Punch Former
Product NO: FT-GPFE
Price range: ¥690,000 through ¥750,000
Specification
●Center Punch Former apply Live Center at both sides to clamp punch to achieve concentricity.
●Live center stabilize the processing and achieve higher accuracy.
●It is mainly apply on bushes and cylinder which needs precision cylindrical grinding on surface grinding machines.
●Material：SKS3 Hardness：HRC60～62°
●A lathe dog (drive dog) is required and must be supplied separately.
Product Specifications (Variations)

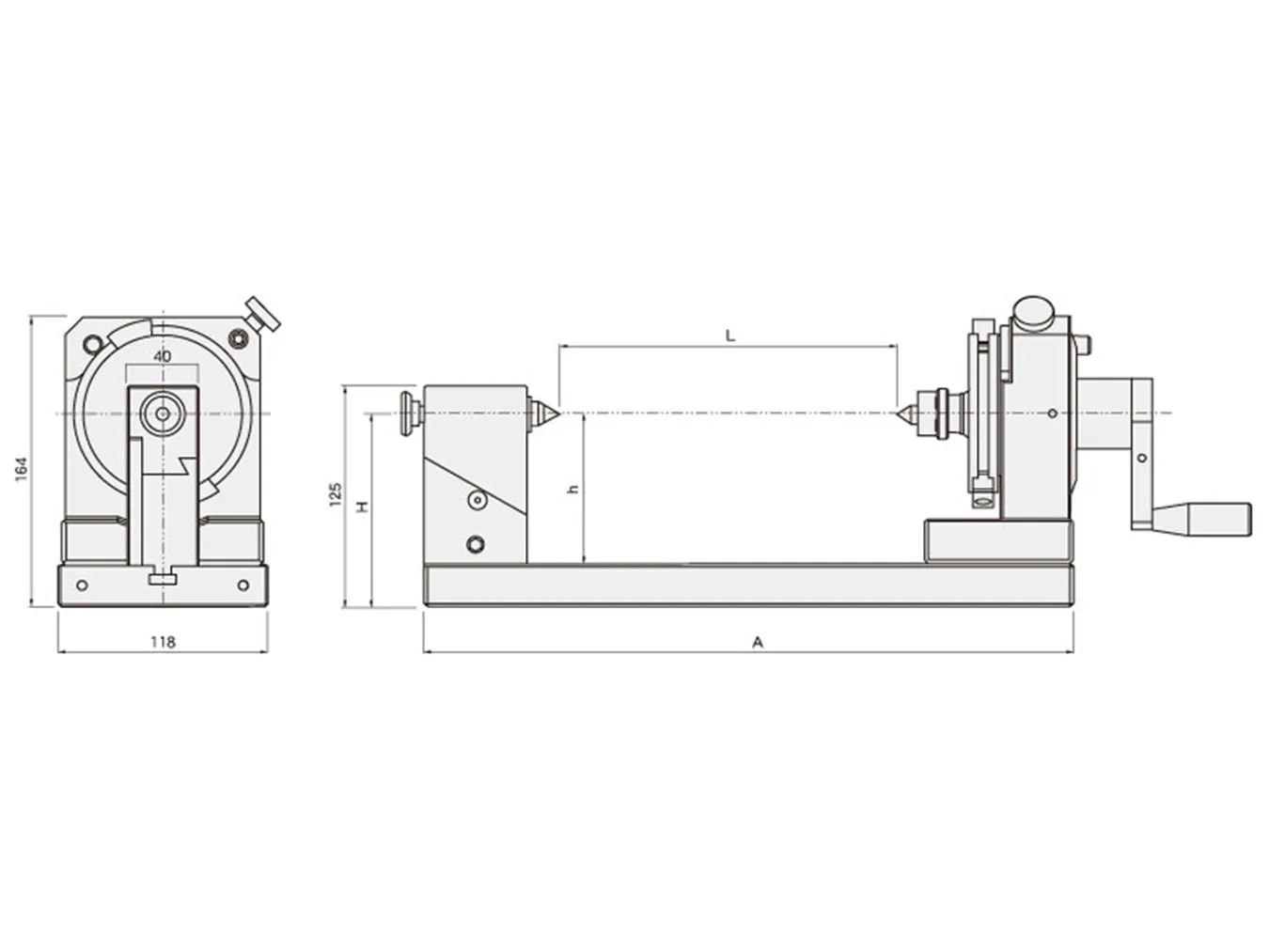

unit：mm| Product NO | A | L | Indexer tooth q'ty & accuracy | Roundness | Parallelism | Squareness | Rotation range | weight（kg） |
|---|---|---|---|---|---|---|---|---|
| FT-GPFE150 | 375 | 0～150 | 24、 15°±10” | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 20kg |
| FT-GPFE250 | 475 | 0～250 | 24、 15°±10” | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 23kg |
| FT-GPFE350 | 575 | 0～350 | 24、 15°±10” | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 26kg |
| FT-GPFE450 | 675 | 0～450 | 24、 15°±10” | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 29.5kg |
Related products
-

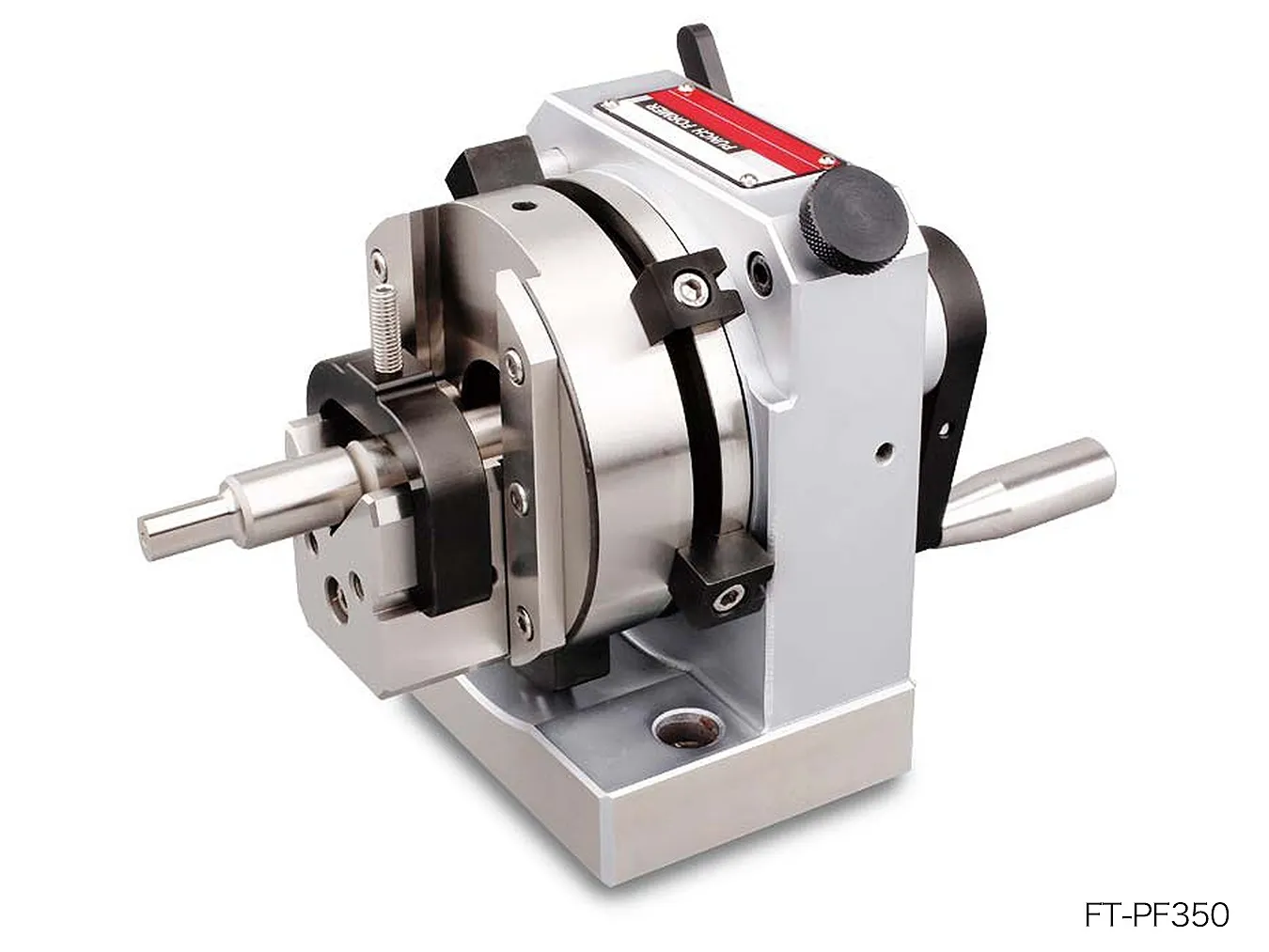

Fine-tuning Type Punch Former
Product NO：FT-PF350 -

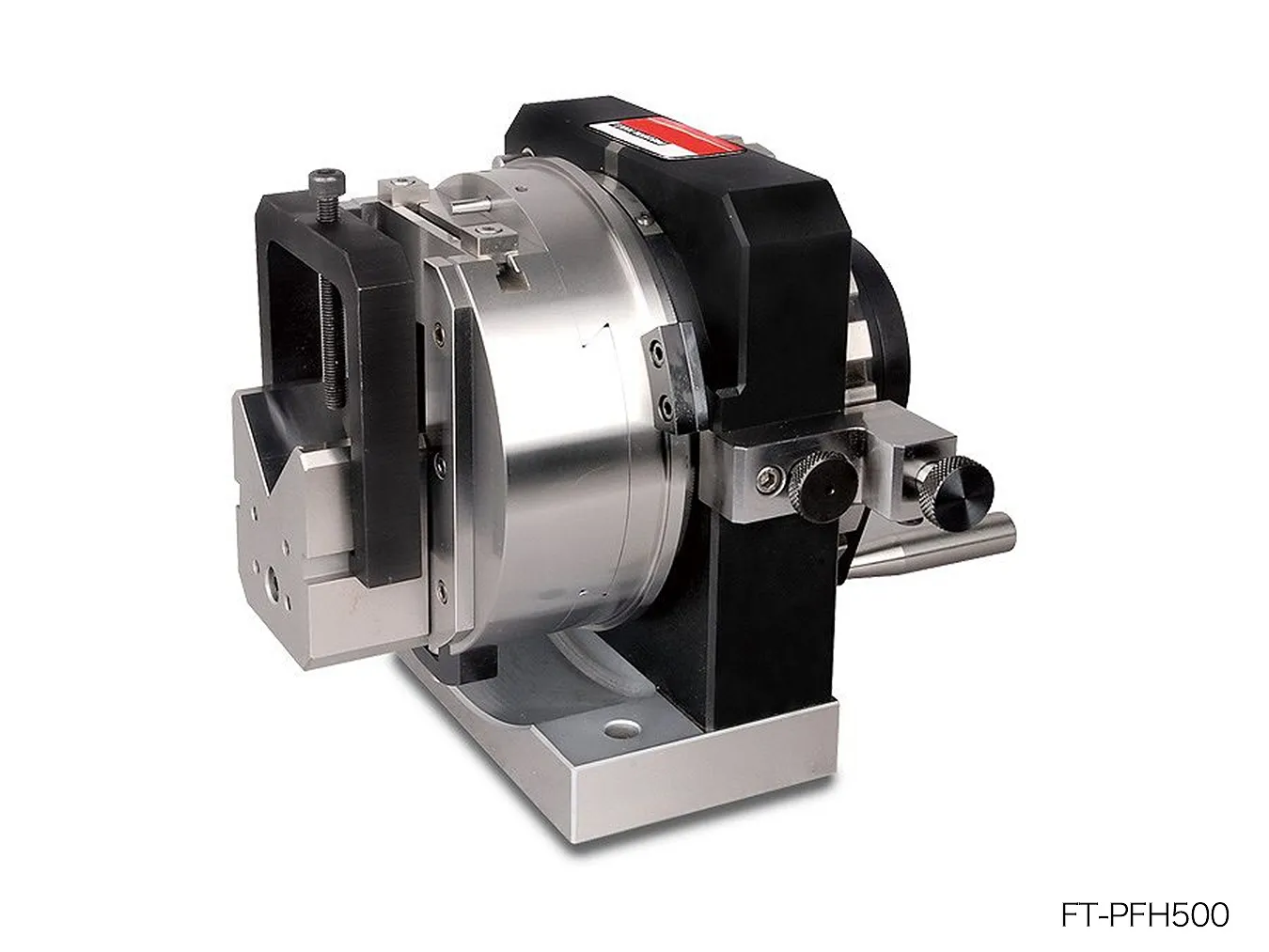

Precision Punch Former (Big Type)
Product NO：FT-PFH500 -

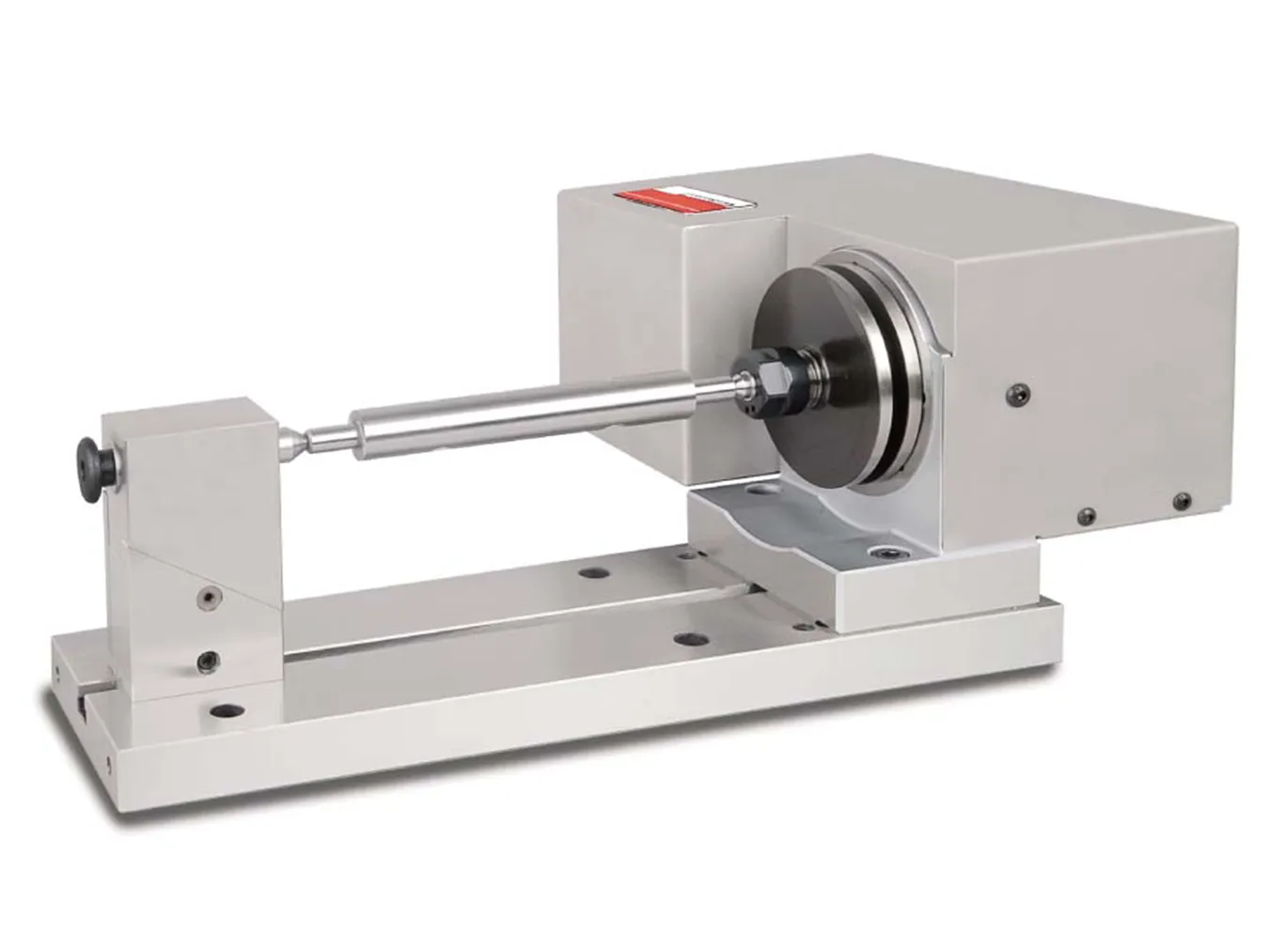

Motor Center Punch Former
