Motor Center Punch Former
Product NO: FT-GPFEM
Price range: ¥910,000 through ¥970,000
Specification
●Equipped with a rotary live center to maintain concentricity, this motorized punch former ensures stable, high-precision machining.
●Material：SKS3 Hardness：HRC60～62°
●A lathe dog (drive dog) is required and must be supplied separately.
●Power supply: Single-phase 100 V
●Motor speed: 50–550 min⁻¹ (rpm)
Product Specifications (Variations)

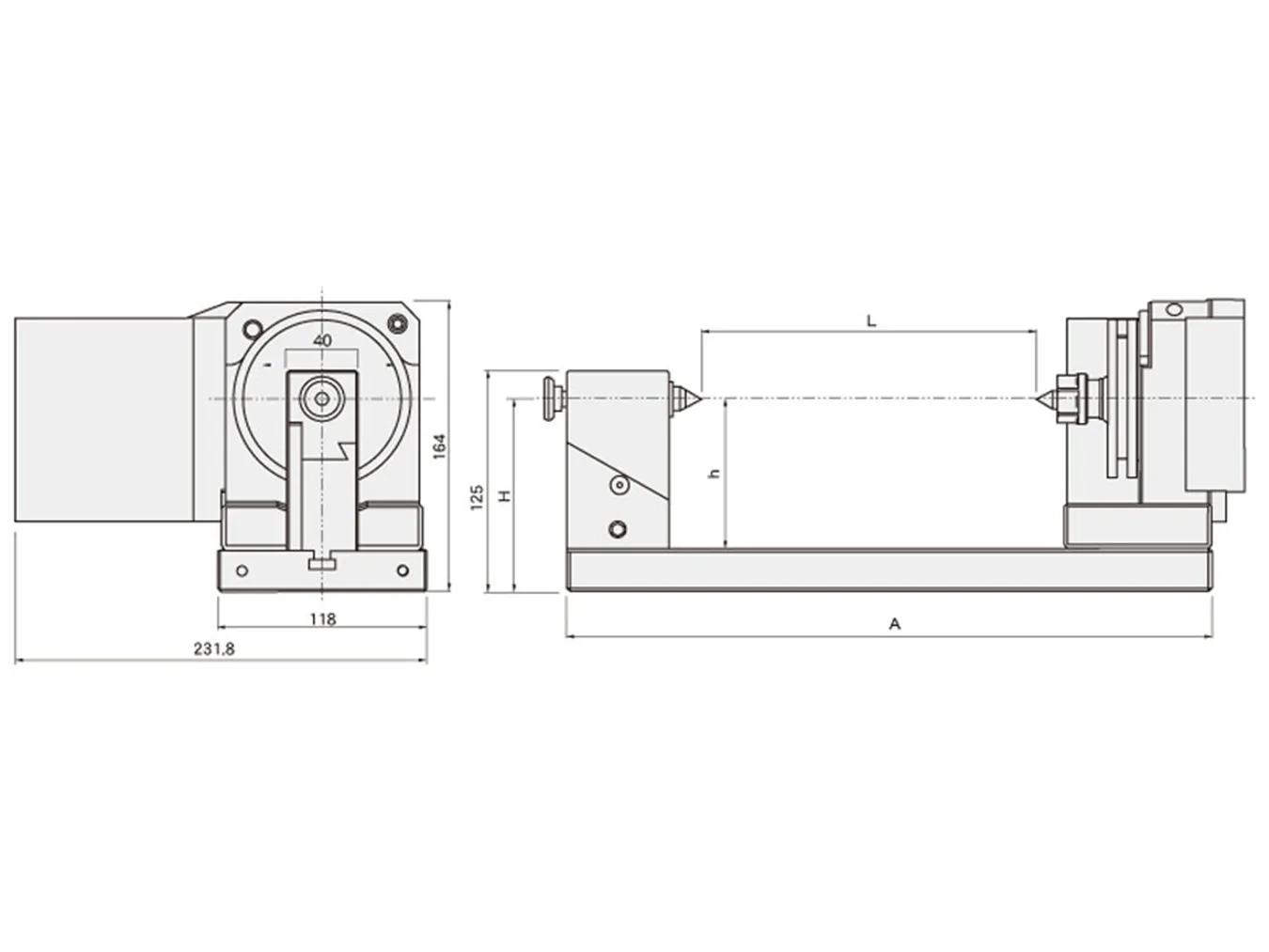

unit：mm| Product NO | A | L | Indexer tooth q'ty & accuracy | Roundness | Parallelism | Squareness | Rotation range | weight（kg） |
|---|---|---|---|---|---|---|---|---|
| FT-GPFE150M | 375 | 0～150 | Without Indexing Function | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 23kg |
| FT-GPFE250M | 475 | 0～250 | Without Indexing Function | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 26kg |
| FT-GPFE350M | 575 | 0～350 | Without Indexing Function | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 29kg |
| FT-GPFE450M | 675 | 0～450 | Without Indexing Function | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 32.5kg |
