Powerful Circular Type Permanent Magnetic Chuck（for Alloy Material）
Product NO: FT-HMTR
Quote upon request
Specification
●Applications: Suitable for use on lathes, 5-axis machining centers, and rotary grinding machines.
●Utilizes an extremely powerful magnetic system for secure workholding.
●Incorporates high-performance neodymium magnets.
Product Specifications (Variations)

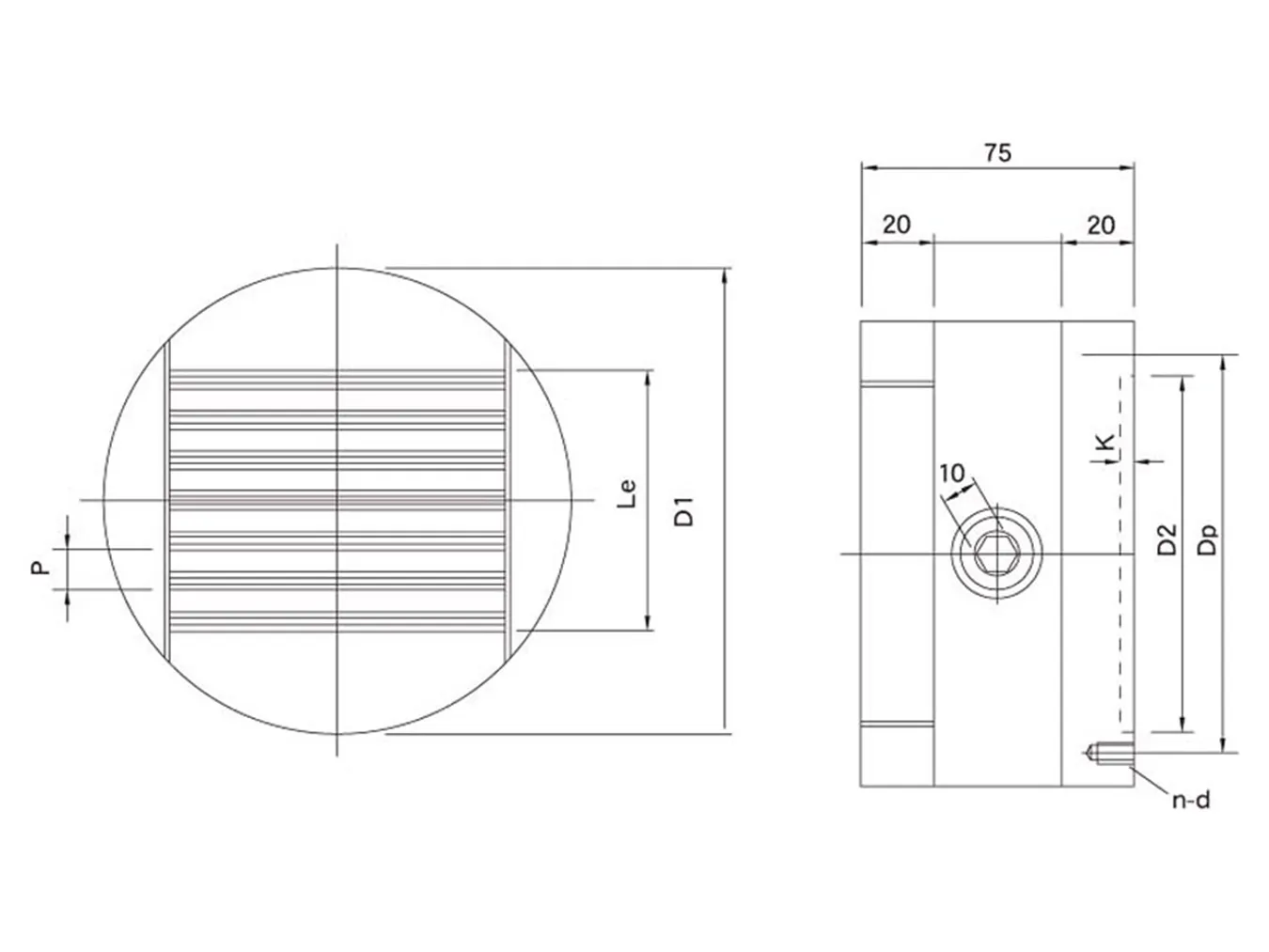

unit：mm| Product NO | Nominal Dimension | D | Le | Magnetic PolePitchP | D2 | K | Dp | n-d | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|
| FT-HMTR-13 | Ø130 | 130 | 78 | 11.2（1.6+2+1.6+6） | 100 | 4 | 112 | 4×M6 | 6.8 |
| FT-HMTR-16 | Ø160 | 160 | 100 | 11.2（1.6+2+1.6+6） | 125 | 4 | 140 | 4×M8 | 9.8 |
| FT-HMTR-20 | Ø200 | 200 | 128 | 11.2（1.6+2+1.6+6） | 160 | 4 | 180 | 4×M8 | 15 |
