Sine Plate With Fine Magnetic Chuck

Product NO: FT-MSP-S

Price range: ¥248,000 through ¥470,000

Product No

Clear

Product name

Product NO

Nominal Dimension

Price

Stock

Quantity

Sine Plate With Fine Magnetic Chuck

FT-MSP35S

174×78×74mm

¥248,000

This is a back-order item

Sine Plate With Fine Magnetic Chuck

FT-MSP47S

225×102×84mm

¥287,000

This is a back-order item

Sine Plate With Fine Magnetic Chuck

FT-MSP66S

200×152×84mm

¥313,000

This is a back-order item

Sine Plate With Fine Magnetic Chuck

FT-MSP510S

300×127×84mm

¥351,000

This is a back-order item

Sine Plate With Fine Magnetic Chuck

FT-MSP412S

350×102×84mm

¥417,000

This is a back-order item

Sine Plate With Fine Magnetic Chuck

FT-MSP612S

350×152×84mm

¥470,000

This is a back-order item

Specification

● Adjustable angle 0-60° .
●Parallelism: 0.003 mm/100 mm
●Center-to-center accuracy：within 0.005mm-100mm
●Angles are set using trigonometric calculations and gauge blocks.
（Gauge blocks are not included.）

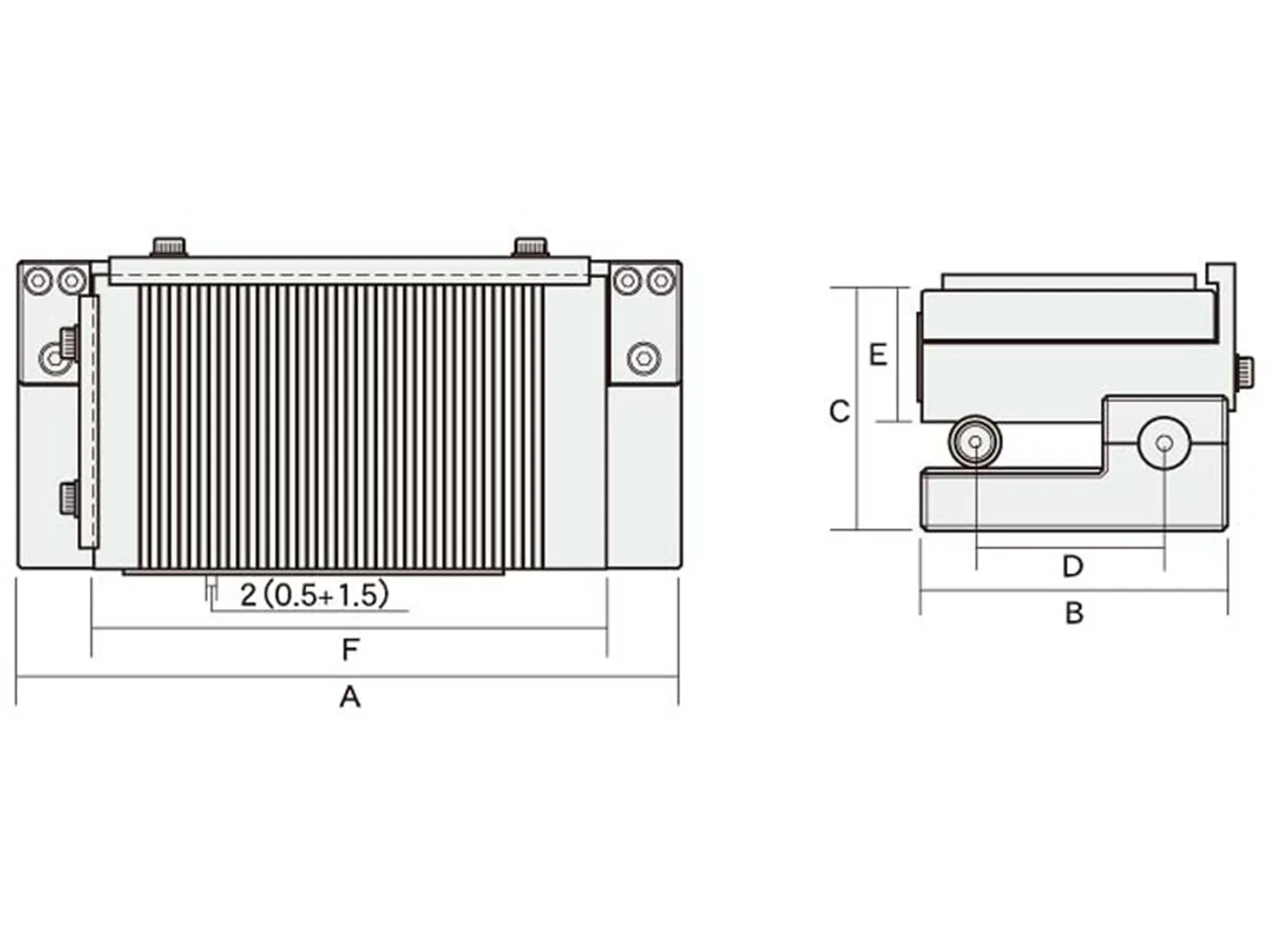

Product Specifications (Variations)

unit：mm

Product NO	A	B	C	D	E	F	weight（kg）
FT-MSP35S	174	78	74	50	40	130	6.5
FT-MSP47S	225	102	84	75	47	175	11
FT-MSP66S	200	152	84	100	47	150	14.8
FT-MSP510S	300	127	84	100	47	250	20
FT-MSP412S	350	102	84	75	47	300	20.3
FT-MSP612S	350	152	84	100	47	300	27.5
