Double-Sided Permanent Magnetic Chuck
Product NO: FT-DSM
Price range: ¥305,900 through ¥496,800
Specification
●Suitable for grinding, EDM, and inspection applications.
●The fine pole pitch design makes it particularly suitable for small and thin workpieces.
●The chuck mounting surface is also magnetized and features ON/OFF magnetic control.
●Suitable for use in submerged environments.
Product Specifications (Variations)

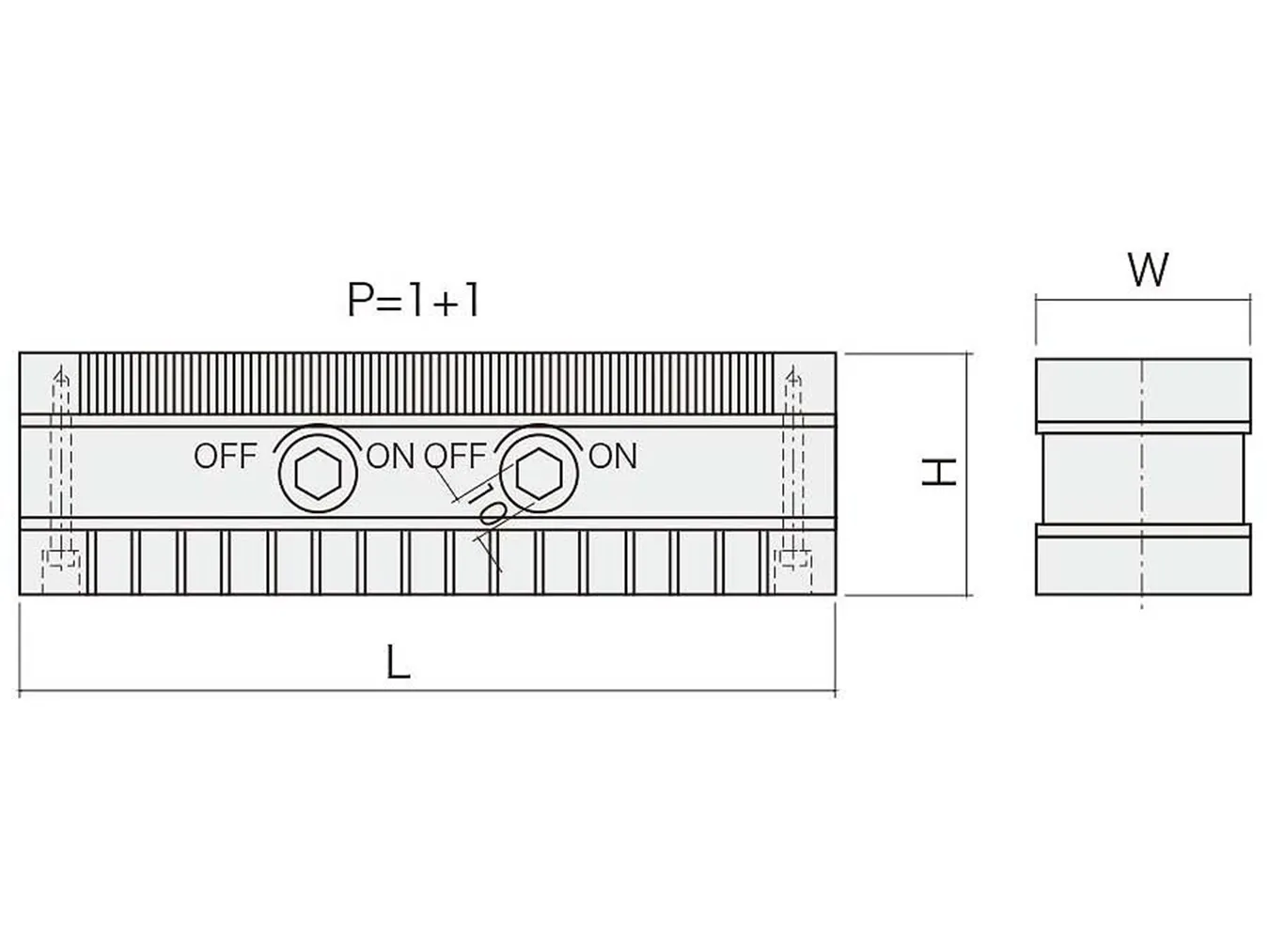

unit：mm| Product NO | Nominal Dimension | W | L | H | P | weight（kg） |
|---|---|---|---|---|---|---|
| FT-DSM15 | 50×150 | 50 | 150 | 52 | 2（1+1） | 3.5 |
| FT-DSM20 | 50×200 | 50 | 200 | 52 | 2（1+1） | 4.7 |
| FT-DSM25 | 50×250 | 50 | 250 | 52 | 2（1+1） | 5.9 |
Related products
-

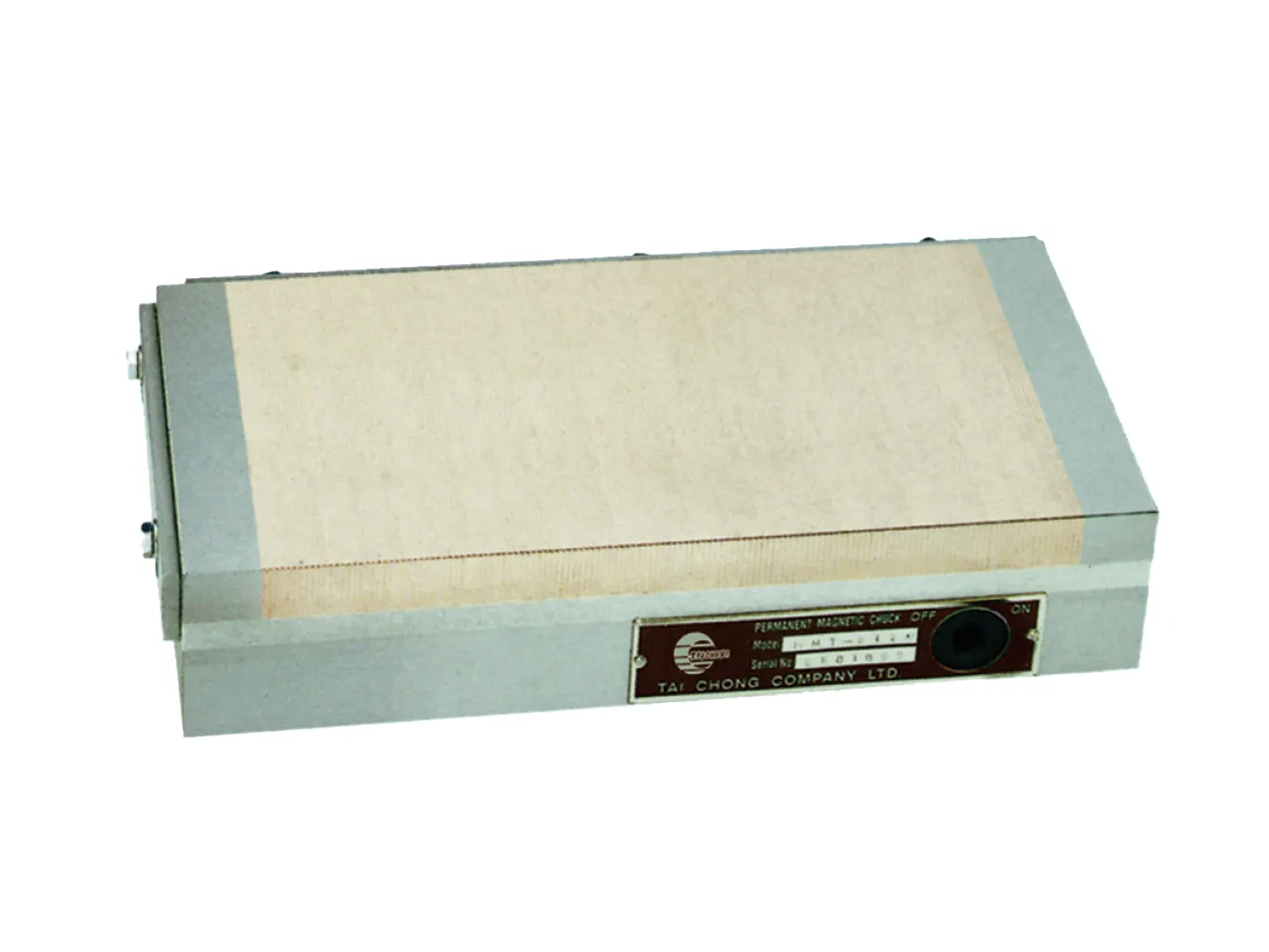

Powerful Micropitch Permanent Magnetic Chuck
