Rotary Permanent Magnetic Chuck
Product NO: FT-U
Quote upon request
Specification
●A permanent magnetic chuck ideally suited for angular grinding applications on surface grinding machines.
●Suitable for holding small workpieces with a thickness of 10 mm or greater.
●Equipped with a graduated rotary shaft, allowing angles to be set quickly and easily. For applications requiring higher angular accuracy, a sine bar chuck is recommended.
Product Specifications (Variations)

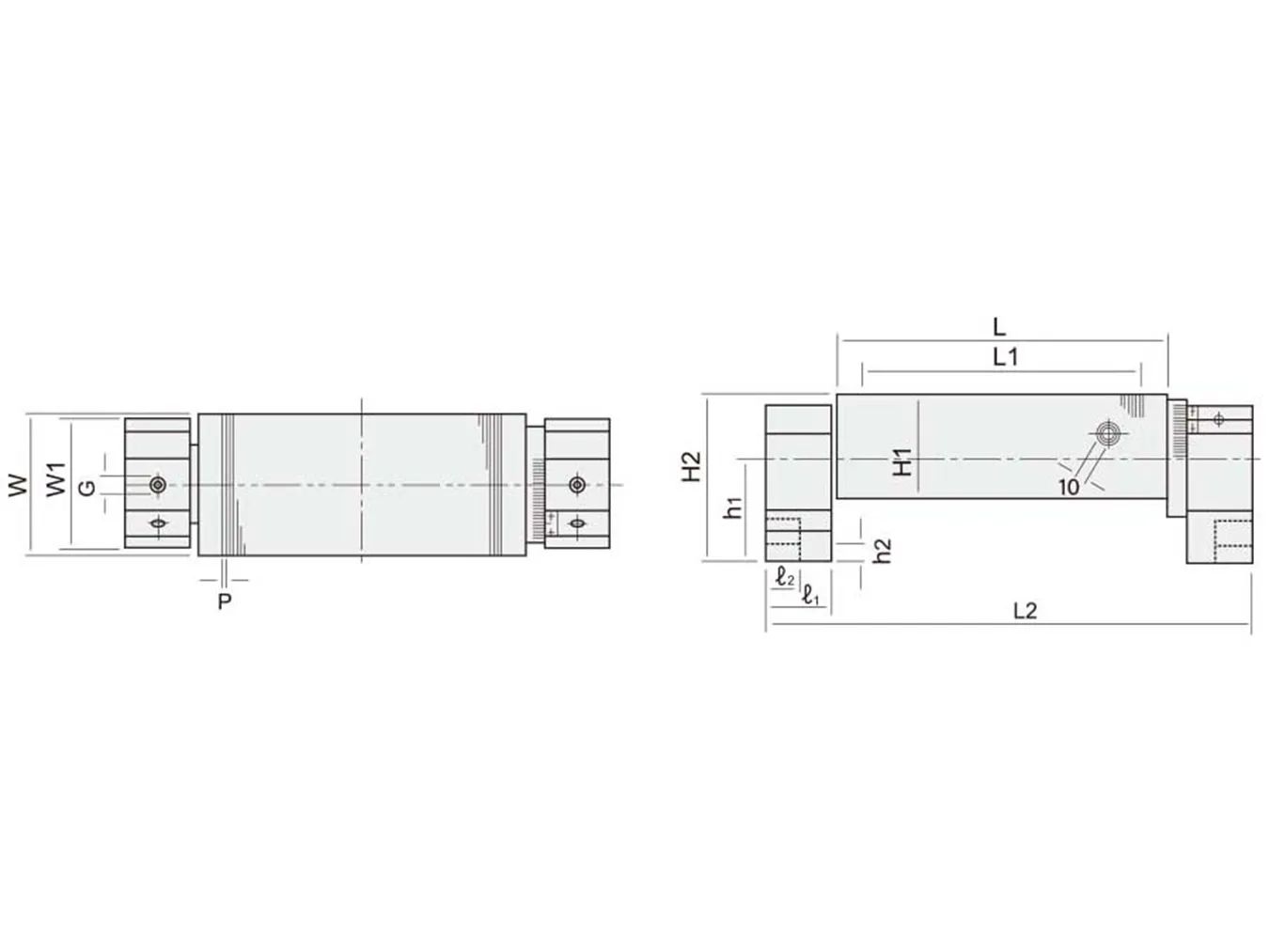

unit：mm| Product NO | Nominal Dimension | W | L | L1 | H1 | Magnetic PolePitchP | L2 | W1 | l1 | l2 | G | h1 | h2 | H2 | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-407U | 100×175 | 100 | 175 | 125 | 78 | 11.2（1.6+2+1.6+6） | 293 | 100 | 50 | 25 | 14 | 103 | 50 | 145 | 17 |
| FT-510U | 125×250 | 125 | 250 | 200 | 78 | 11.2（1.6+2+1.6+6） | 368 | 100 | 50 | 25 | 14 | 103 | 50 | 145 | 24 |
| FT-612U | 150×300 | 150 | 300 | 246 | 78 | 11.2（1.6+2+1.6+6） | 418 | 100 | 50 | 25 | 14 | 103 | 50 | 145 | 30 |
| FT-614U | 150×350 | 150 | 350 | 296 | 78 | 11.2（1.6+2+1.6+6） | 468 | 100 | 50 | 25 | 14 | 103 | 50 | 145 | 33.5 |
| FT-618U | 150×450 | 150 | 450 | 396 | 78 | 11.2（1.6+2+1.6+6） | 568 | 100 | 50 | 25 | 14 | 103 | 50 | 145 | 40.2 |
