Stripe Round type Electromagnetic Chuck(controller sold separately)
Product NO: FT-ELCR-L
Quote upon request
Specification
●Designed for use on rotary grinding machines.
●Ideal for holding workpieces that may deform when secured using conventional mechanical clamping methods.
●A monocoque-type electromagnetic chuck offering outstanding durability.
●Provides high accuracy, excellent durability, and superior waterproof performance.
Product Specifications (Variations)

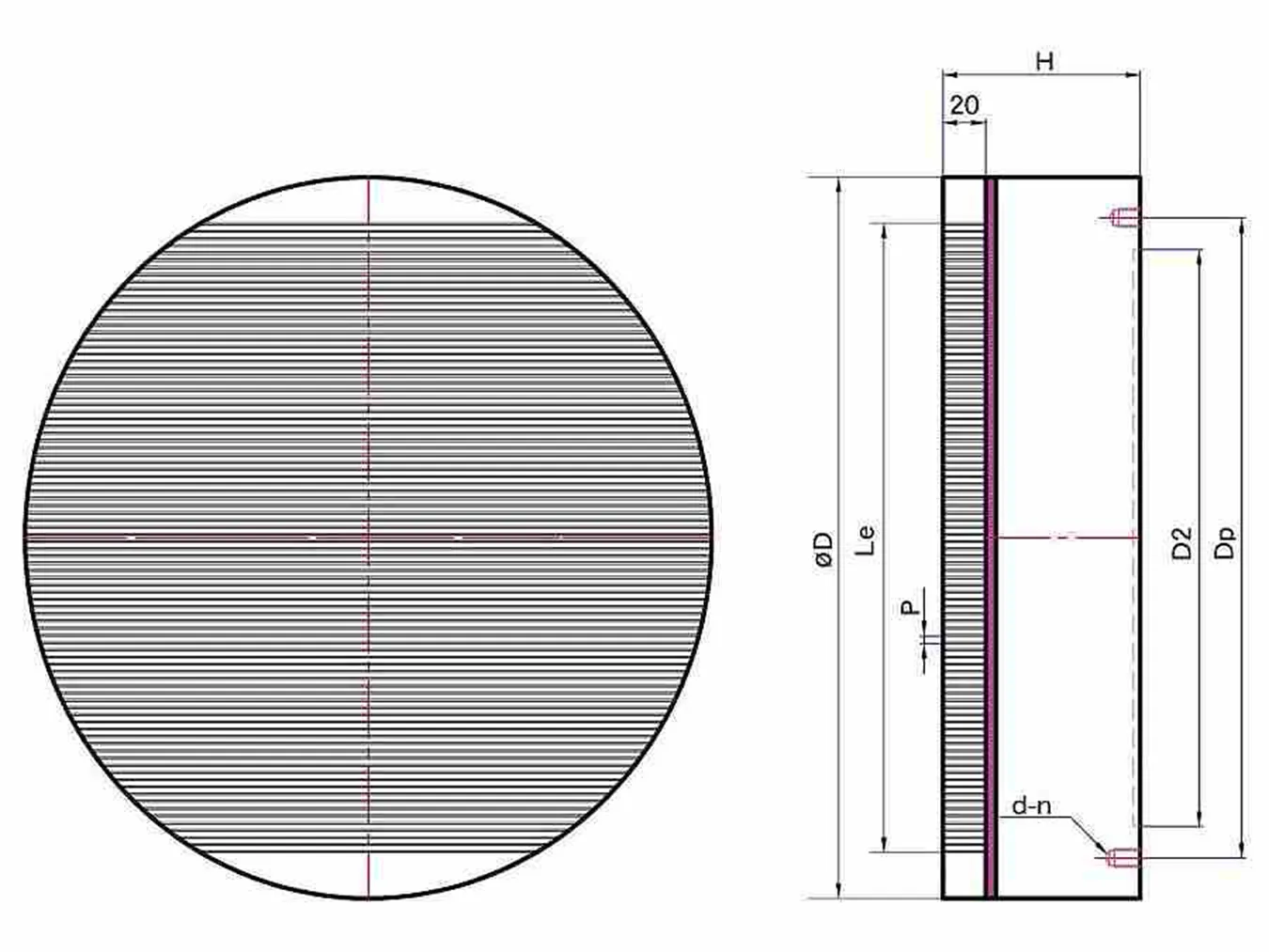

unit：mm| Product NO | Nominal Dimension | D | Le | Magnetic PolePitchＰ | D2 | K | n | d | Dp | HeightH | Voltage（DCV） |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-ELCR-16L | Ø160 | 160 | 110 | 4（1+3） | 125 | 4 | M8 | 4 | 140 | 110 | 90 |
| FT-ELCR-20L | Ø200 | 200 | 140 | 4（1+3） | 160 | 4 | M8 | 4 | 180 | 110 | 90 |
| FT-ELCR-25L | Ø250 | 250 | 190 | 4（1+3） | 200 | 4 | M10 | 4 | 224 | 110 | 90 |
| FT-ELCR-32L | Ø320 | 320 | 260 | 4（1+3） | 250 | 4 | M10 | 4 | 280 | 120 | 90 |
| FT-ELCR-36L | Ø360 | 360 | 300 | 4（1+3） | 280 | 4 | M10 | 4 | 320 | 120 | 90 |
| FT-ELCR-40L | Ø400 | 400 | 340 | 4（1+3） | 315 | 4 | M10 | 4 | 355 | 120 | 90 |
| FT-ELCR-50L | Ø500 | 500 | 440 | 4（1+3） | 350 | 4 | M12 | 8 | 400 | 120 | 90 |
| FT-ELCR-60L | Ø600 | 600 | 540 | 4（1+3） | 450 | 4 | M12 | 8 | 500 | 120 | 90 |
