Round Electromagnetic Chuck(controller sold separately)
Product NO: FT-ELCR
Quote upon request
Specification
●Designed for use on rotary grinding machines.
●Ideal for holding workpieces that may deform when secured using conventional mechanical clamping methods.
●A monocoque-type electromagnetic chuck offering outstanding durability.
●Provides high accuracy, excellent durability, and superior waterproof performance.
Product Specifications (Variations)

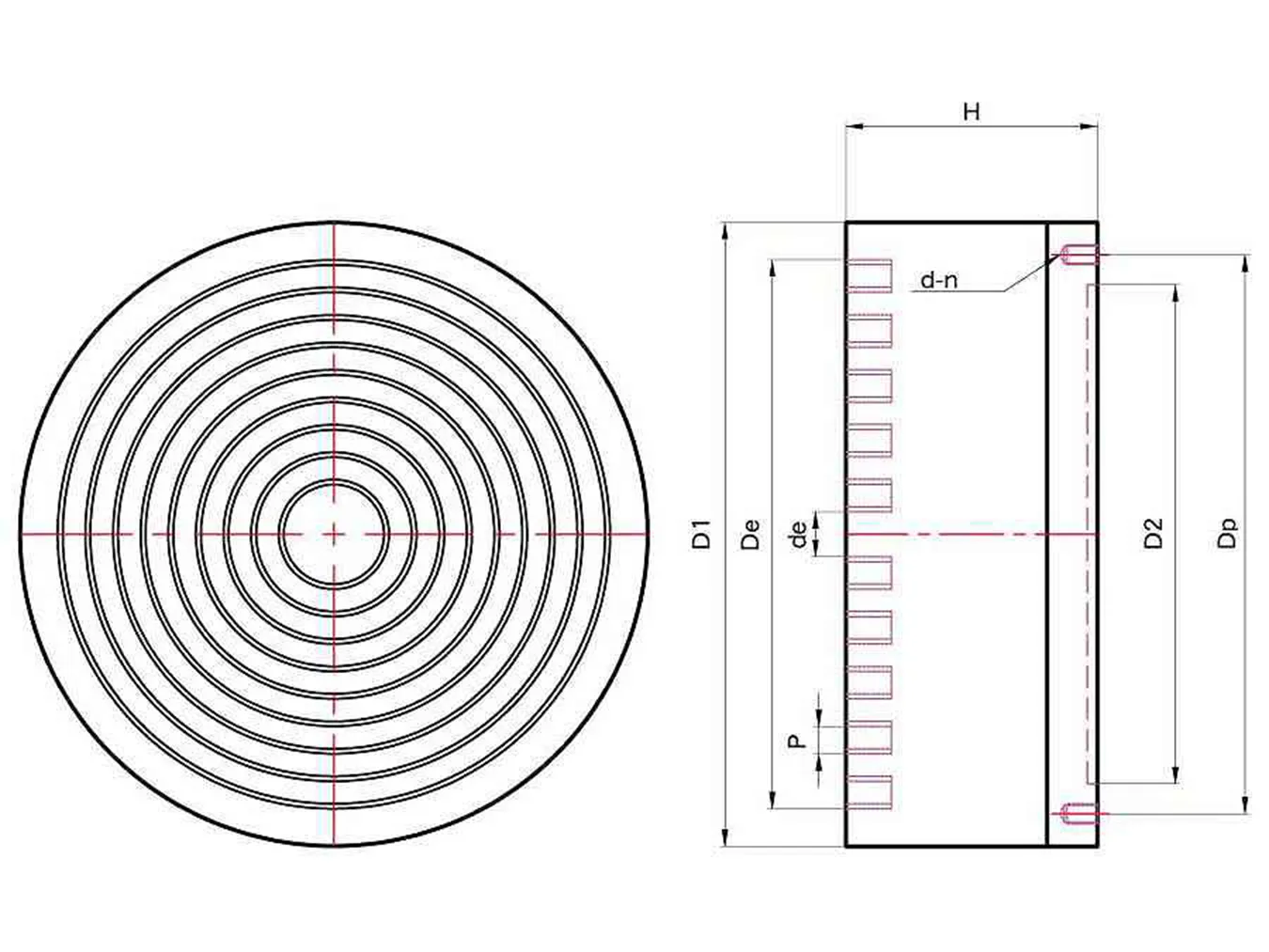

unit：mm| Product NO | Nominal Dimension | D1 | De | de | Magnetic PolePitchＰ | D2 | K | n | d | Dp | HeightH | Voltage（DCV） | current（A） | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-ELCR-10 | Ø100 | 100 | 76 | 24 | 8（2+6） | 63 | 3 | 4 | M6 | 80 | 95 | 90 | 0.18 | 5.5 |
| FT-ELCR-16 | Ø160 | 160 | 140 | 24 | 8（2+6） | 125 | 3 | 4 | M6 | 140 | 95 | 90 | 0.27 | 13.5 |
| FT-ELCR-20 | Ø200 | 200 | 156 | 24 | 8（2+6） | 160 | 3 | 4 | M8 | 180 | 100 | 90 | 0.52 | 22 |
| FT-ELCR-25 | Ø250 | 250 | 216 | 40 | 12（3+9） | 200 | 4 | 4 | M8 | 224 | 100 | 90 | 0.57 | 35 |
| FT-ELCR-32 | Ø320 | 320 | 276 | 40 | 12（3+9） | 250 | 4 | 4 | M10 | 280 | 100 | 90 | 1.21 | 57 |
| FT-ELCR-36 | Ø360 | 360 | 318 | 40 | 12（3+9） | 300 | 4 | 4 | M10 | 320 | 100 | 90 | 1.58 | 72 |
| FT-ELCR-40 | Ø400 | 400 | 347 | 40 | 12（3+9） | 315 | 4 | 4 | M10 | 355 | 110 | 90 | 1.8 | 97 |
| FT-ELCR-50 | Ø530 | 500 | 475 | 40 | 12（3+9） | 350 | 4 | 4 | M12 | 400 | 110 | 90 | 3.2 | 152 |
| FT-ELCR-60 | Ø600 | 600 | 539 | 40 | 12（3+9） | 450 | 4 | 4 | M12 | 500 | 115 | 90 | 4.6 | 228 |
| FT-ELCR-70 | Ø700 | 700 | 635 | 40 | 12（3+9） | 550 | 4 | 4 | M12 | 600 | 115 | 90 | 5.7 | 310 |
| FT-ELCR-80 | Ø800 | 800 | 732 | 70 | 12（3+9） | 650 | 4 | 8 | M12 | 700 | 120 | 90 | 7.5 | 423 |
| FT-ELCR-100 | Ø1000 | 1000 | 955 | 70 | 12（3+9） | 800 | 4 | 8 | M16 | 900 | 120 | 90 | 9.4 | 660 |
