Rotary Micropitch Electromagnetic Chuck(controller sold separately)
Product NO: FT-ELC-U
Quote upon request
Specification
●Ideal for form grinding on angled surfaces.
●The tilt angle can be freely adjusted from 90° forward to 90° backward.
●The graduated pivot axis allows quick and easy angle setting.
Product Specifications (Variations)

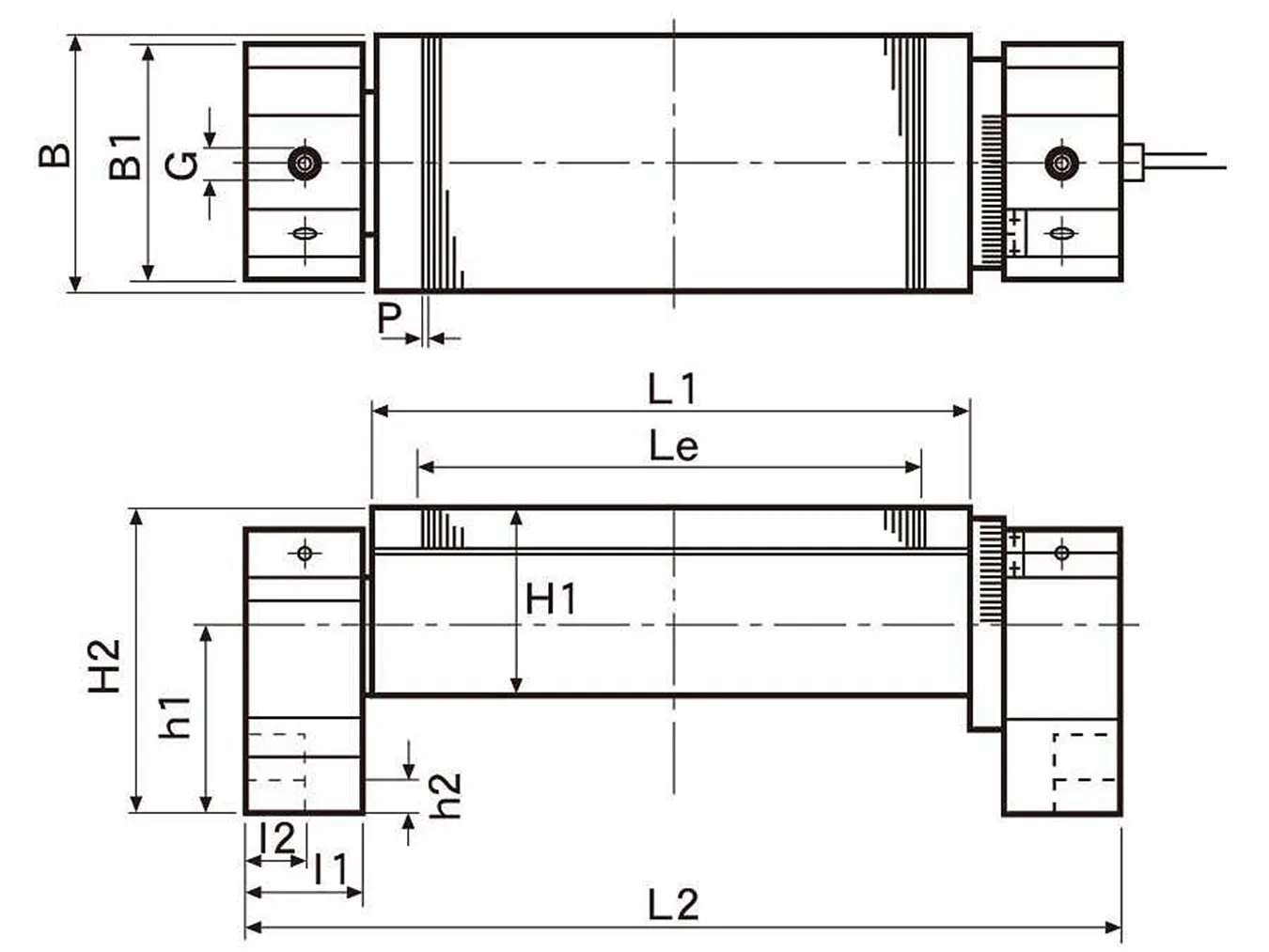

unit：mm| Product NO | Nominal Dimension | B | L1 | Le | H1 | Magnetic PolePitchP | lengthL2 | B1 | l1 | l2 | G | h1 | h2 | HeightH2 | Voltage（DCV） | current（A） | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-ELC-1030U | 100×300 | 100 | 300 | 258 | 100 | 15（3+12） | 418 | 95 | 50 | 25 | 14 | 90 | 15 | 136 | 90 | 0.2 | 23 |
| FT-ELC-1325U | 125×250 | 125 | 250 | 198 | 100 | 15（3+12） | 368 | 100 | 50 | 25 | 14 | 90 | 15 | 136 | 90 | 0.18 | 24 |
| FT-ELC-1530U | 150×300 | 150 | 300 | 258 | 100 | 15（3+12） | 418 | 100 | 50 | 25 | 14 | 90 | 15 | 136 | 90 | 0.2 | 37 |
| FT-ELC-1535U | 150×350 | 150 | 350 | 288 | 100 | 15（3+12） | 468 | 100 | 50 | 25 | 14 | 120 | 15 | 136 | 90 | 0.25 | 41 |
| FT-ELC-1545U | 150×450 | 200 | 450 | 408 | 100 | 15（3+12） | 568 | 100 | 50 | 25 | 14 | 120 | 15 | 136 | 90 | 0.3 | 51 |
| FT-ELC-2050U | 200×500 | 200 | 500 | 438 | 100 | 15（3+12） | 618 | 100 | 50 | 25 | 14 | 120 | 15 | 168 | 90 | 0.4 | 76 |
| FT-ELC-2060U | 200×600 | 200 | 600 | 528 | 100 | 15（3+12） | 718 | 100 | 50 | 25 | 14 | 120 | 15 | 168 | 90 | 0.5 | 89 |
Related products
-
Electro Magnetic chuck (controller sold separately)
Product NO：FT-ELC-A -

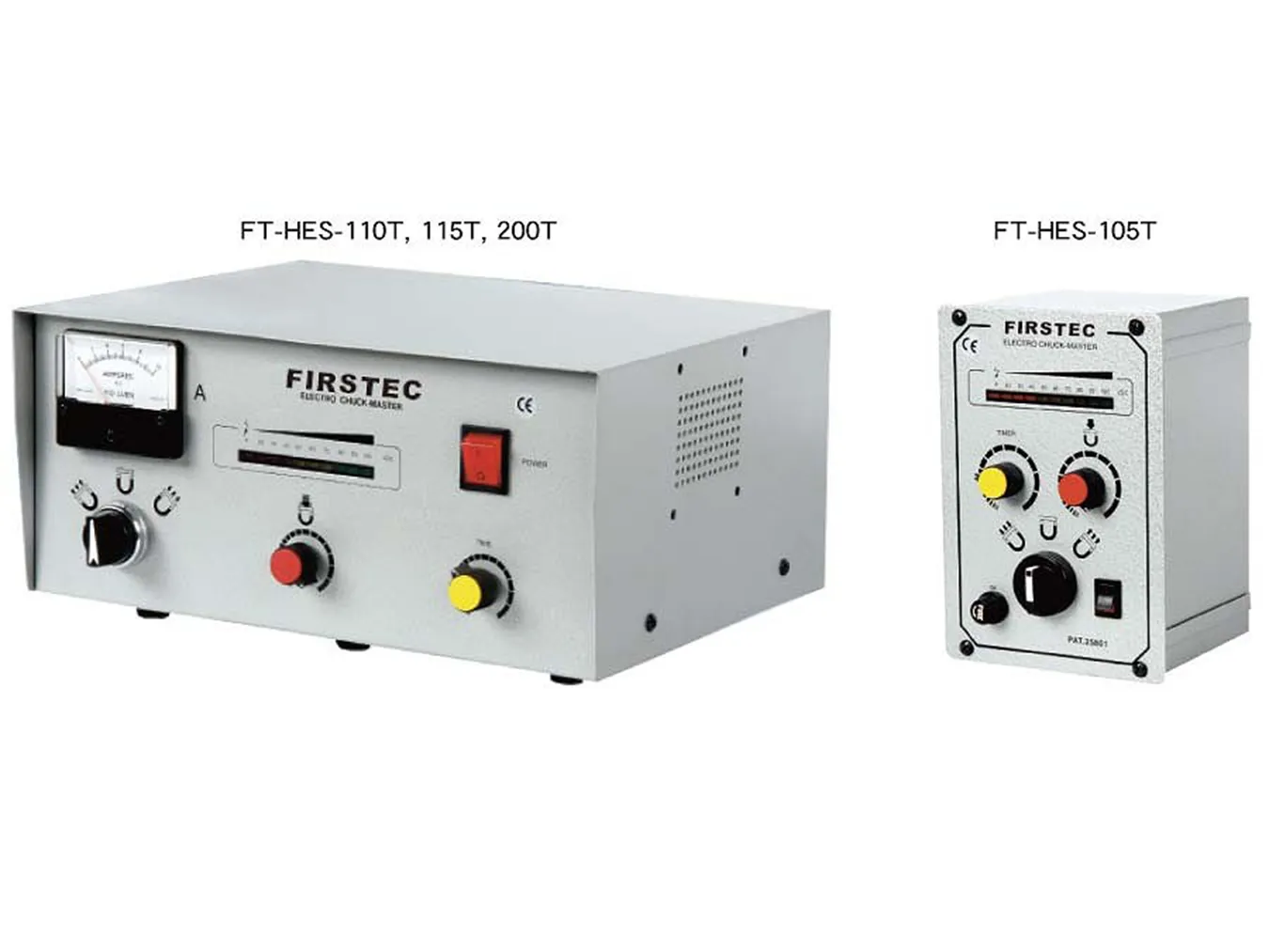

Controller for Electromagnetic Chuck
