Permanent Magnetic Chuck(Vertical Type)
Product NO: FT-MWS
Price range: ¥346,000 through ¥494,000
Specification
●All six faces are precision-machined to an accuracy of ±0.002 mm.
●Material：SKD11 Sub-zero treatment
●Hardness：HRC56
Product Specifications (Variations)

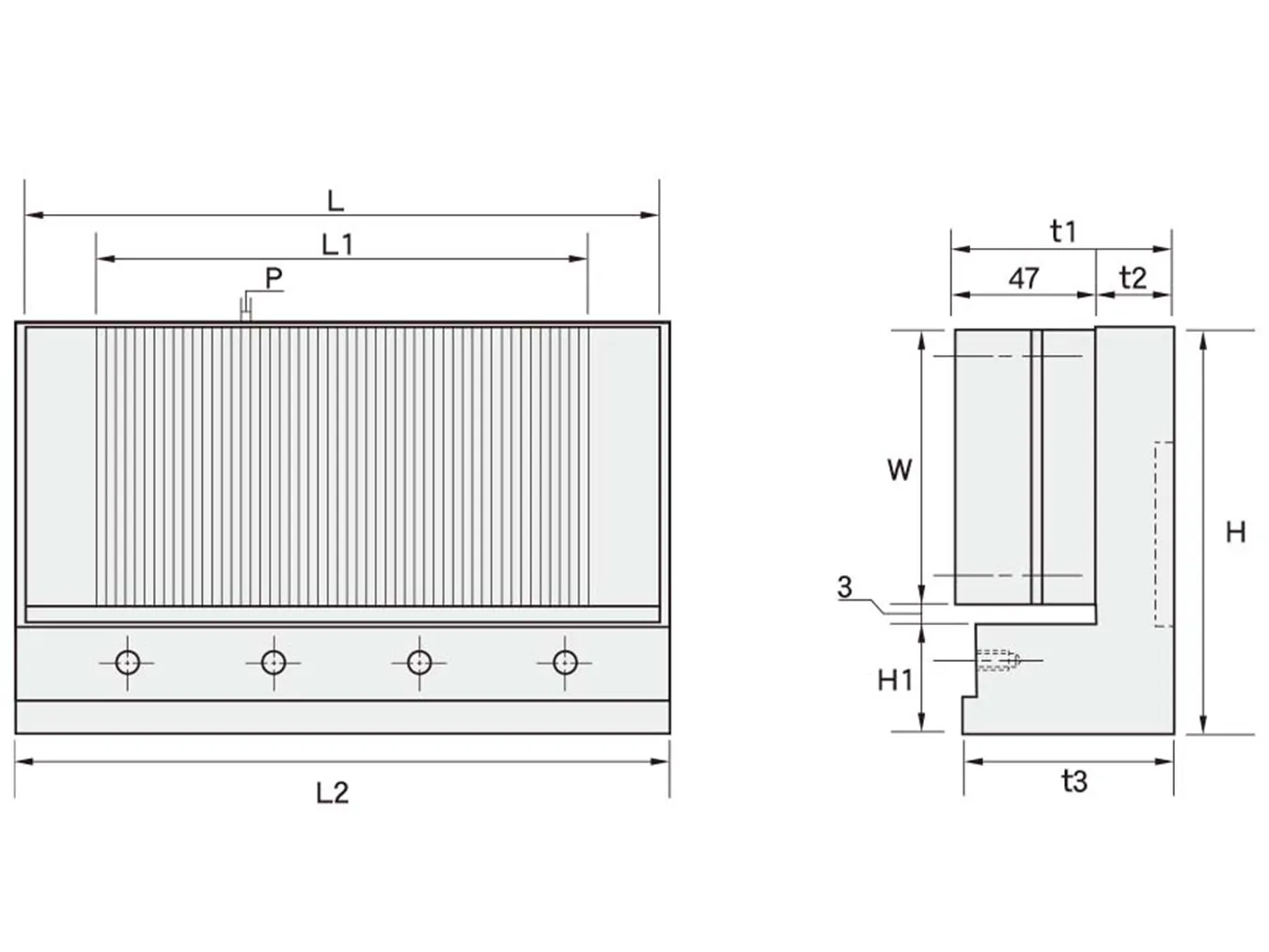

unit：mm| Product NO | W | L | L1 | L2 | t3 | t1 | t2 | H | H1 | Magnetic PolePitchP | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-MW307S | 75 | 175 | 130 | 180 | 65 | 67 | 20 | 111 | 30 | 2（1+1） | 9.7 |
| FT-MW407S | 100 | 175 | 130 | 180 | 65 | 67 | 20 | 136 | 30 | 2（1+1） | 13 |
| FT-MW510S | 125 | 250 | 205 | 255 | 65 | 67 | 20 | 161 | 30 | 2（1+1） | 23 |
