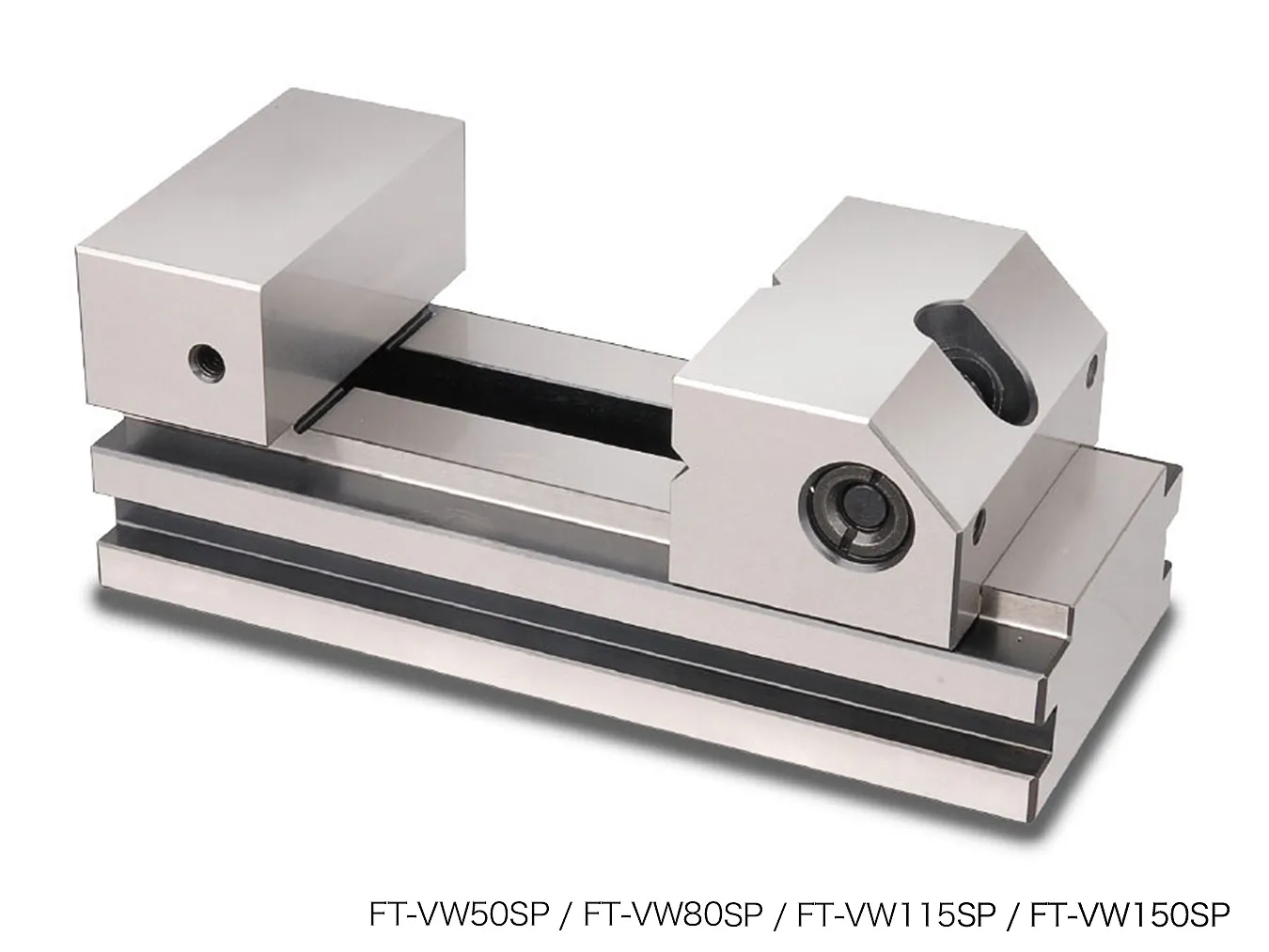

SKS Precision Vise
Price range: ¥57,000 through ¥279,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Features：The SKS Precision Vice is manufactured from high-grade SKS alloy tool steel and undergoes a specialized sub-zero treatment to ensure exceptional, long-term dimensional stability with minimal aging distortion.
Material：SKS
Heat treatment: Vacuum hardening
Sub-zero treatment:-185°C
Hardness：HRC58°～60°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.004 mm / 100mm
Inspection Certificate: Included
Storage Case: Included
Product Specifications (Variations)

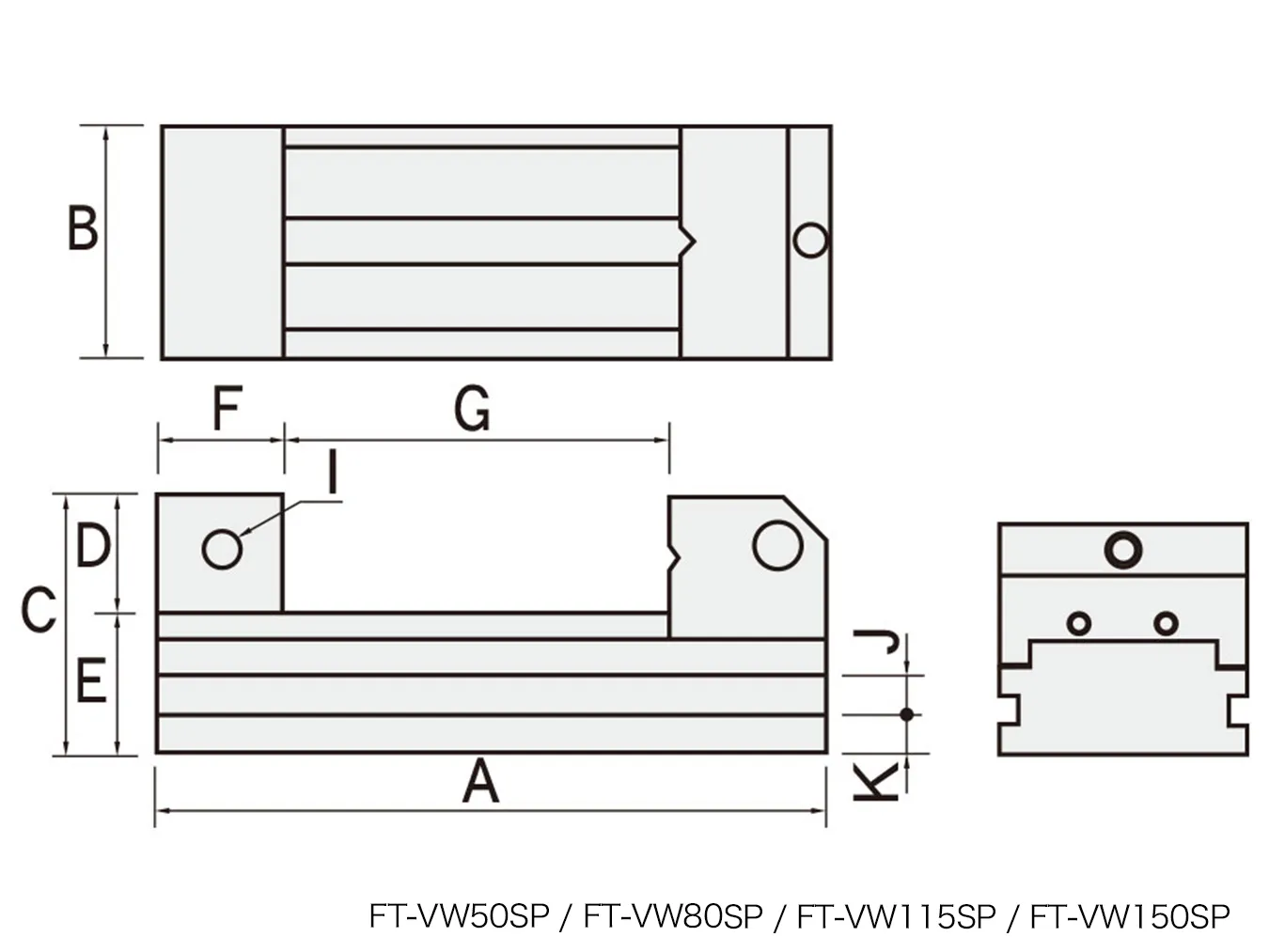

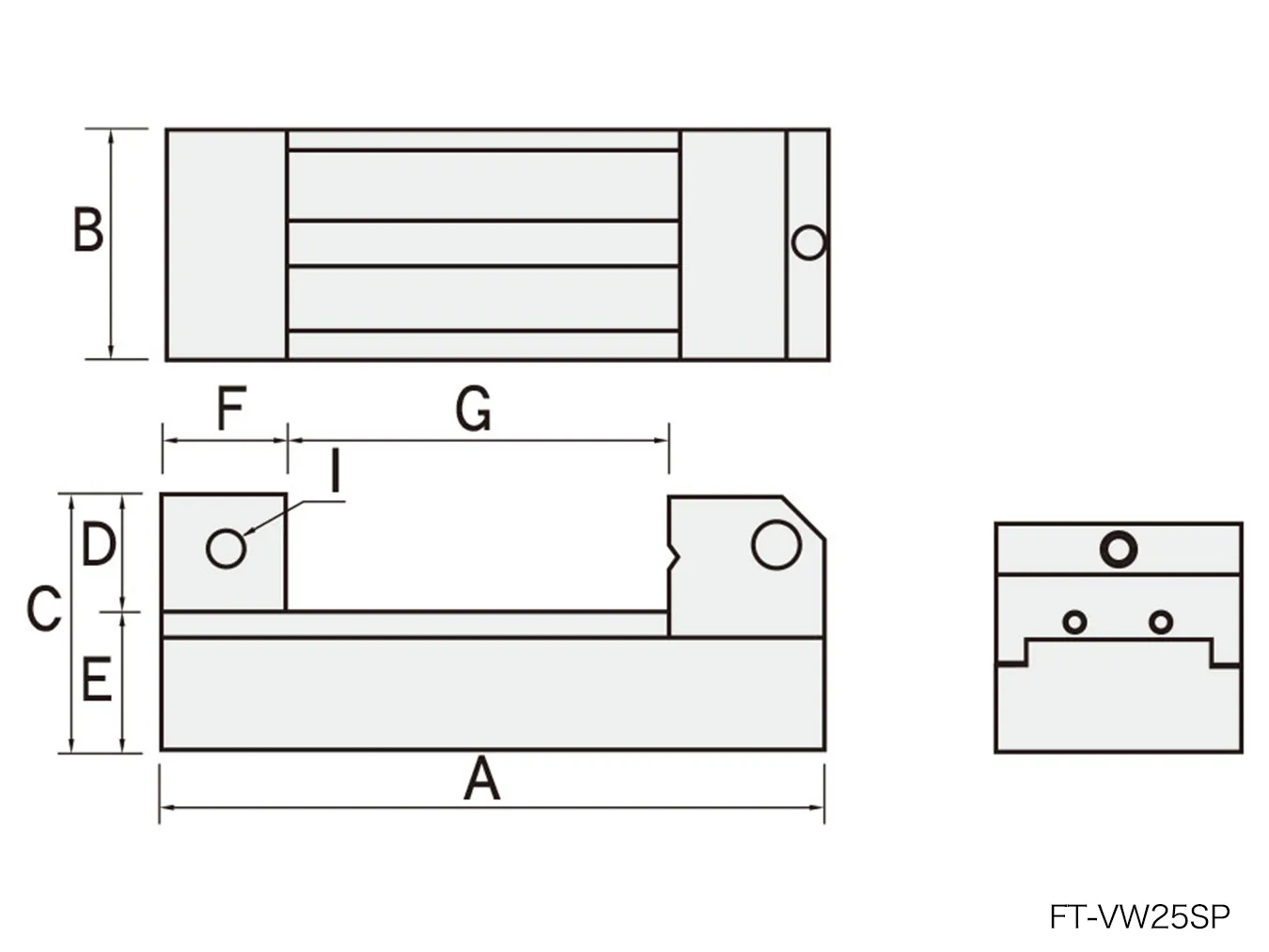

unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | I | J | K | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-VW25SP | 75 | 34 | 35 | 15 | 20 | 20 | 0-25 | M4 | - | - | 0.5kg |
| FT-VW50SP | 110 | 45 | 45 | 20 | 25 | 25 | 0-50 | M5 | 6 | 8 | 1.0kg |
| FT-VW80SP | 160 | 70 | 62 | 30 | 32 | 33 | 0-80 | M6 | 8 | 9 | 3.0kg |
| FT-VW115SP | 210 | 90 | 80 | 40 | 40 | 40 | 0-115 | M6 | 10 | 12 | 6.7kg |
| FT-VW150SP | 286 | 120 | 90 | 40 | 50 | 60 | 0-150 | M6 | 12 | 14 | 14.9kg |
