SKS Precision Vise
Price range: ¥144,000 through ¥309,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Features：Anti-distortion functionality. The SKS Precision Vice is manufactured from high-grade SKS alloy tool steel and undergoes a specialized sub-zero treatment to ensure exceptional, long-term dimensional stability with minimal aging distortion.
Material：SKS
Heat treatment: Vacuum hardening
Sub-zero treatment:-185°C
Hardness：HRC56°～60°
Parallelism: Within 0.003 mm / 100 mm
Squareness: Within 0.005 mm / 100mm
Inspection Certificate: Included
Storage Case: Included
Product Specifications (Variations)

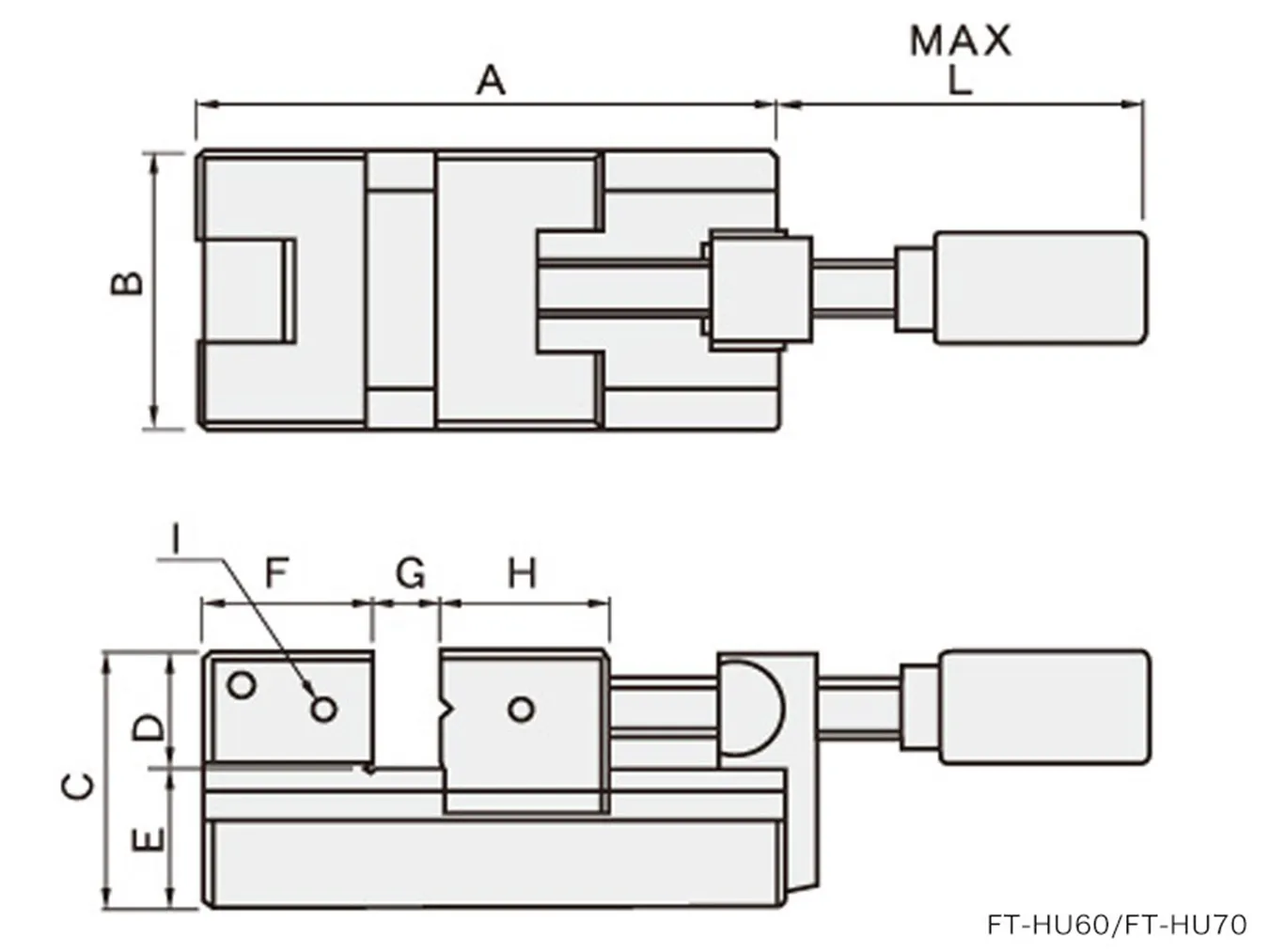

unit：mm| Product NO | A | B（Jaw opening） | C | D（Jaw height） | E | F | G（Jaw opening） | H | I | J(WxD) | K | L | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-HU60 | 122 | 60 | 60 | 25 | 35 | 35 | 0-47 | 40 | M6 | - | - | 105 | 2.5kg |

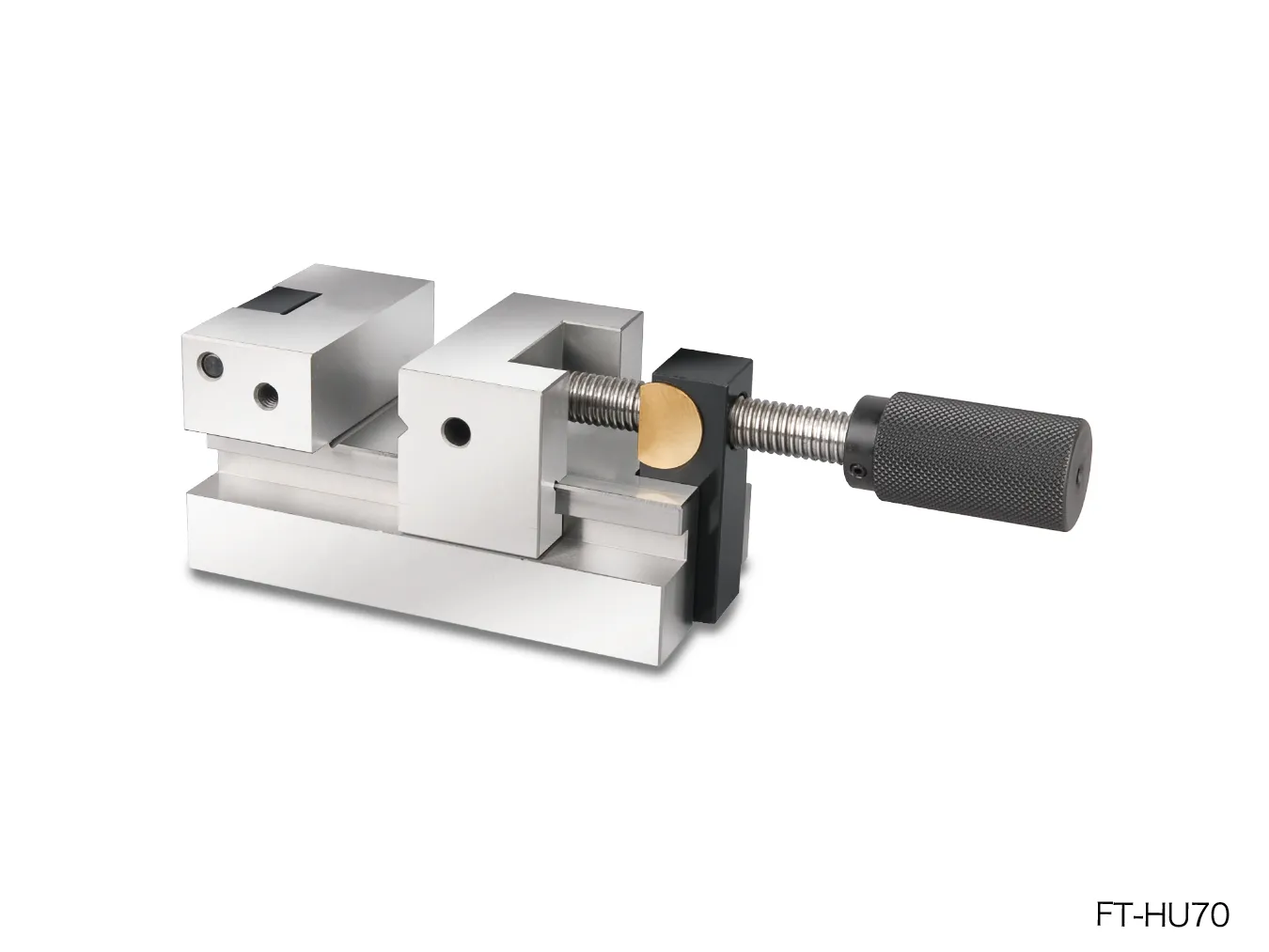

| FT-HU70 | 172 | 70 | 70 | 30 | 40 | 40 | 0-80 | 45 | M6 | - | - | 149.5 | 4.7kg |

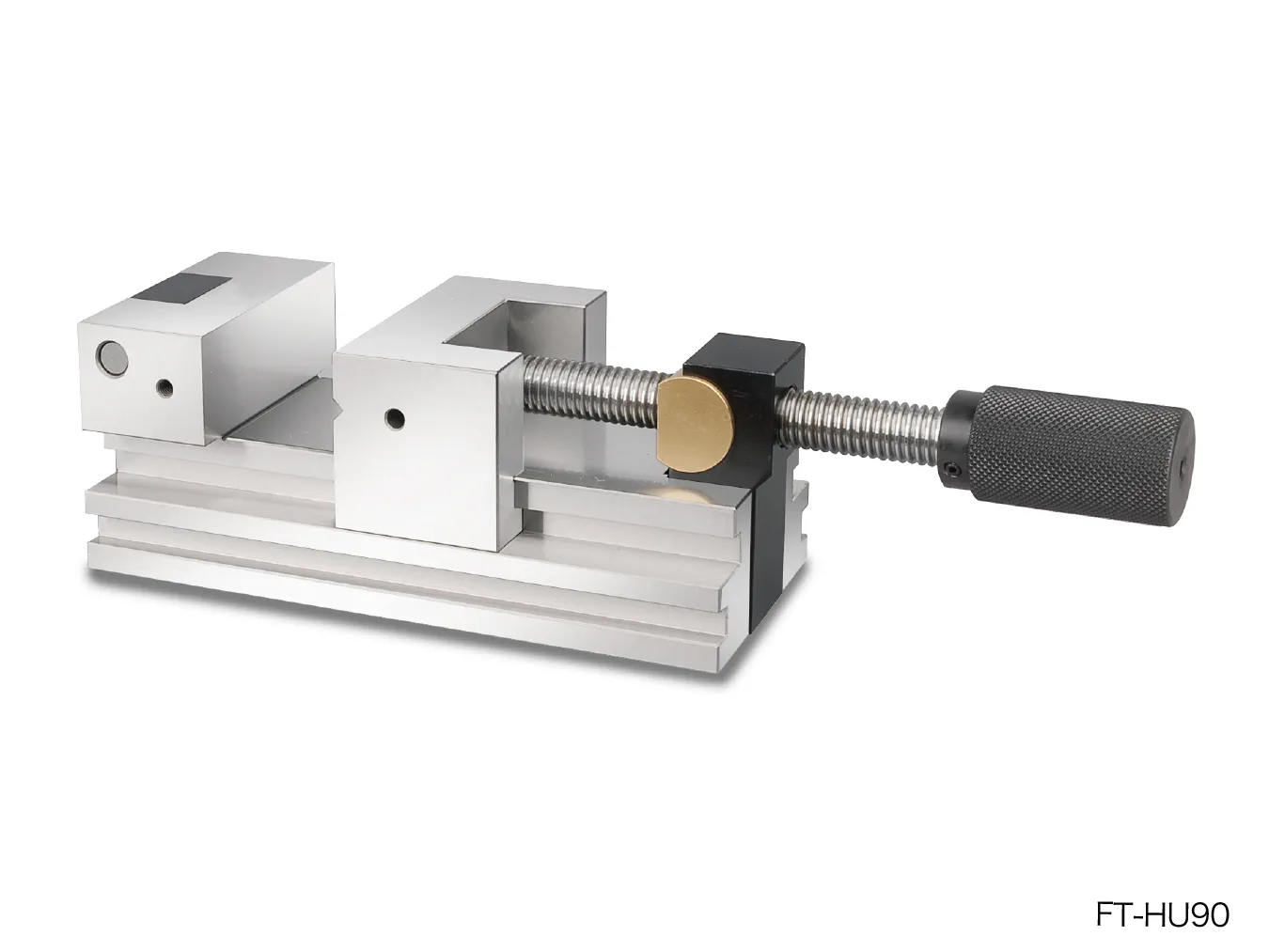

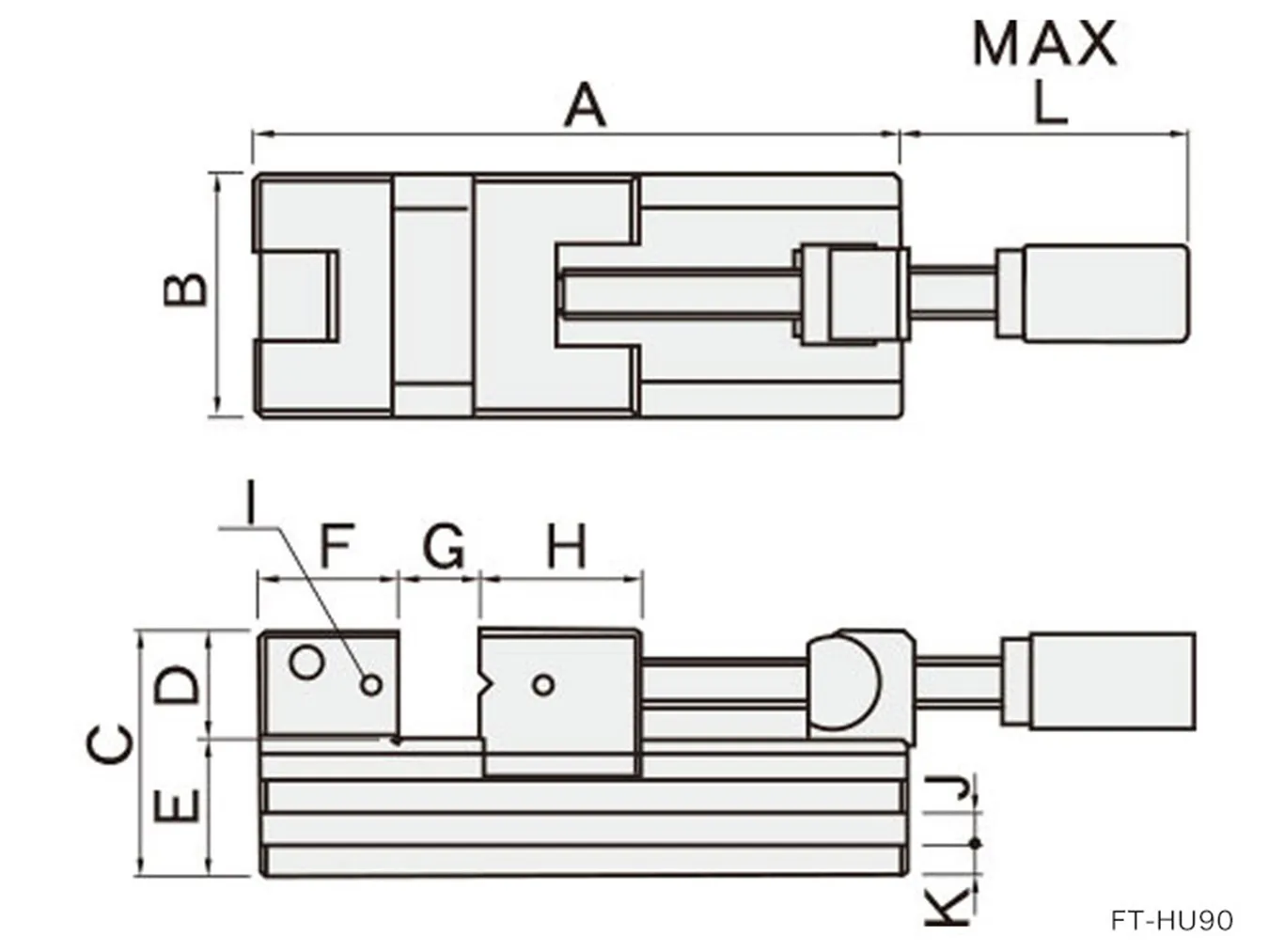

| FT-HU90 | 237 | 90 | 90 | 40 | 50 | 50 | 0-125 | 50 | M6 | 10×7 | 10 | 201 | 10.3kg |
