SKS Precision Vise
Price range: ¥89,000 through ¥253,000
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Features：The SKS Precision Vice is manufactured from high-grade SKS alloy tool steel and undergoes a specialized sub-zero treatment to ensure exceptional, long-term dimensional stability with minimal aging distortion.
Material：SKS
Heat treatment: Vacuum hardening
Sub-zero treatment:-185°C
Hardness：HRC58°～60°
Parallelism: Within 0.002 mm / 100 mm
Squareness: Within 0.003 mm / 100mm
Inspection Certificate: Included
Storage Case: Included
Product Specifications (Variations)

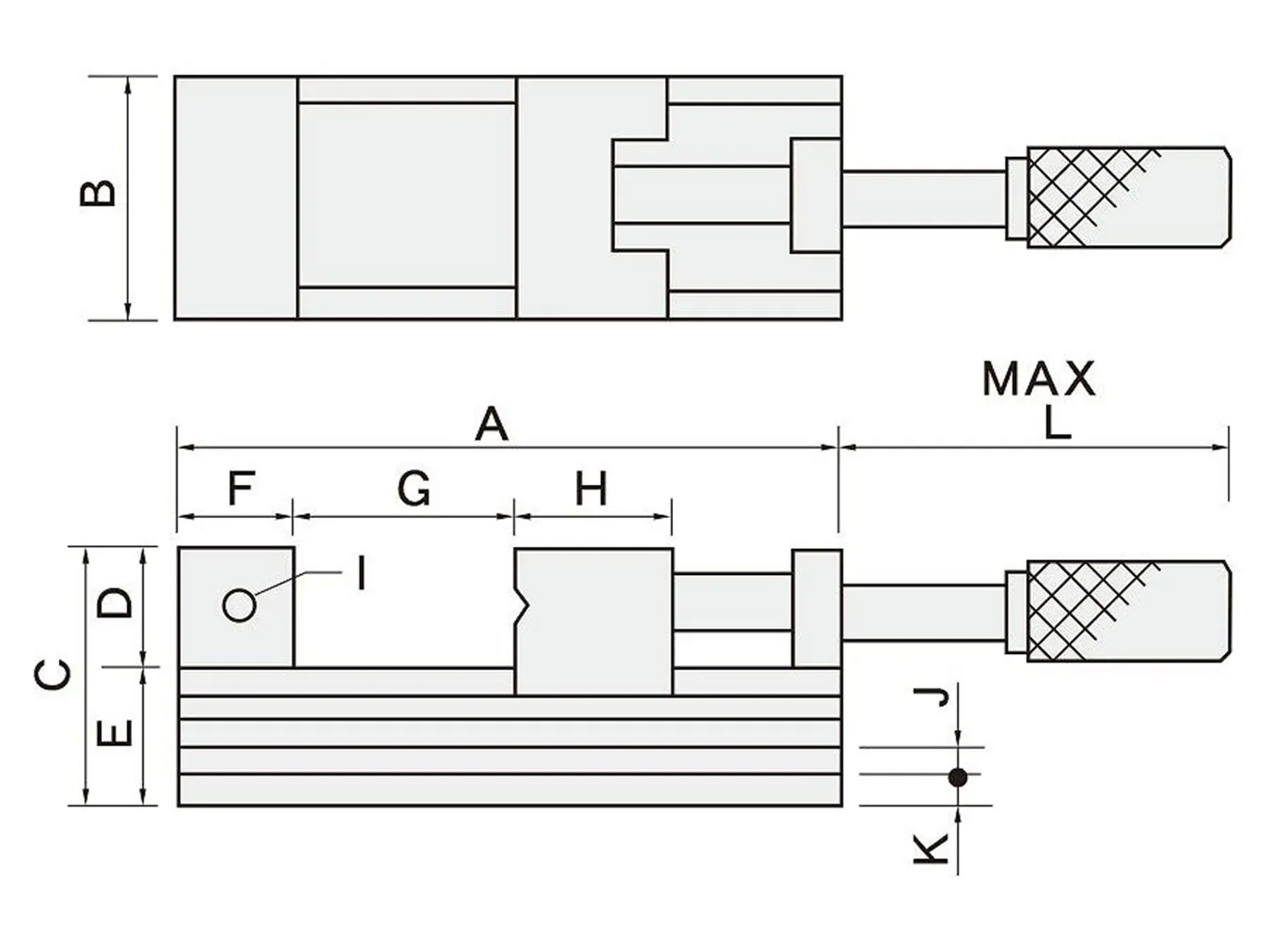

unit：mm| Product NO | A | B（Jaw width） | C | D（Jaw height） | E | F | G（Jaw opening） | H | I | J | K | L | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-VS32SP | 92 | 60 | 50 | 25 | 25 | 25 | 0-32 | 30 | M5 | 6 | 4.5 | 60 | 1.6kg |
| FT-VS80SP | 165 | 70 | 62 | 30 | 32 | 33 | 0-80 | 45 | M6 | 7 | 8 | 140 | 4.0kg |

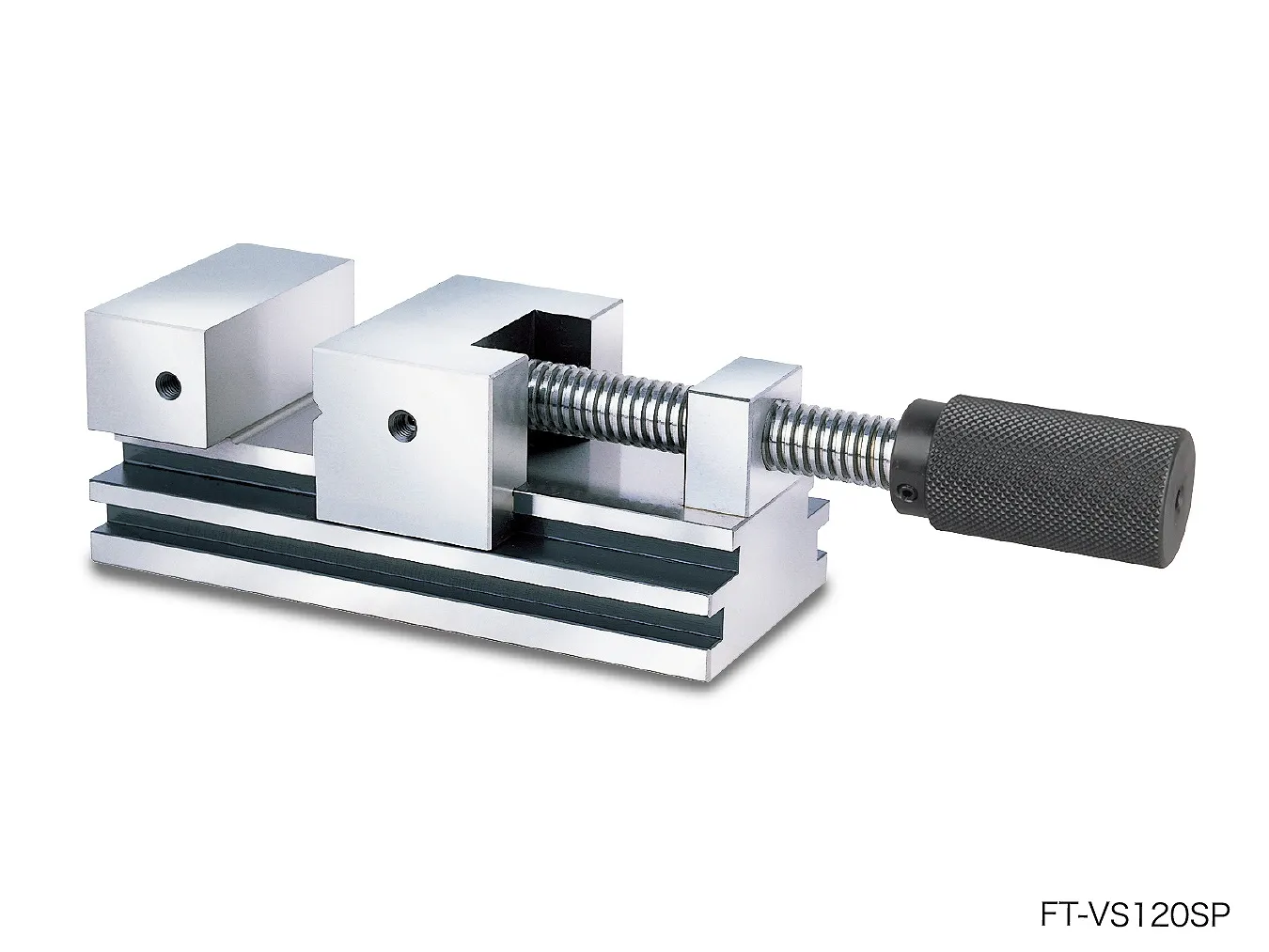

| FT-VS120SP | 212 | 90 | 80 | 40 | 40 | 40 | 0-120 | 50 | M6 | 9 | 9 | 192 | 8.4kg |
