Rotary Permanent Micro Pitch Magnetic Chuck
Product NO: FT-UW
Quote upon request
Specification
●A permanent magnetic chuck ideally suited for angular grinding applications on surface grinding machines.
●Designed for secure holding of thin and small workpieces with a thickness of 10 mm or less.
●Equipped with a graduated rotary shaft, allowing angles to be set quickly and easily. For applications requiring higher angular accuracy, a sine bar chuck is recommended.
Product Specifications (Variations)

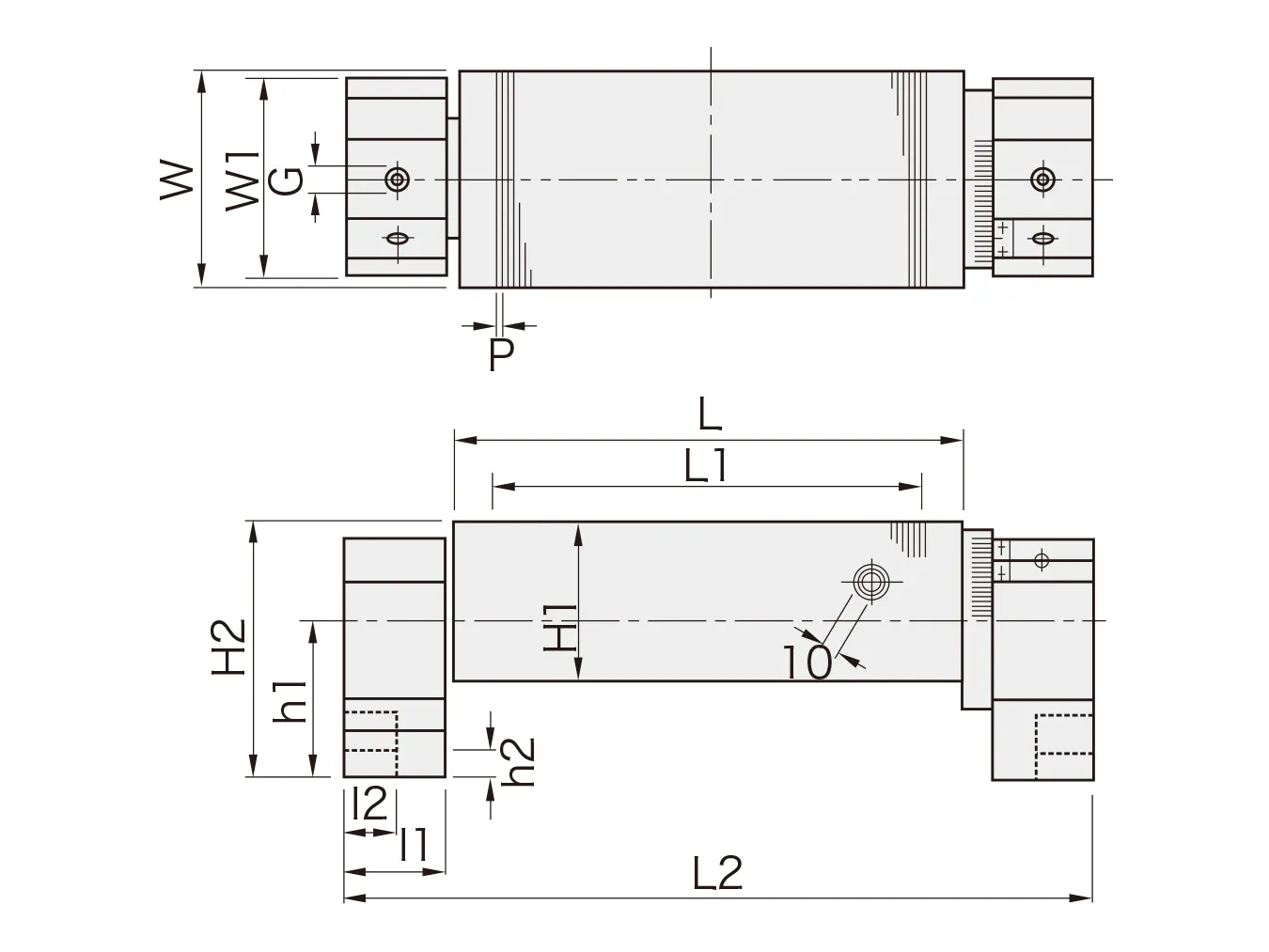

unit：mm| Product NO | Nominal Dimension | W | L | L1 | H1 | Magnetic PolePitchP | L2 | W1 | l1 | l2 | G | h1 | h2 | H2 | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-407UW | 100×175 | 100 | 175 | 125 | 78 | 2（1+1） | 293 | 100 | 50 | 25 | 14 | 103 | 50 | 145 | 21.5 |
| FT-510UW | 125×250 | 125 | 250 | 200 | 78 | 2（1+1） | 368 | 100 | 50 | 25 | 14 | 103 | 50 | 145 | 31 |
| FT-612UW | 150×300 | 150 | 300 | 246 | 78 | 2（1+1） | 418 | 100 | 50 | 25 | 14 | 103 | 50 | 145 | 39 |
| FT-614UW | 150×350 | 150 | 350 | 296 | 78 | 2（1+1） | 468 | 100 | 50 | 25 | 14 | 103 | 50 | 145 | 44 |
| FT-618UW | 150×450 | 150 | 450 | 396 | 78 | 2（1+1） | 568 | 100 | 50 | 25 | 14 | 103 | 50 | 145 | 54 |
