Powerful Micropitch Permanent Magnetic Chuck
Product NO: FT-VW_magnetchuck
Quote upon request
Specification
●Applications: Designed for secure holding of thin and small workpieces on surface grinders, EDM machines, and machining centers. Suitable for grinding, EDM, and light-duty machining operations.
●Features：Waterproof
※Featuring a stainless-steel separator, this model offers enhanced corrosion resistance compared with models equipped with brass separators.

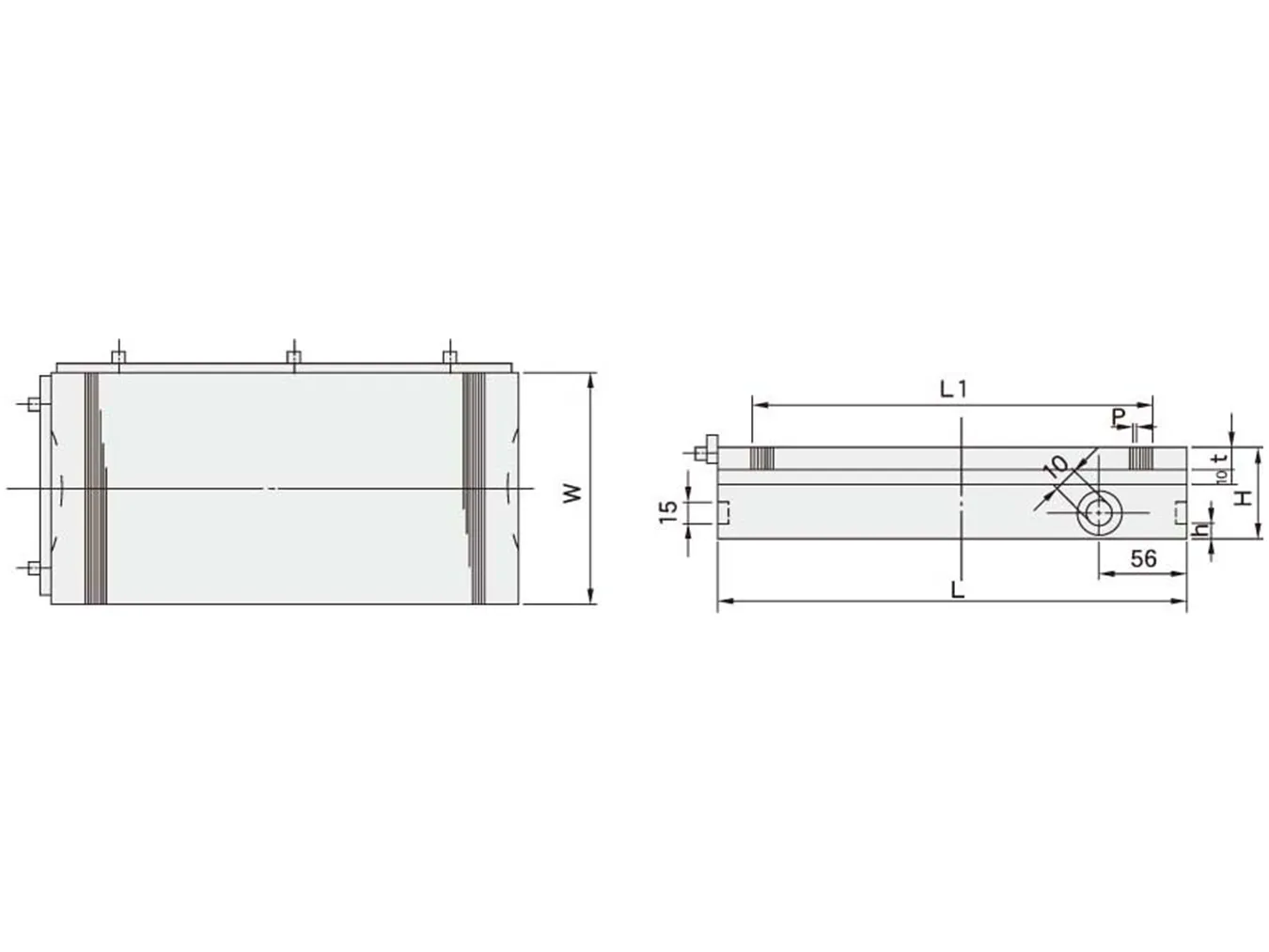

Product Specifications (Variations)
unit：mm| Product NO | Nominal Dimension | W | L | L1 | t | P | H | weight（kg） |
|---|---|---|---|---|---|---|---|---|
| FT-305VW | 75×130 | 75 | 130 | 85 | 18 | Stainless1.4（0.4+1） | 52 | 4 |
| FT-307VW | 75×175 | 75 | 175 | 125 | 18 | Stainless1.4（0.4+1） | 52 | 5.5 |
| FT-312VW | 75×300 | 75 | 300 | 246 | 18 | Stainless1.4（0.4+1） | 52 | 9 |
| FT-407VW | 100×175 | 100 | 175 | 125 | 18 | Stainless1.4（0.4+1） | 52 | 7 |
| FT-510VW | 125×250 | 125 | 250 | 205 | 18 | Stainless1.4（0.4+1） | 52 | 12 |
| FT-606VW | 150×150 | 150 | 150 | 110 | 18 | Stainless1.4（0.4+1） | 52 | 9 |
| FT-612VW | 150×300 | 150 | 300 | 246 | 18 | Stainless1.4（0.4+1） | 58 | 20 |
| FT-614VW | 150×350 | 150 | 350 | 296 | 18 | Stainless1.4（0.4+1） | 58 | 24 |
| FT-616VW | 150×400 | 150 | 400 | 346 | 18 | Stainless1.4（0.4+1） | 58 | 27.5 |
| FT-618VW | 150×450 | 150 | 450 | 390 | 18 | Stainless1.4（0.4+1） | 58 | 31 |
| FT-816VW | 200×400 | 200 | 400 | 346 | 18 | Stainless1.4（0.4+1） | 58 | 37 |
| FT-818VW | 200×450 | 200 | 450 | 390 | 18 | Stainless1.4（0.4+1） | 58 | 41.5 |
