Round Fine Pitch Permanent Magnetic Chuck (1+3)
Product NO: FT-FCD
Price range: ¥142,000 through ¥1,247,000
Specification
●Suitable for holding workpieces with a thickness of 10 mm or greater on rotary grinding machines and cylindrical grinding machines.
●Waterproof design.
●Magnetic holding force can be adjusted according to the handle rotation angle.
Product Specifications (Variations)

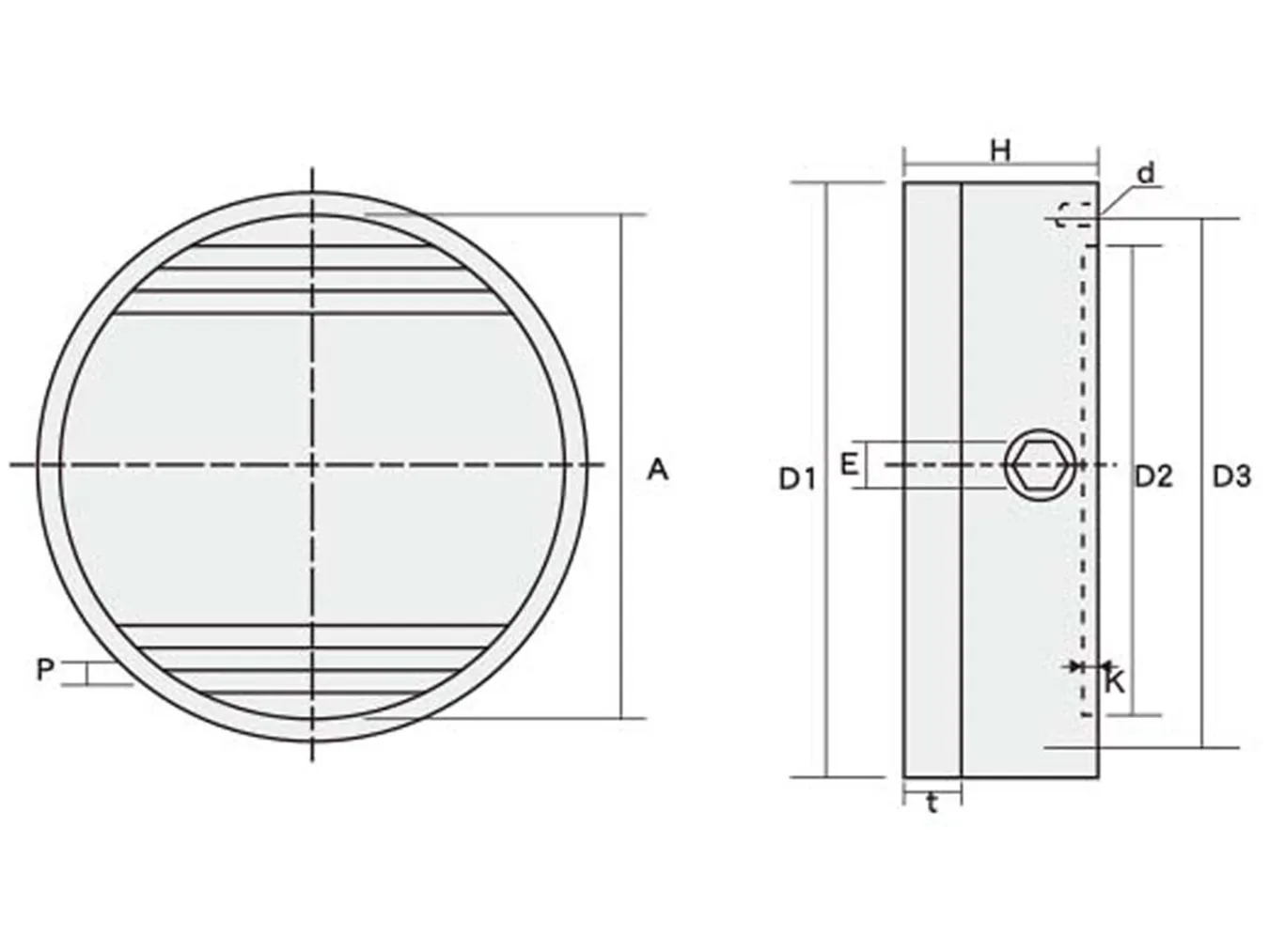

unit：mm| Product NO | Holding area（A） | Ｄ1 | t | Magnetic PolePitchP | D2 | D3 | K | d | E | H | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-FCD100 | 86 | Ø100 | 10 | 4（1+3） | 60 | 85 | 4 | 4-M6 | 8 | 52 | 3.15 |
| FT-FCD130 | 112 | Ø130 | 10 | 4（1+3） | 90 | 115 | 4 | 4-M8 | 8 | 52 | 4.9 |
| FT-FCD150 | 128 | Ø150 | 10 | 4（1+3） | 110 | 132 | 4 | 4-M8 | 8 | 52 | 6.7 |
| FT-FCD160 | 138 | Ø160 | 10 | 4（1+3） | 120 | 140 | 4 | 4-M8 | 8 | 52 | 7.7 |
| FT-FCD200 | 176 | Ø200 | 10 | 4（1+3） | 160 | 180 | 5 | 4-M8 | 8 | 52 | 12.5 |
| FT-FCD250 | 225 | Ø250 | 10 | 4（1+3） | 200 | 225 | 5 | 4-M10 | 8 | 52 | 19.5 |
| FT-FCD300 | 272 | Ø300 | 10 | 4（1+3） | 230 | 280 | 5 | 4-M10 | 8 | 52 | 28.5 |
| FT-FCD350 | 320 | Ø350 | 10 | 4（1+3） | 230 | 311 | 5 | 4-M10 | 8 | 52 | 39 |
| FT-FCD405 | 370 | Ø405 | 10 | 4（1+3） | 230 | 380 | 5 | 4-M10 | 8 | 52 | 52 |
Related products
-

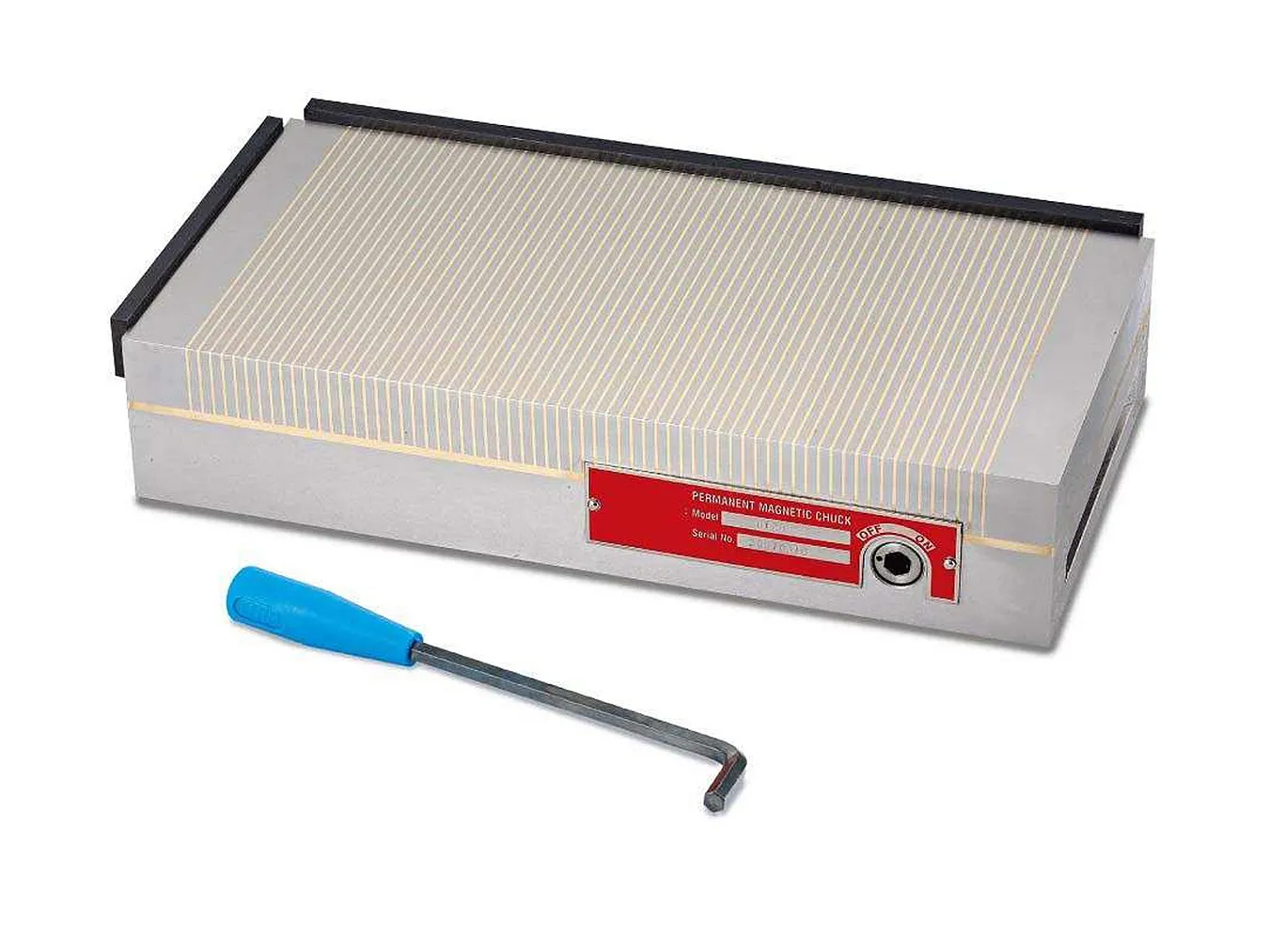

Fine Pitch Permanent Magnetic Chuck (1+3)
Product NO：FT-B -
Super Thin Type Permanent Magnetic Chuck
Product NO：FT-MTS -

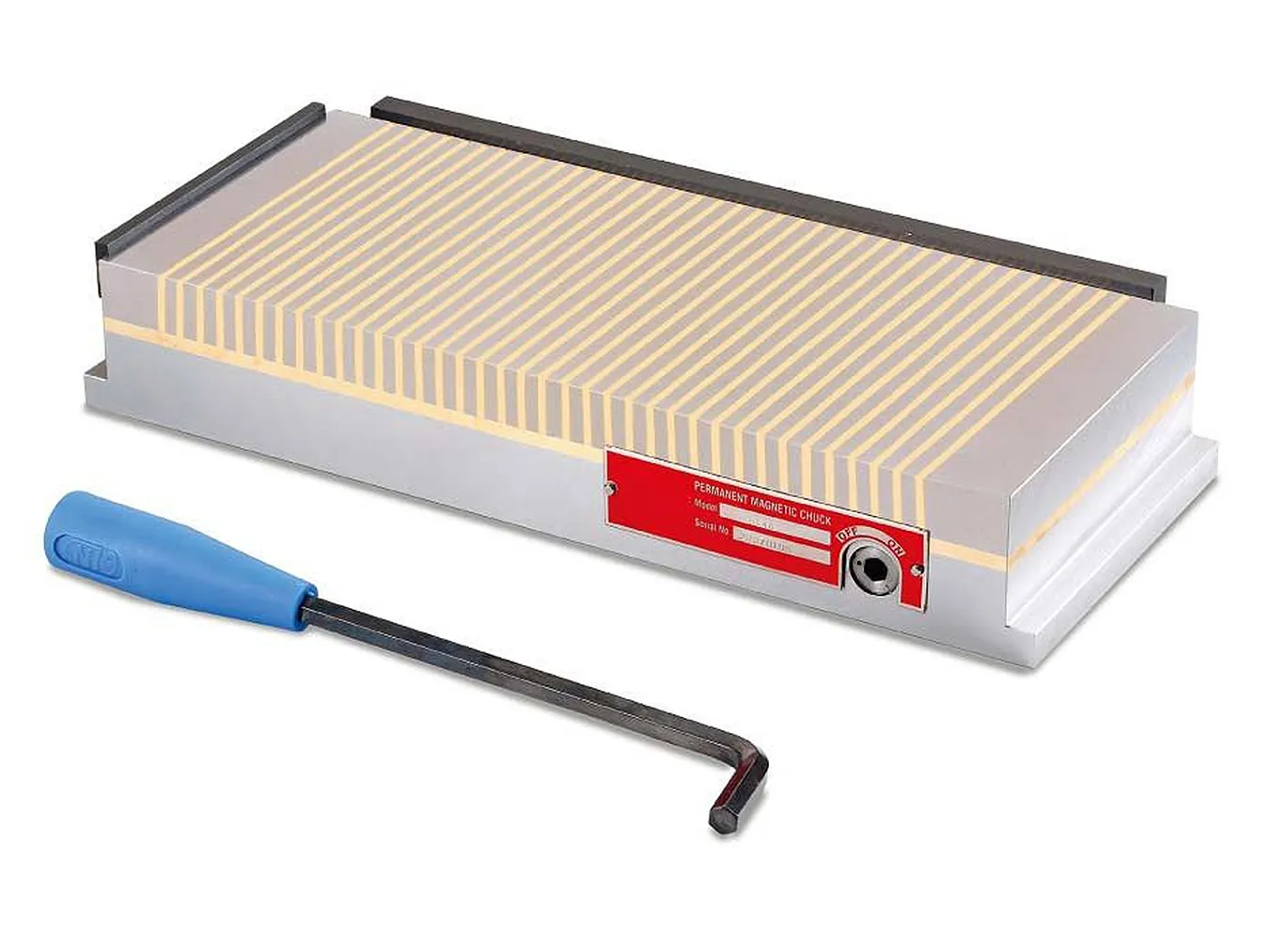

Normal Pitch Permanent Magnetic Chuck
