Precision Universal Vise
¥276,000
0 in stock, back ordered
Custom orders (such as matched parallel sets or additional machining) are available upon request. As pricing differs from the standard models, please feel free to contact us for a quotation./n※Please note that additional machining may not be possible depending on the specific modification requirements. We appreciate your understanding in advance.
Specification
Features：The 2-Axis Precision Vice features a 360° horizontal rotation and a 45° vertical tilt, allowing for highly flexible and precise multi-angle positioning.
Material：Slewing unit FCD45/Vice SKS3
Hardness：Slewing unit HRC43-47/Vice HRC50-60
Heat Treatment: Quenched and tempered swivel base / Sub-zero treated vice body.
Swivel Assembly: Features a vernier scale with a 3-arcminute resolution for both horizontal rotation and vertical tilt angles.
Parallelism：within 0.006mm/100mm
Squareness：wihitn 0.008mm/100mm
Inspection Certificate: Included
Equipped with a graduated scale for quick and easy angle adjustment.
Features 360° full horizontal rotation.
Features a 45° vertical tilting capability.
Minimum Vernier Reading: 3 arcminutes
Storage Case: Included

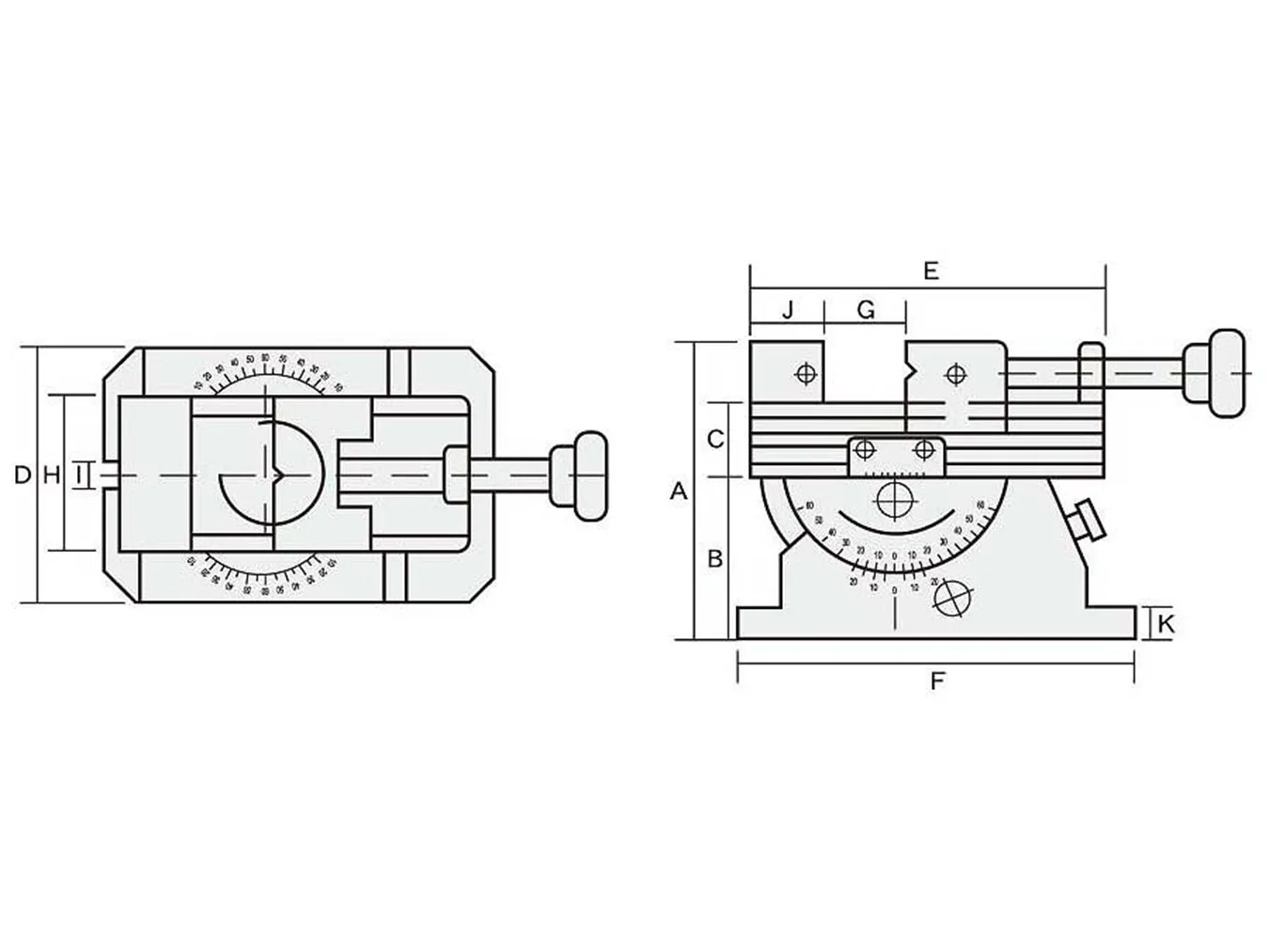

unit：mm
| Product NO | FT-USV80 |
|---|---|
| A | 138 |
| B | 75 |
| C | 32 |
| D | 110 |
| E | 160 |
| F | 178 |
| G（Jaw opening） | 0～80 |
| H（Jaw width） | 70 |
| I | 16 |
| J | 33 |
| K | 15 |
| weight | 14kg |
