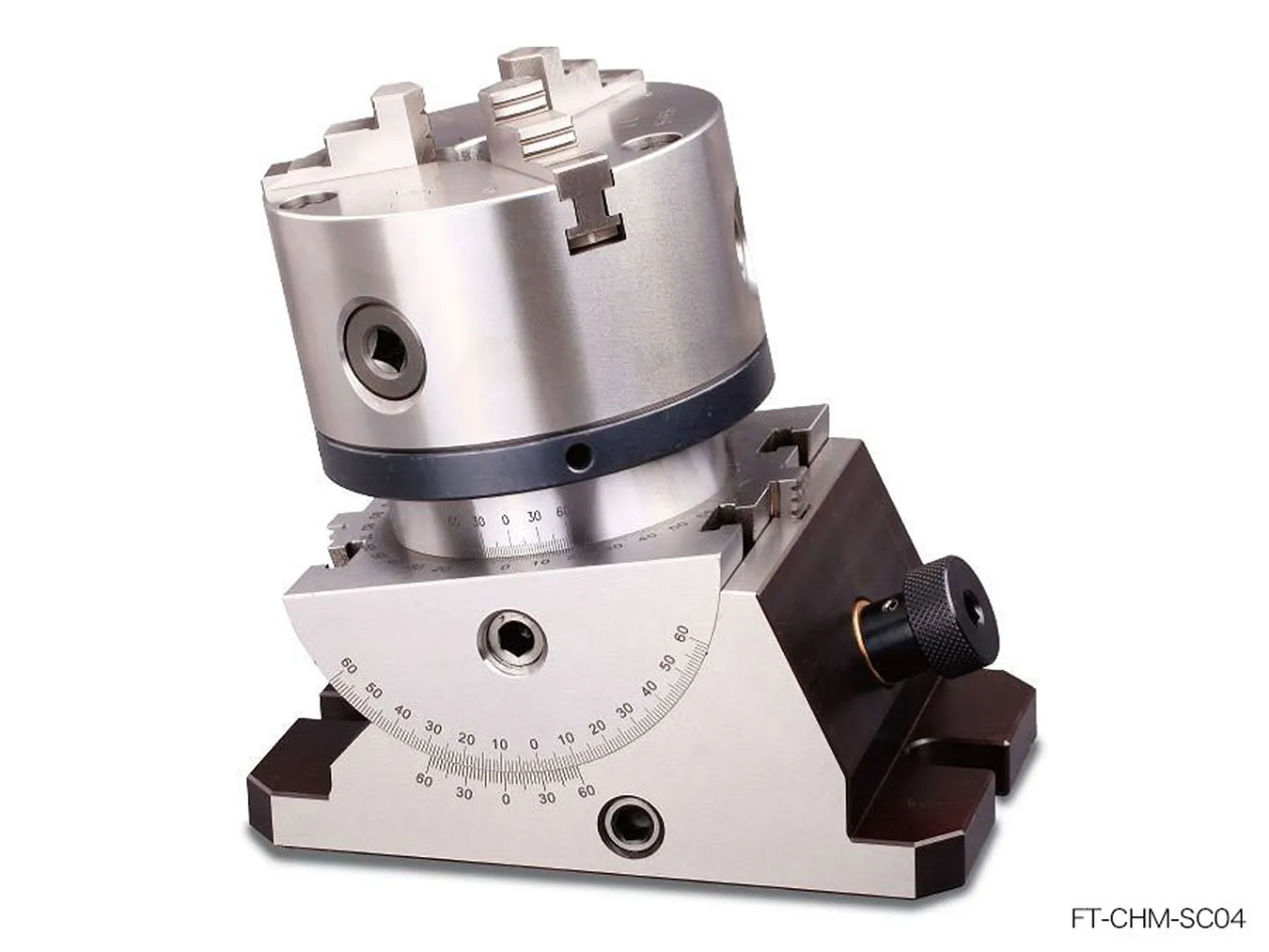

Precicision Universal 3-Jaws Chuck
Product NO: FT-CHM-SC
Price range: ¥345,000 through ¥358,000
Specification
Features：This is a 2-axis 3-jaw scroll chuck indexing fixture engineered to secure cylindrical workpieces tightly and accurately via a self-centering jaw mechanism.
Materials: SCM4 (Swivel Base) / S45C (Chuck Body)
Hardness: HRC 56–58 (Swivel Base) / HRC 50–55 (Chuck Body)
Heat Treatment: Full Carburizing & Quenching (Case Hardening for all primary components)
Repeatability：0.015mm
Swivel angle: Vernier scale 3 minutes
Table rotation angle: Vernier scale 3 minutes
Inspection Certificate: Included
Storage Case: Included
It features a scale, making it easy to set the desired angle.ｃ
Swivel Base: 360° horizontal rotation
Tiltable 45° vertically
Minimum Vernier Reading: 3 arcminutes
Product Specifications (Variations)

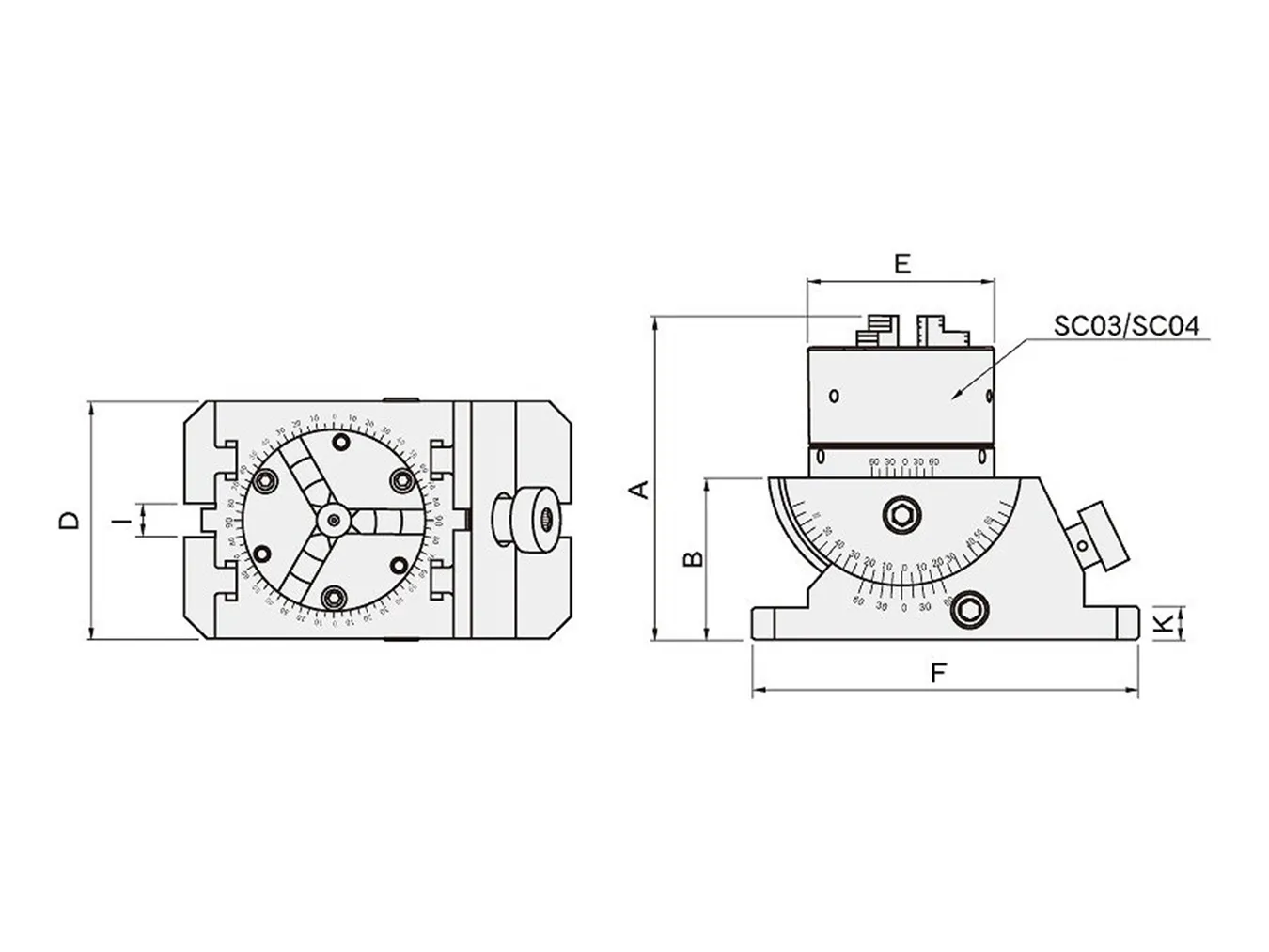

unit：mm| Product NO | A | B | D | E | F | I | K | weight（kg） | Chuck type |
|---|---|---|---|---|---|---|---|---|---|
| FT-CHM-SC03 | 151 | 75 | 110 | Ø85 | 178 | 16 | 15 | 12kg | 3-Jaw Scroll Chuck (3-inch) |
| FT-CHM-SC04 | 182 | 75 | 110 | Ø112 | 178 | 16 | 15 | 13kg | 3-Jaw Scroll Chuck (4-inch) |
