Power Soft Jaws

Name: Power Soft Jaws
Brand: Firstec
SKU: FT-SO
Availability: InStock

Product NO: FT-SO

Price range: ¥10,500 through ¥98,700

Product No

Clear

Product name

Product NO

L×W×H

Price

Stock

Quantity

Power Soft Jaws

FT-SO04JAWS

52×19×30mm

¥10,500

4 in stock (can be backordered)

Power Soft Jaws

FT-SO05JAWS

62×24×35mm

¥12,000

0 in stock, back ordered

Power Soft Jaws

FT-SO06JAWS

73×26×37mm

¥13,500

3 in stock (can be backordered)

Power Soft Jaws

FT-SO07JAWS

95×31×48mm

¥14,900

3 in stock (can be backordered)

Power Soft Jaws

FT-SO09JAWS

110×37×48mm

¥18,000

2 in stock (can be backordered)

Power Soft Jaws

FT-SO12JAWS

125×42×54mm

¥28,500

1 in stock (can be backordered)

Power Soft Jaws

FT-SO16JAWS

160×50×70mm

¥53,900

This is a back-order item

Power Soft Jaws

FT-SO20JAWS

160×55×80mm

¥74,700

This is a back-order item

Power Soft Jaws

FT-SO04JAWS-4

52×19×30mm

¥14,000

This is a back-order item

Power Soft Jaws

FT-SO05JAWS-4

62×24×35mm

¥15,900

This is a back-order item

Power Soft Jaws

FT-SO06JAWS-4

73×26×37mm

¥18,000

2 in stock (can be backordered)

Power Soft Jaws

FT-SO07JAWS-4

95×31×48mm

¥19,800

1 in stock (can be backordered)

Power Soft Jaws

FT-SO09JAWS-4

110×37×48mm

¥24,000

0 in stock, back ordered

Power Soft Jaws

FT-SO12JAWS-4

125×42×54mm

¥37,900

0 in stock, back ordered

Power Soft Jaws

FT-SO16JAWS-4

160×50×70mm

¥71,800

This is a back-order item

Power Soft Jaws

FT-SO20JAWS-4

160×55×80mm

¥98,700

This is a back-order item

Specification

●Set of three soft jaws for scroll chucks.

●For a set of four jaws, please select the model with the suffix “-4” added to the part number.

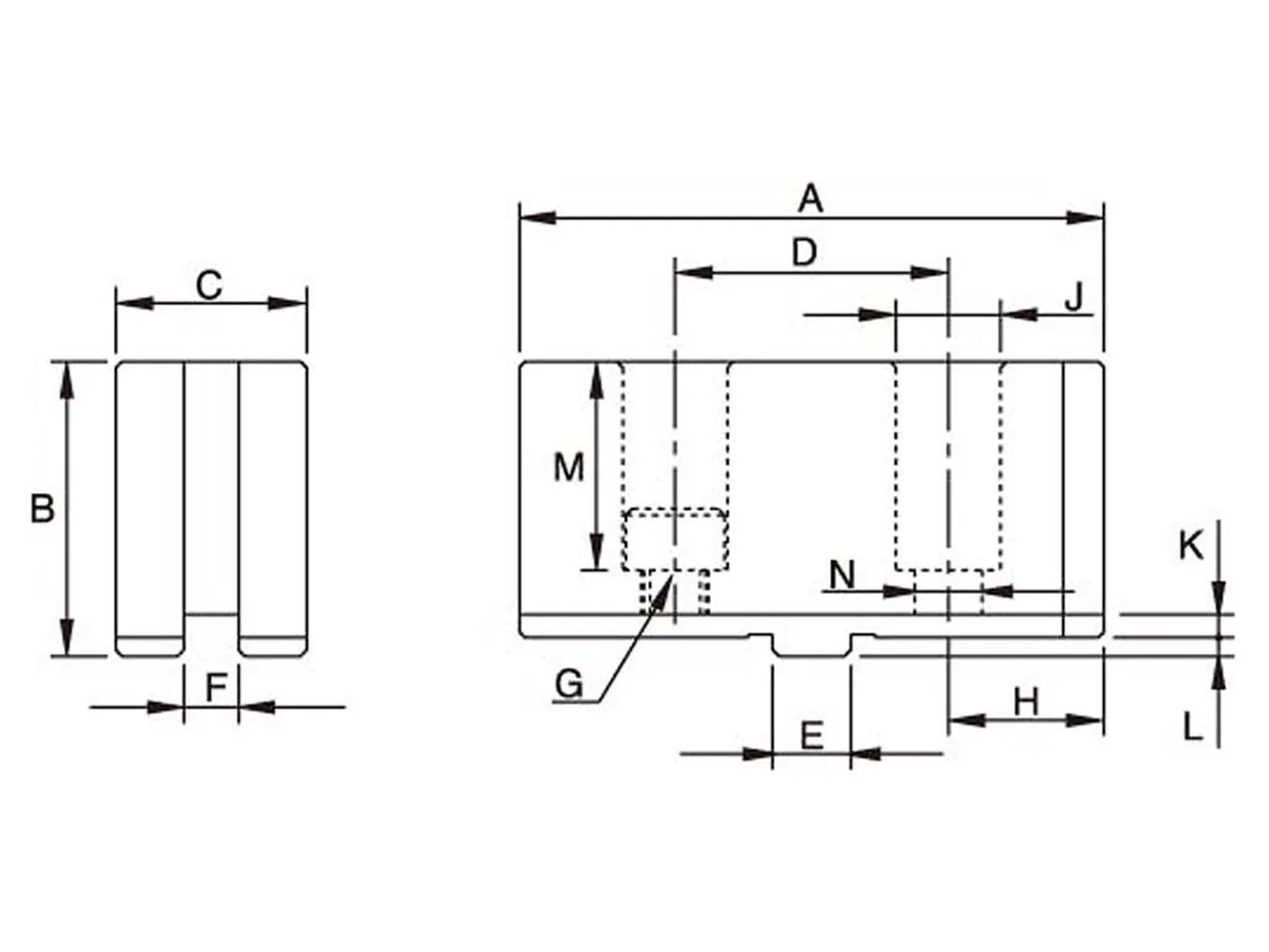

Product Specifications (Variations)

unit：mm

Product NO	A	B	C	D	E	F	G	H	J	K	L	M	N	weight（kg）
FT-SO04JAWS	52	30	19	24	9.53	7.94	M6×1P	14	11	3	2.5	21	7	0.45
FT-SO05JAWS	62	35	24	32	12.68	7.94	M8×1.25P	15	14	3.5	3	24	9	0.9
FT-SO06JAWS	73	37	26	38.1	12.68	7.94	M8×1.25P	17.45	14	3.5	3	25	9	1.3
FT-SO07JAWS	95	48	31	44.4	12.68	7.94	M10×1.5P	25.3	17	3.8	3	34	11	2.6
FT-SO09JAWS	110	48	37	54	19.03	12.7	M12×1.75P	28	19	4.2	3	34	13	3.6
FT-SO12JAWS	125	54	42	63.5	19.03	12.7	M12×1.75P	30.75	19	4.2	3	38	13	5.5
FT-SO16JAWS	160	70	50	76.2	19.03	12.7	M16×2P	41.9	25	5.5	6	48	17	10.4
FT-SO20JAWS	160	80	55	76.2	19.03	12.7	M20×2.5P	41.9	32	5.5	6	58	21	-
FT-SO04JAWS-4	52	30	19	24	9.53	7.94	M6×1P	14	11	3	2.5	21	7	0.45
FT-SO05JAWS-4	62	35	24	32	12.68	7.94	M8×1.25P	15	14	3.5	3	24	9	0.9
FT-SO06JAWS-4	73	37	26	38.1	12.68	7.94	M8×1.25P	17.45	14	3.5	3	25	9	1.3
FT-SO07JAWS-4	95	48	31	44.4	12.68	7.94	M10×1.5P	25.3	17	3.8	3	34	11	2.6
FT-SO09JAWS-4	110	48	37	54	19.03	12.7	M12×1.75P	28	19	4.2	3	34	13	3.6
FT-SO12JAWS-4	125	54	42	63.5	19.03	12.7	M12×1.75P	30.75	19	4.2	3	38	13	5.5
FT-SO16JAWS-4	160	70	50	76.2	19.03	12.7	M16×2P	41.9	25	5.5	6	48	17	10.4
FT-SO20JAWS-4	160	80	55	76.2	19.03	12.7	M20×2.5P	41.9	32	5.5	6	58	21	-

Drawing

You can download drawings for various products below.

Product NO	PDF	2DCAD	3DCAD
FT-SO04JAWS	Download	Download	We do not have it available.
FT-SO05JAWS	We do not have it available.	Download	We do not have it available.
FT-SO06JAWS	Download	Download	We do not have it available.
FT-SO07JAWS	Download	Download	We do not have it available.
FT-SO09JAWS	Download	Download	We do not have it available.
FT-SO12JAWS	Download	Download	We do not have it available.
FT-SO16JAWS	We do not have it available.	Download	We do not have it available.
FT-SO20JAWS	We do not have it available.	We do not have it available.	We do not have it available.
FT-SO04JAWS-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-SO05JAWS-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-SO06JAWS-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-SO07JAWS-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-SO09JAWS-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-SO12JAWS-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-SO16JAWS-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-SO20JAWS-4	We do not have it available.	We do not have it available.	We do not have it available.
