Hard Jaws (HJ-Series) For Hydraulic Chucks

Product NO: FT-HJ

Price range: ¥65,400 through ¥298,800

Product No

Clear

Product name

Product NO

L×W×H

Price

Stock

Quantity

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ05

53×23×28mm

¥65,400

This is a back-order item

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ06

67×31×36mm

¥72,100

This is a back-order item

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ08

87×35×51mm

¥89,400

This is a back-order item

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ10

101×40×54mm

¥96,100

This is a back-order item

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ12

108×50×67mm

¥120,000

This is a back-order item

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ18

143×62×86mm

¥176,100

This is a back-order item

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ24

159.5×80×90mm

¥298,800

This is a back-order item

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ06-4

67×31×36mm

¥96,100

This is a back-order item

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ08-4

87×35×51mm

¥117,400

This is a back-order item

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ10-4

101×40×54mm

¥128,100

This is a back-order item

Hard Jaws (HJ-Series) For Hydraulic Chucks

FT-HJ12-4

108×50×67mm

¥158,800

This is a back-order item

Specification

●This product is supplied as a set of three soft jaws designed for power chucks.

●Combination type for both internal and external gripping.

●For a set of four jaws, please select the model with the suffix “-4” added to the part number.

Product Specifications (Variations)

unit：mm

Product NO	H-1	H-2	H-3	H-4	H-5	H-6	H-7	H-8	H-9	H-10	Serration Pitch	weight（kg）	Reference drawing
FT-HJ05	53	23	28	10	4	29	14	24	10	M8×1.25P	1.5×60°	0.4	図2
FT-HJ06	67	31	36	12	5	39	20	28	12	M10×1.5P	1.5×60°	0.95	図2
FT-HJ08	87	35	51	14	5	29.5	25	18	12	M12×1.75P	1.5×60°	1.9	図1
FT-HJ10	101	40	54	16	5	45.5	30	18	13	M12×1.75P	1.5×60°	2.8	図1
FT-HJ12	108	50	67	21（18）	4（5）	49	30	20	16	M16×2P（M14×2P）	1.5×60°	3.5	図1
FT-HJ18	143	62	86	22（25.5）	8（5）	55	43	38	20	M20×2.5P	1.5×60°	9.5	図1
FT-HJ24	159.5	80	90	25	9	97.5	50	62	40	M20×2.5P	3×60°	15.3	図2
FT-HJ06-4	67	31	36	12	5	39	20	28	12	M10×1.5P	1.5×60°	0.95	図2
FT-HJ08-4	87	35	51	14	5	29.5	25	18	12	M12×1.75P	1.5×60°	1.9	図1
FT-HJ10-4	101	40	54	16	5	45.5	30	18	13	M12×1.75P	1.5×60°	2.8	図1
FT-HJ12-4	108	50	67	21（18）	4（5）	49	30	20	16	M16×2P（M14×2P）	1.5×60°	3.5	図1

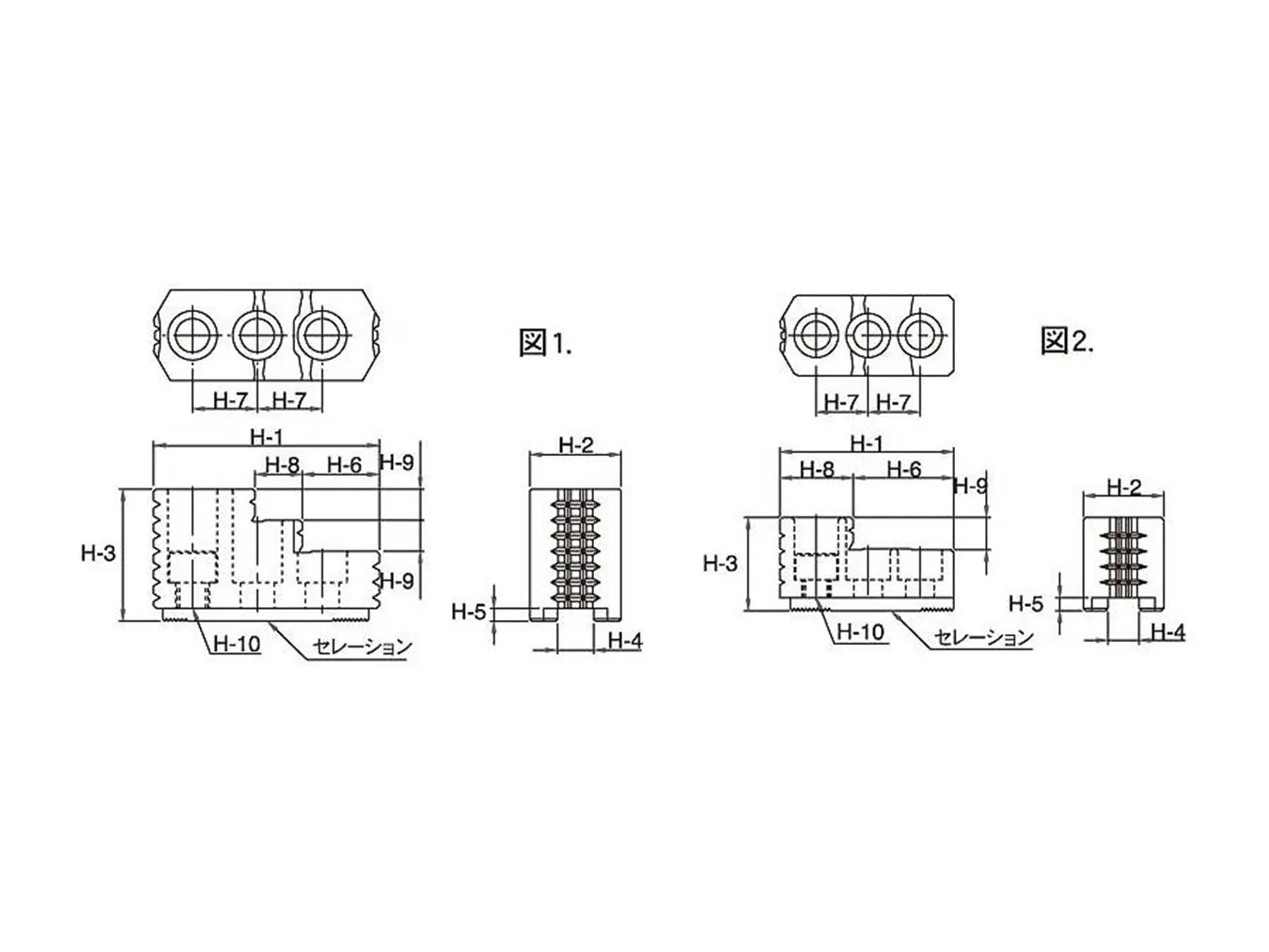

Drawing

You can download drawings for various products below.

Product NO	PDF	2DCAD	3DCAD
FT-HJ05	Download	We do not have it available.	We do not have it available.
FT-HJ06	Download	We do not have it available.	We do not have it available.
FT-HJ08	Download	We do not have it available.	We do not have it available.
FT-HJ10	Download	We do not have it available.	We do not have it available.
FT-HJ12	Download	We do not have it available.	We do not have it available.
FT-HJ18	We do not have it available.	We do not have it available.	We do not have it available.
FT-HJ24	We do not have it available.	We do not have it available.	We do not have it available.
FT-HJ06-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-HJ08-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-HJ10-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-HJ12-4	We do not have it available.	We do not have it available.	We do not have it available.
