Soft Jaws (SJ-Series) For Hydraulic Chucks

Product NO: FT-SJ

Price range: ¥10,500 through ¥109,400

Product No

Clear

Product name

Product NO

L×W×H

Price

Stock

Quantity

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ04

49.5×23×23mm

¥10,500

This is a back-order item

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ05

62×25×30mm

¥10,500

This is a back-order item

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ06

73×31×36mm

¥10,500

0 in stock, back ordered

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ08

95×35×38mm

¥12,000

1 in stock (can be backordered)

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ10

110×40×42mm

¥16,500

4 in stock (can be backordered)

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ12

129×50×50mm

¥29,400

2 in stock (can be backordered)

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ18

165×62×62mm

¥53,300

This is a back-order item

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ24

180×65×70mm

¥109,400

This is a back-order item

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ06-4

73×31×36mm

¥14,000

This is a back-order item

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ08-4

95×35×38mm

¥15,900

This is a back-order item

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ10-4

110×40×42mm

¥21,900

This is a back-order item

Soft Jaws (SJ-Series) For Hydraulic Chucks

FT-SJ12-4

129×50×50mm

¥37,300

This is a back-order item

Specification

●This product is supplied as a set of three soft jaws designed for power chucks.

●For a set of four jaws, please select the model with the suffix “-4” added to the part number.

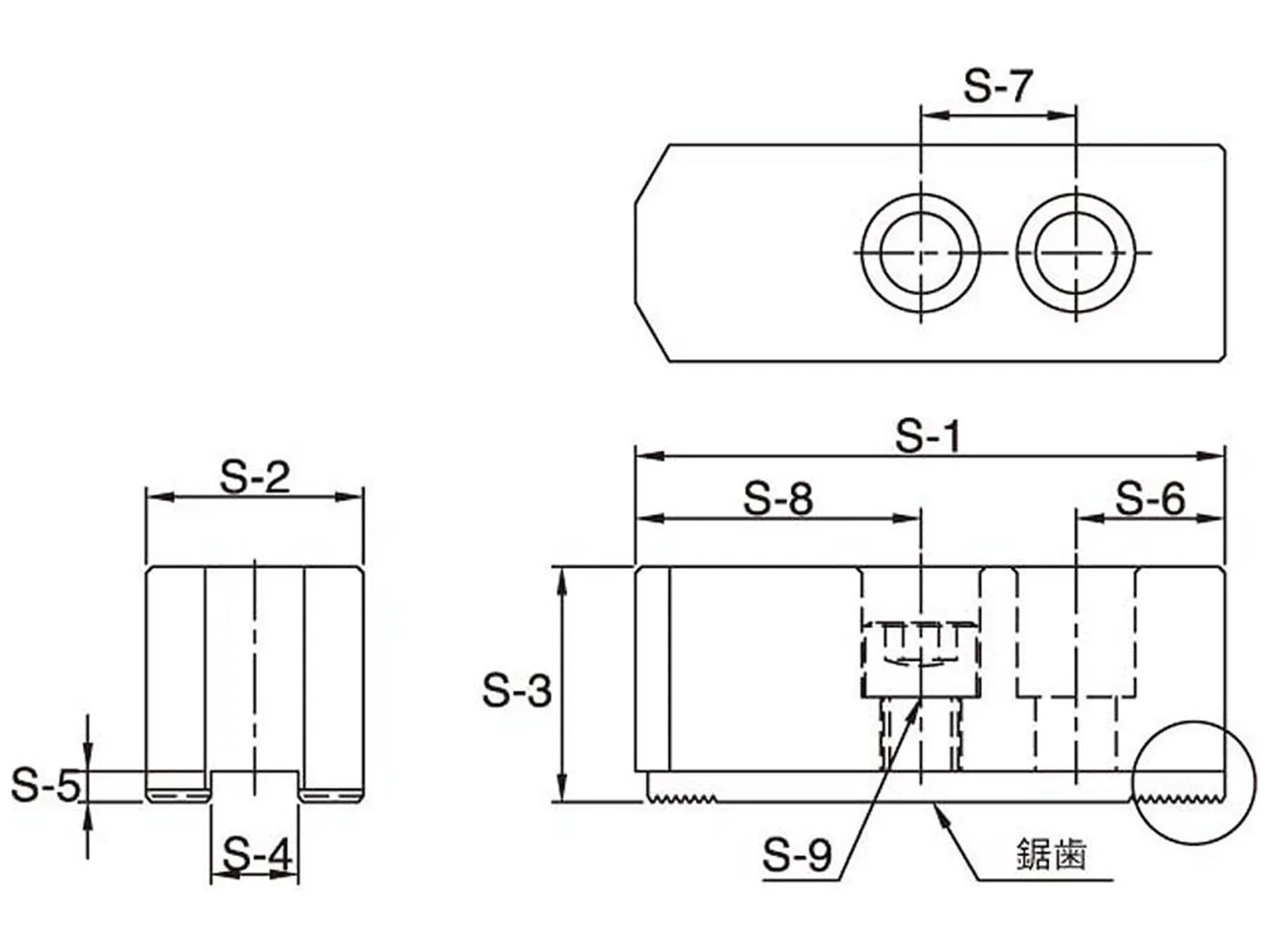

Product Specifications (Variations)

unit：mm

Product NO	S-1	S-2	S-3	S-4	S-5	S-6	S-7	S-8	S-9	Serration Pitch	weight（kg）
FT-SJ04	49.5	23	23	10	4.5	10	14	25.5	M8×1.25P	1.5×60°	0.42
FT-SJ05	62	25	30	10	4.5	10	14	38	M8×1.25P	1.5×60°	0.85
FT-SJ06	73	31	36	12	5	15	20	38	M10×1.5P	1.5×60°	1.5
FT-SJ08	95	35	38	14	5	24	25	46	M12×1.75P	1.5×60°	2.4
FT-SJ10	110	40	42	16	5	30	30	50	M12×1.75P	1.5×60°	3.6
FT-SJ12	129	50	50	21（18）	6	39	30	60	M16×2P（M14×2P）	1.5×60°	6.1
FT-SJ18	165	62	62	22（25.5）	8（5）	37	43	85	M20×2.5P	1.5×60°	12.5
FT-SJ24	180	65	70	25	9	40	60	80	M20×2.5P	3.0×60°	16.2
FT-SJ06-4	73	31	36	12	5	15	20	38	M10×1.5P	1.5×60°	1.5
FT-SJ08-4	95	35	38	14	5	24	25	46	M12×1.75P	1.5×60°	2.4
FT-SJ10-4	110	40	42	16	5	30	30	50	M12×1.75P	1.5×60°	3.6
FT-SJ12-4	129	50	50	21（18）	6	39	30	60	M16×2P（M14×2P）	1.5×60°	6.1

Drawing

You can download drawings for various products below.

Product NO	PDF	2DCAD	3DCAD
FT-SJ04	We do not have it available.	We do not have it available.	We do not have it available.
FT-SJ05	Download	Download	We do not have it available.
FT-SJ06	We do not have it available.	We do not have it available.	We do not have it available.
FT-SJ08	Download	Download	We do not have it available.
FT-SJ10	We do not have it available.	We do not have it available.	We do not have it available.
FT-SJ12	We do not have it available.	We do not have it available.	We do not have it available.
FT-SJ18	We do not have it available.	We do not have it available.	We do not have it available.
FT-SJ24	We do not have it available.	We do not have it available.	We do not have it available.
FT-SJ06-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-SJ08-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-SJ10-4	We do not have it available.	We do not have it available.	We do not have it available.
FT-SJ12-4	We do not have it available.	We do not have it available.	We do not have it available.
