Precision 5″ 3-Jaws Punch Former

Product NO: FT-PFH-SC05

¥1,190,000

This is a back-order item

Specification

●Made of stainless steel with an FCD45 ductile cast iron chuck, this unit combines a rugged, durable construction with excellent dustproof and waterproof performance.
●The through-hole center bore accommodates long punches and ejector pins.
●Equipped with dual bearings to provide exceptional stability and accuracy.
●The indexing function enables precise manufacturing of polygonal punches.

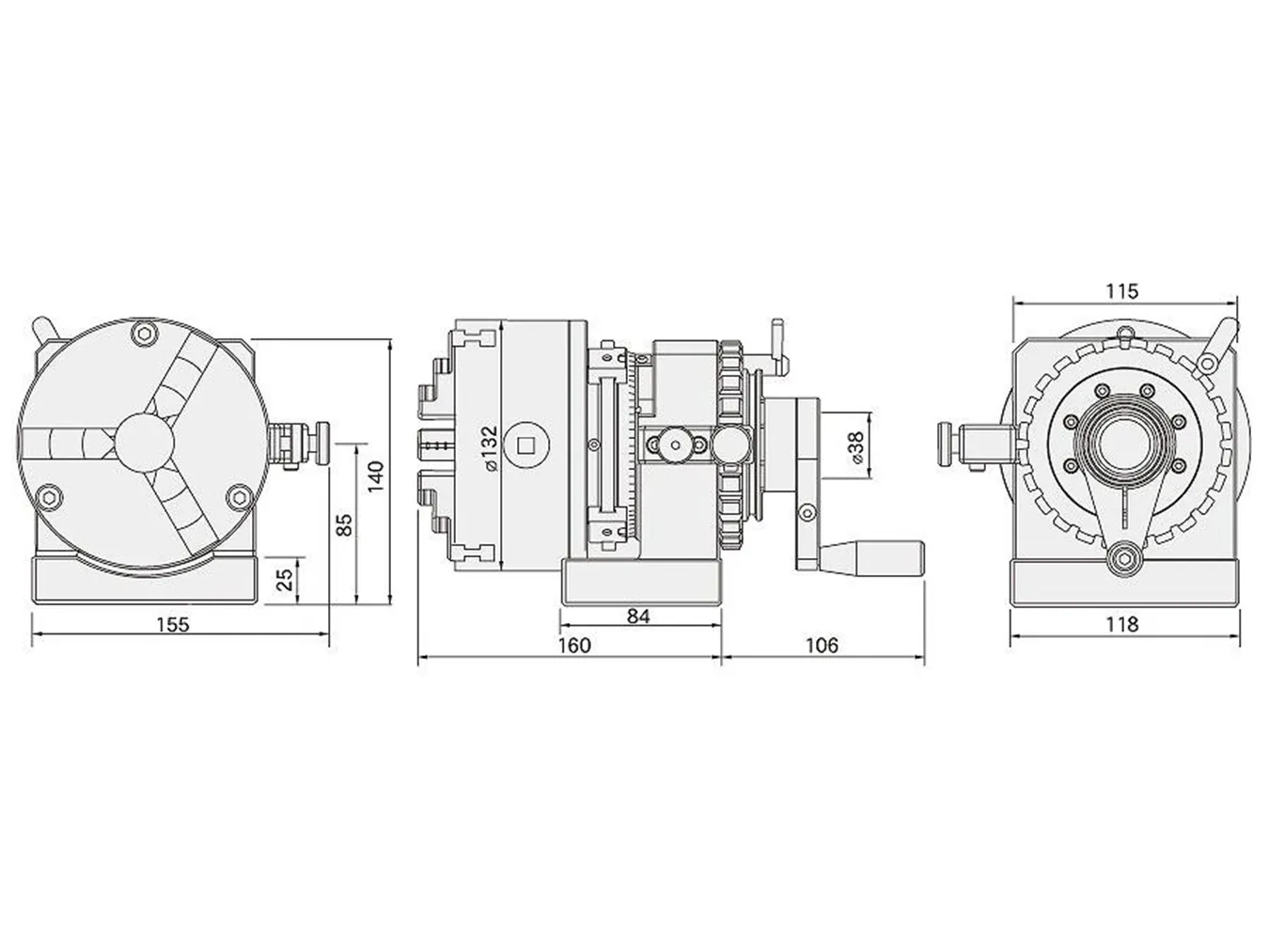

unit：mm

Product NOFT-PFH-SC05
Center height85±0.5ｍｍ
Indexer tooth q'ty & accuracy24、15°±5”
Through hole diametersØ32mm
Hole dia. of 3-Jaw ChuckØ32mm
Outer diameterGripping rangeØ3-110mm
inside diameterGripping rangeØ35-110mm
Rotational accuracy0.003mm
Repeat accuracy0.015mm
weight（kg）14.8kg
