Precision 6″ 3-Jaws Punch Former (Big Type)

Product NO: FT-PFH600

¥1,590,000

This is a back-order item

Specification

●The FT-PFH600 offers strong gripping force and excellent durability.

●The through-hole center bore accommodates long punches and ejector pins.

●Equipped with dual bearings to provide exceptional stability and accuracy.

●The indexing function enables precise manufacturing of polygonal punches.

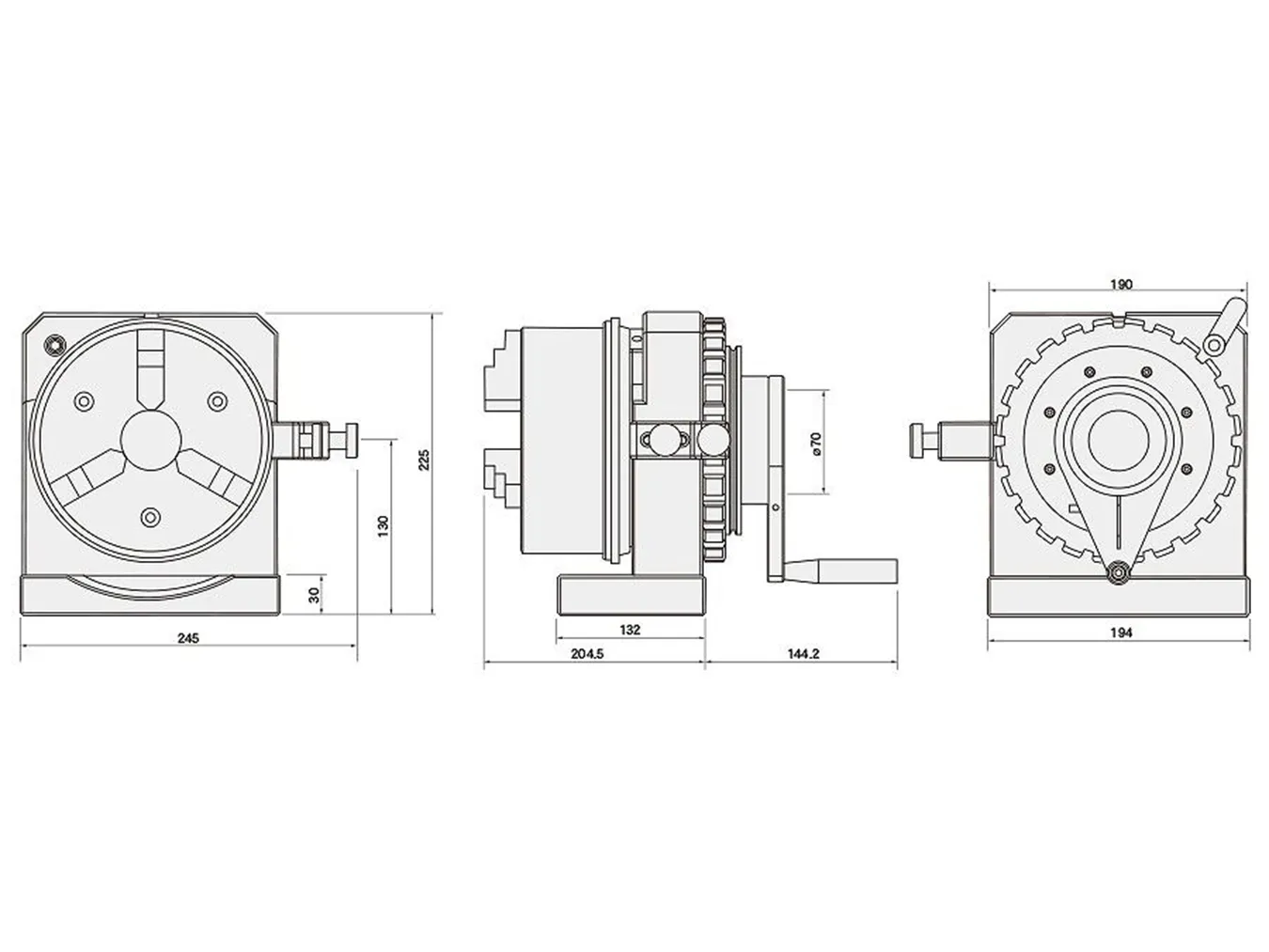

unit：mm

Product NOFT-PFH600
Center height130±0.5mm
Indexer tooth q'ty & accuracy24、15°±5”
Hole dia. of 3-Jaw ChuckØ45mm
Outer diameterGripping rangeØ4-160mm
inside diameterGripping rangeØ48-150mm
Rotational accuracy0.003mm
Repeat accuracy0.015mm
weight（kg）27kg
