ER Collet Punch Former

Product NO: FT-PFD-ER

Price range: ¥430,000 through ¥470,000

Product name
Product NO
Gripping range
Price
Stock
Quantity
ER Collet Punch Former
FT-PFD-ER16
Ø0.5-Ø10mm
¥430,000

This is a back-order item

ER Collet Punch Former
FT-PFD-ER32
Ø2.1-Ø20mm
¥430,000

This is a back-order item

ER Collet Punch Former
FT-PFD-ER40
Ø3.1-Ø26mm
¥470,000

This is a back-order item

Specification

●The center hole is a through-hole.
●Compatible with commercially available DIN-standard ER collets.
●It can be rotated and locked at any angle.
●The indexing function enables precise manufacturing of polygonal punches.

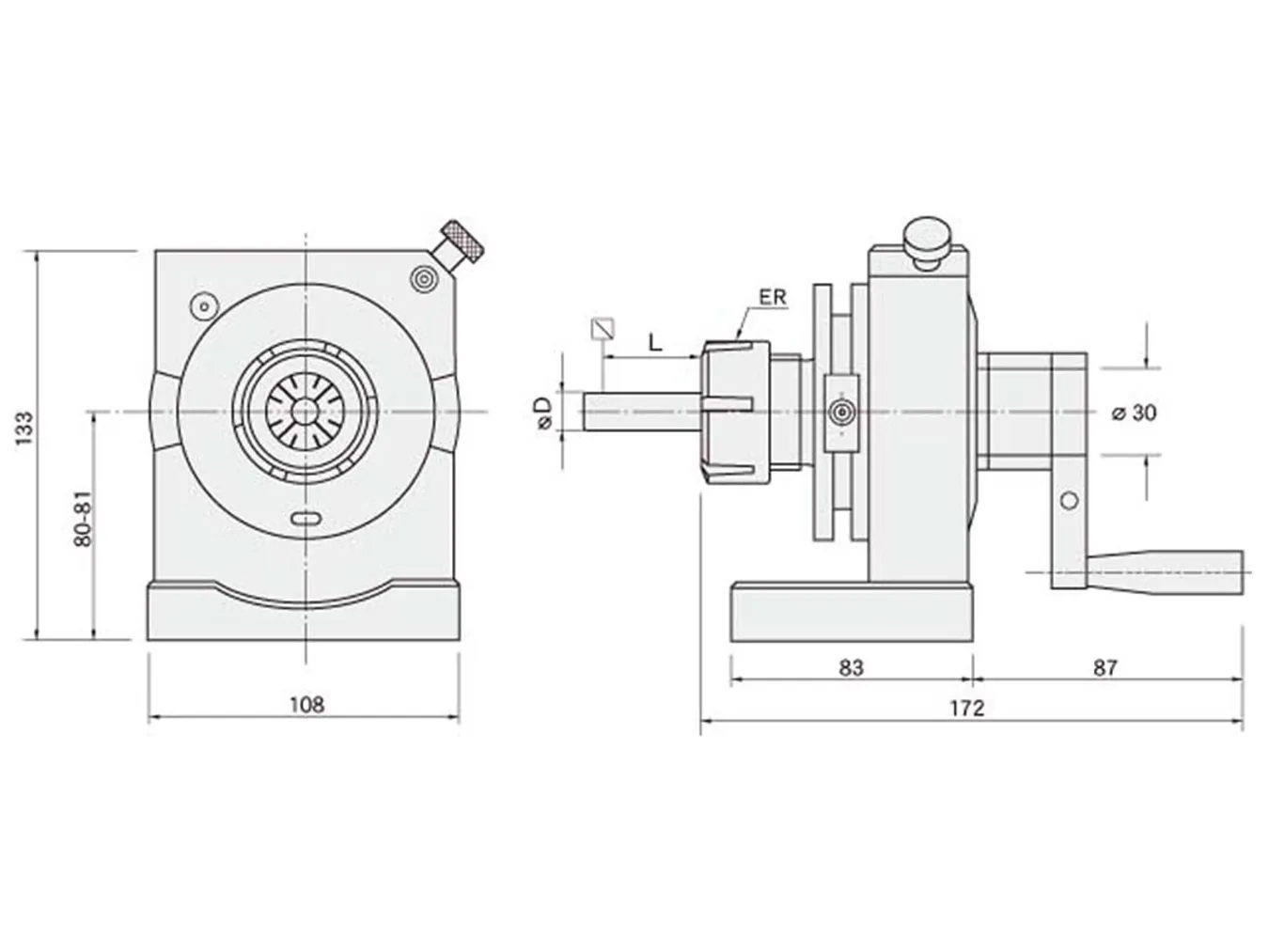

Product Specifications (Variations)

unit：mm
Product NOChuck typeOuter diameterGripping rangeThrough hole diametersCenter heightIndexer tooth q'ty & accuracyRotational accuracyScaleweight（kg）Standard-supplied collet
FT-PFD-ER16ER collet chuckØ0.5-Ø10mmØ30mm80-81mm24、15°±10”0.005mmmain scale１° vernier scale６′5.6㎏2、3、4、6、8
FT-PFD-ER32ER collet chuckØ2.1-Ø20mmØ30mm80-81mm24、15°±10”0.005mmmain scale１° vernier scale６′6.6㎏4、8、12、16、20
FT-PFD-ER40ER collet chuckØ3.1-Ø26mmØ30mm80-81mm24、15°±10”0.005mmmain scale１° vernier scale６′7.6㎏6、10、16、20、25
