3-Jaw A1(A2) Type Chucks
Product NO: FT-A1
Price range: ¥188,000 through ¥1,242,000
Specification
●Standard accessories: Hard jaws
●Soft jaws are available separately and are not included as standard.Please purchase the set of four.
Product Specifications (Variations)
unit：mm| Product NO | A | B | C | D | E | F | G | H | I | J | K | P | M | N | Max.Speed（min-1） | Max.Gripping Diameter O.D. | Max.Gripping Diameter I.D. | weight（kg） | Compatible soft jaws |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-A5-08 | 200 | 83 | 33.5 | Ø61.9 | 40 | Ø104.8 | 3-M10×1.5P | 82 | 82.563 | 28 | 43 | 14.29 | Ø16.3 | 6.8 | 2000 | Ø8～Ø180 | Ø62～Ø170 | 17.4 | FT-SO07JAWS |
| FT-A6-08 | 200 | 83 | 33.5 | Ø82.6 | 56 | Ø133.4 | 3-M12×1.75P | 82 | 106.375 | 28 | 43 | 15.88 | Ø19.3 | 6.8 | 2000 | Ø8～Ø180 | Ø62～Ø170 | 18 | FT-SO07JAWS |
| FT-A6-10 | 255 | 91.5 | 36.5 | Ø82.6 | 56 | Ø133.4 | 3-M12×1.75P | 93 | 106.375 | 32 | 50 | 15.88 | Ø19.3 | 6.8 | 1800 | Ø11～Ø240 | Ø70～Ø230 | 30.6 | FT-SO09JAWS |
| FT-A11-20 | 500 | 135 | 40 | Ø235 | 190.5 | Ø235 | 6-M20×2.5P | 140 | 196.869 | 55 | 84 | - | Ø29.4 | 10.7 | 1000 | Ø25～Ø480 | Ø125～Ø460 | 161.5 | FT-SO16JAWS |

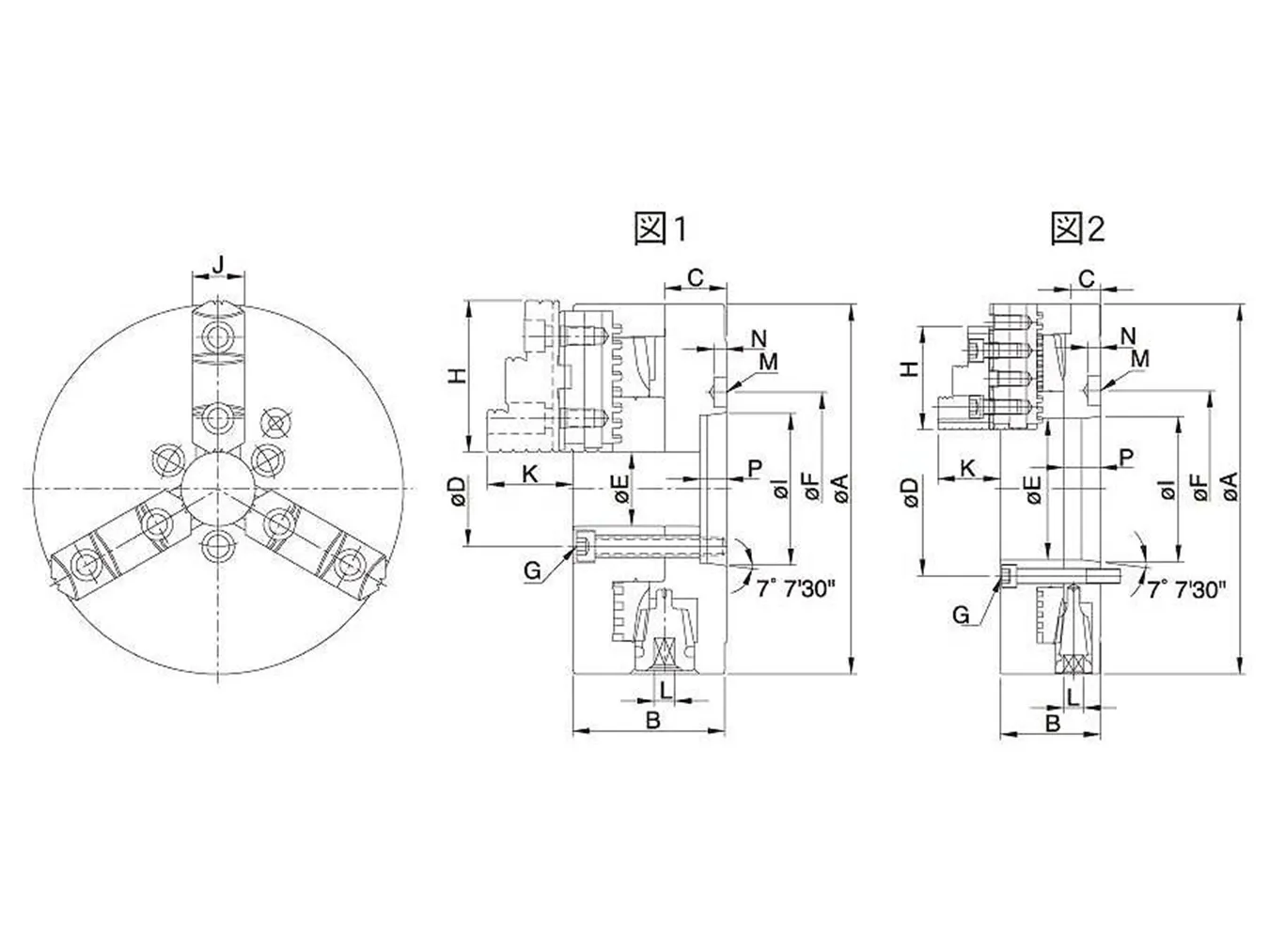

Drawing
You can download drawings for various products below.
Related products
-

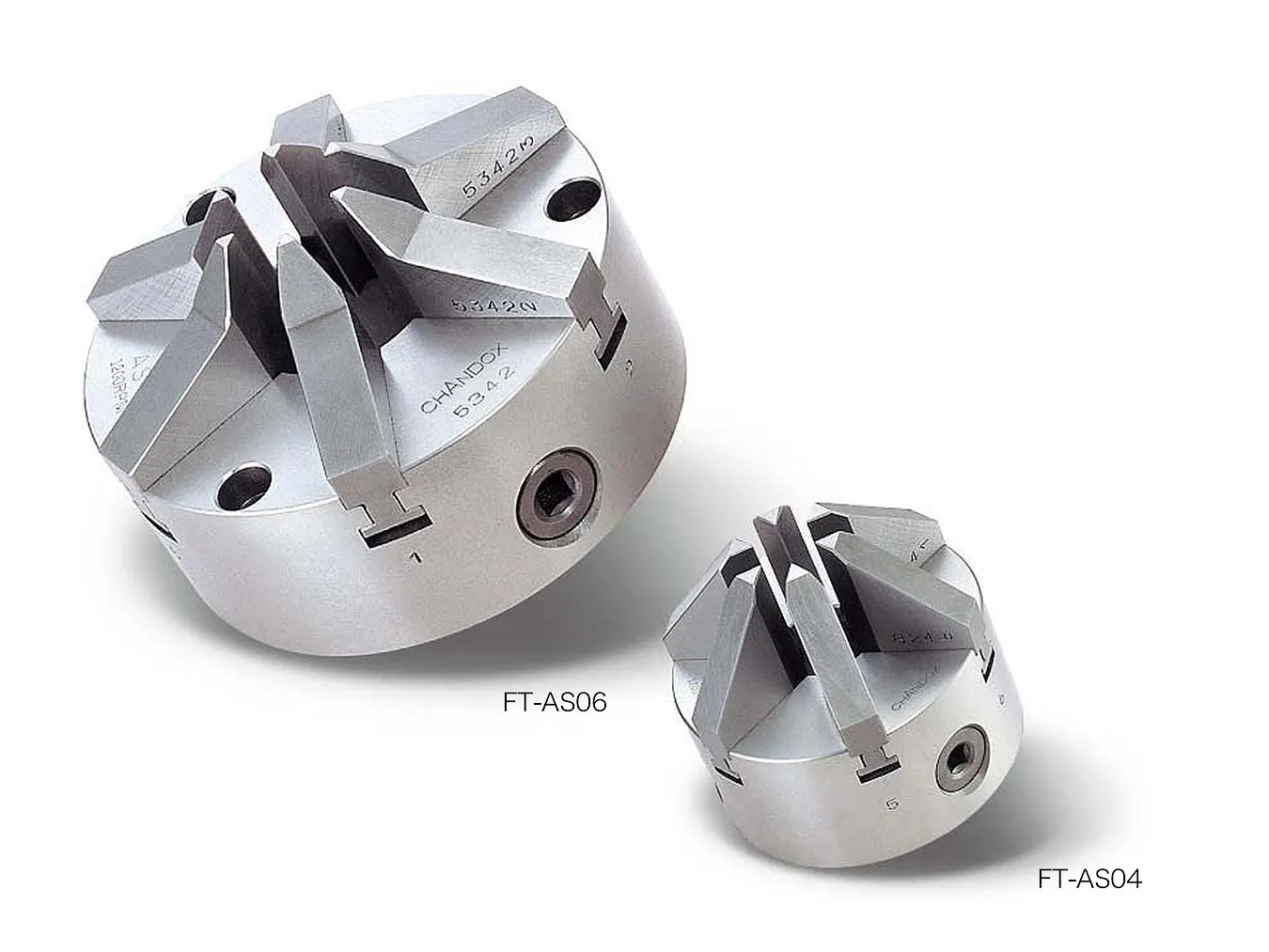

6-Jaw Awl Type Chucks
