Powerful Micropitch Permanent Magnetic Chuck
Product NO: FT-HMTW-B
Quote upon request
Specification
●Magnetic ON/OFF switching does not affect the flatness of the chuck surface.
●Models with nominal dimensions of 300 × 400 mm or larger are equipped with two ON/OFF switching controls.
●Fully waterproof design, suitable for use in submerged environments.
●Incorporates samarium-cobalt magnets for excellent corrosion resistance and heat resistance.
●Suitable for grinding applications on surface grinding machines.

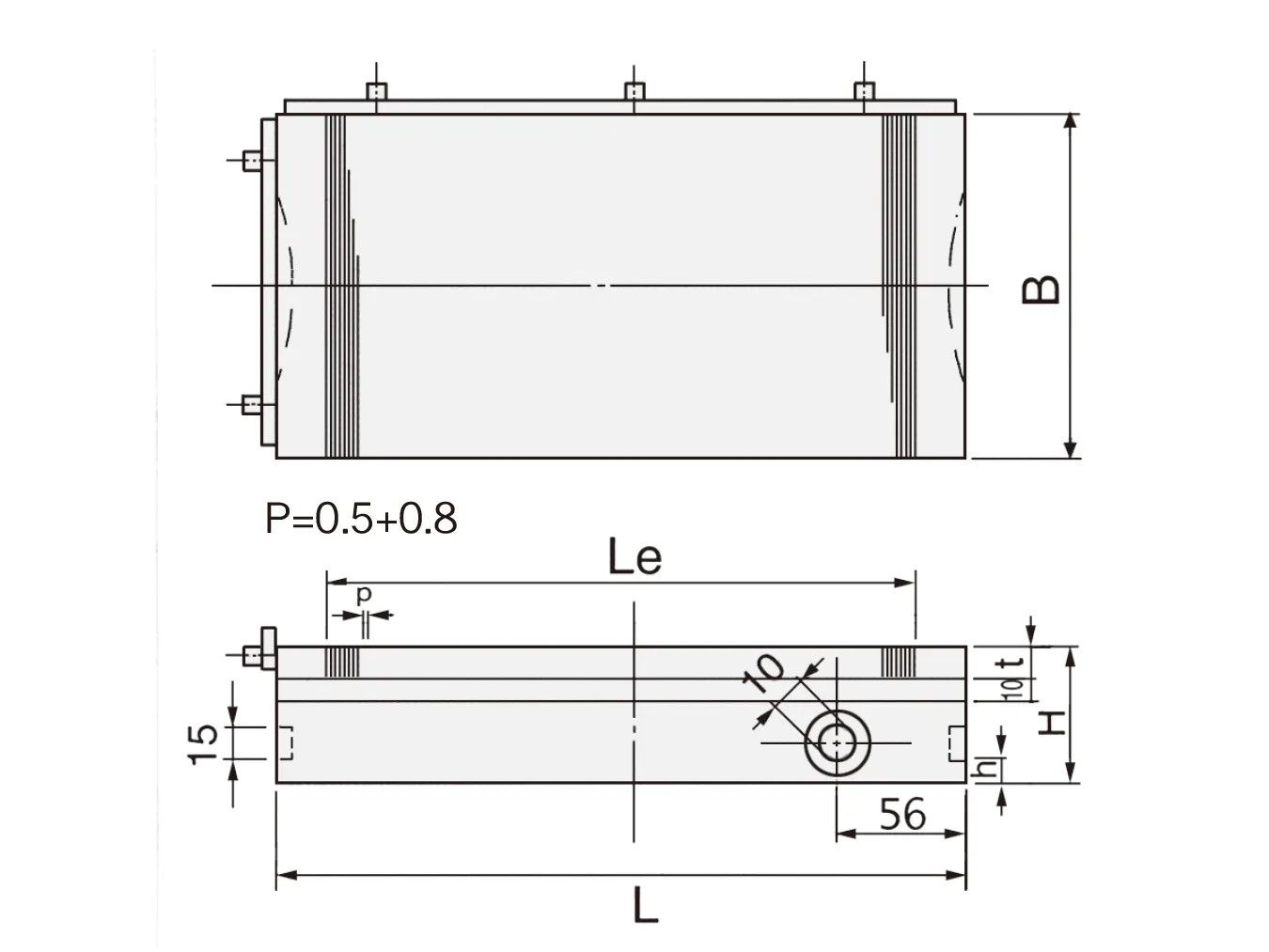

Product Specifications (Variations)
unit：mm| Product NO | Nominal Dimension | B | L | Le | Magnetic PolePitchP | B | L | h | HeightH | weight（kg） |
|---|---|---|---|---|---|---|---|---|---|---|
| FT-HMTW-0813B | 75×130 | 75 | 130 | 85 | 1.3（0.5+0.8） | 75 | 130 | 10 | 52 | 4 |
| FT-HMTW-0818B | 75×175 | 75 | 175 | 125 | 1.3（0.5+0.8） | 75 | 175 | 10 | 52 | 5.5 |
| FT-HMTW-0830B | 75×300 | 75 | 300 | 246 | 1.3（0.5+0.8） | 75 | 300 | 10 | 52 | 9 |
| FT-HMTW-1018B | 100×175 | 100 | 175 | 125 | 1.3（0.5+0.8） | 100 | 175 | 10 | 52 | 7 |
| FT-HMTW-1325B | 125×250 | 125 | 250 | 205 | 1.3（0.5+0.8） | 125 | 250 | 12 | 52 | 12 |
| FT-HMTW-1515B | 150×150 | 150 | 150 | 110 | 1.3（0.5+0.8） | 150 | 150 | 12 | 52 | 9 |
| FT-HMTW-1530B | 150×300 | 150 | 300 | 246 | 1.3（0.5+0.8） | 150 | 300 | 12 | 58 | 20 |
| FT-HMTW-1535B | 150×350 | 150 | 350 | 296 | 1.3（0.5+0.8） | 150 | 350 | 12 | 58 | 24 |
| FT-HMTW-1540B | 150×400 | 150 | 400 | 346 | 1.3（0.5+0.8） | 150 | 400 | 12 | 58 | 27.5 |
| FT-HMTW-1545B | 150×450 | 150 | 450 | 390 | 1.3（0.5+0.8） | 150 | 450 | 12 | 58 | 31 |
| FT-HMTW-2040B | 200×400 | 200 | 400 | 346 | 1.3（0.5+0.8） | 200 | 400 | 12 | 58 | 37 |
| FT-HMTW-2045B | 200×450 | 200 | 450 | 390 | 1.3（0.5+0.8） | 200 | 450 | 12 | 58 | 41.5 |
| FT-HMTW-2050B | 200×500 | 200 | 500 | 446 | 1.3（0.5+0.8） | 200 | 500 | 12 | 58 | 46 |
| FT-HMTW-2525B | 250×250 | 250 | 250 | 205 | 1.3（0.5+0.8） | 250 | 270 | 20 | 58 | 29 |
| FT-HMTW-2535B | 250×350 | 250 | 350 | 296 | 1.3（0.5+0.8） | 250 | 370 | 20 | 58 | 40.5 |
| FT-HMTW-2540B | 250×400 | 250 | 400 | 346 | 1.3（0.5+0.8） | 250 | 420 | 20 | 58 | 46 |
| FT-HMTW-2545B | 250×450 | 250 | 450 | 390 | 1.3（0.5+0.8） | 250 | 470 | 20 | 58 | 52 |
| FT-HMTW-2550B | 250×500 | 250 | 500 | 446 | 1.3（0.5+0.8） | 250 | 520 | 20 | 58 | 58 |
| FT-HMTW-2560B | 250×600 | 250 | 600 | 546 | 1.3（0.5+0.8） | 250 | 620 | 20 | 58 | 69 |
| FT-HMTW-3030B | 300×300 | 300 | 300 | 246 | 1.3（0.5+0.8） | 300 | 320 | 20 | 58 | 41.5 |
| FT-HMTW-3035B | 300×350 | 300 | 350 | 296 | 1.3（0.5+0.8） | 300 | 370 | 20 | 58 | 48.5 |
| FT-HMTW-3040B | 300×400 | 300 | 400 | 346 | 1.3（0.5+0.8） | 300 | 420 | 20 | 58 | 55.5 |
| FT-HMTW-3045B | 300×450 | 300 | 450 | 390 | 1.3（0.5+0.8） | 300 | 470 | 20 | 58 | 62.5 |
| FT-HMTW-3050B | 300×500 | 300 | 500 | 446 | 1.3（0.5+0.8） | 300 | 520 | 20 | 58 | 69 |
| FT-HMTW-3060B | 300×600 | 300 | 600 | 546 | 1.3（0.5+0.8） | 300 | 620 | 20 | 58 | 83 |
