Controller for Electromagnetic Chuck

Product NO: FT-HES-T

Quote upon request

Product name
Product NO
Price
Stock
Quantity
Controller for Electromagnetic Chuck
FT-HES-105T
Quote upon request

1 in stock (can be backordered)

Controller for Electromagnetic Chuck
FT-HES-110T
Quote upon request

This is a back-order item

Controller for Electromagnetic Chuck
FT-HES-115T
Quote upon request

This is a back-order item

Controller for Electromagnetic Chuck
FT-HES-200T
Quote upon request

This is a back-order item

Specification

●Converts AC input power to DC output for electromagnetic chucks.
●Compatible with all FIRSTEC electromagnetic chucks.
●Equipped with a demagnetization function to reduce residual magnetic force in the chuck after use (demagnetization time is adjustable).
●Output voltage is displayed for easy monitoring.
●Select a controller with an output capacity of at least 1.5 times the input current rating of the electromagnetic chuck.

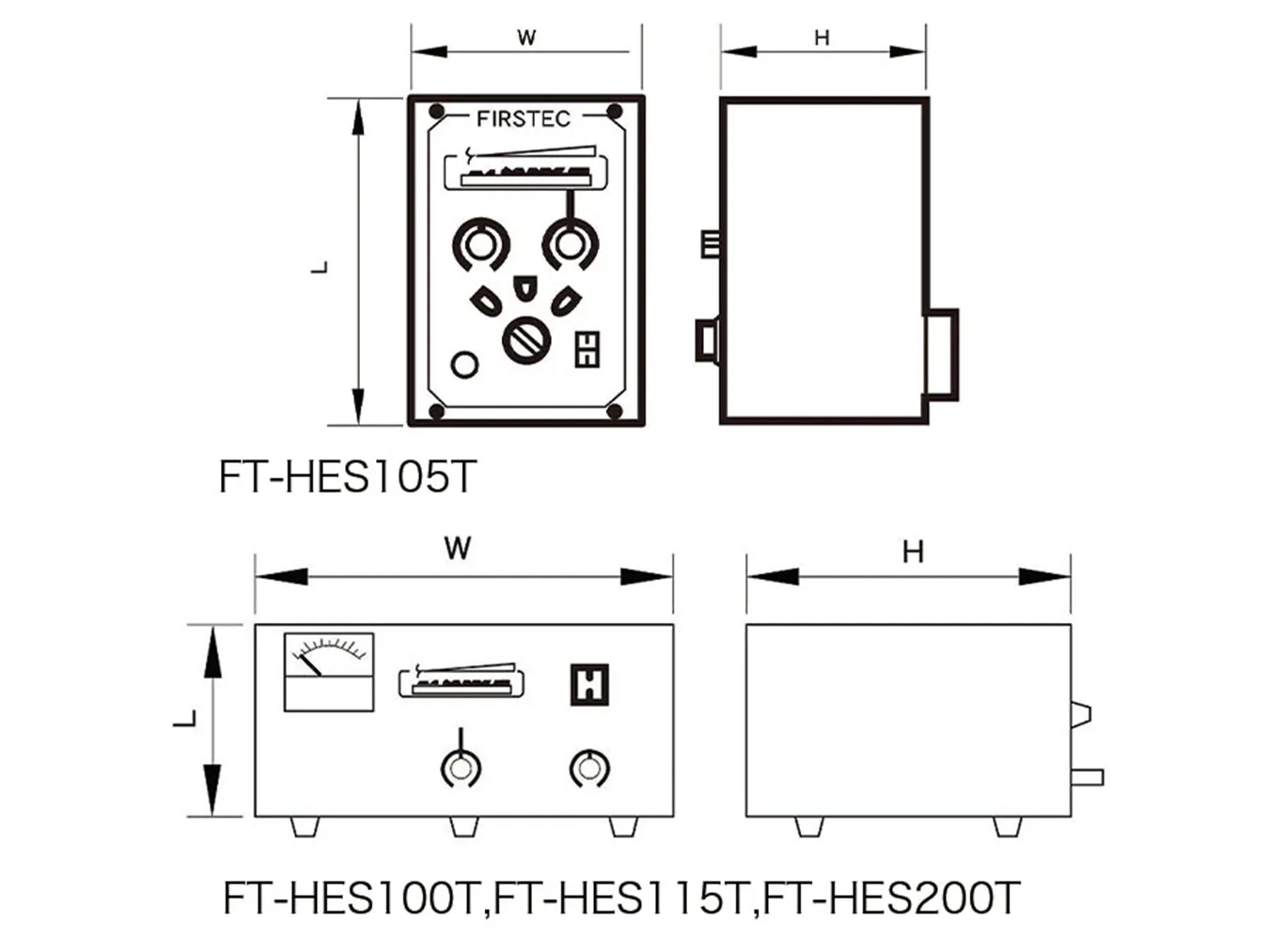

Product Specifications (Variations)

unit：mm
Product NOInput Voltage（AC）Output AC100VOutput AC200VOutput current（A）LWH冷却用ファンweight（kg）
FT-HES-105Tsingle phase100VDC 0-80V-5A198138122none3
FT-HES-110Tsingle phase100V/200VDC 0-80VDC 0-80V10A150330260yes16
FT-HES-115Tsingle phase200V-DC 0-80V15A150330260yes21
FT-HES-200Tsingle phase200V-DC 0-80V20A180385295yes26.2
