Precision Punch Former (Big Type)
Product NO: FT-PFH500
¥1,830,000
This is a back-order item
Specification
●The FT-PFH500 features a fine-adjustment mechanism, providing strong gripping force and excellent durability.
●The center bore is not through-hole type.
●The V-block holding system ensures accurate and stable workpiece positioning for precision machining.
●The slide plate allows horizontal movement and positioning adjustment.
●Equipped with dual bearings to provide exceptional stability and accuracy.
●The indexing function enables precise manufacturing of polygonal punches.

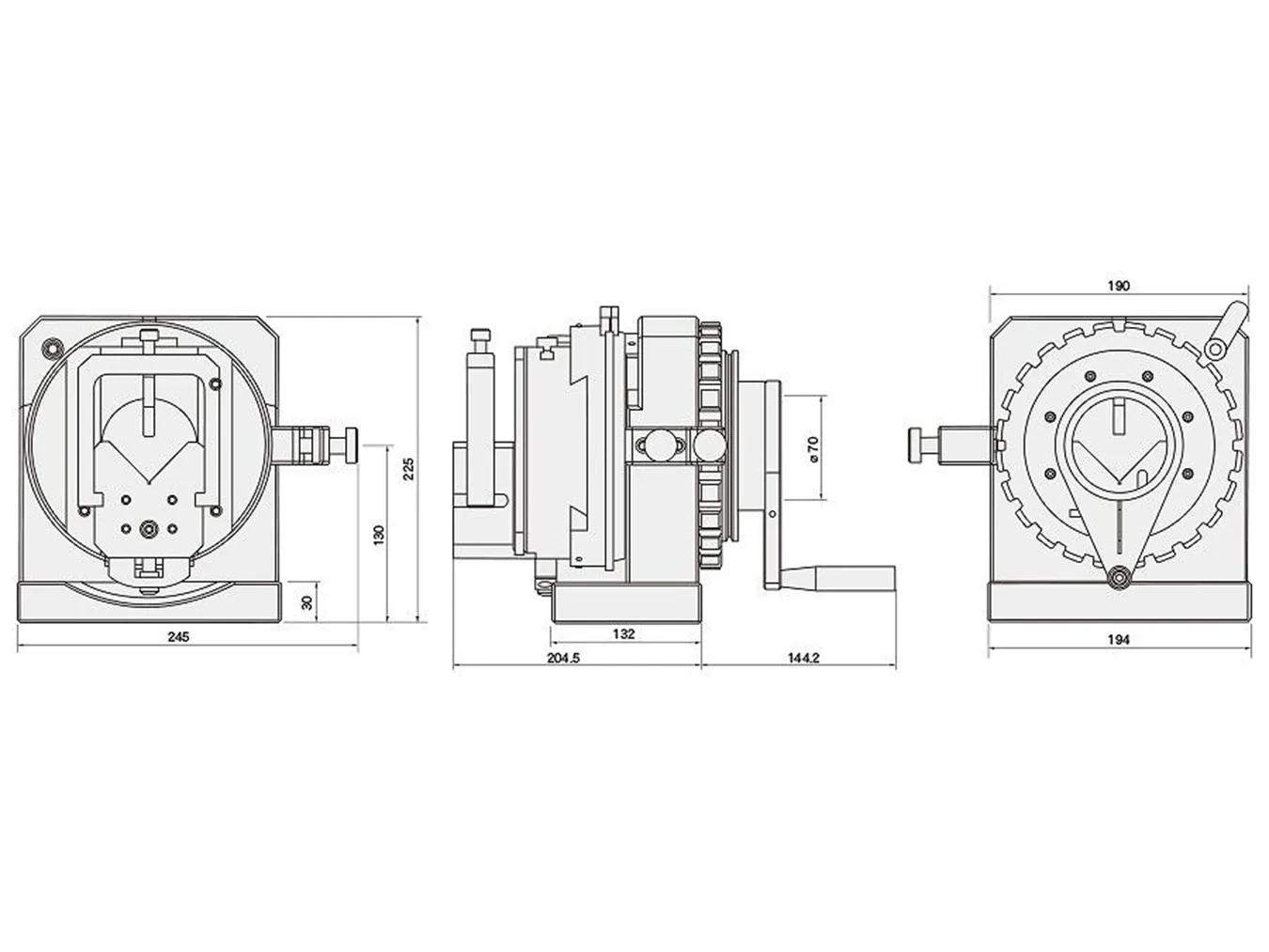

unit：mm
| Product NO | FT-PFH500 |
|---|---|
| Center height | 130±0.5mm |
| Indexer tooth q'ty & accuracy | 24、15°±5” |
| Through hole diameters | none |
| Clamping dia. range of V-block | Ø3-69.5mm |
| Trave| of V-block | 48mm |
| Slide plate horizontal movement | ±30mm |
| Clamping accuracy (50mm) | 0.005mm |
| weight（kg） | 27kg |
