Super Precision INOX 3-Jaws Punch Former

Product NO: FT-PFH-SC40

¥1,370,000

This is a back-order item

Specification

●Constructed from stainless steel, offering a robust, durable body with dustproof and waterproof protection.
●The ultra-precision scroll chuck delivers outstanding rotational accuracy and repeatability.
●The through-hole center bore accommodates long punches and ejector pins.
●Equipped with dual bearings to provide exceptional stability and accuracy.
●The indexing function enables precise manufacturing of polygonal punches.

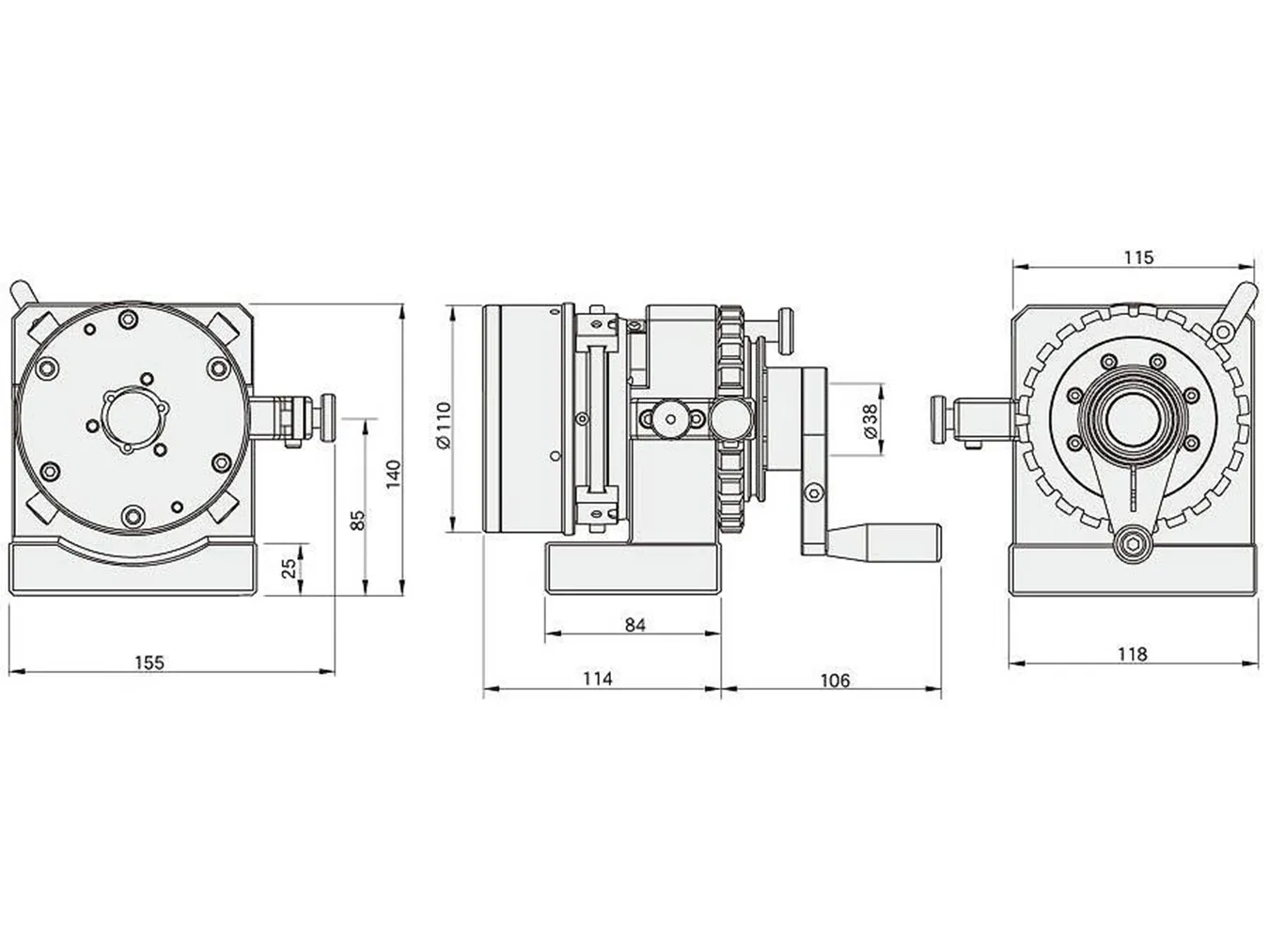

unit：mm

Product NOFT-PFH-SC40
Center height85±0.5mm
Indexer tooth q'ty & accuracy24、15°±5”
Through hole diametersØ25mm
Outer diameterGripping rangeØ1-25mm
Rotational accuracy0.003mm
Repeat accuracy0.003mm
weight（kg）10.0kg
