Center Punch Former
Product NO: FT-GPFC
Price range: ¥710,000 through ¥780,000
Specification
●Equipped with a rotary live center to maintain concentricity, this motorized punch former ensures stable, high-precision machining.
●The scroll chuck enables quick and accurate clamping of large-diameter workpieces as well as workpieces of varying sizes.
●External clamping range: Ø2–70 mm Internal clamping range: Ø24–64 mm
●The chuck body is manufactured from Meehanite cast iron.
Product Specifications (Variations)

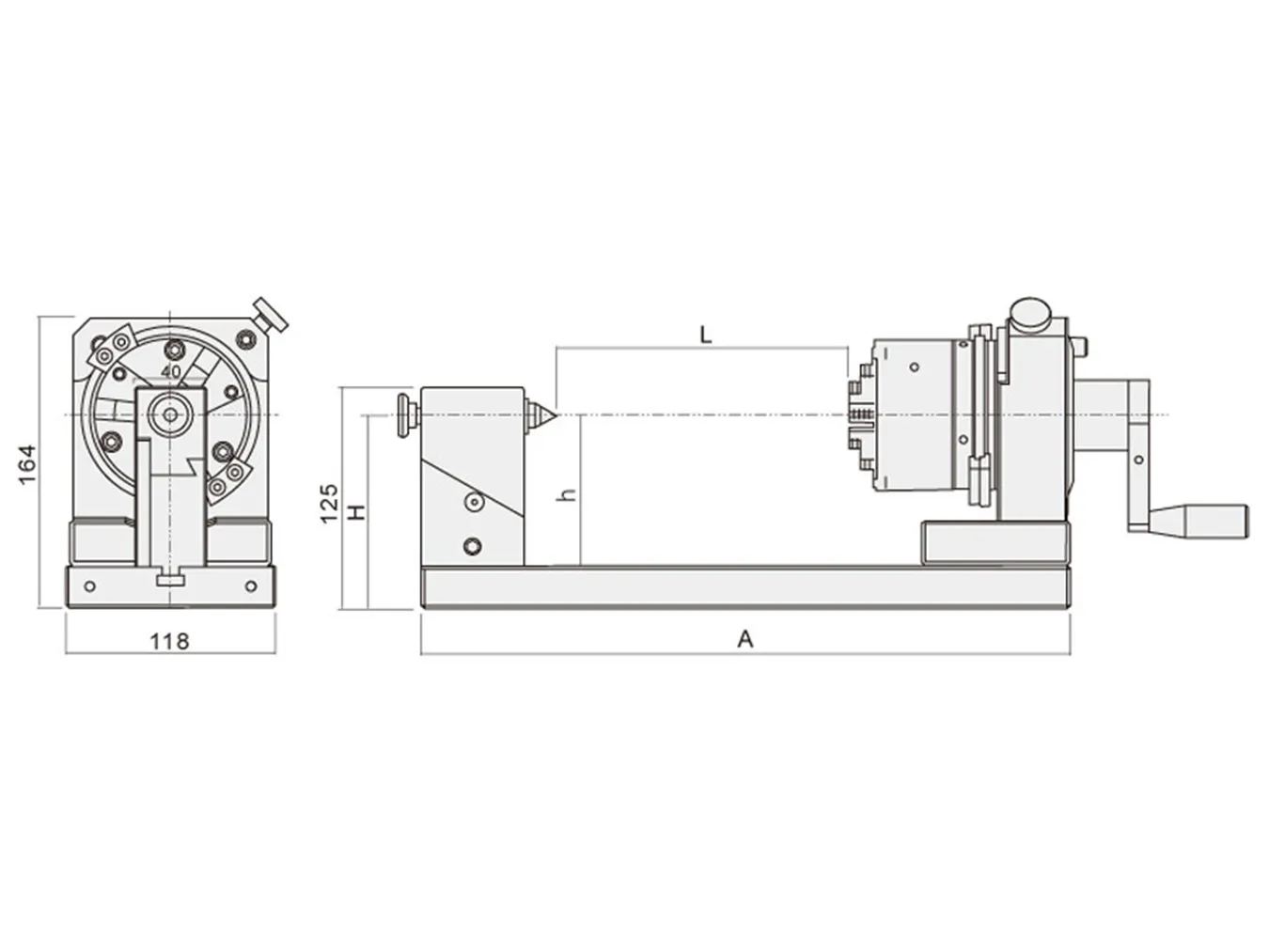

unit：mm| Product NO | A | L | Indexer tooth q'ty & accuracy | Roundness | Parallelism | Squareness | Rotation range | weight（kg） |
|---|---|---|---|---|---|---|---|---|
| FT-GPFC150 | 375 | 0～150 | 24、 15°±10” | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 20kg |
| FT-GPFC250 | 475 | 0～250 | 24、 15°±10” | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 23kg |
| FT-GPFC350 | 575 | 0～350 | 24、 15°±10” | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 26kg |
| FT-GPFC450 | 675 | 0～450 | 24、 15°±10” | 0.002mm | 0.002mm/100mm | 0.002/100mm | 360° | 29.5kg |
Related products
-

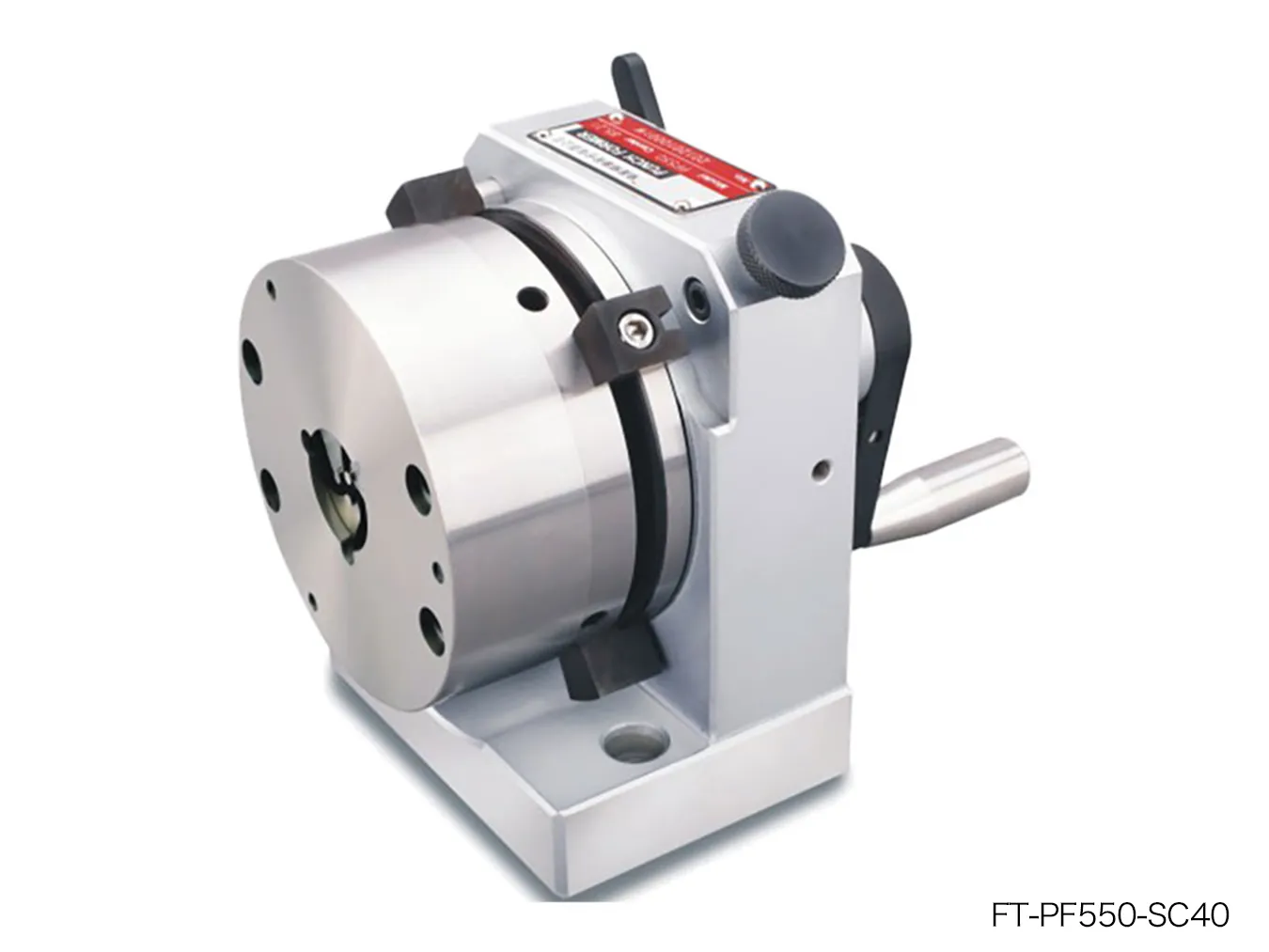

Super Precision 3-Jaw Punch Former
Product NO：FT-PF550-SC40 -

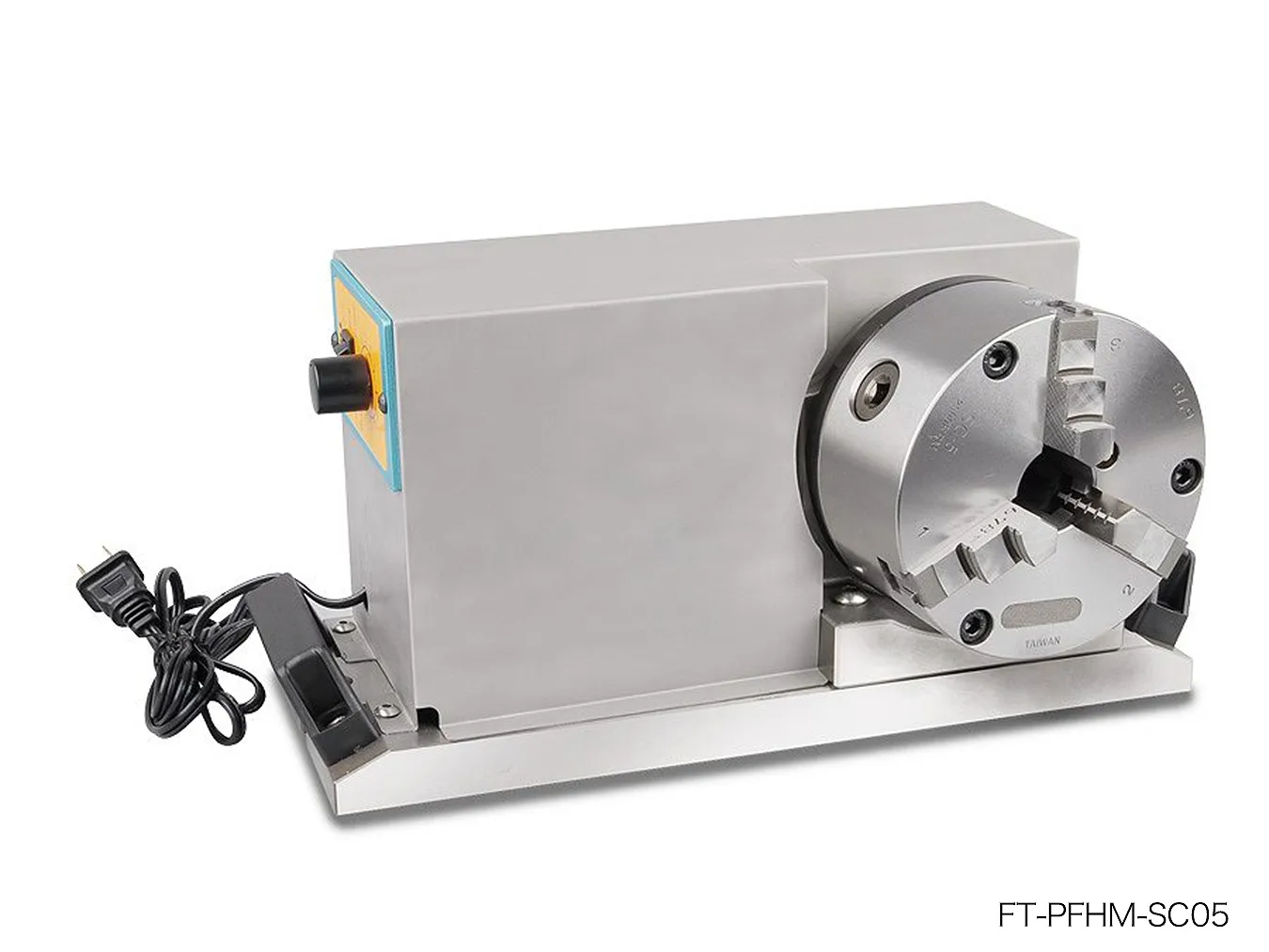

Precision Motor 5" Jaw Punch Former
