Electro-Permanent Magnetic Chuck(Controller sold separately)
Product NO: FT-EPM-Z
Quote upon request
Specification
Designed for face milling and end milling applications on machining centers and planers.
Since power is consumed only during magnetic activation and deactivation, no heat is generated during operation.
The power cable can be disconnected while the magnetic holding force remains engaged.
Average holding force: 18 kgf/cm² or greater.
Waterproof design.
Product Specifications (Variations)

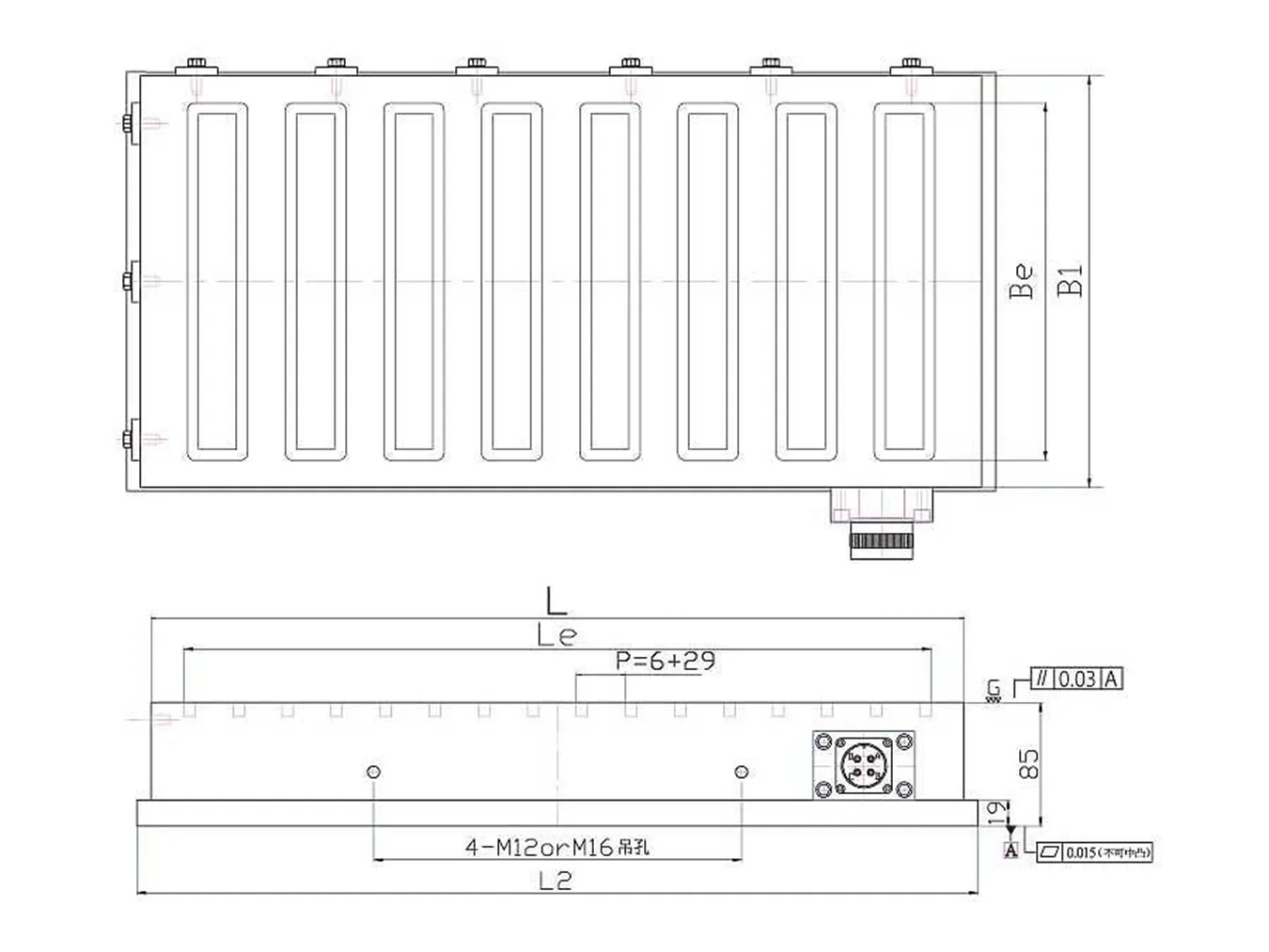

unit：mm| Product NO | Nominal Dimension | B1 | Be | L1 | Le | Magnetic PolePitchP | B2 | L2 | weight（kg） | Controller |
|---|---|---|---|---|---|---|---|---|---|---|
| FT-EPM-2050Z | 200×520 | 200 | 164 | 520 | 486 | 35（6+29） | 204 | 540 | 62 | EPM-30S |
| FT-EPM-2550Z | 250×520 | 250 | 214 | 520 | 486 | 35（6+29） | 254 | 540 | 78 | EPM-30S |
| FT-EPM-3060Z | 300×600 | 300 | 260 | 600 | 571 | 35（6+29） | 304 | 620 | 108 | EPM-30S |
| FT-EPM-4040Z | 400×400 | 400 | 360 | 400 | 352 | 35（6+29） | 404 | 420 | 96 | EPM-30S |
| FT-EPM-4050Z | 400×520 | 400 | 360 | 520 | 486 | 35（6+29） | 404 | 540 | 120 | EPM-30S |
| FT-EPM-4080Z | 400×810 | 400 | 360 | 810 | 770 | 35（6+29） | 404 | 830 | 192 | EPM-30S |
| FT-EPM-40100Z | 400×1000 | 400 | 360 | 1000 | 948 | 35（6+29） | 404 | 1020 | 240 | EPM-30S |
| FT-EPM-5050Z | 500×520 | 500 | 460 | 520 | 486 | 35（6+29） | 504 | 540 | 150 | EPM-30S |
