Electro-Permanent Magnetic Chuck
Product NO: EEPM-500-800V
Price range: ¥3,772,000 through ¥19,780,000
Specification
Total Chuck Clamping Force:13.1 to 31.2 ton
(Magnetic force per 4 poles:1,250kg）

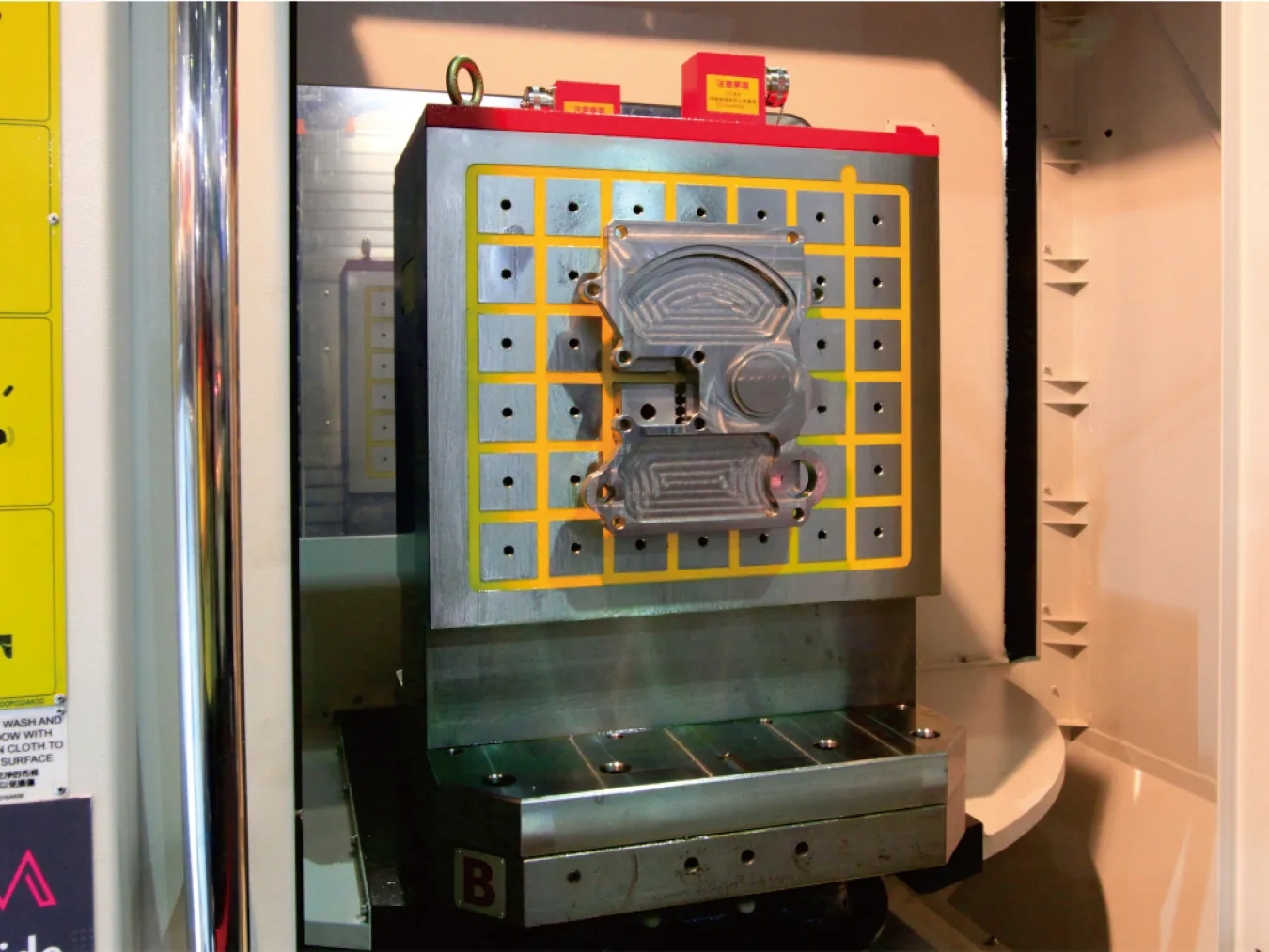

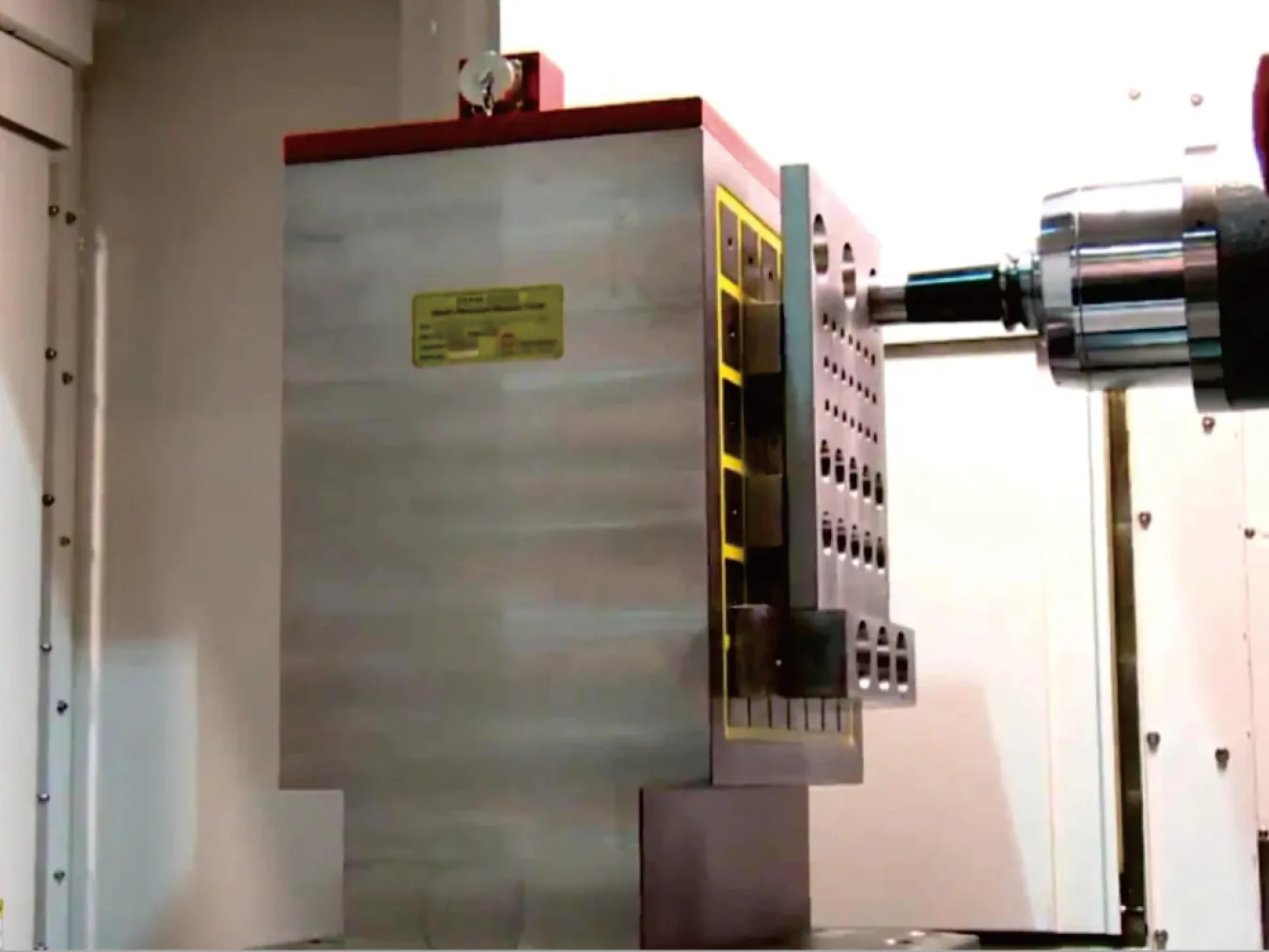

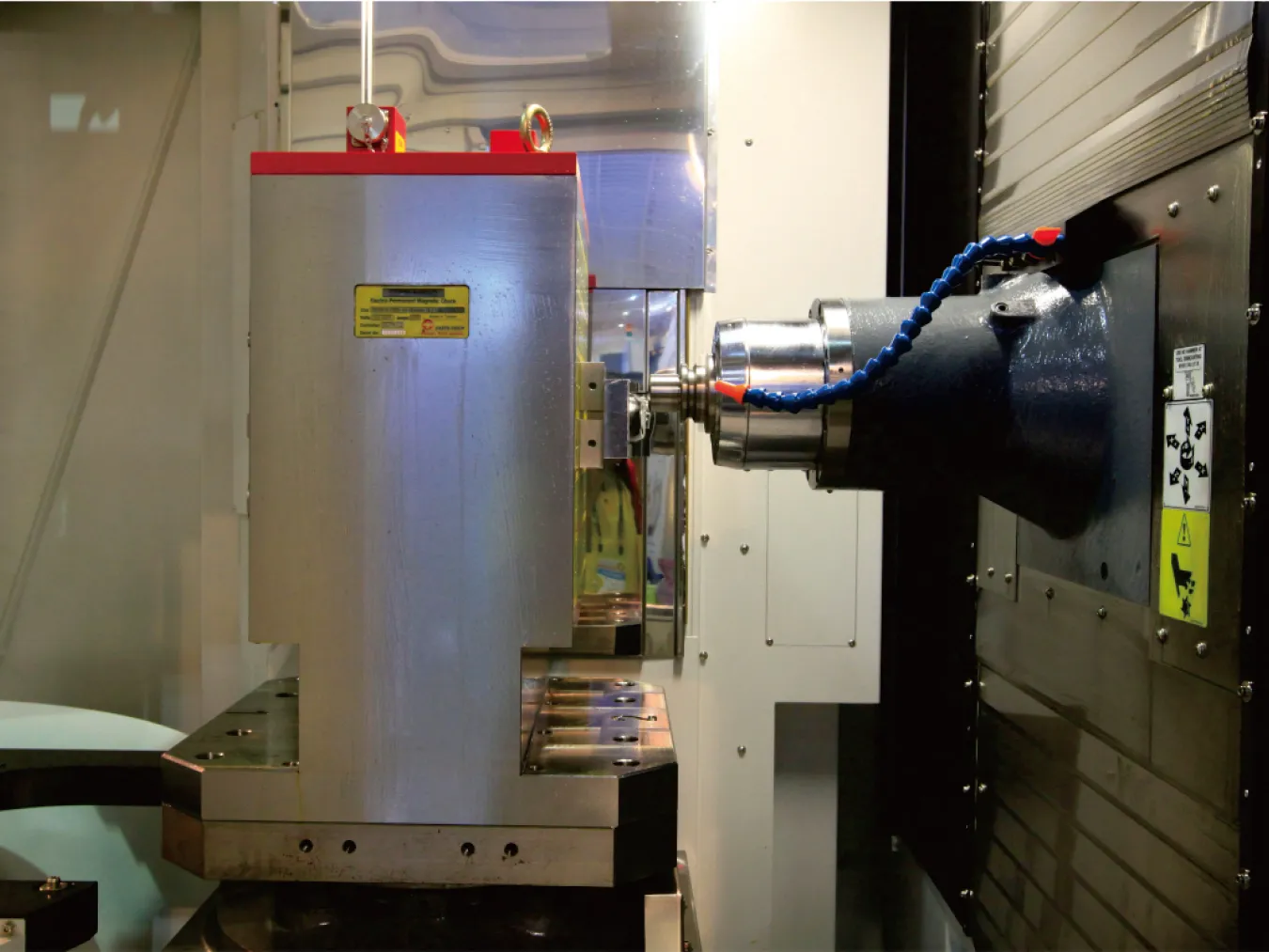

Ideal for machining medium to large-sized workpieces (25 mm or thicker) on horizontal milling machines and horizontal machining centers (HMC).
Product Specifications (Variations)
unit：mm| Product NO | Clamping surface | Pitch | Number of magnetic poles | Total holding power（TON） | weight（kg） | current | Controller (included) |
|---|---|---|---|---|---|---|---|

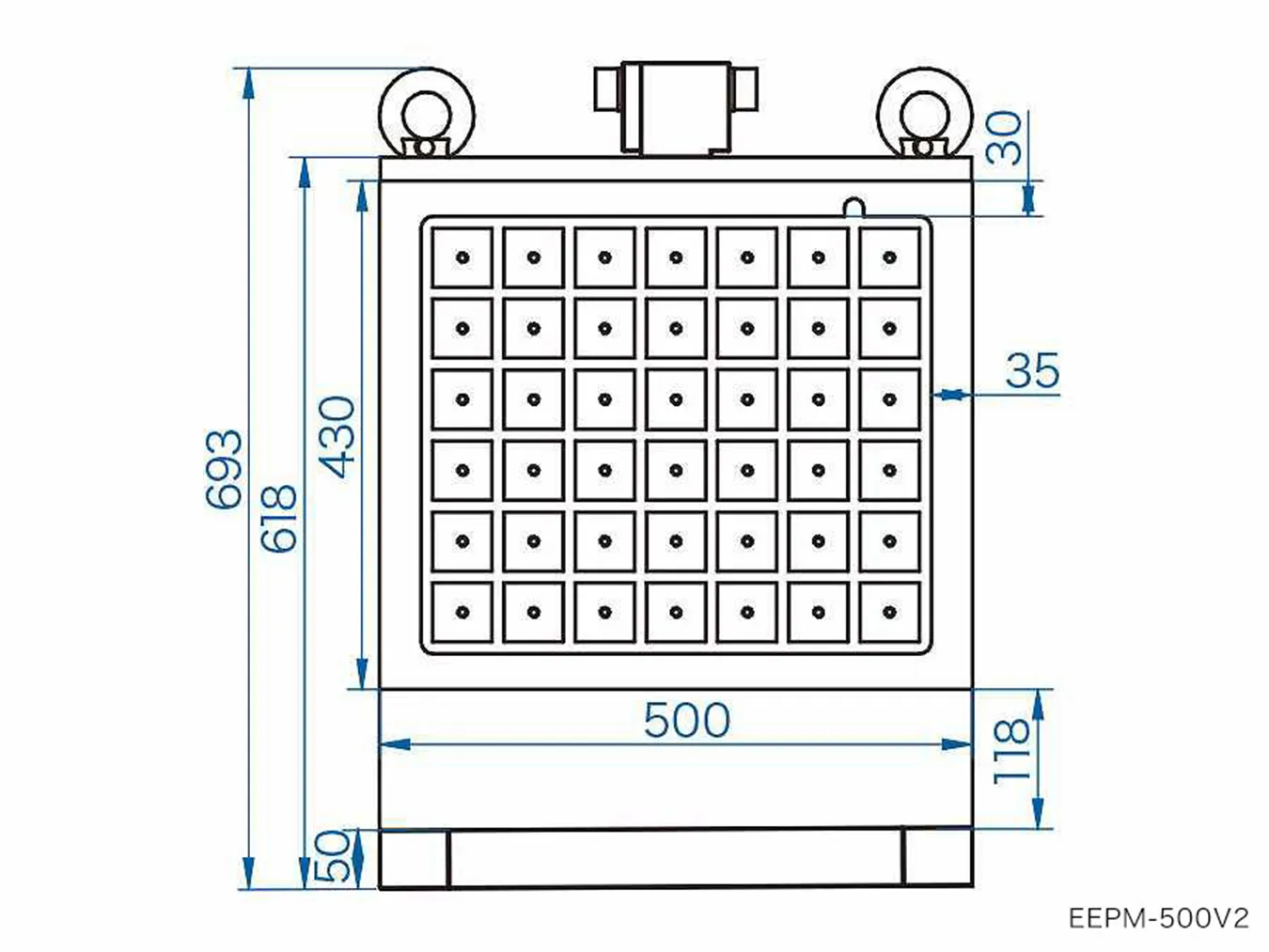

| EEPM-500V2 | 430 × 500 | 10 | ４２magnetic poles × ２sides | 13.1 | 480 | 30A | EEPM-C2 |

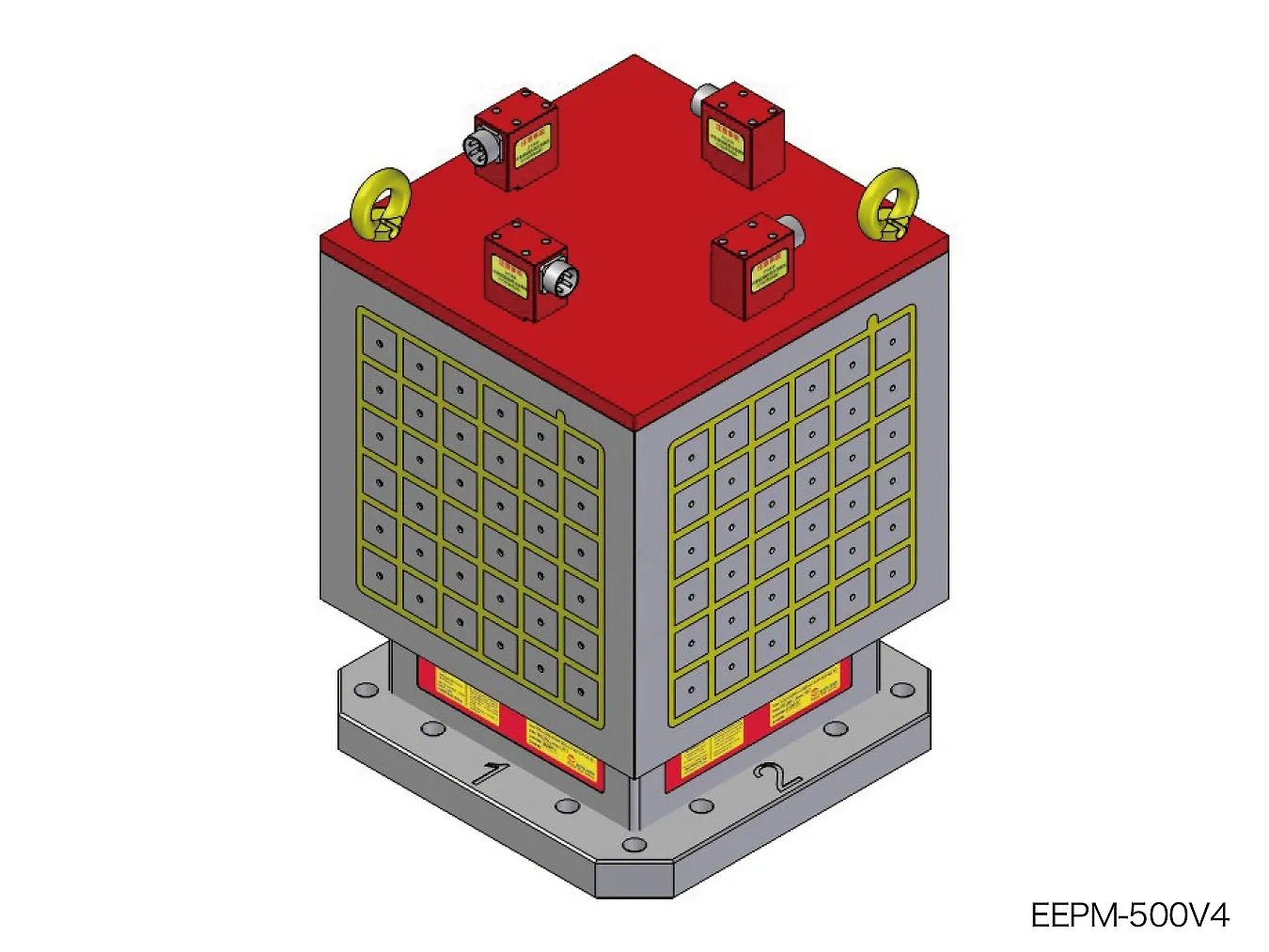

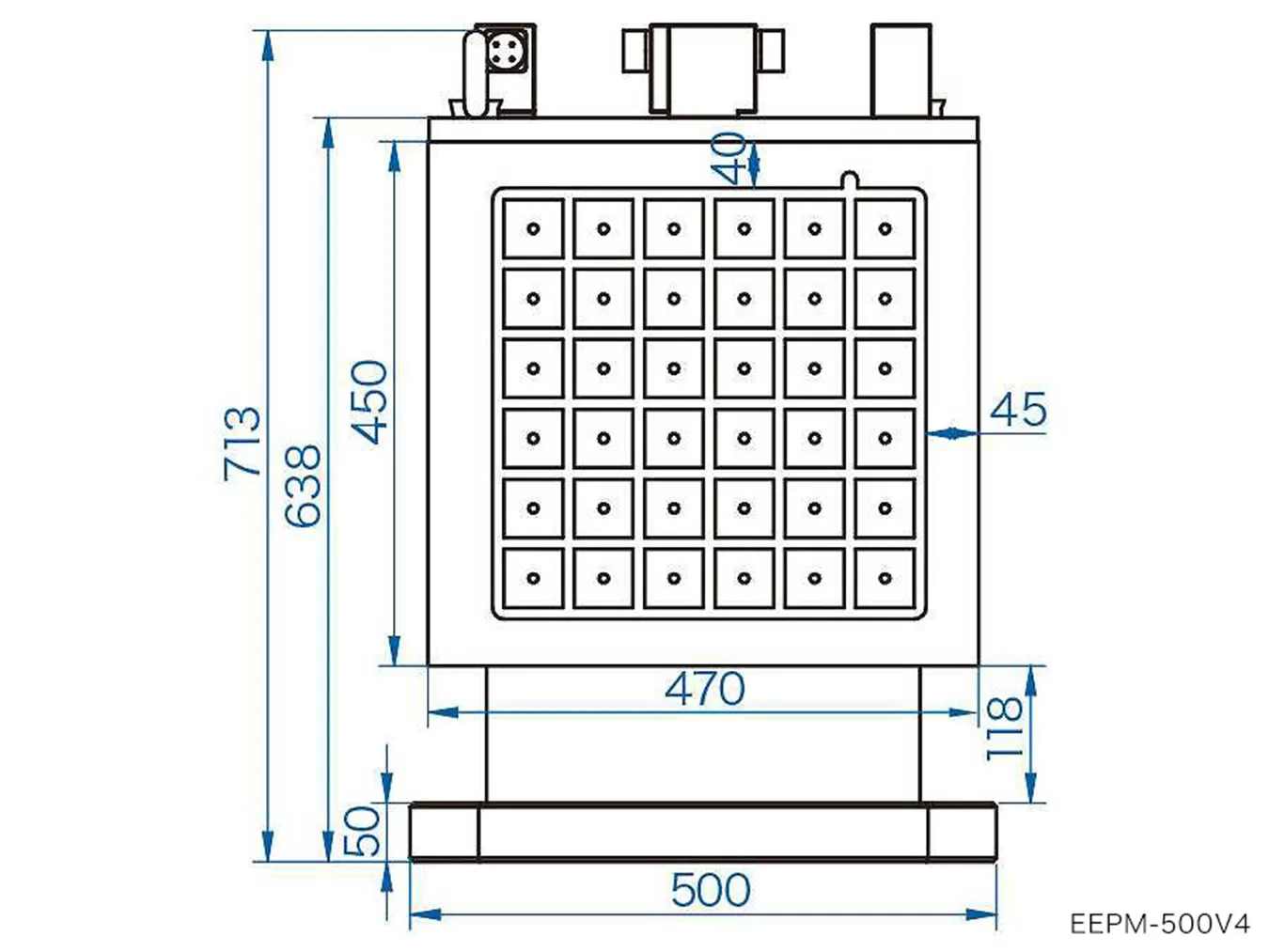

| EEPM-500V4 | 450 × 470 | 10 | ３６magnetic poles × ４sides | 11.2 | 510 | 20A | EEPM-C2 |

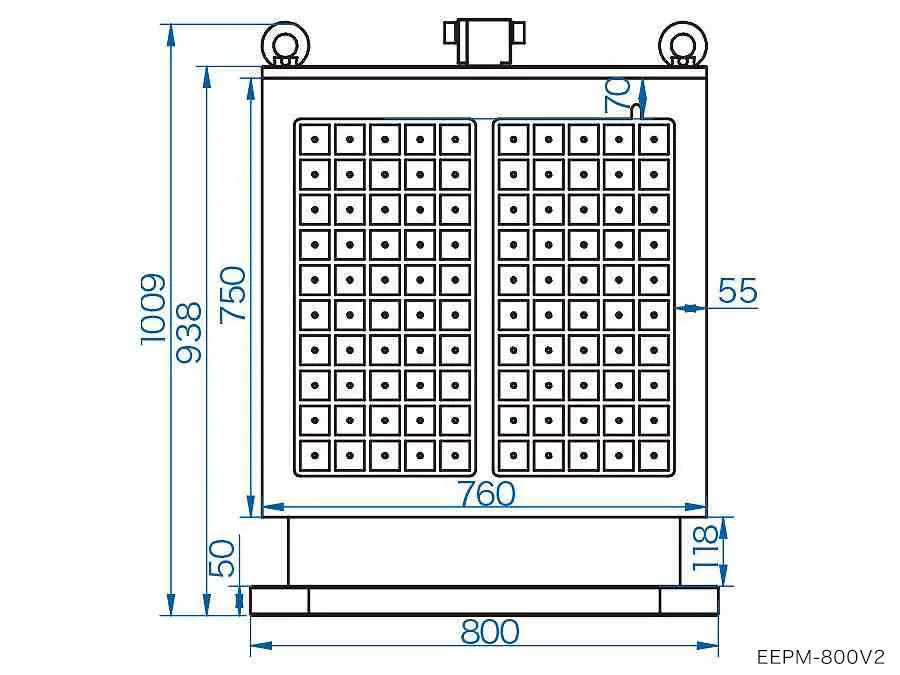

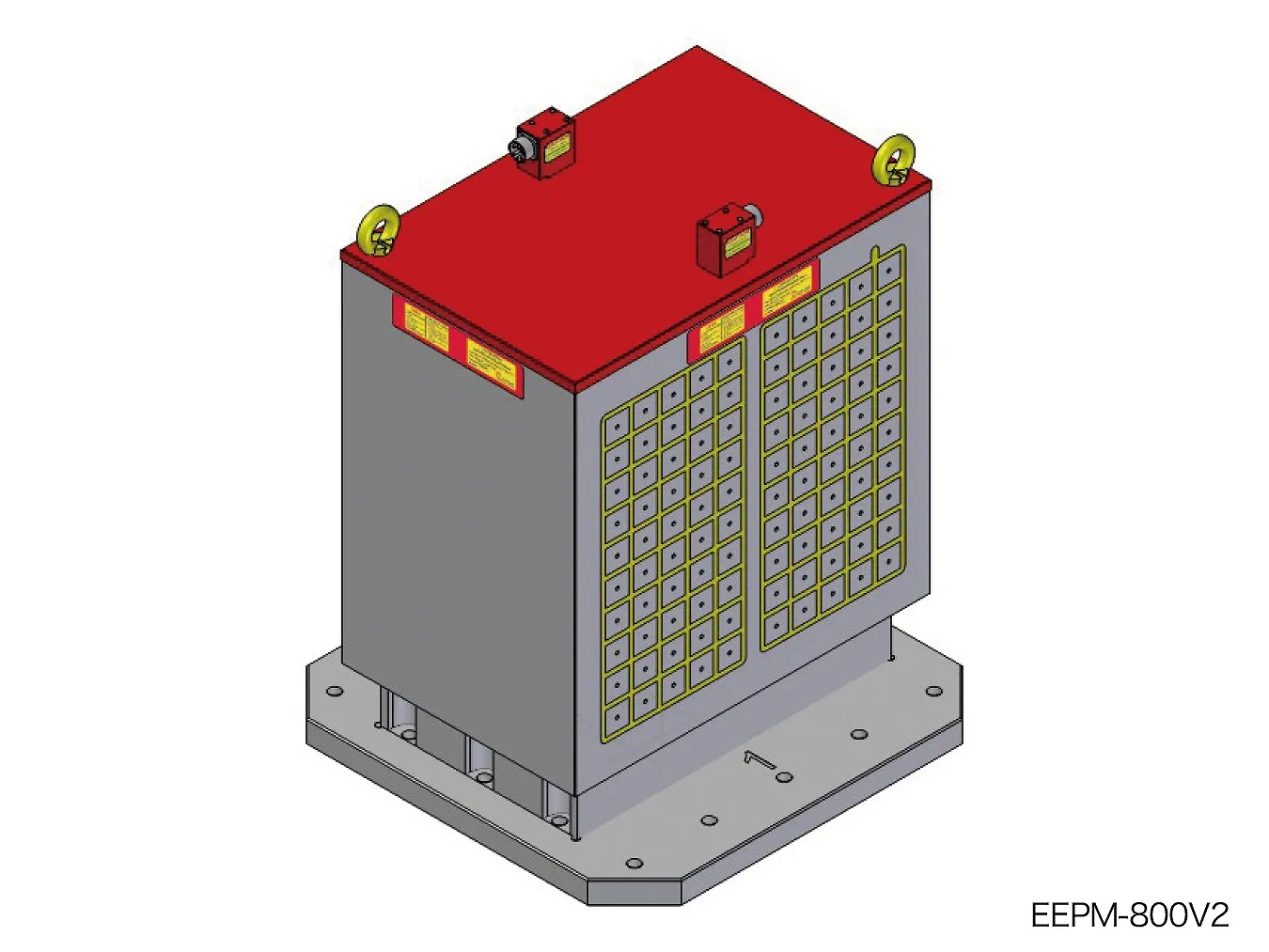

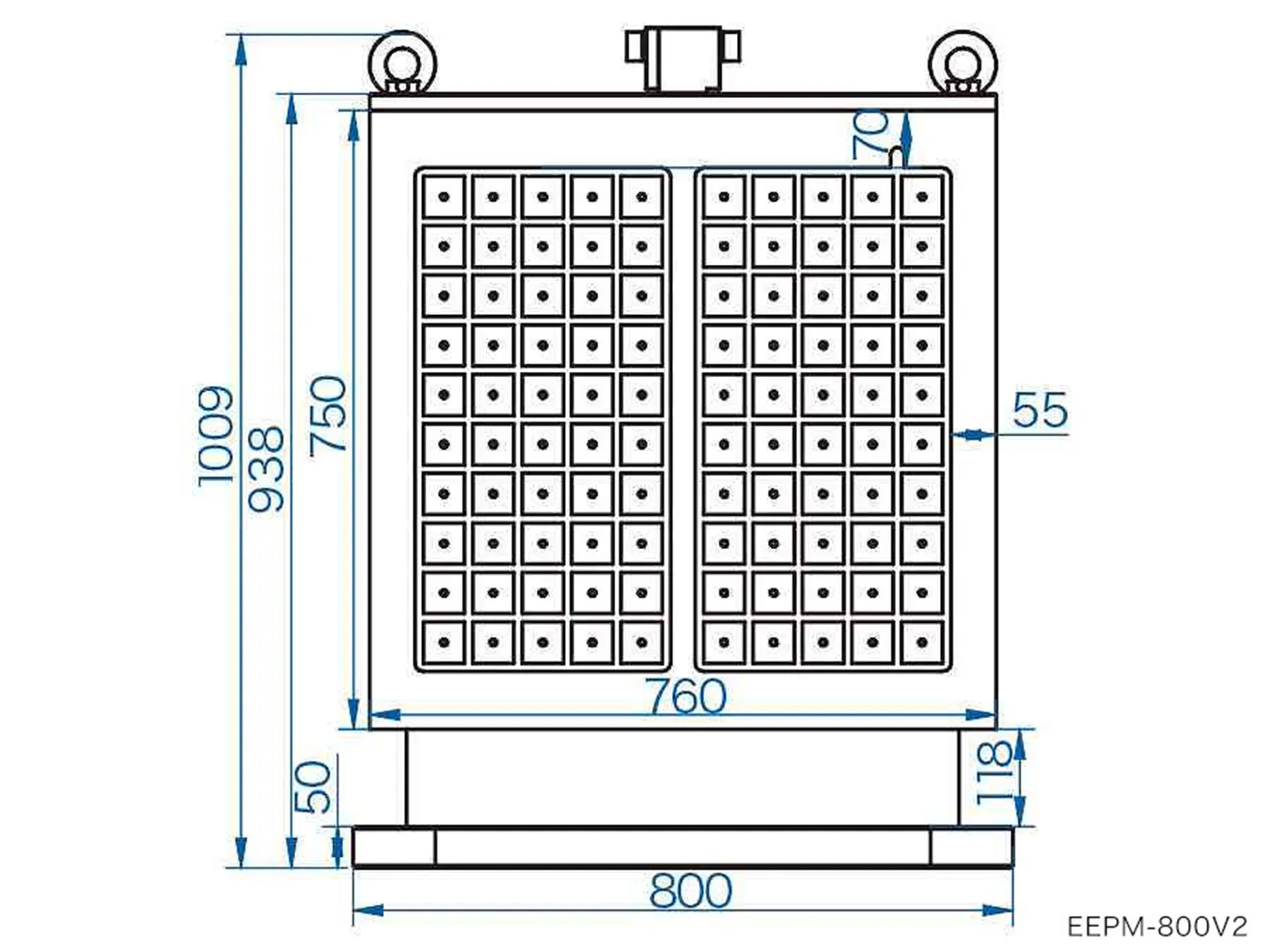

| EEPM-800V2 | 750 × 760 | 10 | １００magnetic poles × ２sides | 31.2 | 760 | 22A | EEPM-C4 |

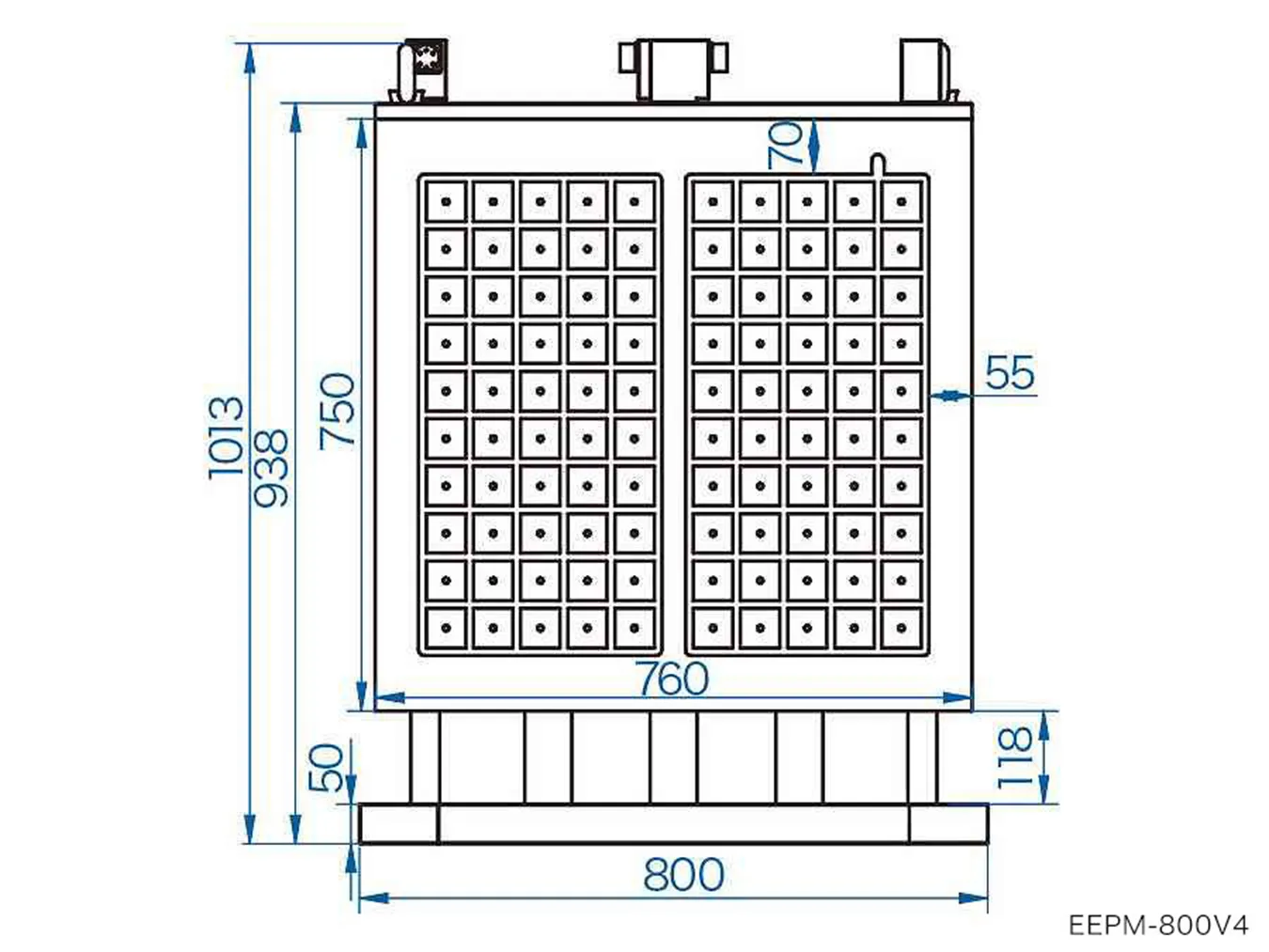

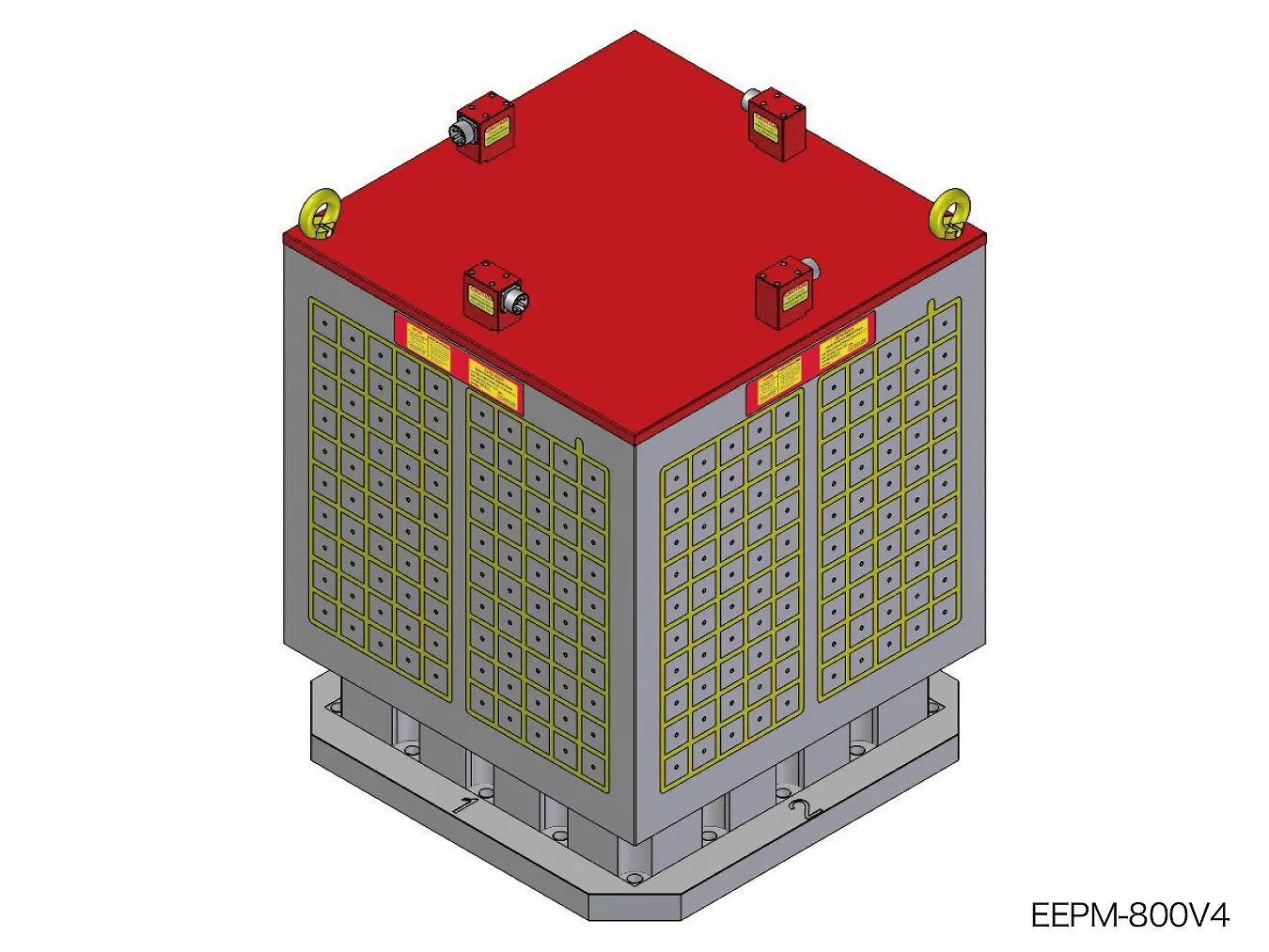

| EEPM-800V4 | 750 × 760 | 10 | １００magnetic poles × ４sides | 31.2 | 810 | 22A | EEPM-C4 |
