Electro-Permanent Magnetic Chuck (Controller included)
Product NO: FT-EPM-B
Quote upon request
Specification
●Designed for grinding applications on surface grinding machines.
●Since power is consumed only during magnetic activation and deactivation, no heat is generated during operation.
●The power cable can be disconnected while the magnetic holding force remains engaged.
●Average holding force: 12 kgf/cm² or greater.
●Waterproof design.
Product Specifications (Variations)

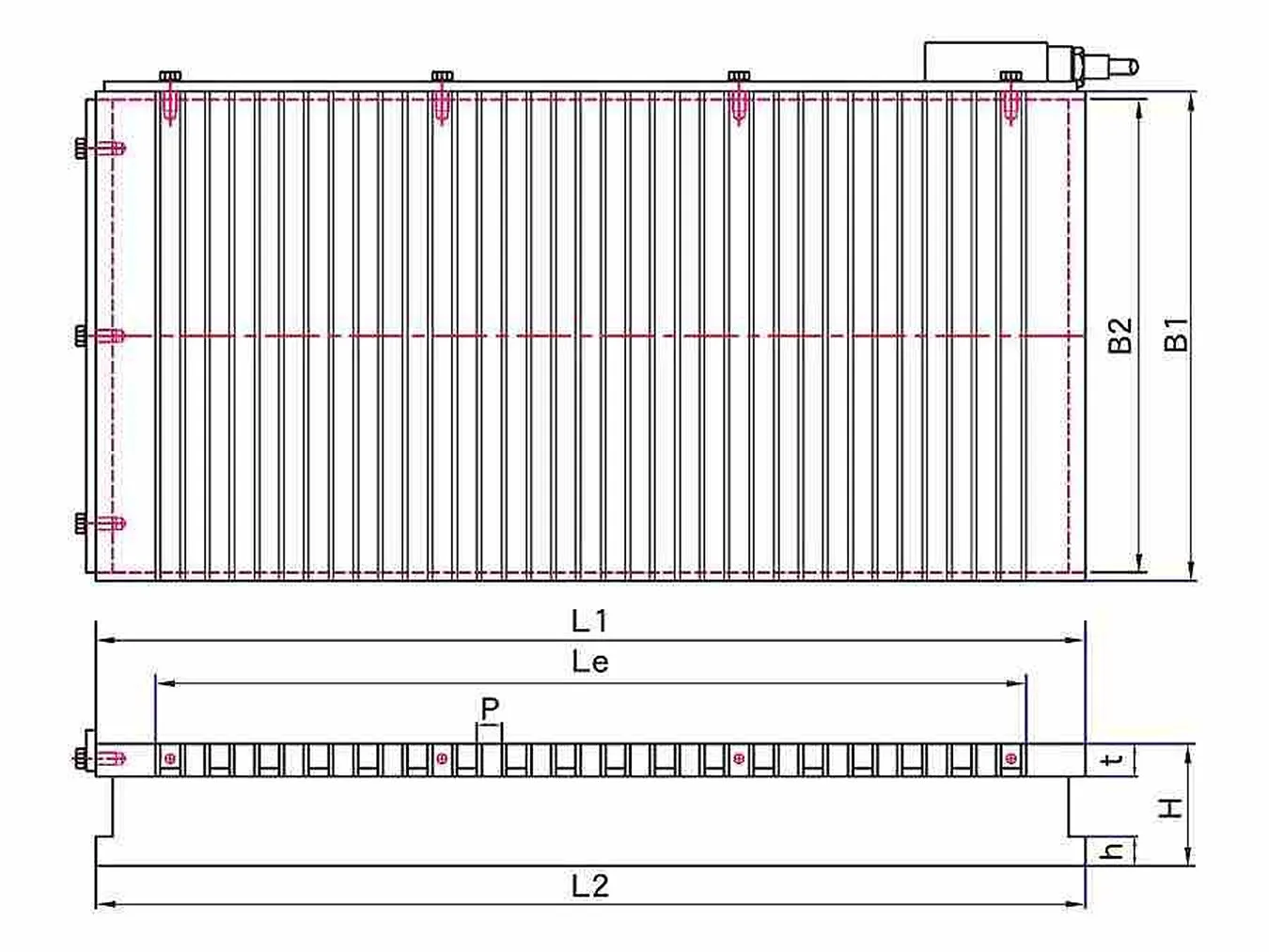

unit：mm| Product NO | Nominal Dimension | B1 | L1 | Le | t | Magnetic PolePitchP | B2 | L2 | h | HeightH | weight（kg） | Controller |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-EPM-1530B | 150×300 | 150 | 300 | 258 | 20 | 15（3+12） | 146 | 300 | 20 | 75 | 20 | EPM-30S |
| FT-EPM-1535B | 150×350 | 150 | 350 | 288 | 20 | 15（3+12） | 146 | 350 | 20 | 75 | 24 | EPM-30S |
| FT-EPM-1540B | 150×400 | 150 | 400 | 348 | 20 | 15（3+12） | 146 | 400 | 20 | 75 | 28 | EPM-30S |
| FT-EPM-1545B | 150×450 | 150 | 450 | 408 | 20 | 15（3+12） | 146 | 450 | 20 | 75 | 30 | EPM-30S |
| FT-EPM-2040B | 200×400 | 200 | 400 | 348 | 20 | 15（3+12） | 196 | 400 | 20 | 75 | 38 | EPM-30S |
| FT-EPM-2045B | 200×450 | 200 | 450 | 408 | 20 | 15（3+12） | 196 | 450 | 20 | 75 | 41 | EPM-30S |
| FT-EPM-2050B | 200×500 | 200 | 500 | 438 | 20 | 15（3+12） | 196 | 500 | 20 | 75 | 45 | EPM-30S |
| FT-EPM-2550B | 250×500 | 250 | 500 | 438 | 20 | 15（3+12） | 240 | 500 | 20 | 75 | 65 | EPM-30S |
| FT-EPM-3060B | 300×600 | 300 | 600 | 528 | 20 | 15（3+12） | 290 | 600 | 20 | 75 | 81 | EPM-30S |
| FT-EPM-4060B | 400×800 | 400 | 800 | 744 | 25 | 19（3+16） | 390 | 800 | 20 | 95 | 195 | EPM-30S |
| FT-EPM-40100B | 400×1000 | 400 | 1000 | 934 | 25 | 19（3+16） | 390 | 1000 | 20 | 95 | 245 | EPM-30S |
| FT-EPM-50100B | 500×1000 | 500 | 1000 | 934 | 25 | 19（3+16） | 490 | 1000 | 20 | 95 | 305 | EPM-30S |
| FT-EPM-50150B | 500×1500 | 500 | 1500 | 1428 | 25 | 19（3+16） | 490 | 1500 | 20 | 95 | 457 | EPM-30S |
| FT-EPM-60150B | 600×1500 | 600 | 1500 | 1428 | 25 | 19（3+16） | 590 | 1500 | 20 | 95 | 550 | EPM-30S |
